Heater and Air Conditioning Control Replacement
WARNING: This page is about a different car, the 2010 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

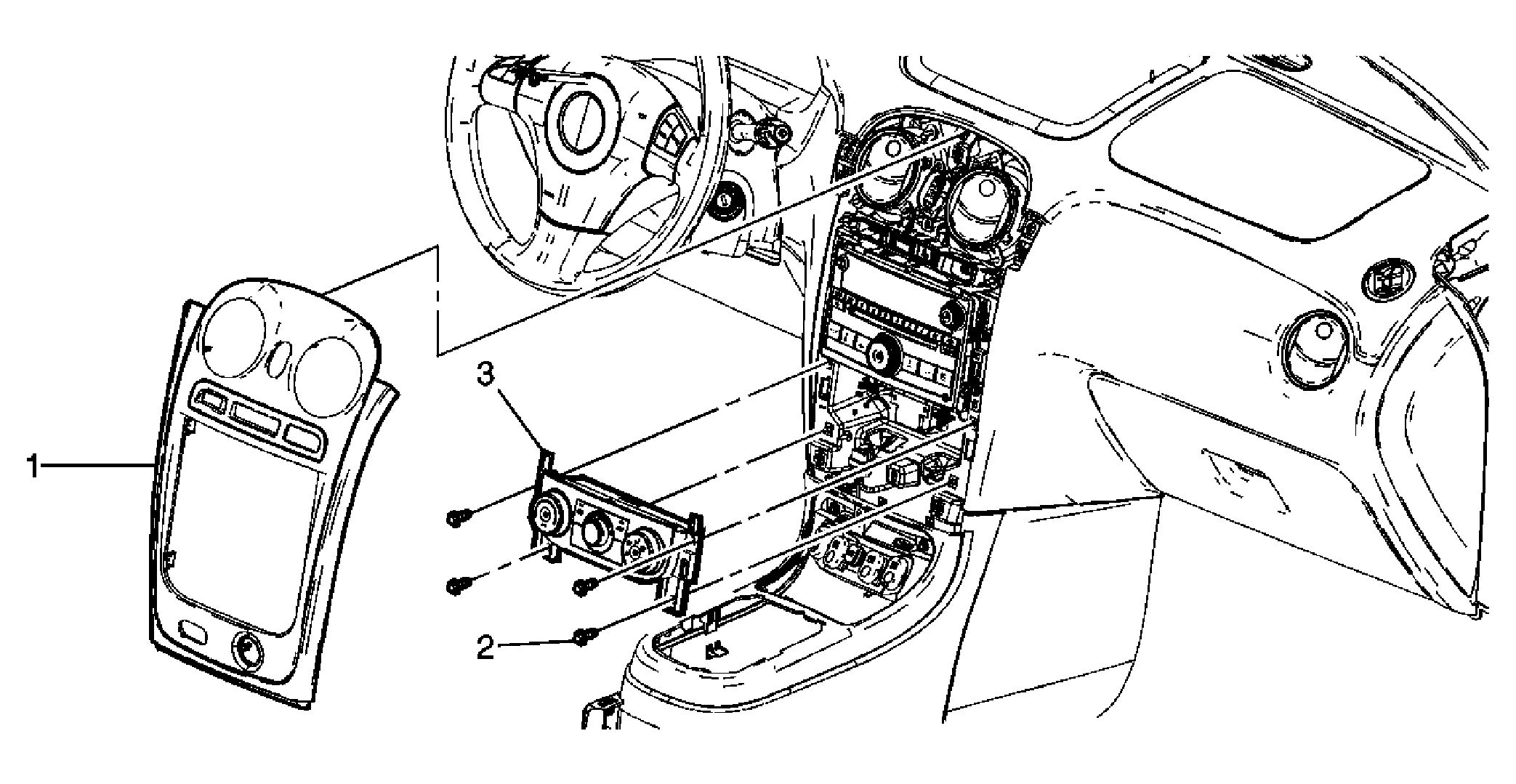

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel (I/P) Accessory Trim Plate Procedure: Remove the accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement . |
| 2 | HVAC Control Module Screw (Qty: 4)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2.5 N.m (22 lb in) |
| 3 | HVAC Control Module |
