Moveable Window Schematics

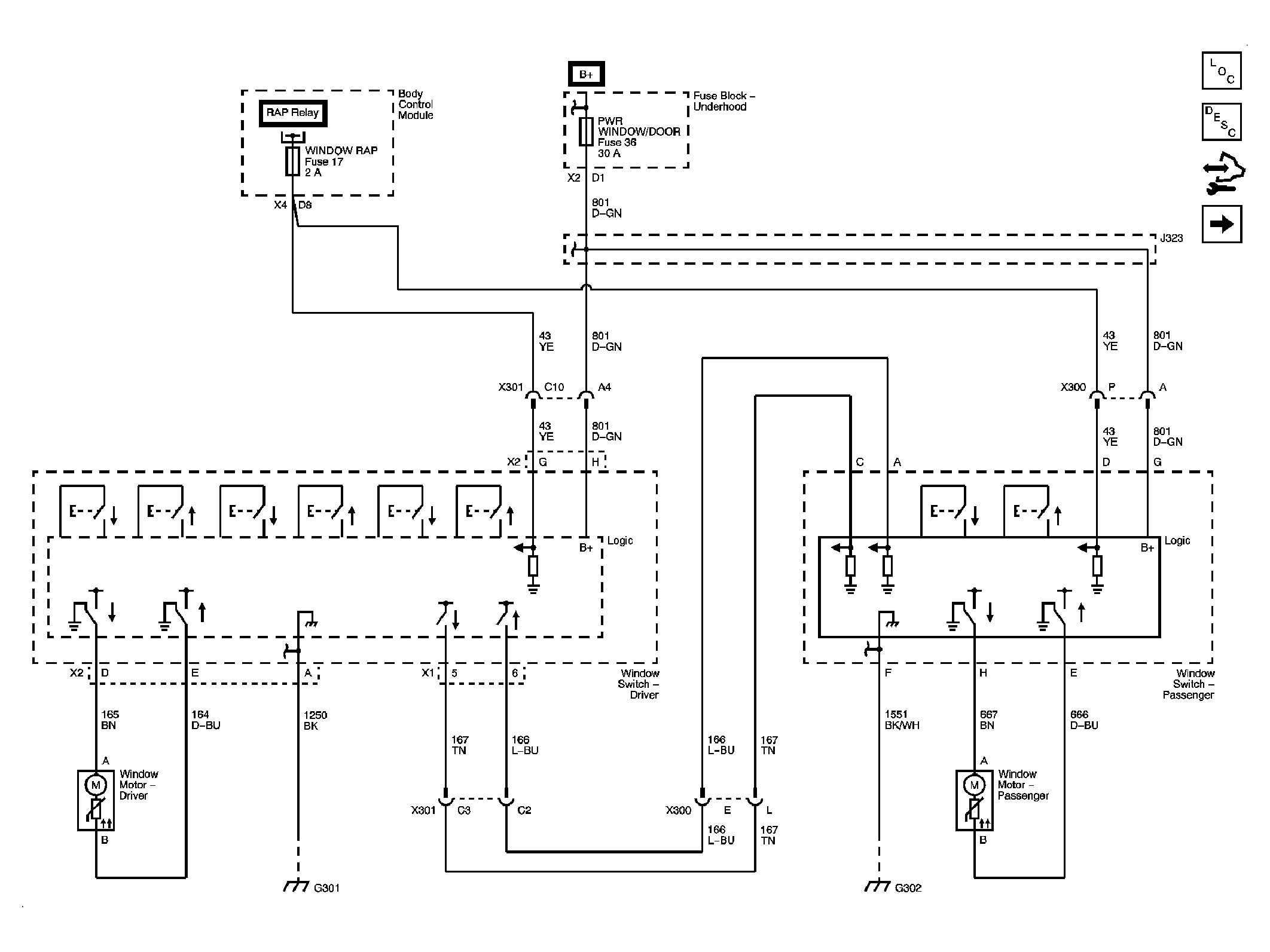

Fig 1: Front Moveable Window Circuit Schematic

GM2094761

Courtesy of GENERAL MOTORS CORP.

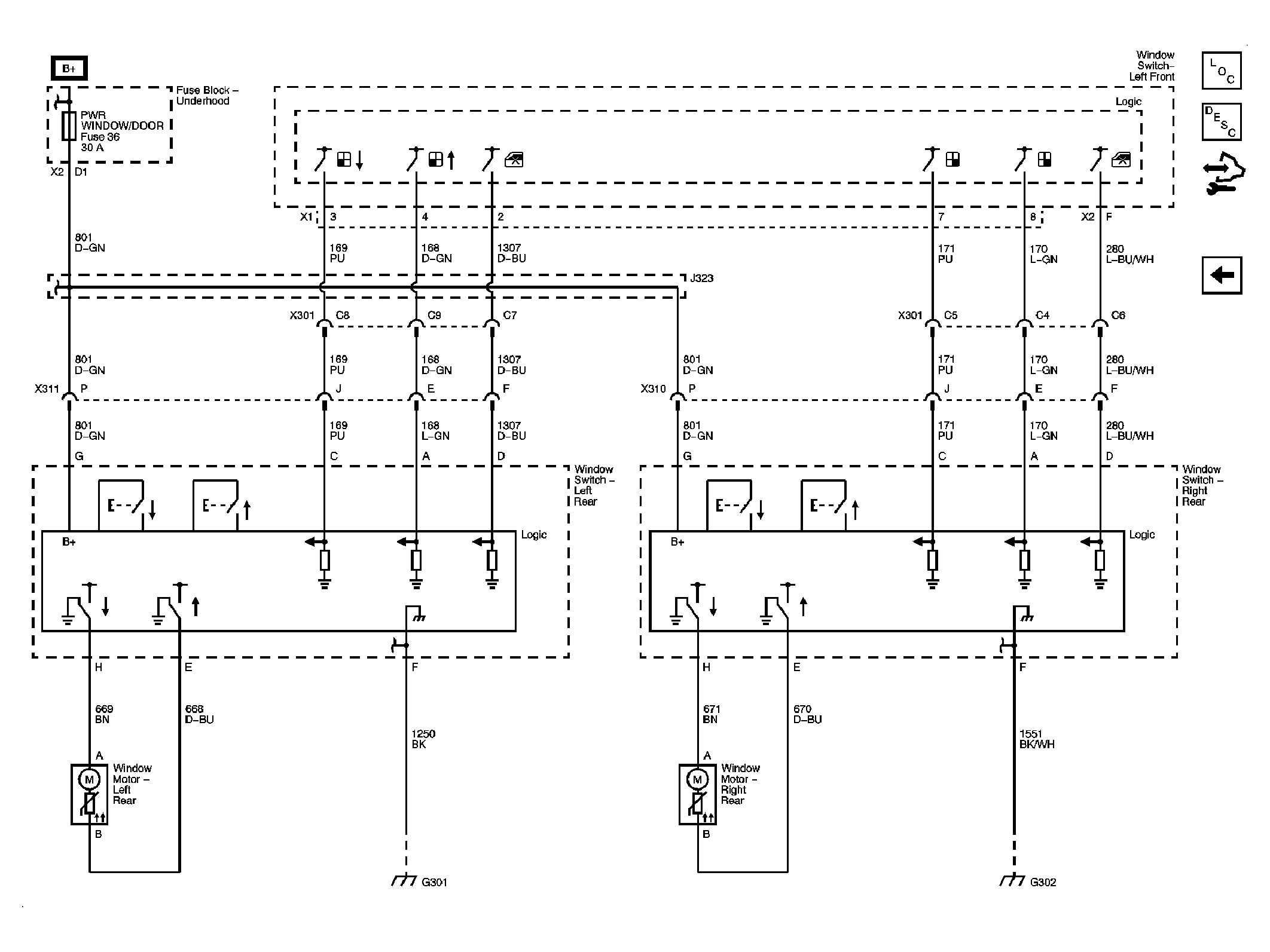

Fig 2: Rear Moveable Window Circuit Schematic

GM2094766

Courtesy of GENERAL MOTORS CORP.
