Moveable Window Schematics

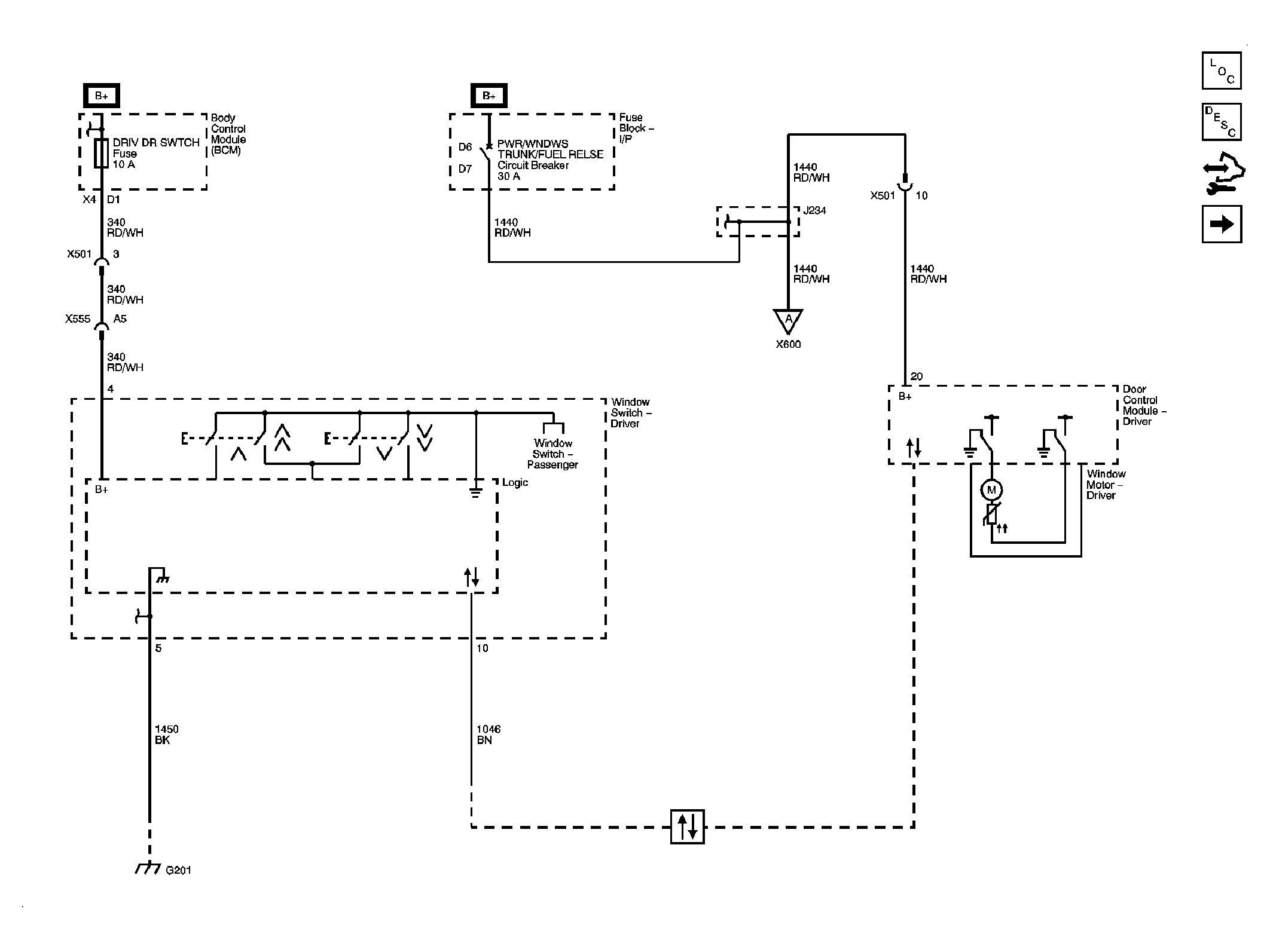

Fig 1: Driver Moveable Window Circuit Schematic

GM2053943

Courtesy of GENERAL MOTORS CORP.

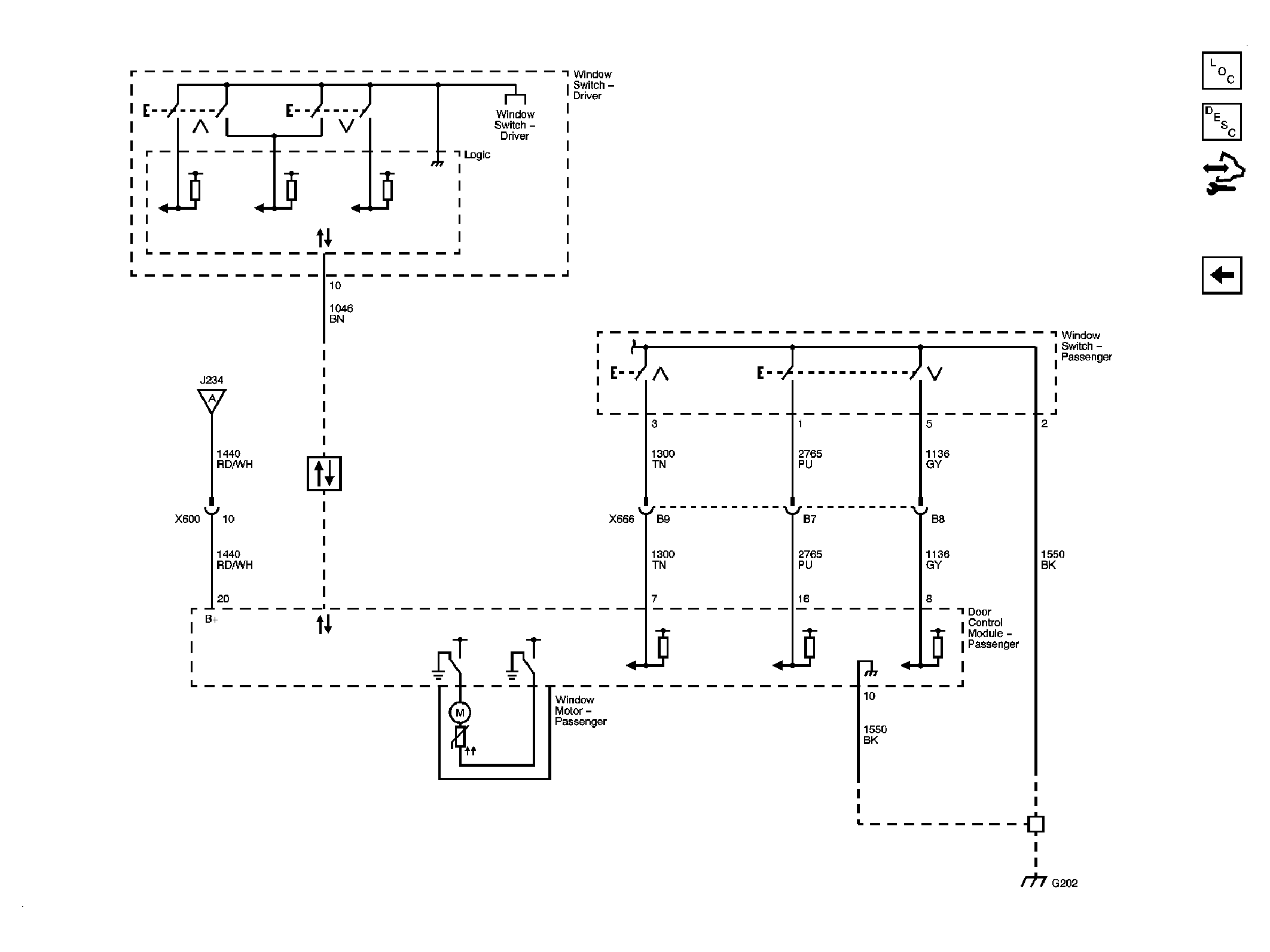

Fig 2: Passenger Moveable Window Circuit Schematic

GM2053946

Courtesy of GENERAL MOTORS CORP.
