Home >> Chevrolet >> 2009 >> Corvette Base, 2D Convertible, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Memory Modules >> Secondary And Configurable Customer Controls >> Schematic and Routing Diagrams >> Steering Wheel Secondary/Configurable Control Schematics

Steering Wheel Secondary/Configurable Control Schematics

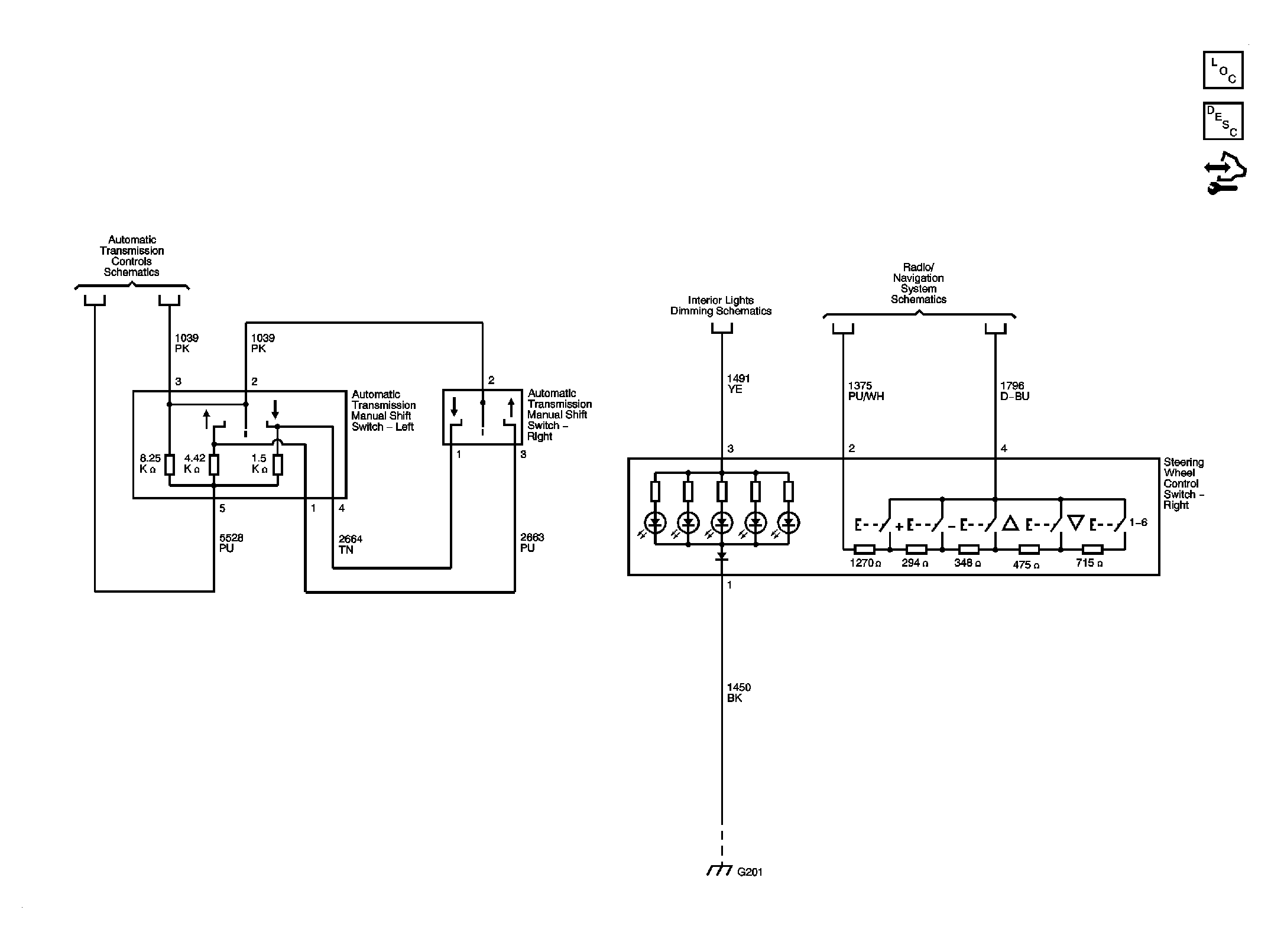

Fig 1: Steering Wheel Secondary/Configurable Control Circuit Schematic

GM2053648

Courtesy of GENERAL MOTORS CORP.
