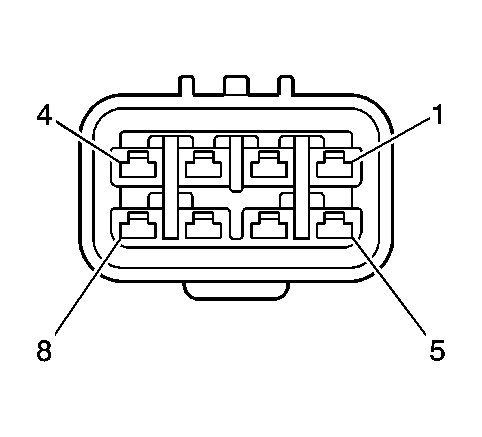

Fuel Pump Flow Control Module Relay X2 (LS9)
Courtesy of GENERAL MOTORS CORP. Fuel Pump Flow Control Module Relay X2 (LS9)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.8 D-BU |
5122 |
High Voltage High PWM Signal |
| 2 |
0.8 WH/BK |
5123 |
High Voltage Low PWM Signal |
| 3 |
0.35 D-GN |
7493 |
High Speed GMLAN Serial Data (+) (3) |
| 4 |
0.35 L-GN |
7494 |
High Speed GMLAN Serial Data (-) (3) |
| 5 |
0.8 PK |
839 |
Ignition Voltage |
| 6-8 |
- |
- |
Not Used |
Connector Part Information
- OEM: 965601-1
- Service: See Catalog
- Description: 6-Way F
|
Terminal Part Information
- Terminal/Tray: See Terminal Repair Kit
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
