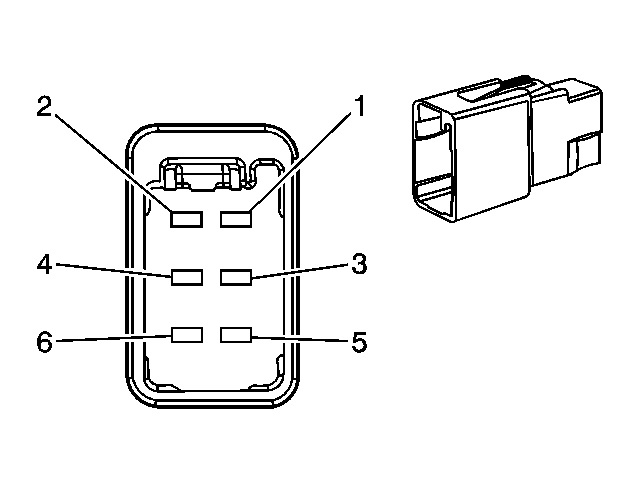

Fuel Pump Flow Control Module Relay X1 (LS9)
Courtesy of GENERAL MOTORS CORP. Fuel Pump Flow Control Module Relay X1 (LS9)
| Pin |
Wire |
Circuit |
Function |
| 1 |
- |
- |
Not Used |
| 2 |
3.0 D-GN |
999 |
Phase 3 |
| 3 |
3.0 RD/WH |
1940 |
Battery Positive Voltage |
| 4 |
3.0 L-BU |
998 |
Phase 2 |
| 5 |
3.0 BK |
650 |
Ground |
| 6 |
3.0 RD |
997 |
Phase 1 |
Connector Part Information
- OEM: 772-716-501
- Service: See Catalog
- Description: 6-Way F
|
Terminal Part Information
- Terminal/Tray: See Terminal Repair Kit
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
