Power Moding Schematics

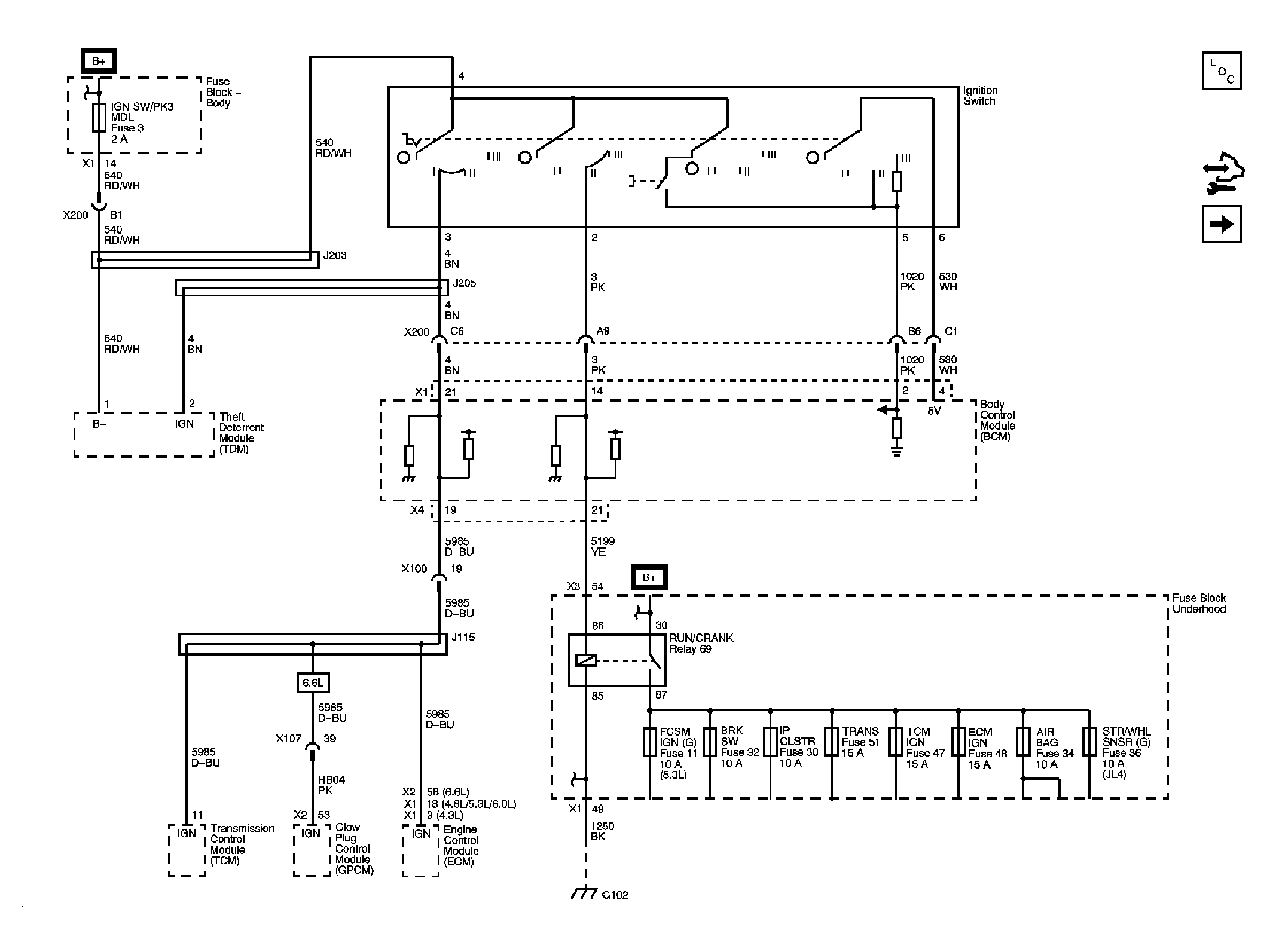

Fig 1: Power Modes RUN/CRANK and Serial Data Wake-Up Schematic
GM2080941Courtesy of GENERAL MOTORS CORP.
Fig 2: Power Modes RAP and RUN Schematic
GM2080945Courtesy of GENERAL MOTORS CORP.
Fig 3: Power Modes Serial Data Enable Schematic
GM2080947Courtesy of GENERAL MOTORS CORP.
