Engine Controls Schematics

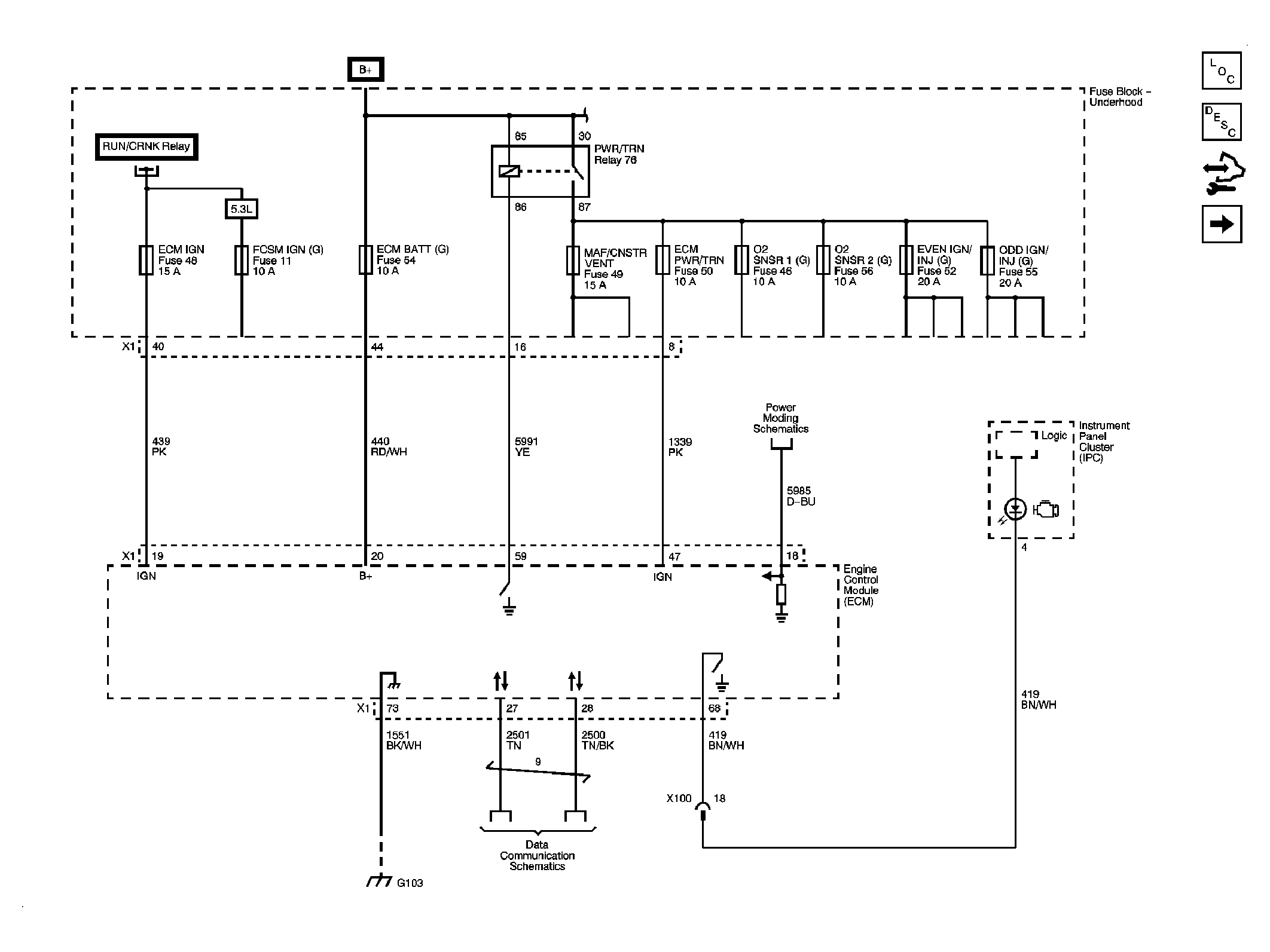

Fig 1: Module Power, Ground, Serial Data and MIL Schematic

Courtesy of GENERAL MOTORS CORP.

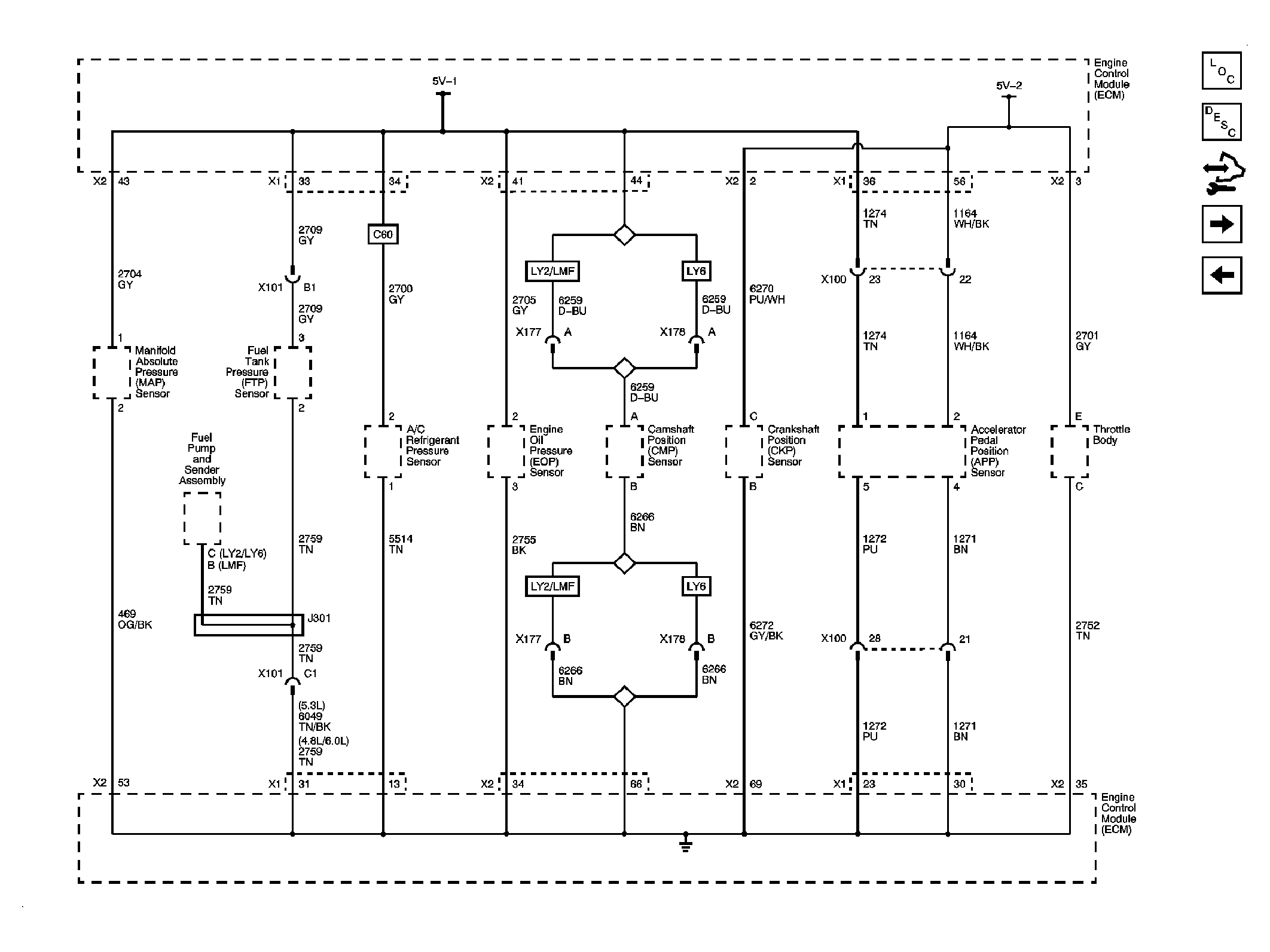

Fig 2: Engine Data Sensors - 5-Volt and Low Reference Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Engine Data Sensors - Pressure, Temperature and Position Schematic

Courtesy of GENERAL MOTORS CORP.

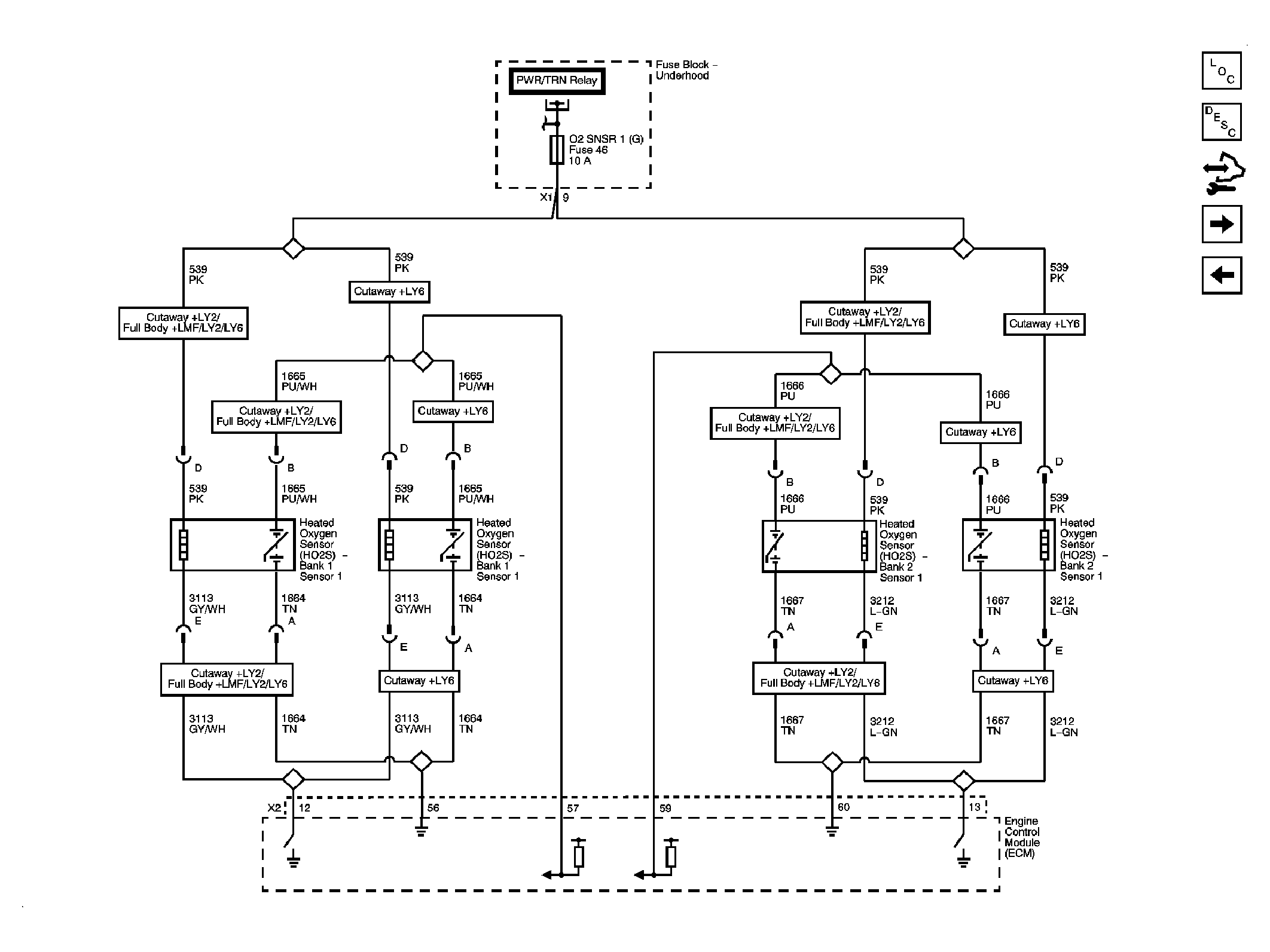

Fig 4: Engine Data Sensors - Oxygen Sensors Schematic (1 of 2)

Courtesy of GENERAL MOTORS CORP.

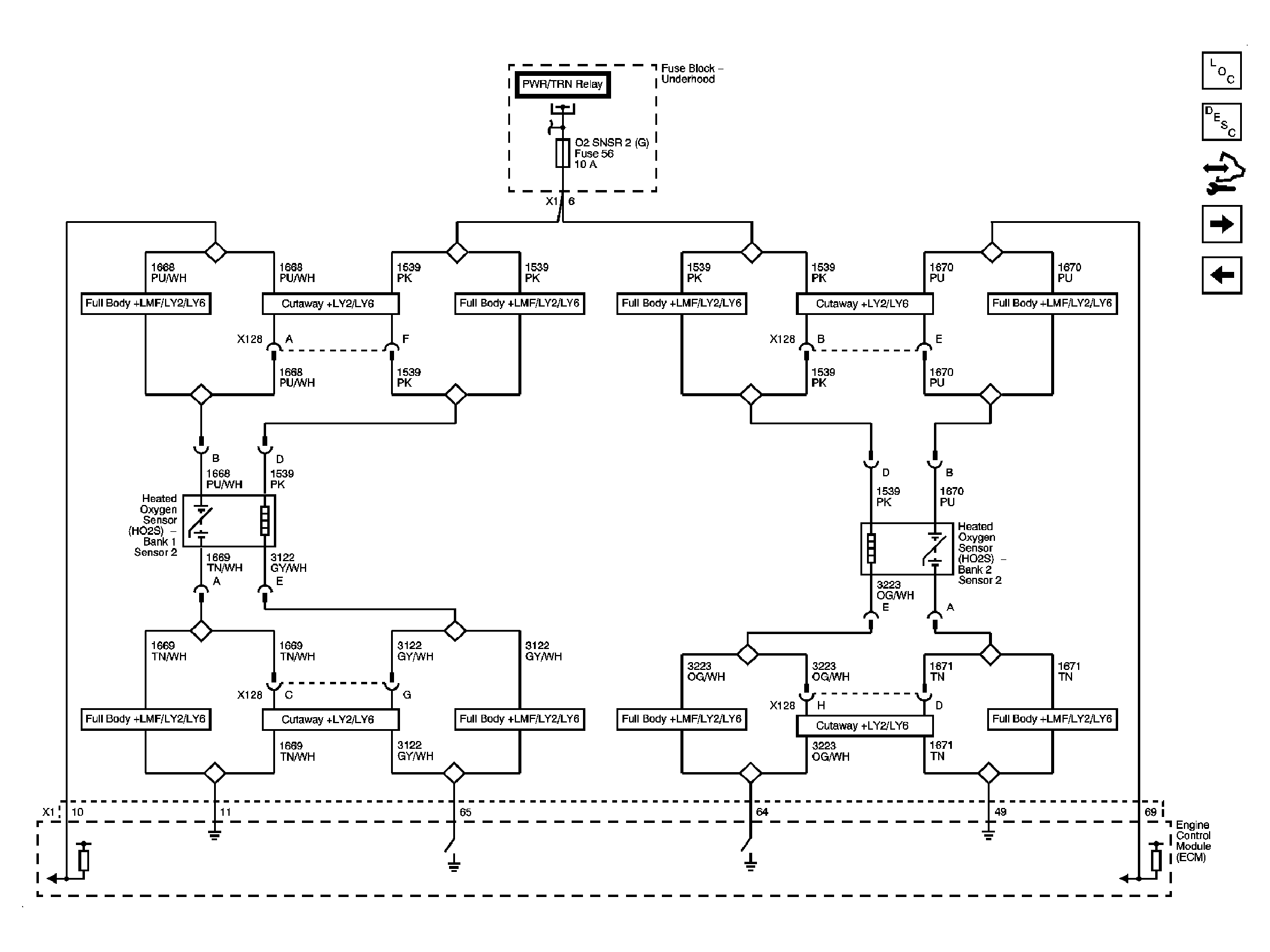

Fig 5: Engine Data Sensors - Oxygen Sensors Schematic (2 of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Throttle Controls Schematic

Courtesy of GENERAL MOTORS CORP.

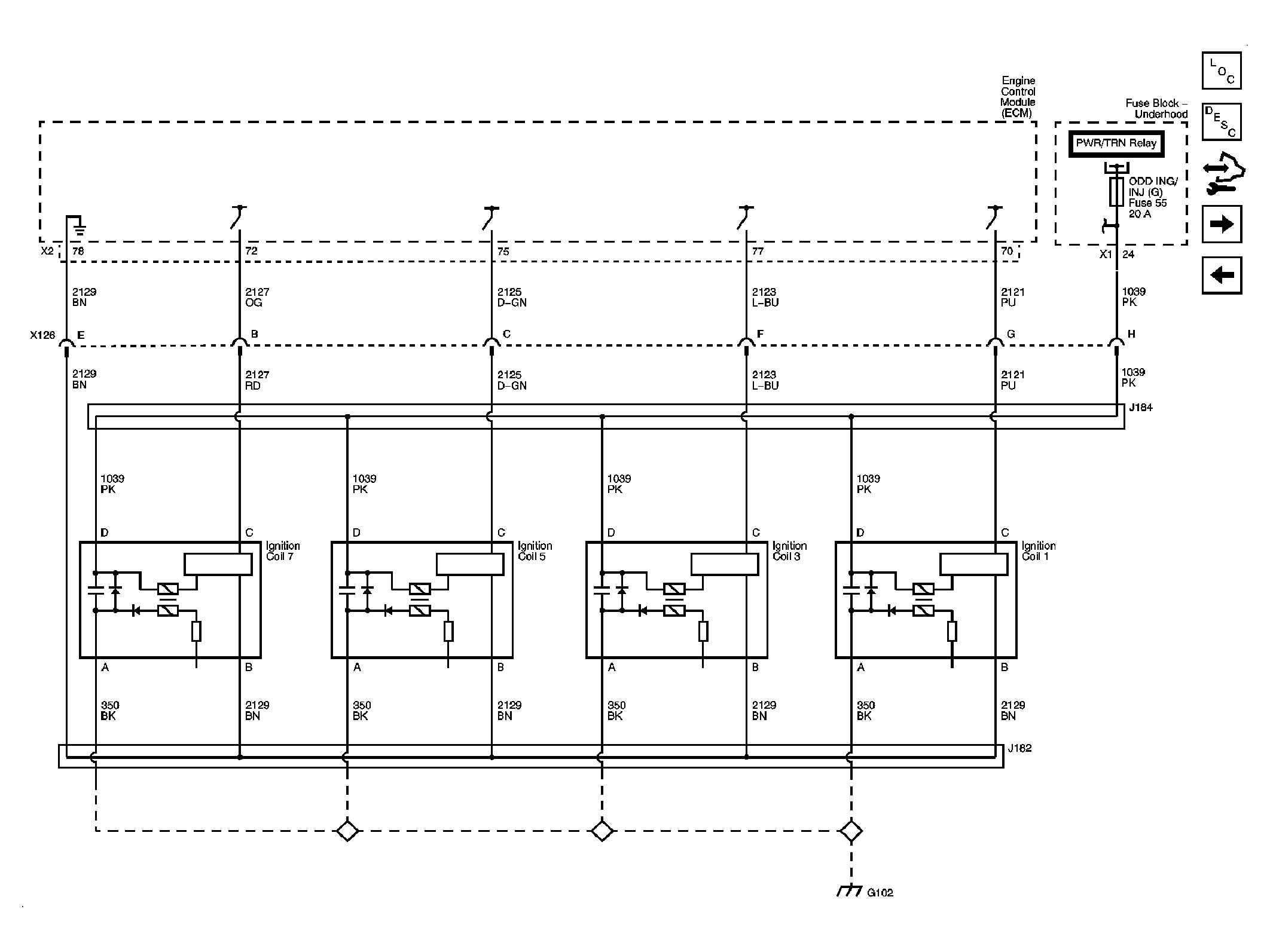

Fig 7: Bank 1 Ignition Coils Schematic

Courtesy of GENERAL MOTORS CORP.

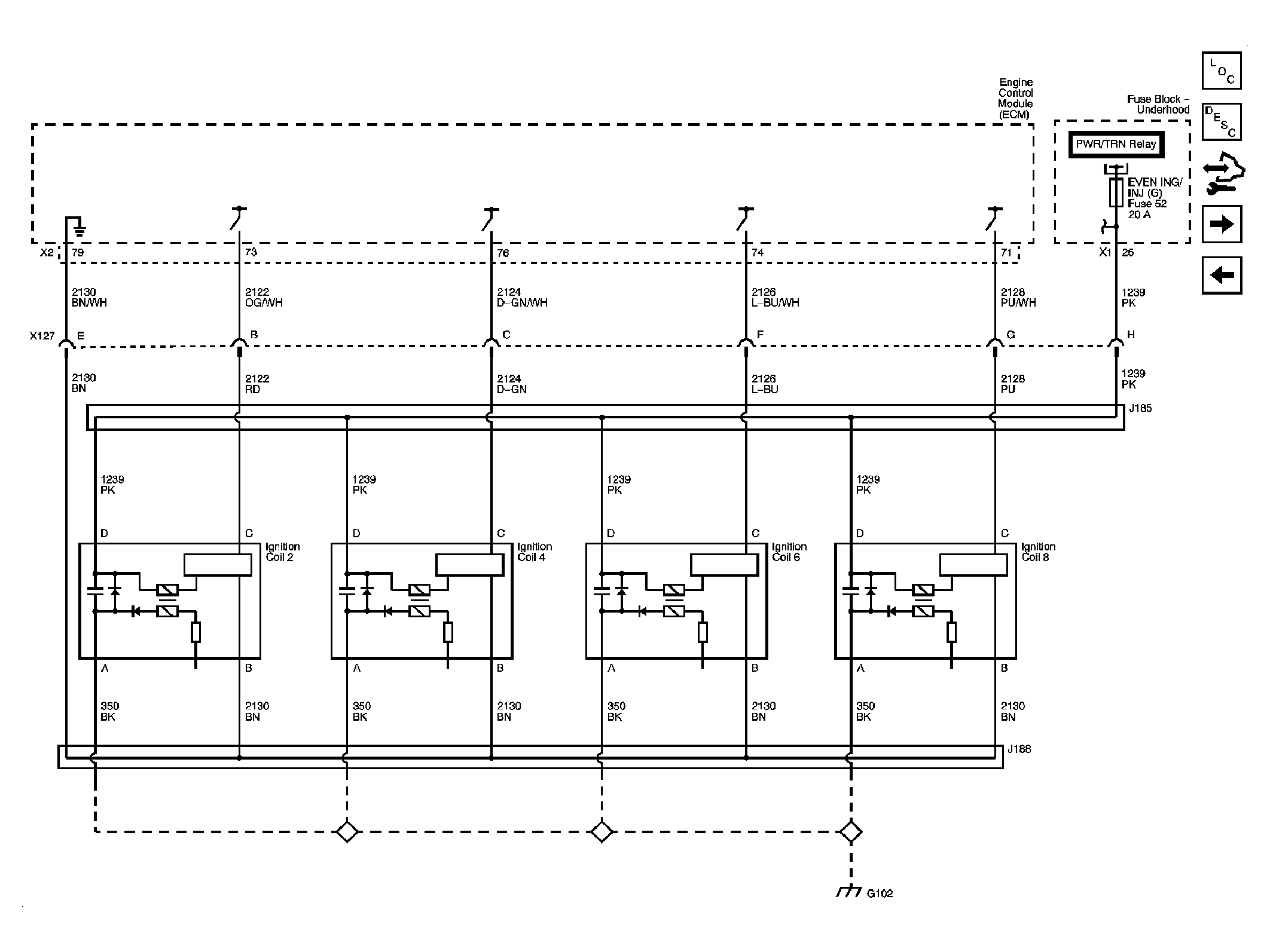

Fig 8: Bank 2 Ignition Coils Schematic

Courtesy of GENERAL MOTORS CORP.

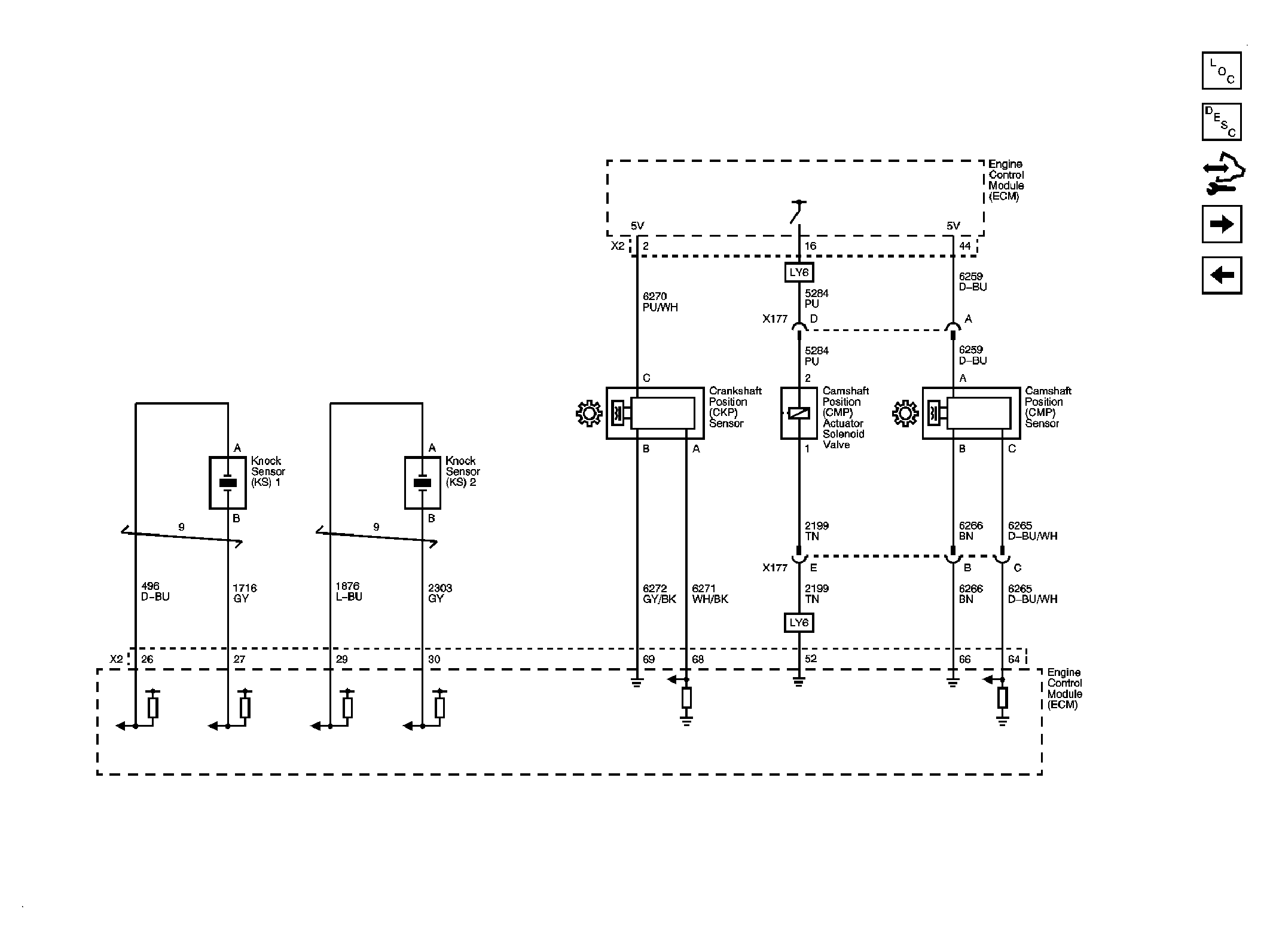

Fig 9: Ignition Controls - CKP, CMP and Knock Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

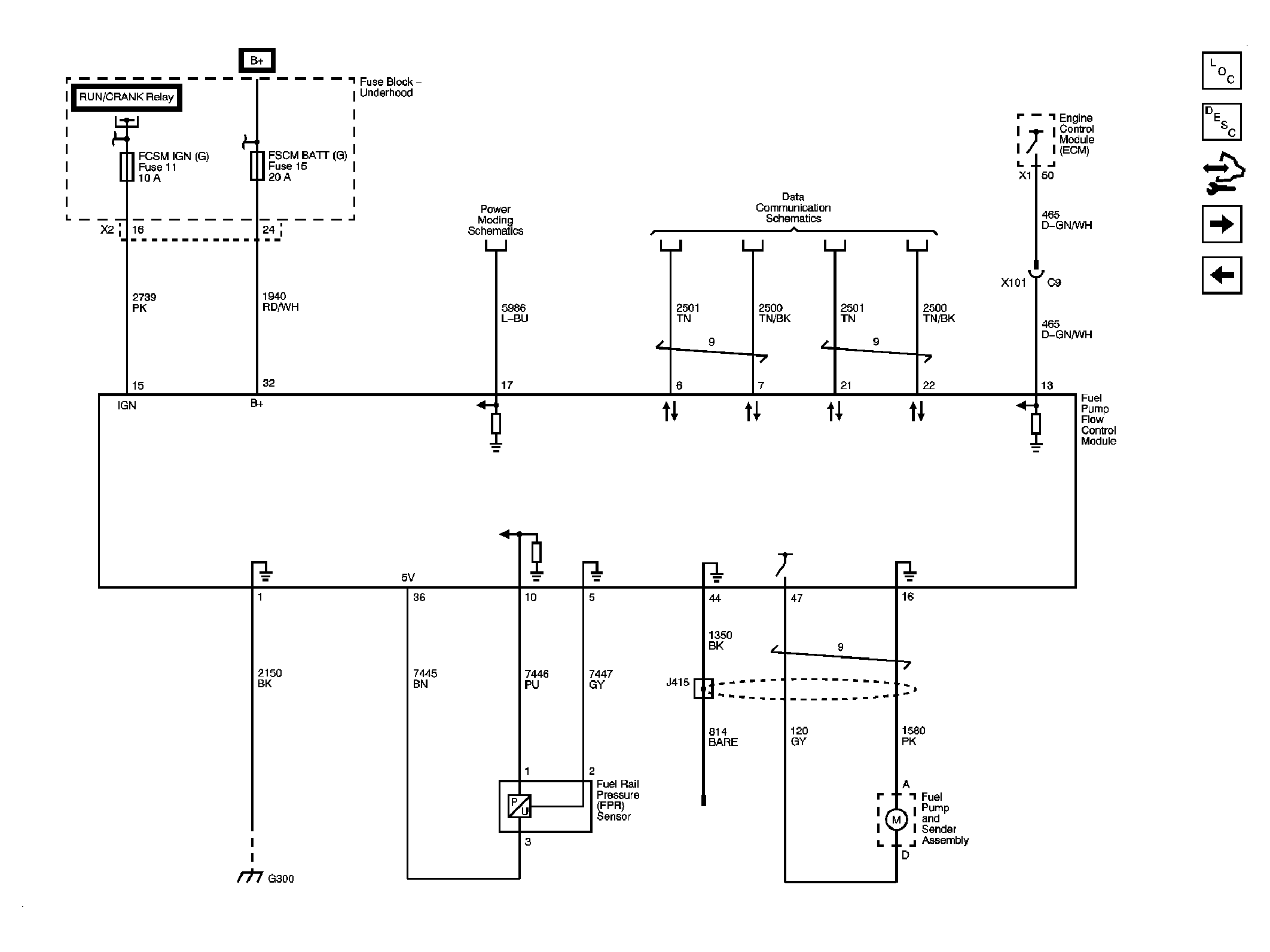

Fig 10: Fuel Pump Flow Control Module 5.3L Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 11: Fuel Controls - Fuel Pump Controls Schematic

Courtesy of GENERAL MOTORS CORP.

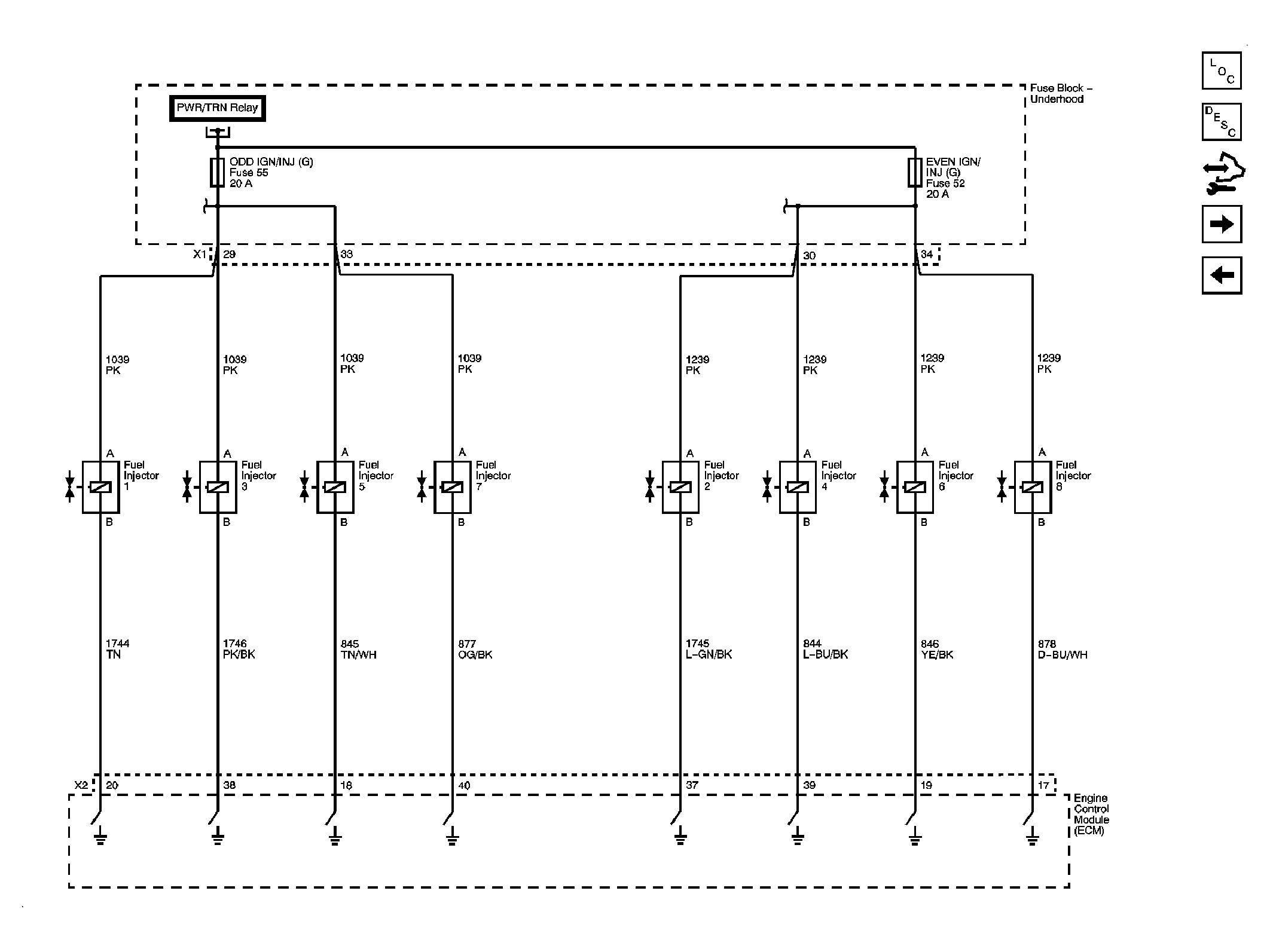

Fig 12: Fuel Controls - Fuel Injectors Schematic

Courtesy of GENERAL MOTORS CORP.

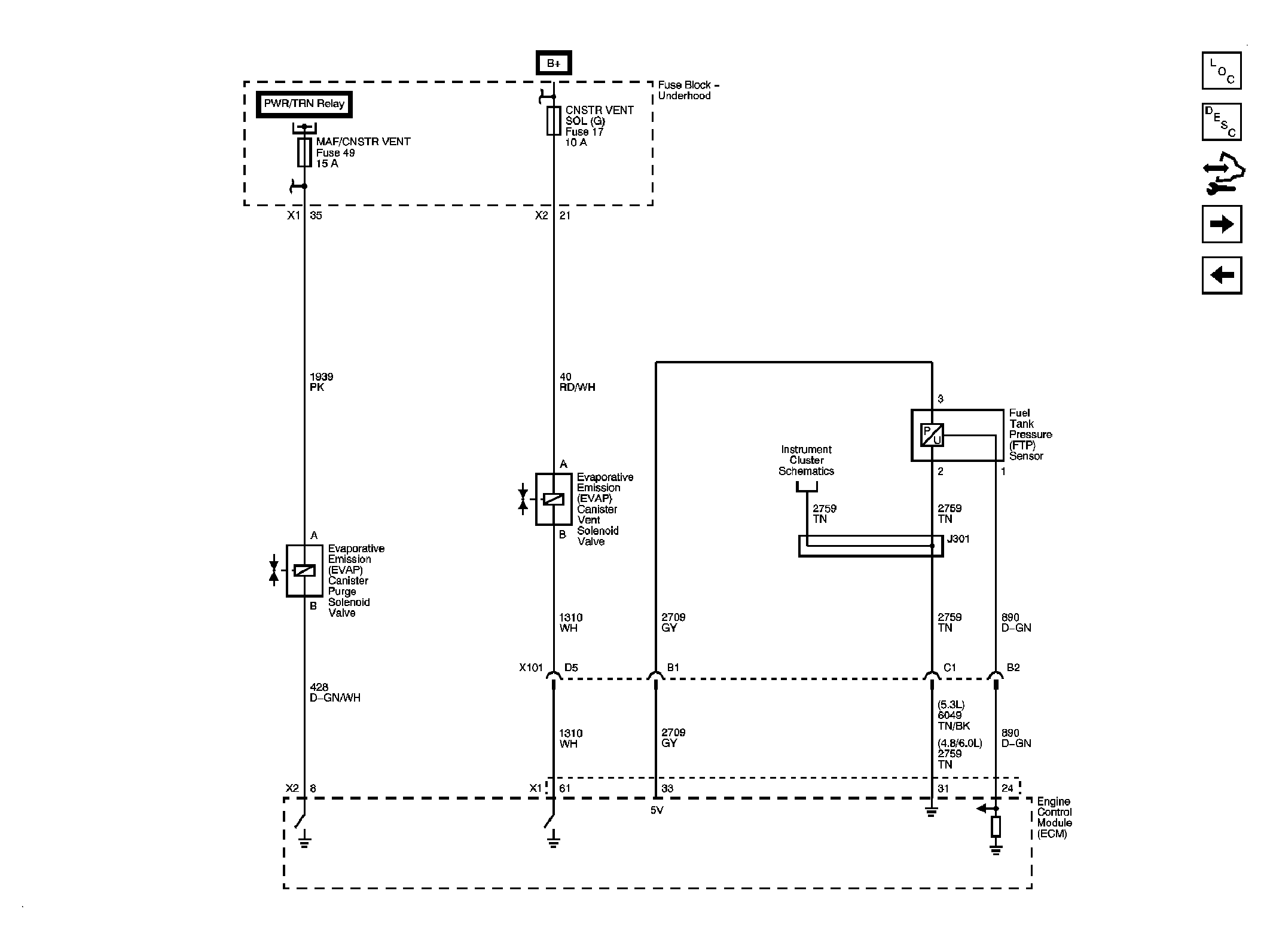

Fig 13: Fuel Controls - EVAP and Device Controls Schematic

Courtesy of GENERAL MOTORS CORP.

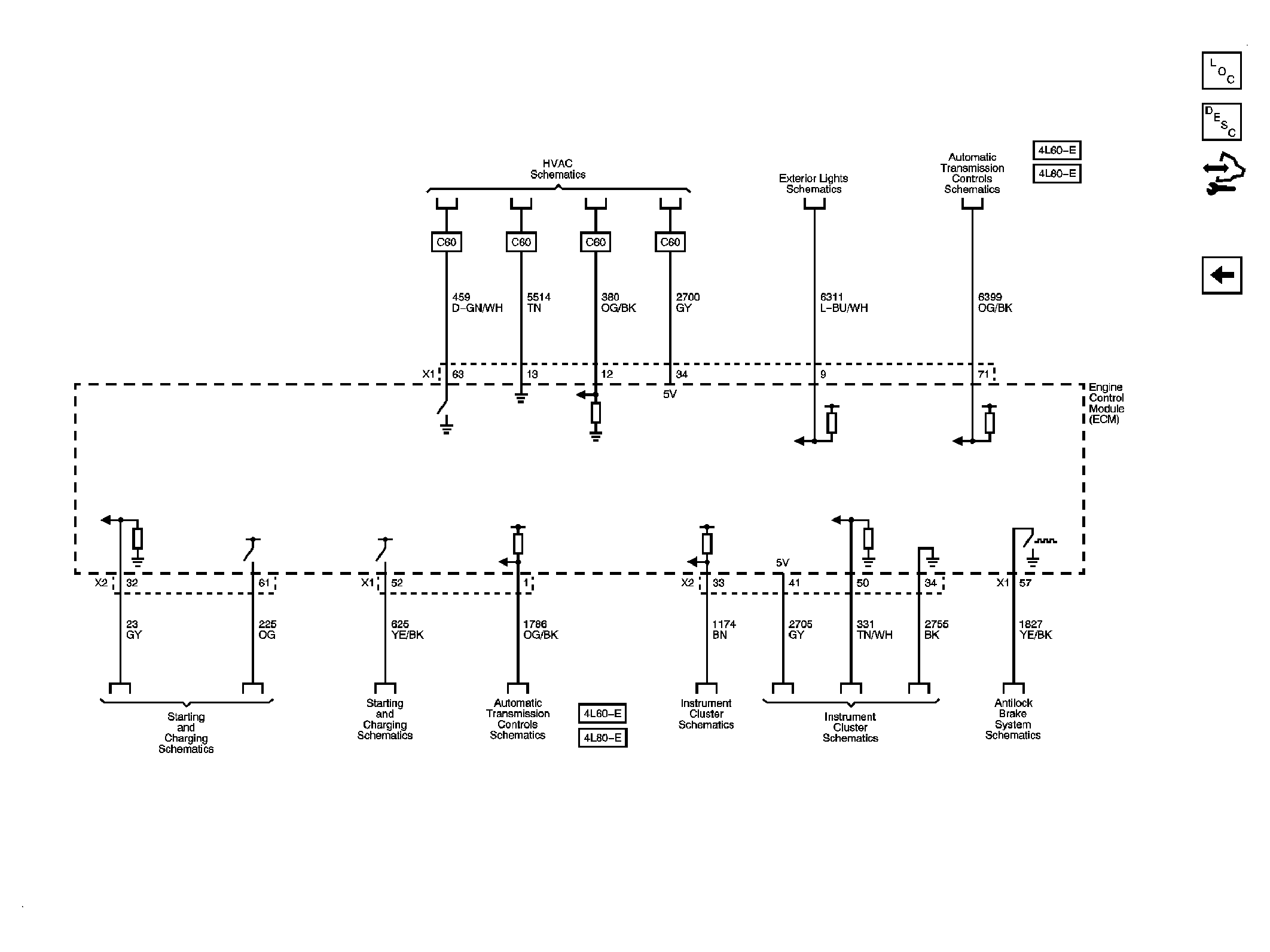

Fig 14: Controlled/Monitored Subsystem and Transmission References Schematic

Courtesy of GENERAL MOTORS CORP.
