Installation Procedure

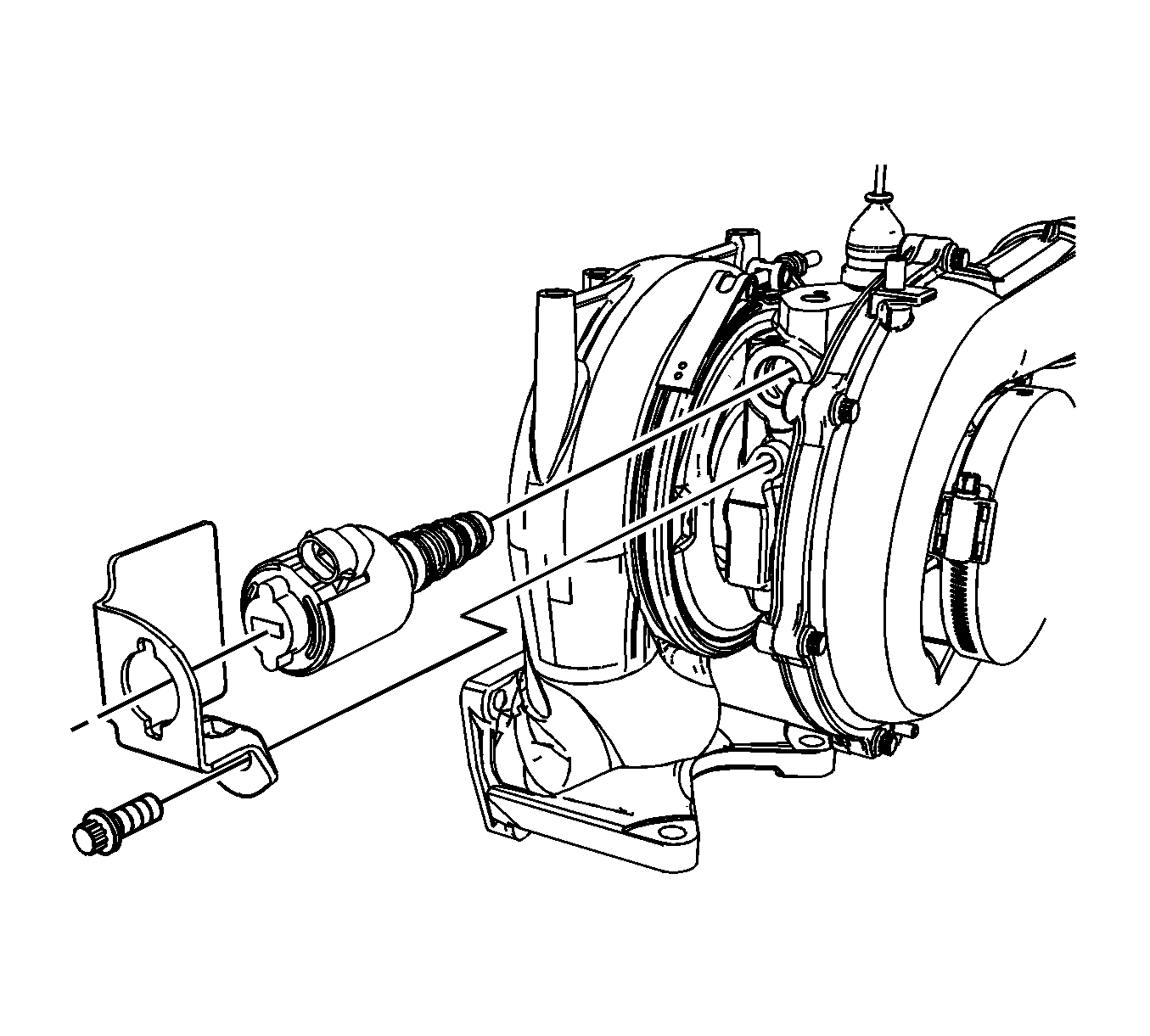

    Fig 1: Turbocharger Vane Control Solenoid Valve With Bracket
    GM1731773Courtesy of GENERAL MOTORS CORP.
  1. Install the turbocharger vane control solenoid valve to the turbocharger.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the vane control solenoid valve bracket and bolt and tighten to 23 N.m (17 lb ft).

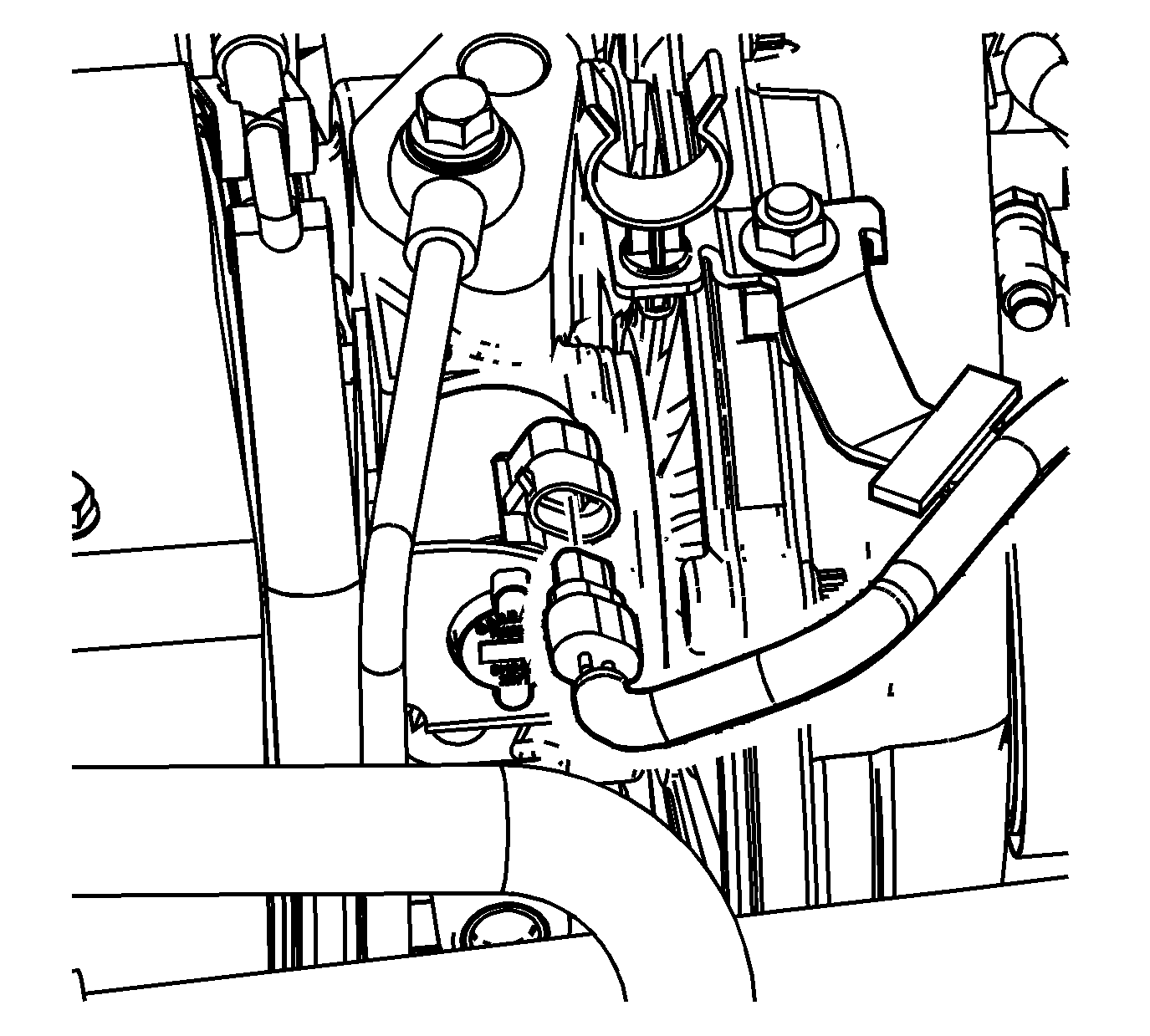

    3. Fig 2: View Of Turbocharger Vane Control Solenoid Valve & Electrical Connector
    GM1335540Courtesy of GENERAL MOTORS CORP.
  3. Connect the turbocharger vane control solenoid valve electrical connector.

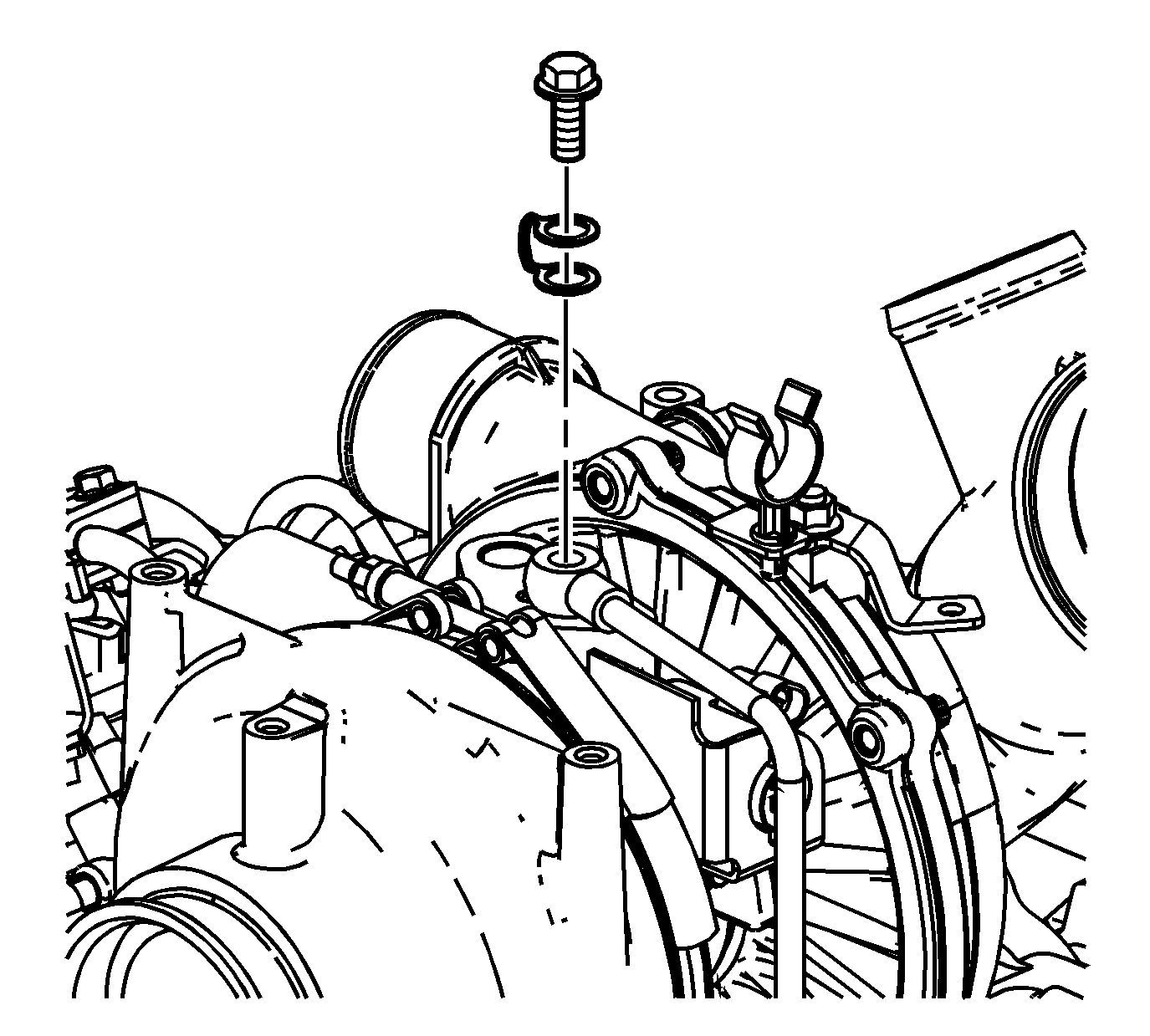

    4. Fig 3: View Of Turbocharger Oil Feed Pipe Banjo Bolt
    GM1335577Courtesy of GENERAL MOTORS CORP.
  4. Position the oil feed pipe to the turbocharger.
  5. Install a NEW turbocharger oil feed pipe washer and the banjo bolt and tighten to 34 N.m (25 lb ft).
  6. Install the EGR cooler tube. Refer to Exhaust Gas Recirculation Valve Cooler Replacement .
  7. Perform the turbocharger learn procedure. Refer to Turbocharger Learn .
