Removal Procedure

    Fig 1: View Of Fuel Injector Engine Wiring Harness Electrical Connector
    GM1732433Courtesy of GENERAL MOTORS CORP.
  1. Remove the upper right valve cover. Refer to Valve Rocker Arm Cover Replacement - Upper Right Side (LMM) .

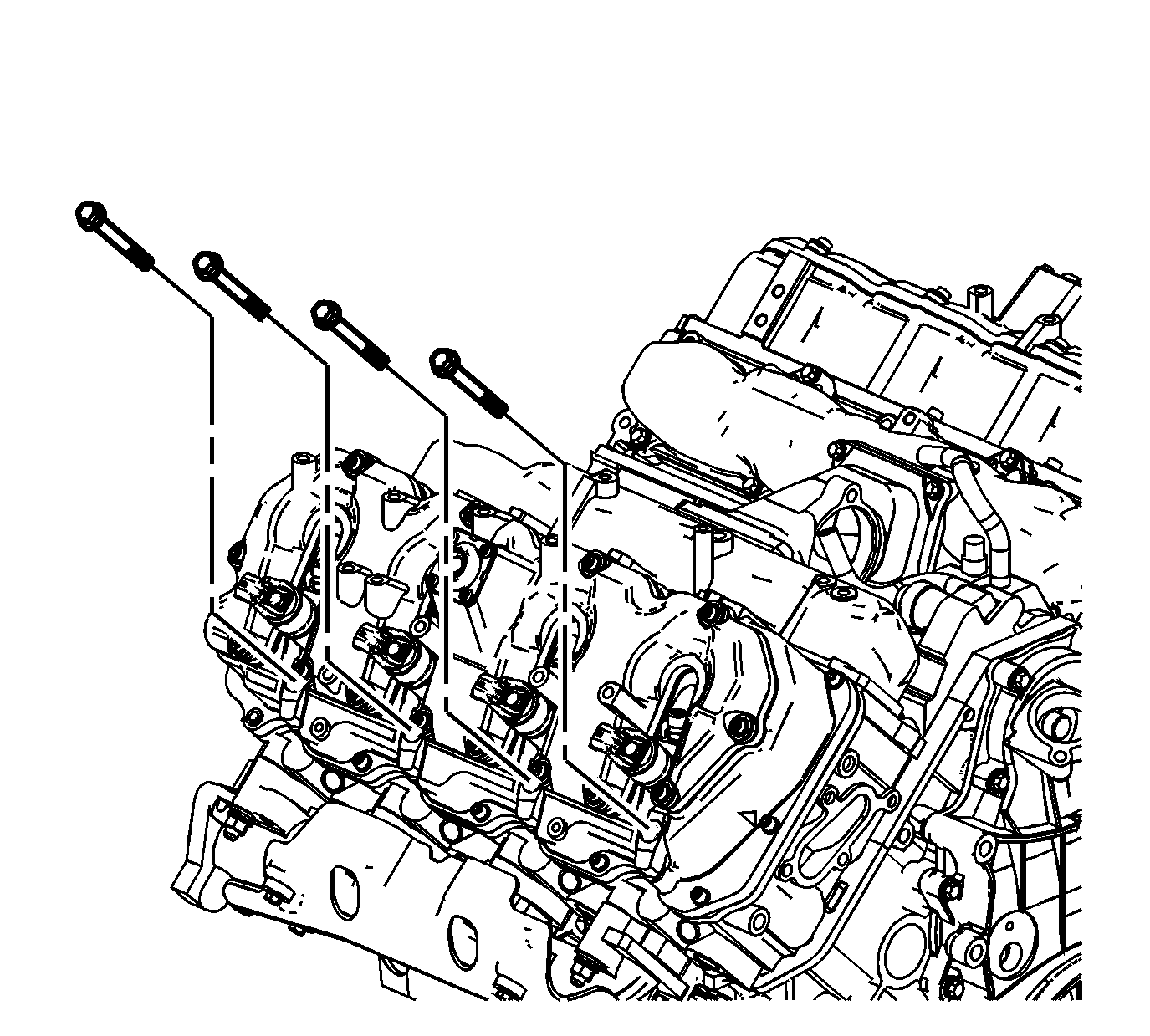

    2. Fig 2: View Of Right Fuel Injector Bracket Bolts
    GM1335619Courtesy of GENERAL MOTORS CORP.
  2. Remove the fuel injector bracket bolts.
  3. Fig 3: View Of Right Fuel Injectors W/Brackets
    GM1335625Courtesy of GENERAL MOTORS CORP.

    Install J-46594  into the bolt hole in the fuel injector bracket. See Special Tools .
  4. Install a flare nut wrench onto J-46594  and pull back away from the fuel injector, until the injector releases from its seat. See Special Tools .
  5. Remove the J-46594  . See Special Tools .
  6. Remove the fuel injectors with brackets.
  7. Remove and discard the copper washer from the fuel injector bore.
  8. Remove and discard the fuel injector O-ring from the injector.
