Automatic Level Control Schematics

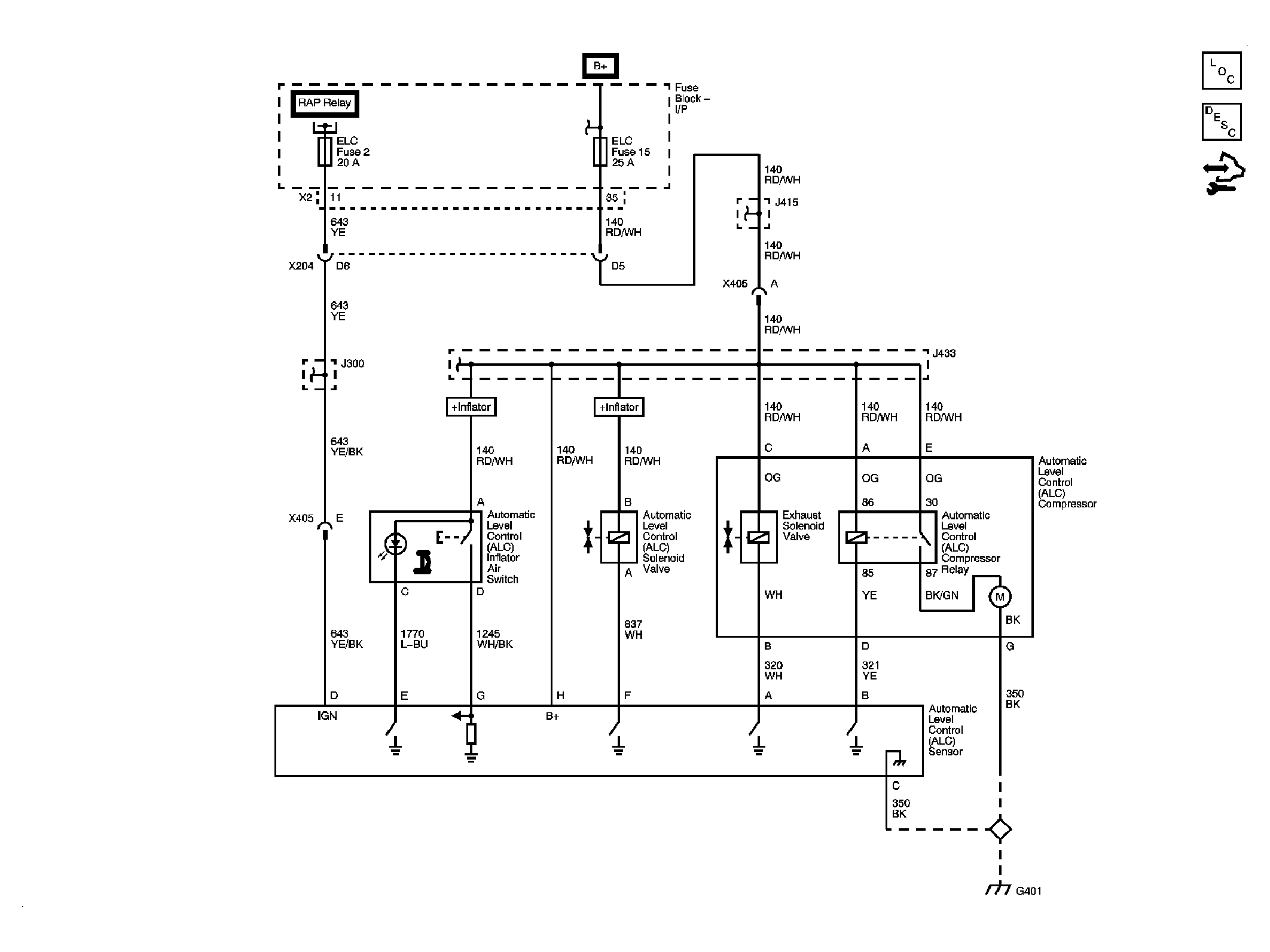

Fig 1: Automatic Level Control Schematic

GM1921504

Courtesy of GENERAL MOTORS CORP.
