Power Moding Schematics

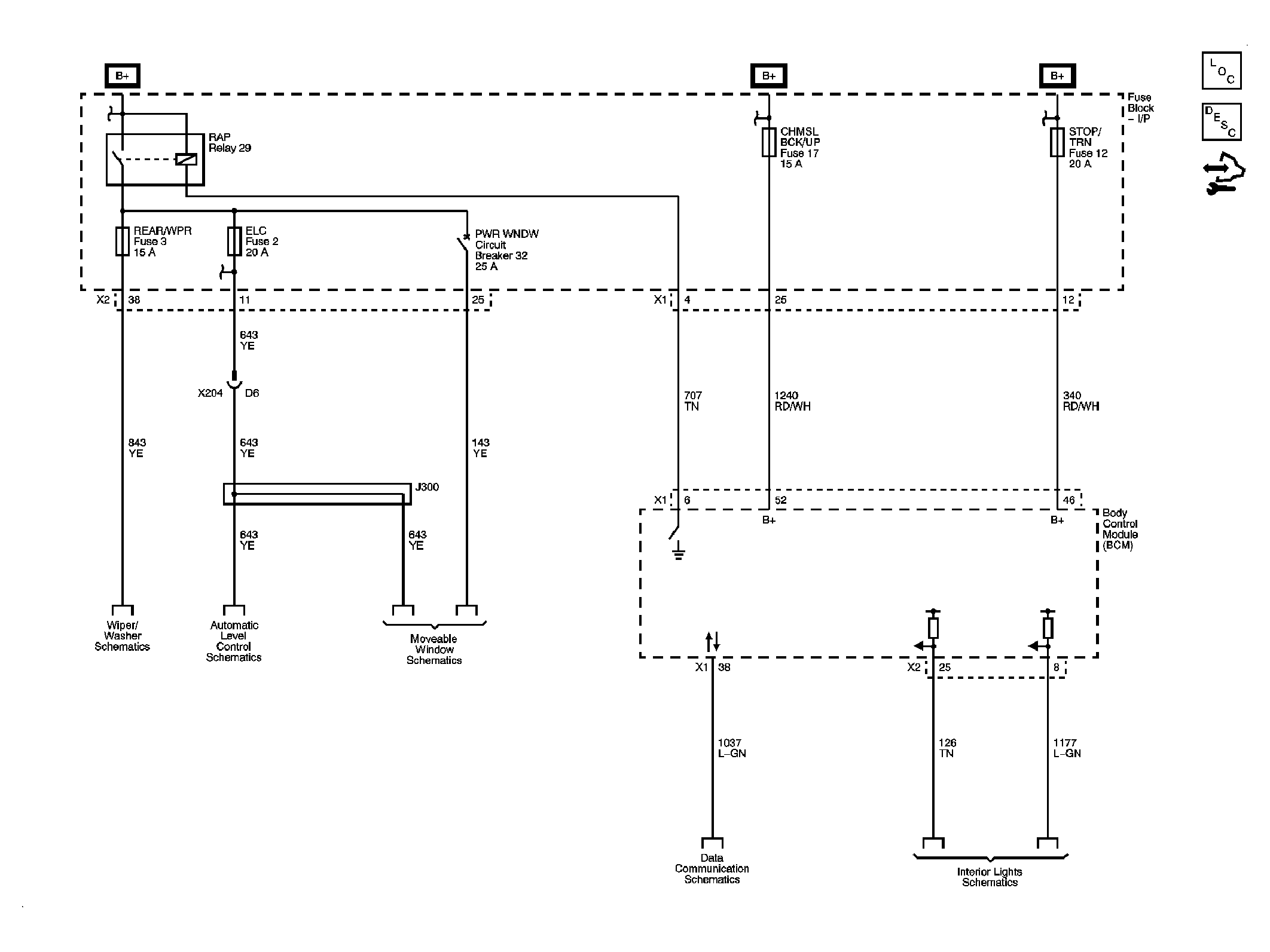

Fig 1: RAP Modes

GM1921943

Courtesy of GENERAL MOTORS CORP.

Fig 2: Ignition Modes

GM1923037

Courtesy of GENERAL MOTORS CORP.
