Fuel Injection Line Routing Diagram

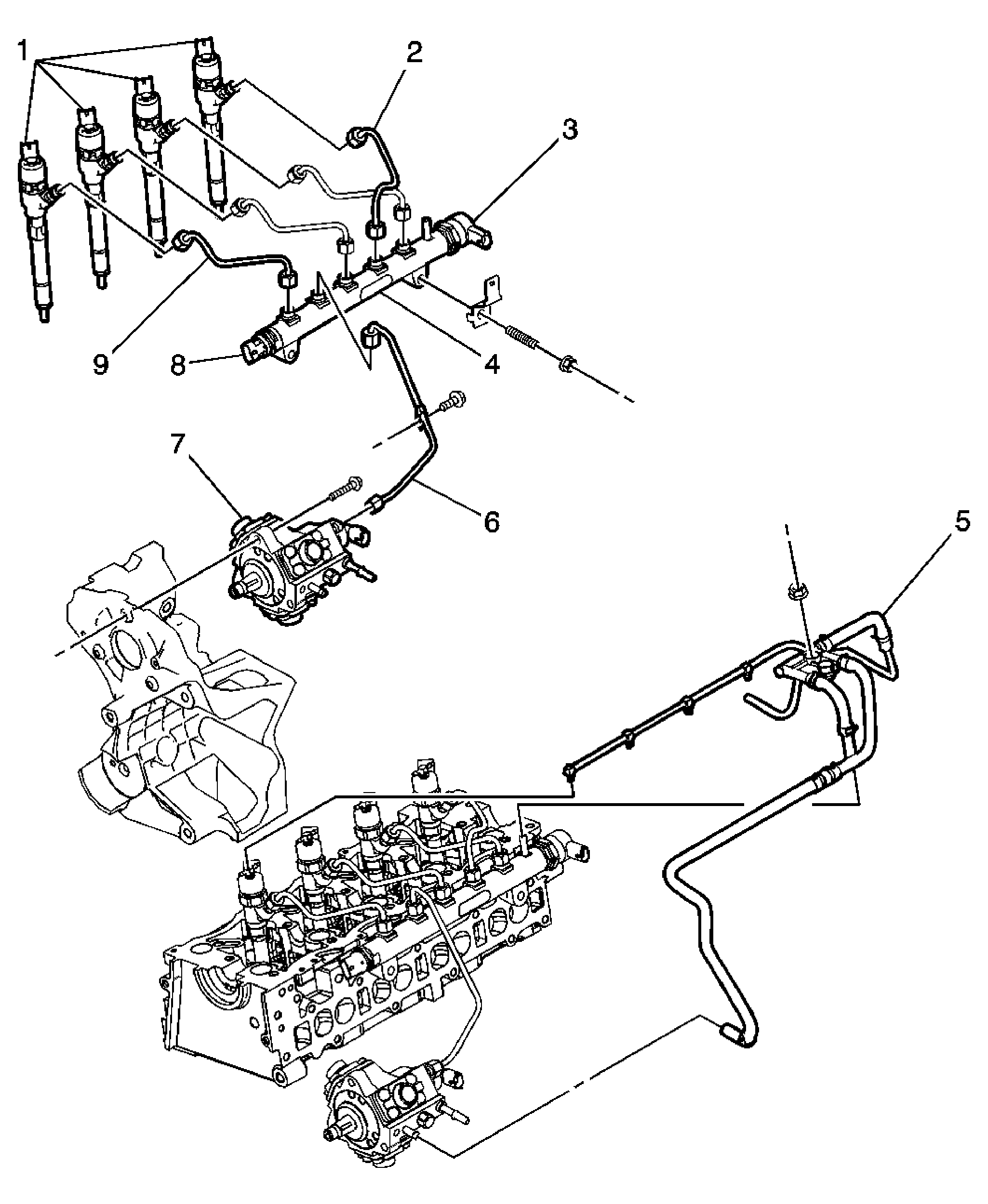

Fig 1: Identifying Fuel System Components
GM1831246Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Injectors
2 Fuel Injector to Fuel Rail Pipe
3 Fuel Pressure Regulator 2 Valve
4 Fuel Rail
5 Fuel Return Hose
6 Fuel Injection Pump to Fuel Rail Pipe
7 Fuel Injection Pump
8 Fuel Rail Pressure Sensor
9 Fuel Injector to Fuel Rail Pipe
