Power Moding Schematics

WARNING: This page is about a different car, the 2008 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

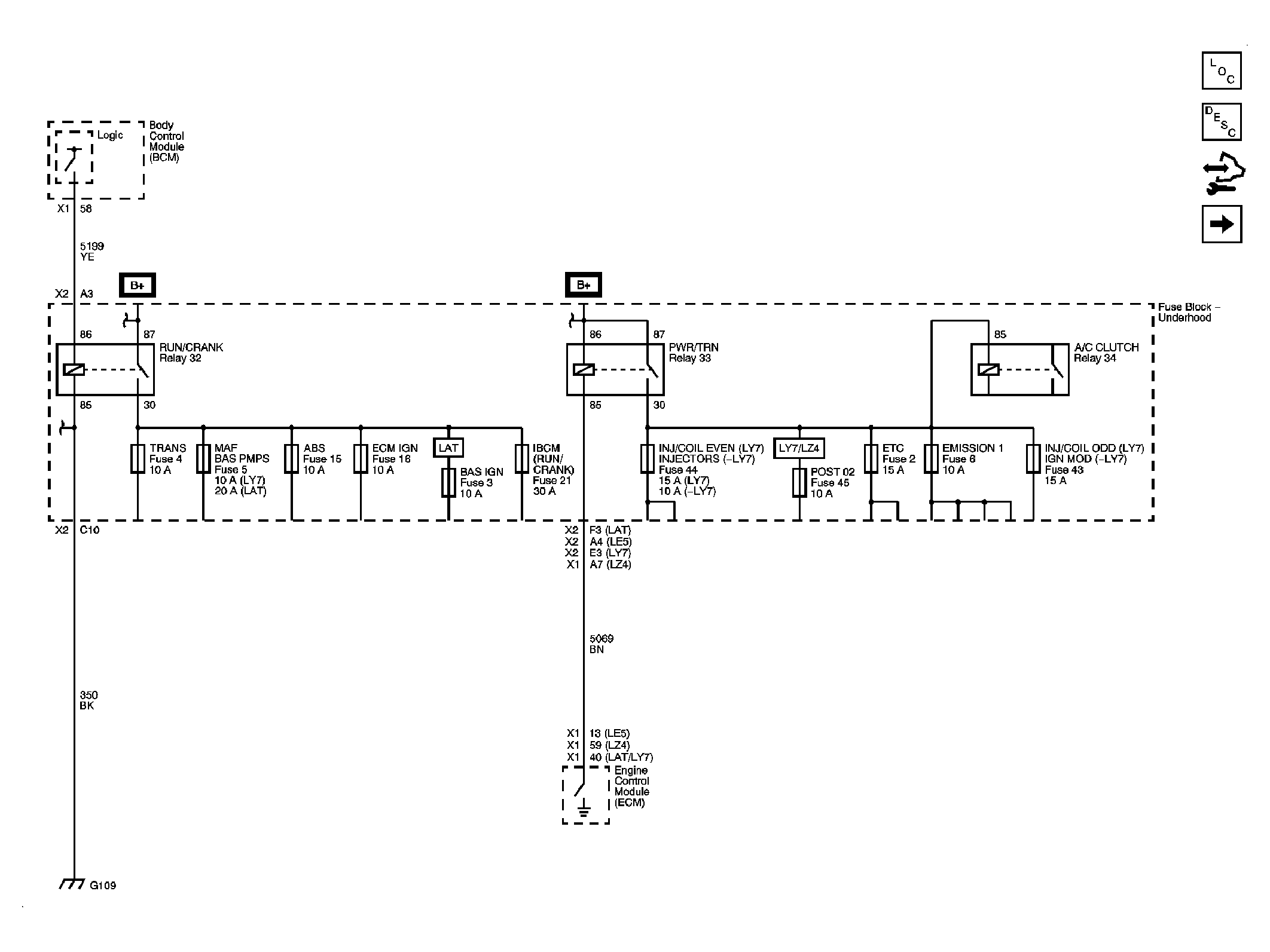

Fig 1: RUN/CRANK & PWR/TRN Relays Schematic
GM1973224Courtesy of GENERAL MOTORS CORP.
Fig 2: ACCESSORY & RUN Relays Schematic
GM1973226Courtesy of GENERAL MOTORS CORP.
