Ground Distribution Schematics

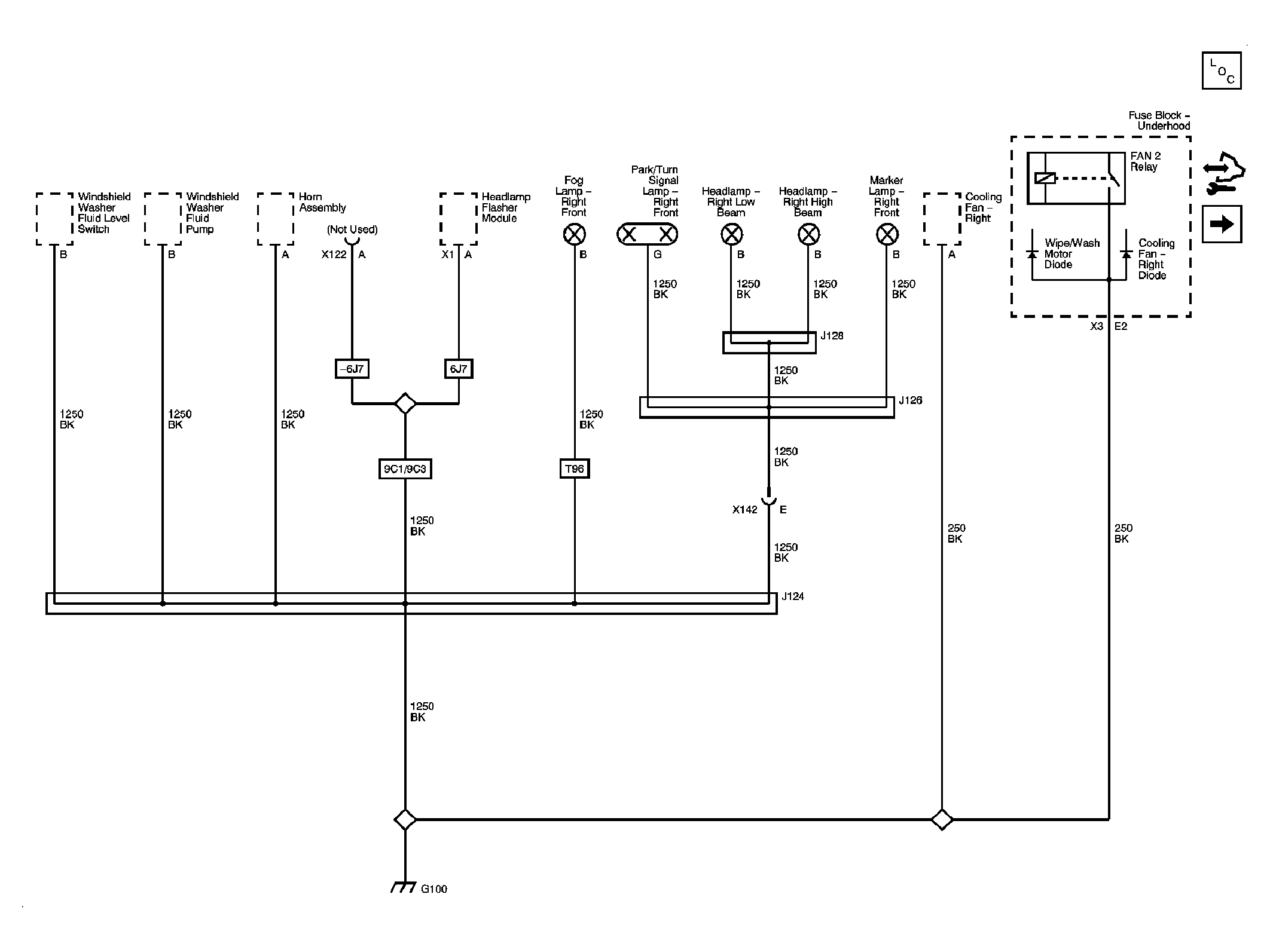

Fig 1: G100 Schematic
GM1888239Courtesy of GENERAL MOTORS CORP.

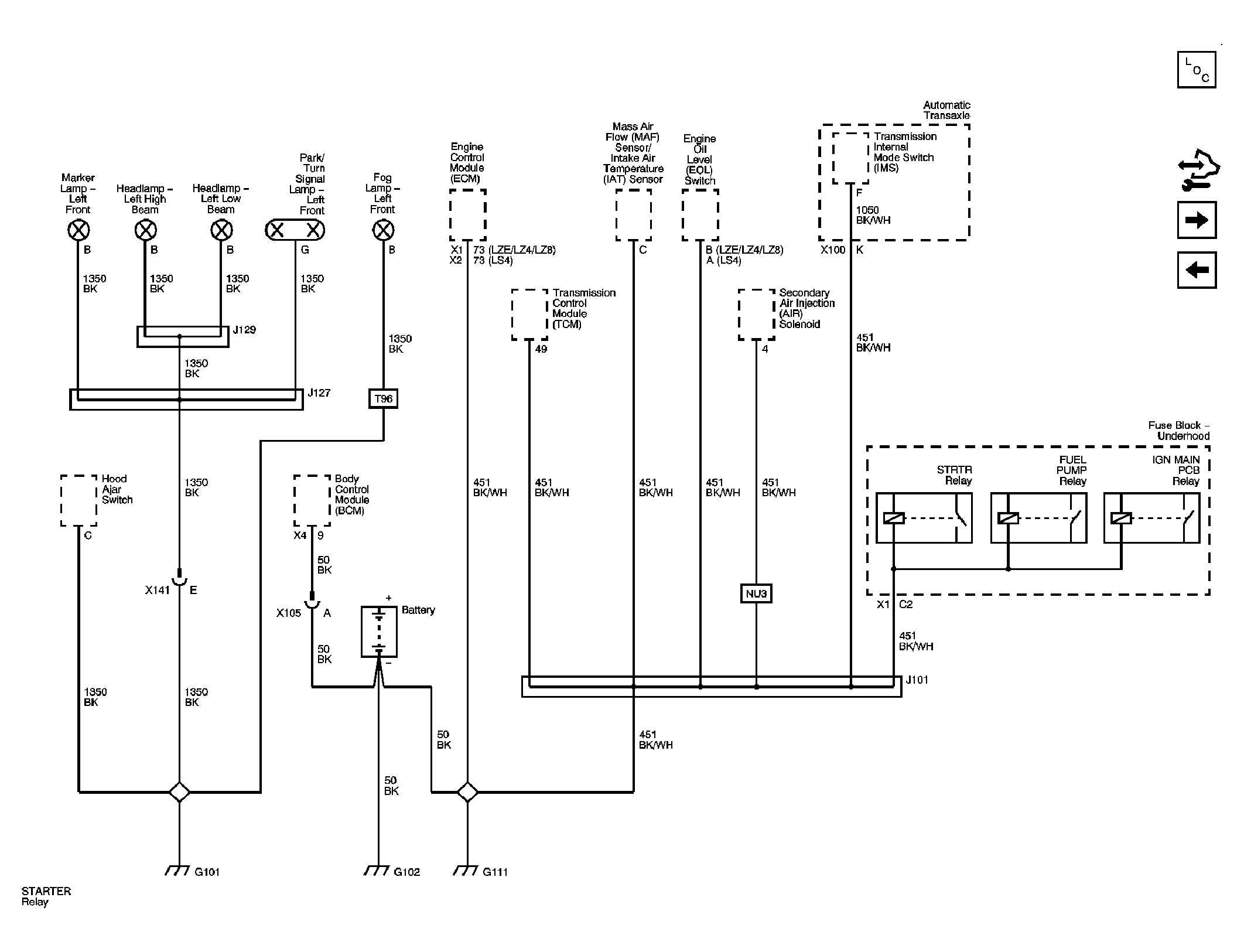

Fig 2: G101, G102, and G111 Schematic
GM1888241Courtesy of GENERAL MOTORS CORP.

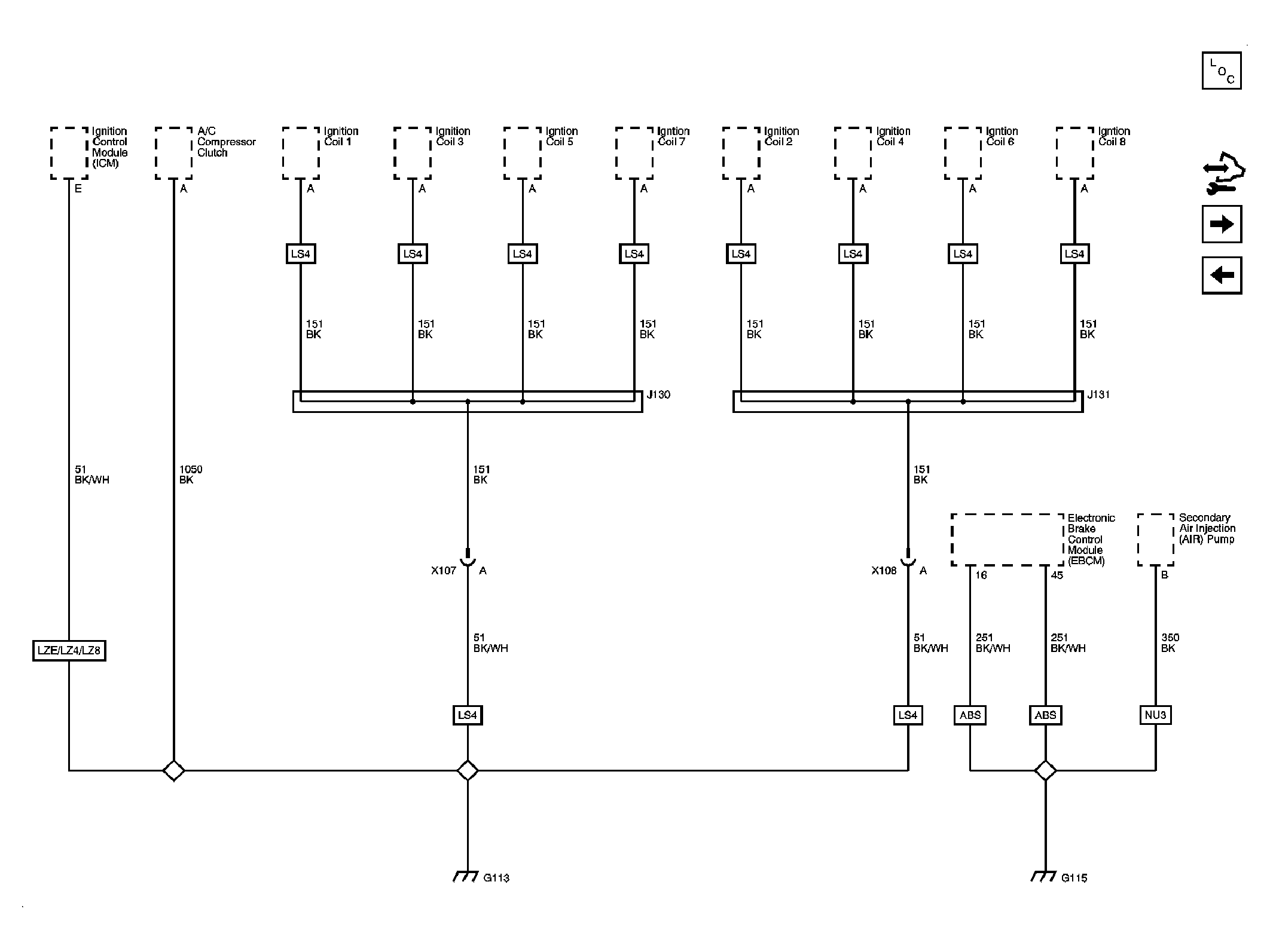

Fig 3: G113, and G115 Schematic
GM1888242Courtesy of GENERAL MOTORS CORP.

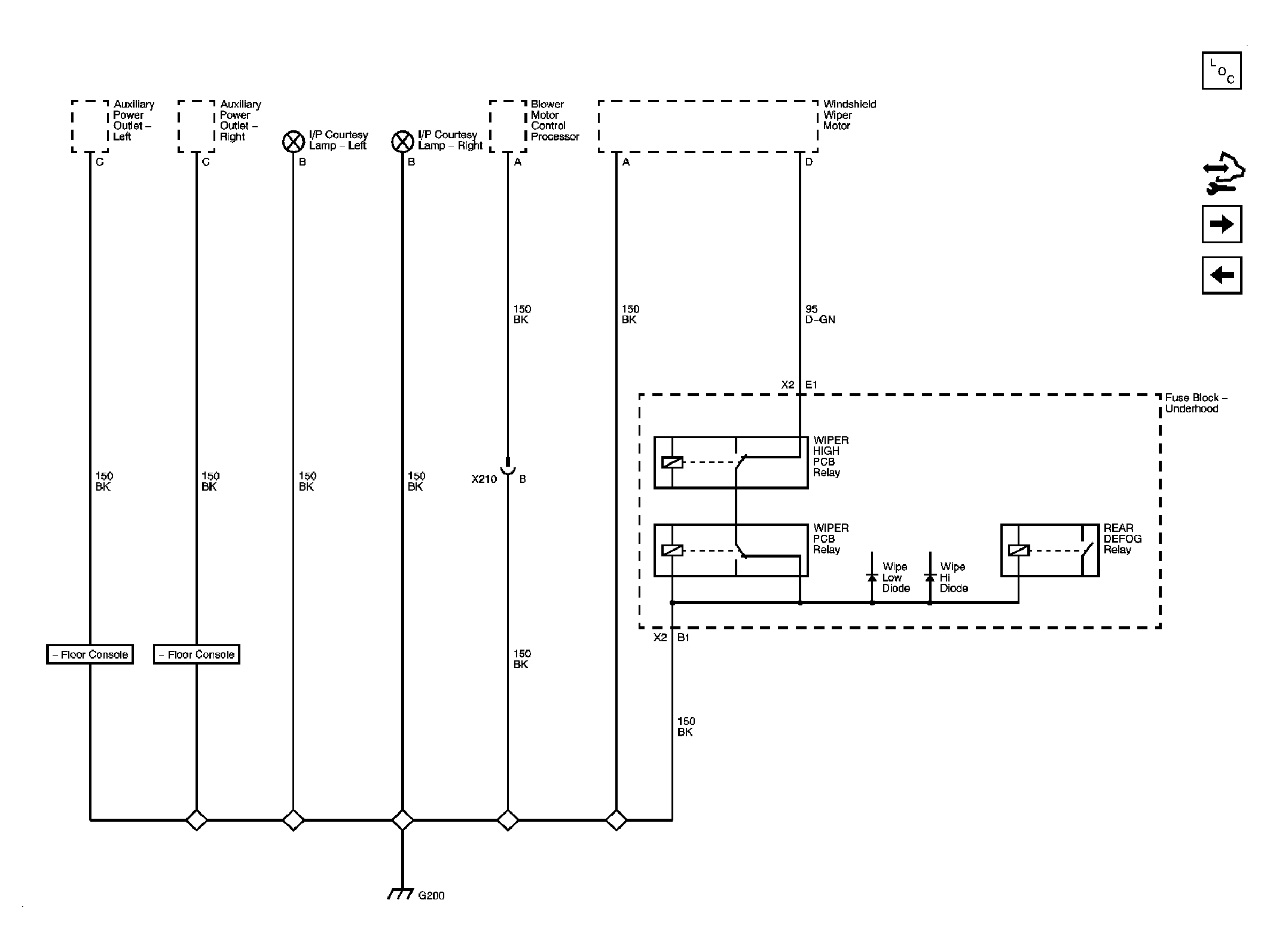

Fig 4: G200 Schematic
GM1888243Courtesy of GENERAL MOTORS CORP.

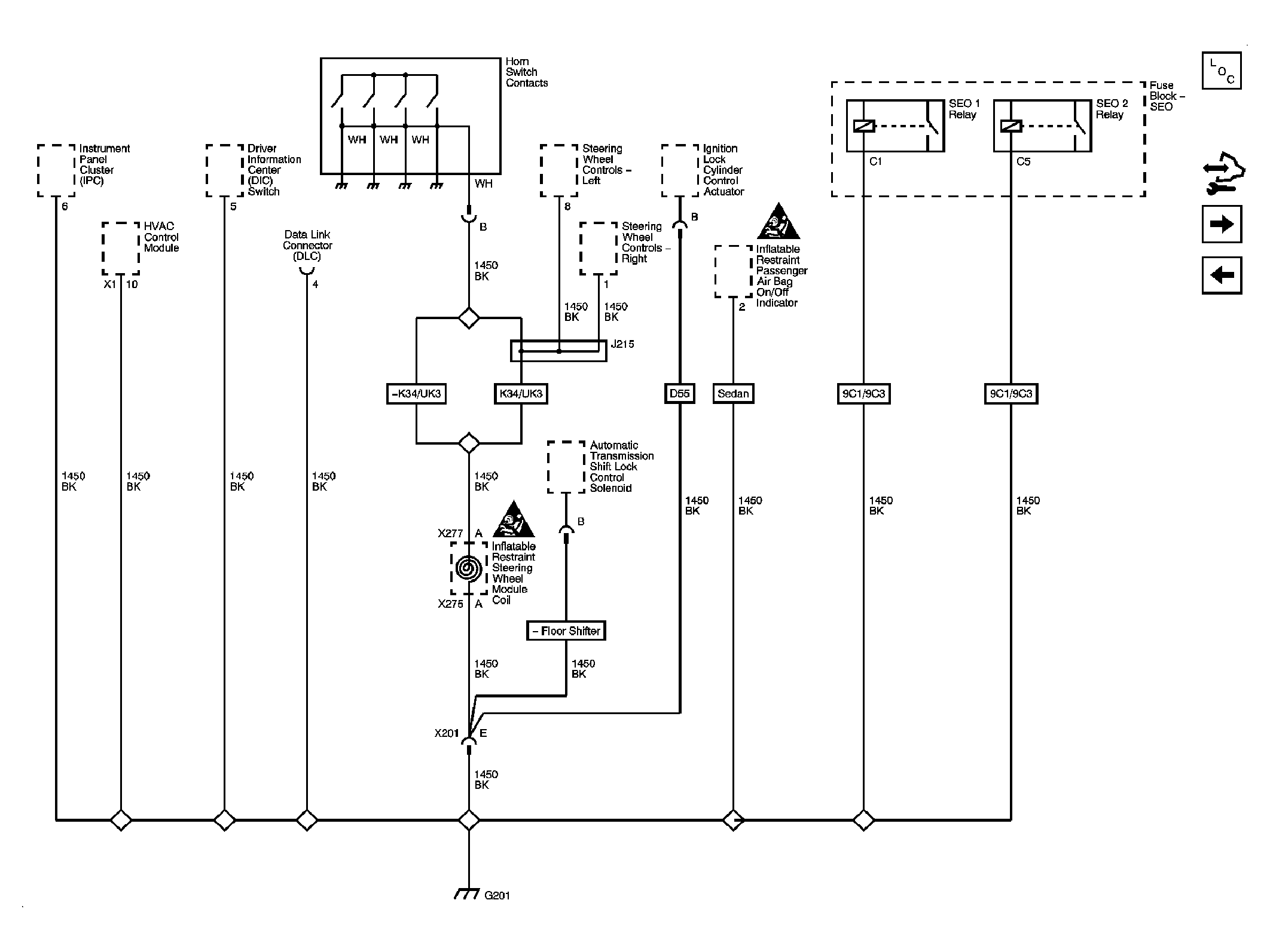

Fig 5: G201 Schematic
GM1888244Courtesy of GENERAL MOTORS CORP.

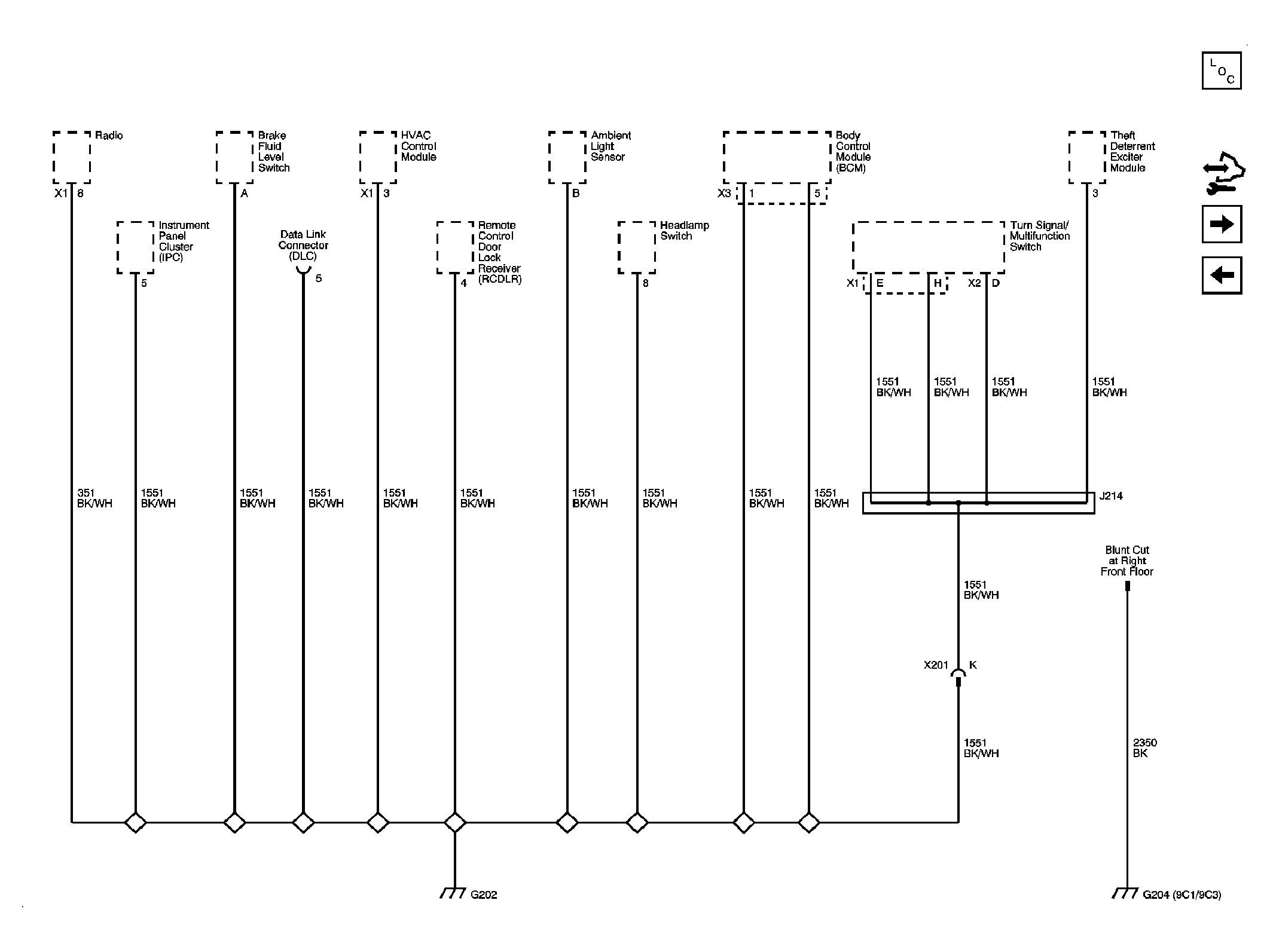

Fig 6: G202, and G204 Schematic
GM1888245Courtesy of GENERAL MOTORS CORP.

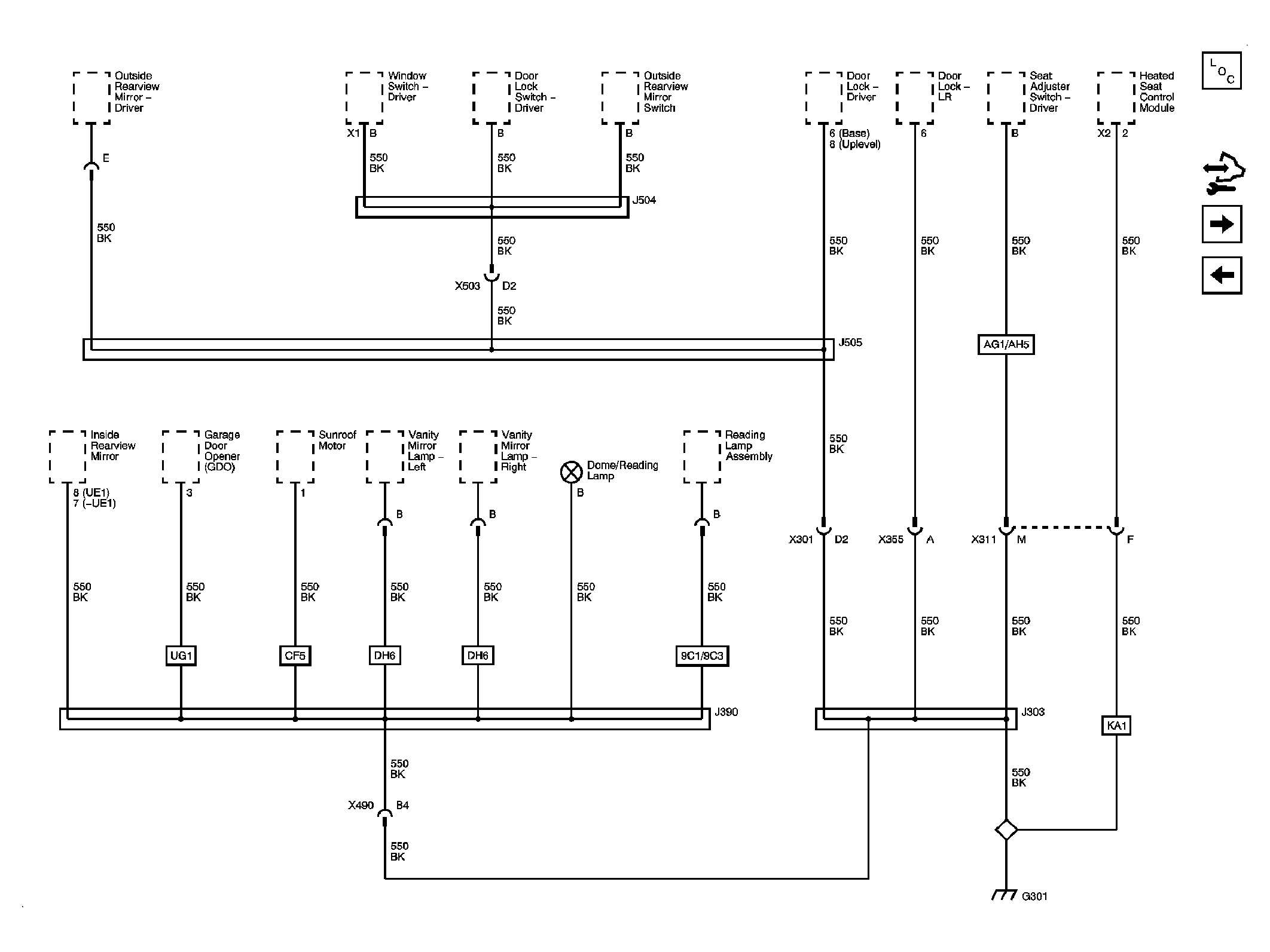

Fig 7: G301 Schematic
GM1888246Courtesy of GENERAL MOTORS CORP.

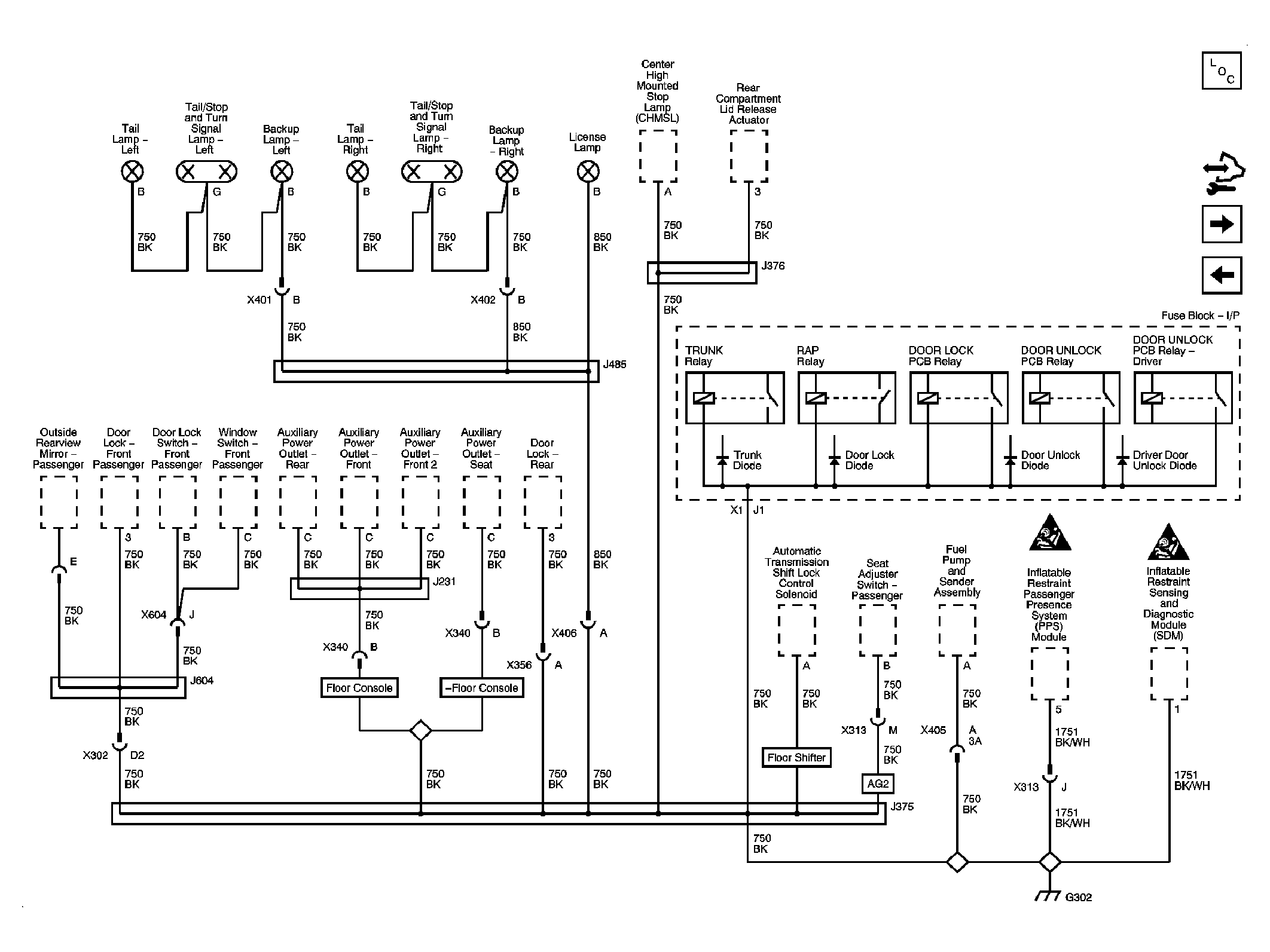

Fig 8: G302 Schematic
GM1888247Courtesy of GENERAL MOTORS CORP.

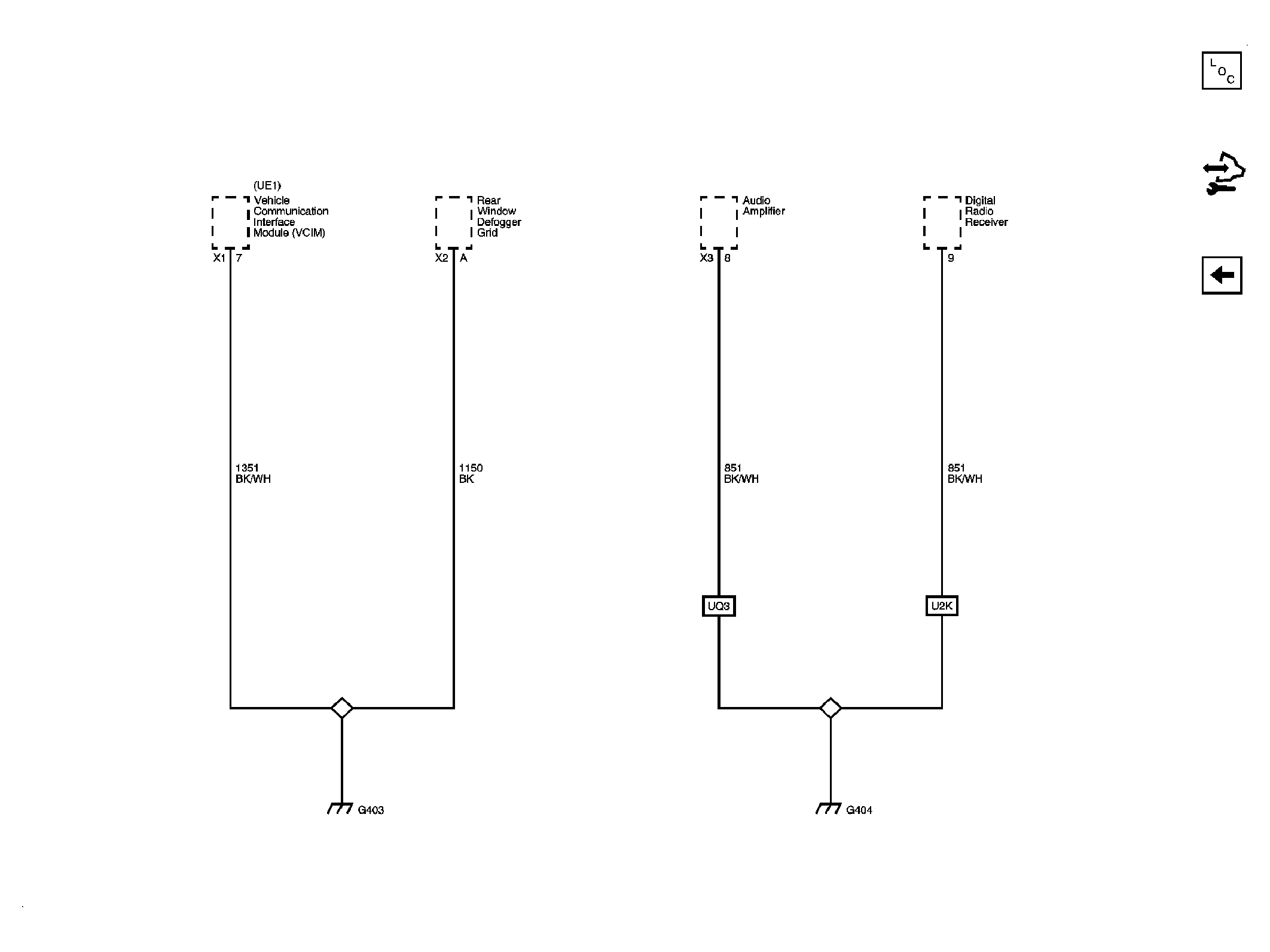

Fig 9: G403, and G404 Schematic
GM1888248Courtesy of GENERAL MOTORS CORP.
