Mobile Telephone Microphone Replacement (without Sunroof)
WARNING: This page is about a different car, the 2010 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

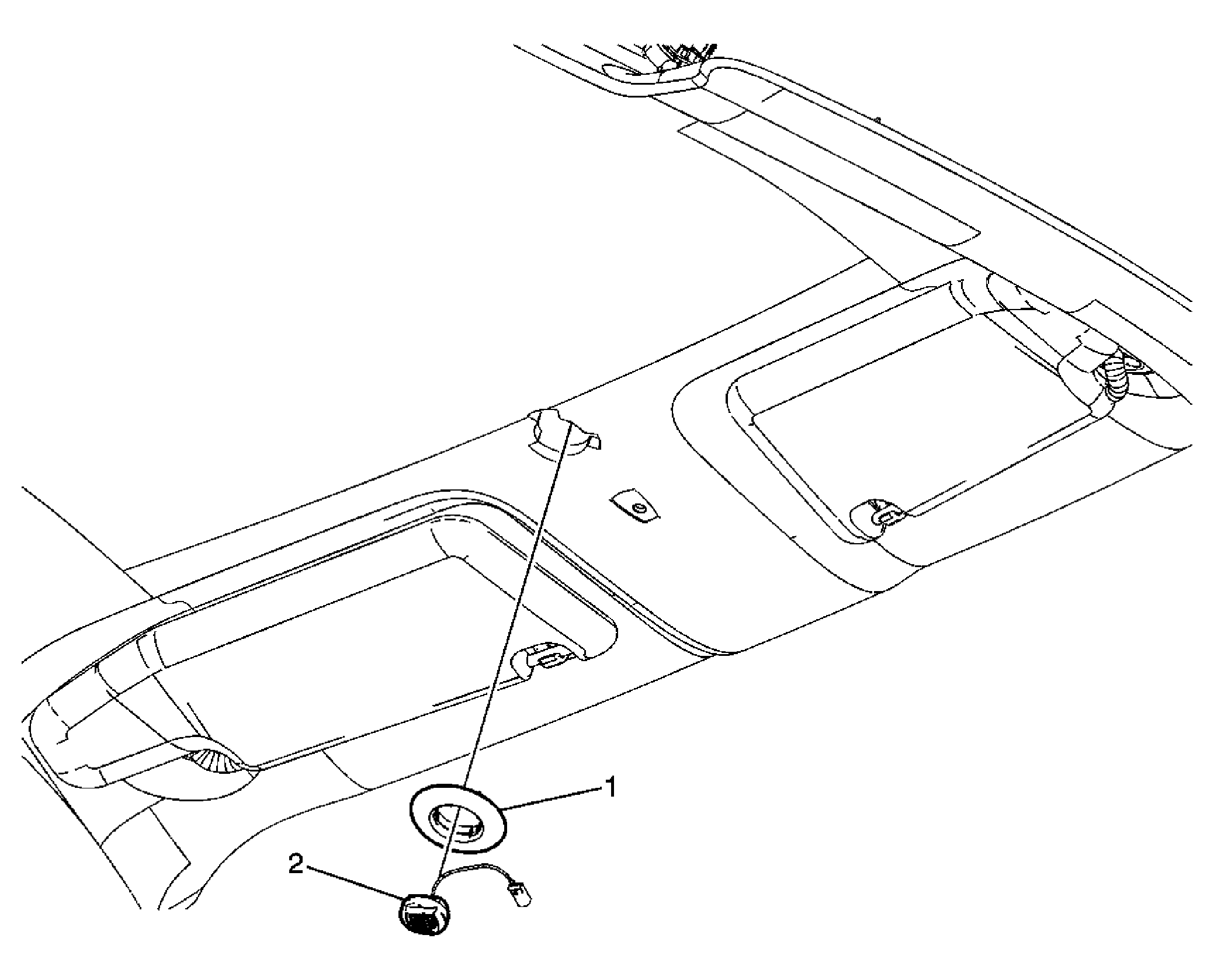

| Callout |
Component Name |
| 1 |
Mobile Telephone Microphone Bezel
Tip:
Turn the bezel clockwise and pull down to release. |
| 2 |
Mobile Telephone Microphone Assembly
Tip:
Disconnect the electrical connector. |
