Engine Controls Schematics

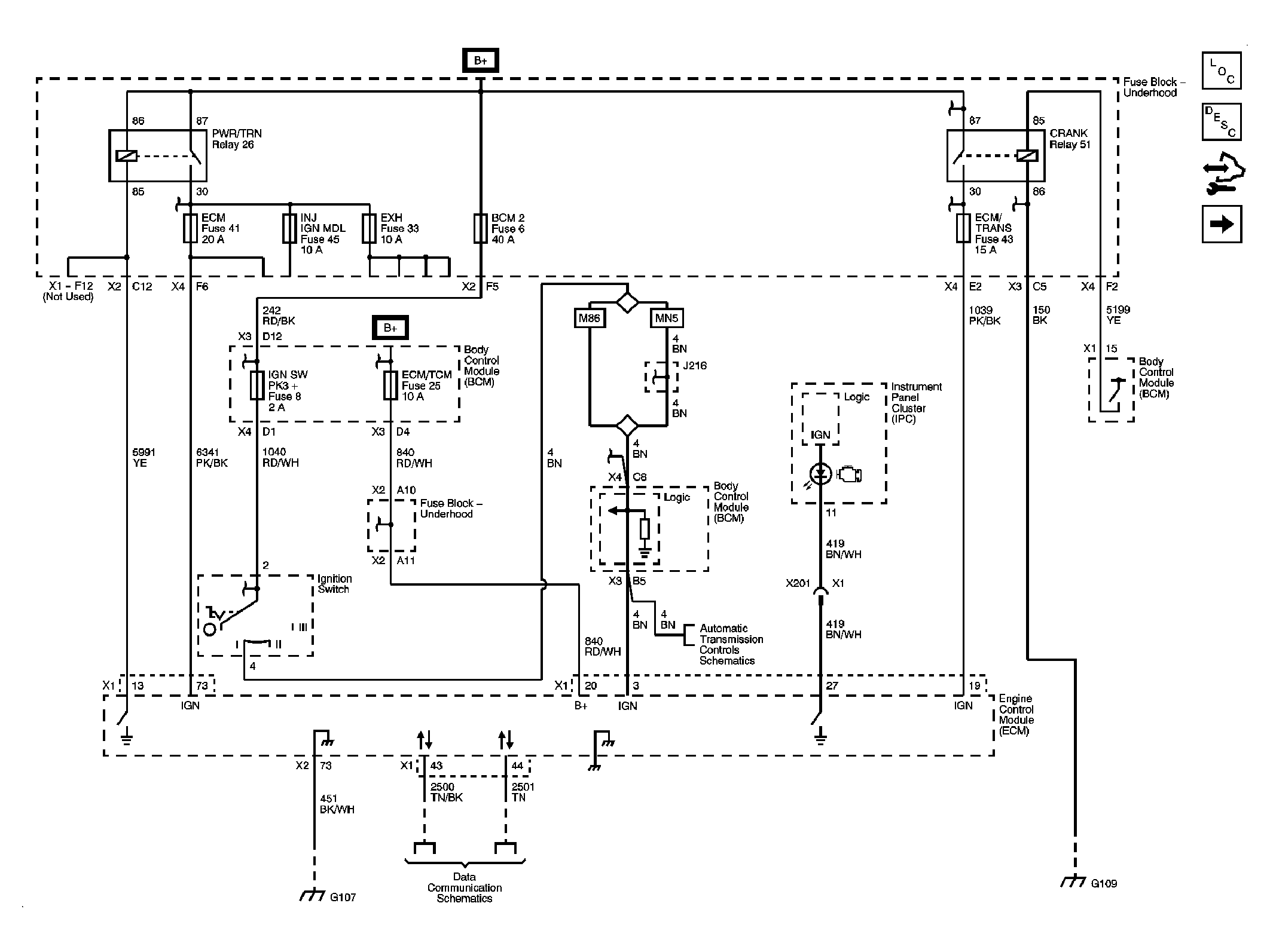

Fig 1: Power, Ground, MIL And DLC - Schematic

Courtesy of GENERAL MOTORS CORP.

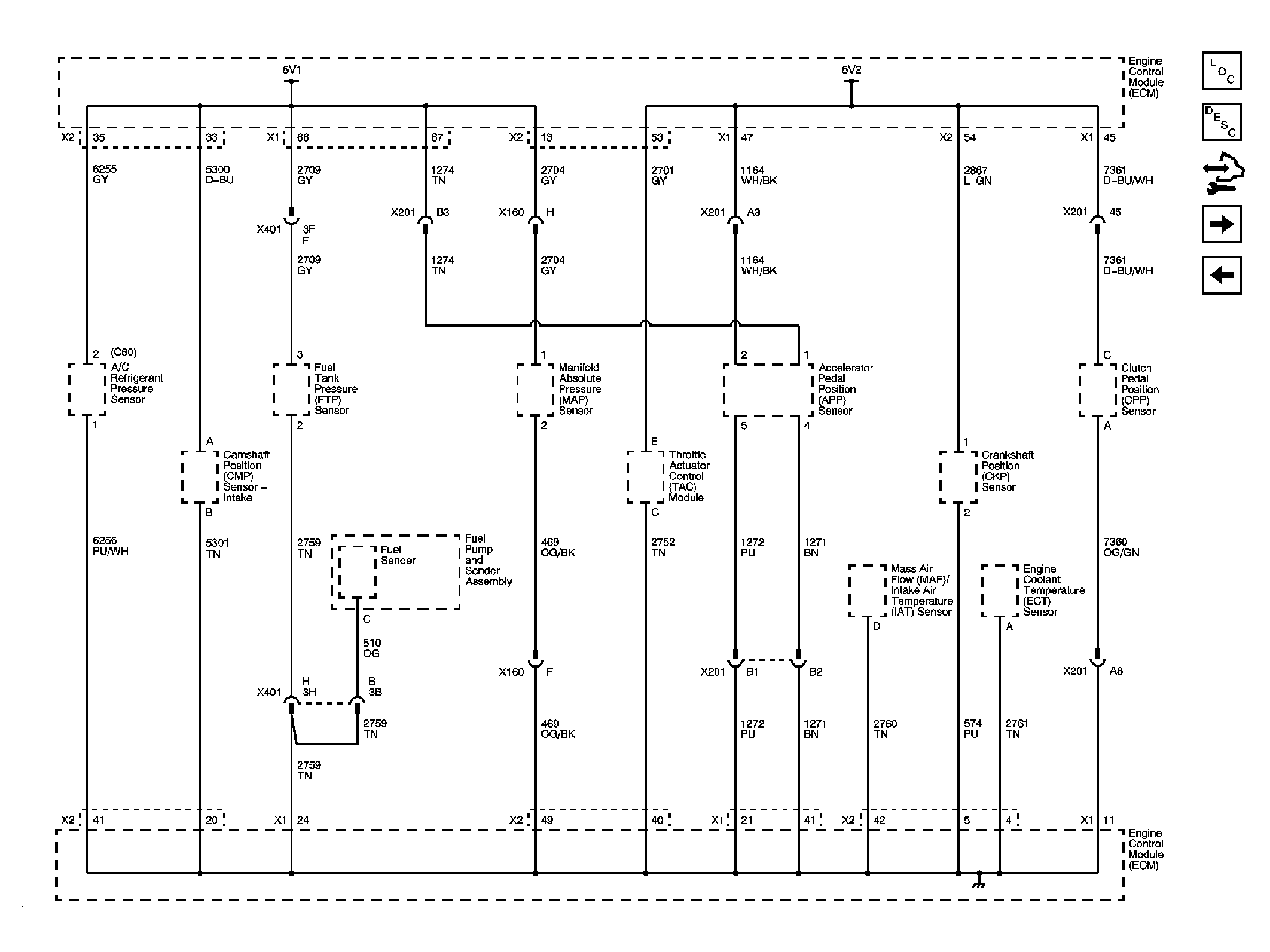

Fig 2: Engine Data Sensors - 5-Volt And Low References - Schematic

Courtesy of GENERAL MOTORS CORP.

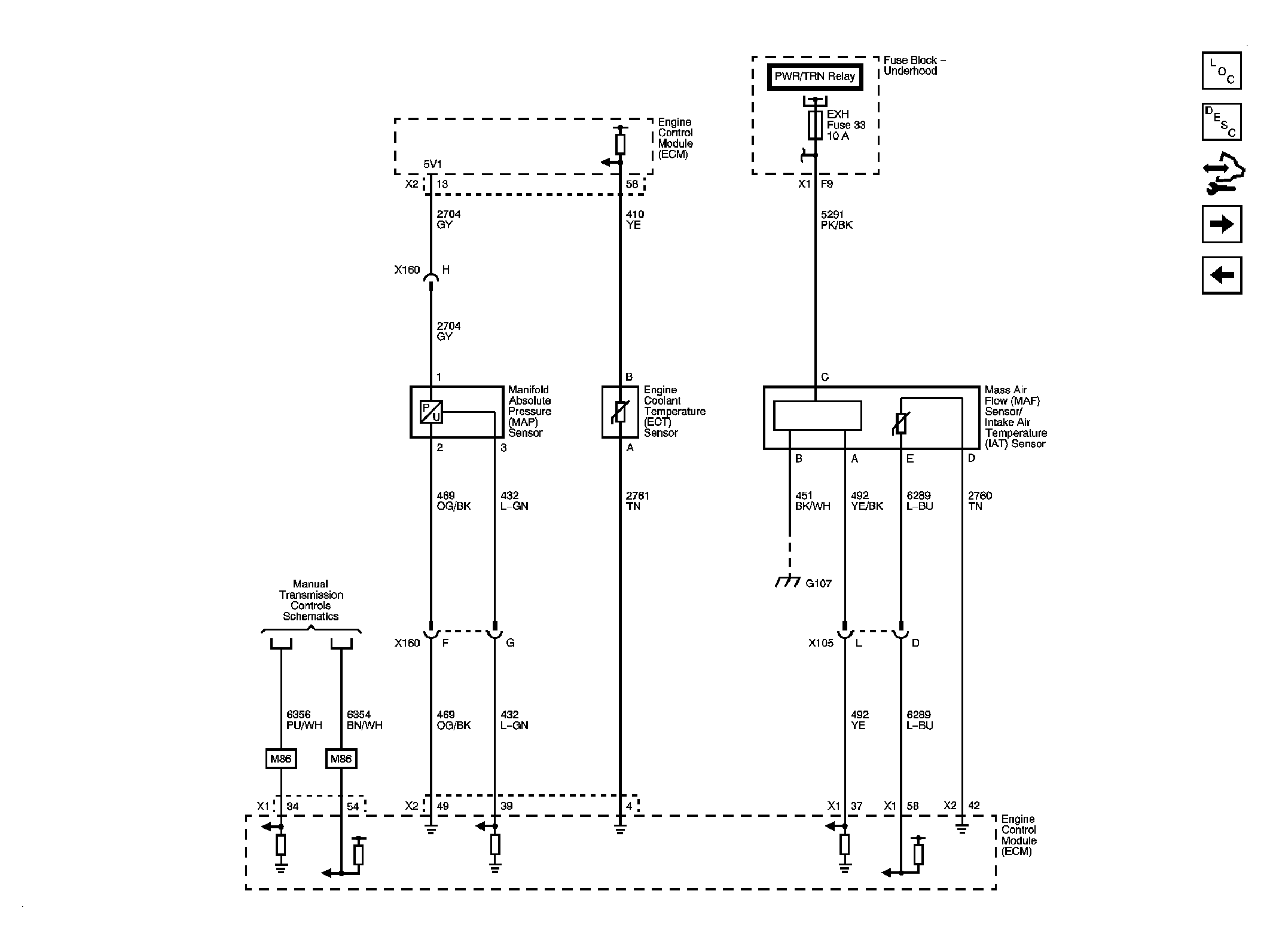

Fig 3: Engine Data Sensors - Pressure, Temperature And MAF/IAT - Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: Engine Data Sensors - HO2S - Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 5: Engine Data Sensors - APP And TAC - Schematic

Courtesy of GENERAL MOTORS CORP.

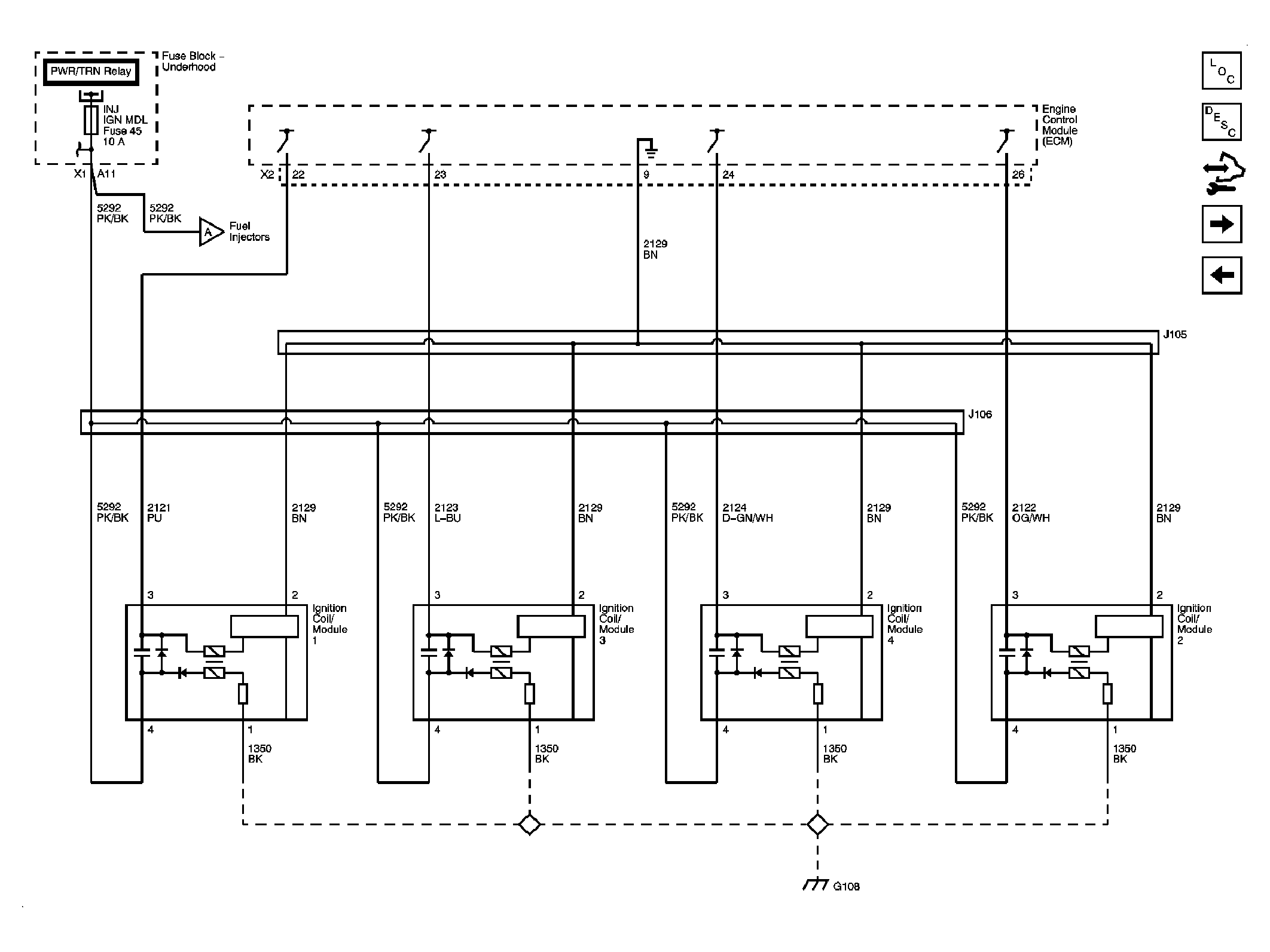

Fig 6: Ignition Controls - Ignition System - Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 7: Ignition Controls - Sensors - Schematic

Courtesy of GENERAL MOTORS CORP.

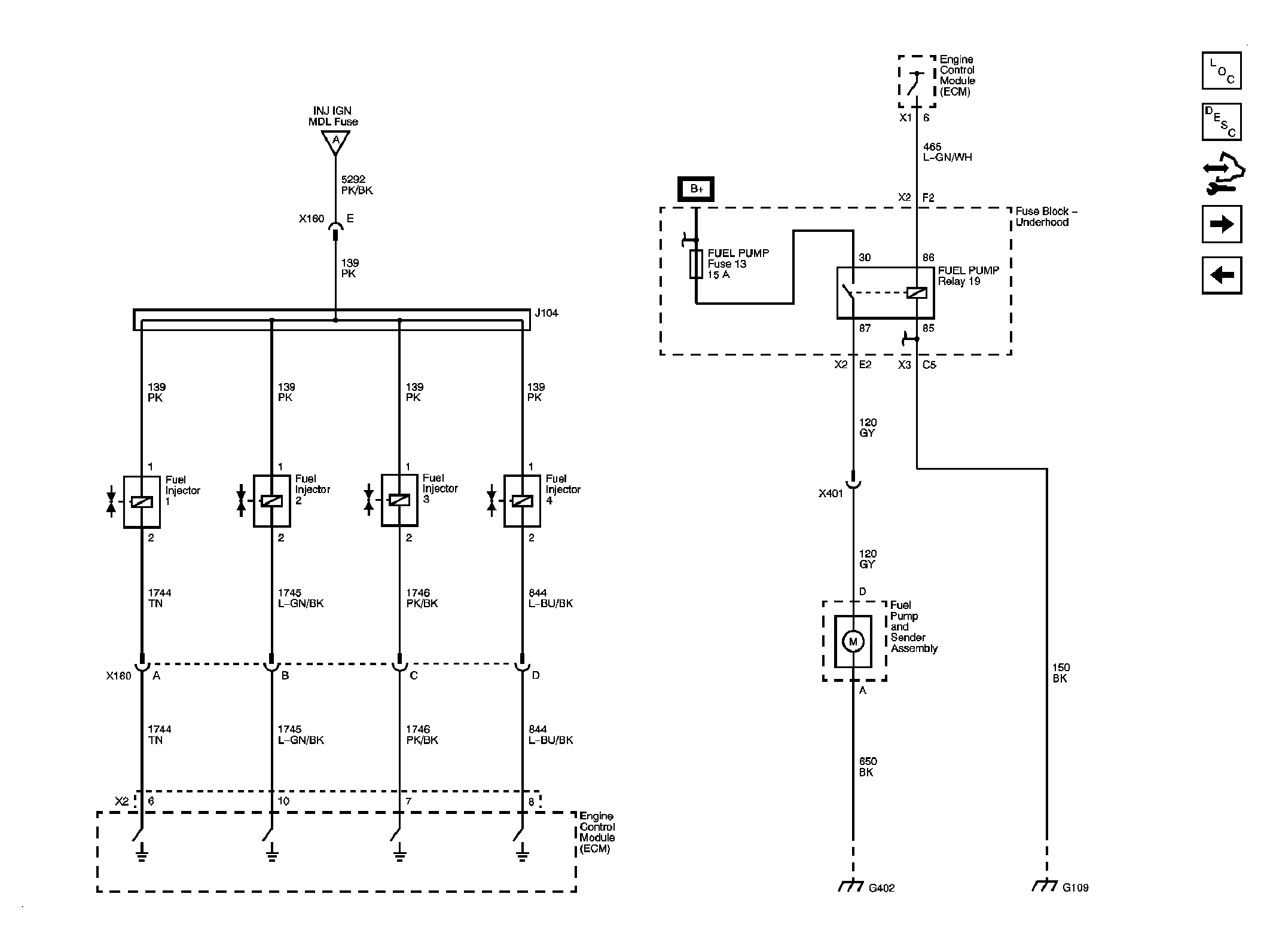

Fig 8: Fuel Controls - Schematic

Courtesy of GENERAL MOTORS CORP.

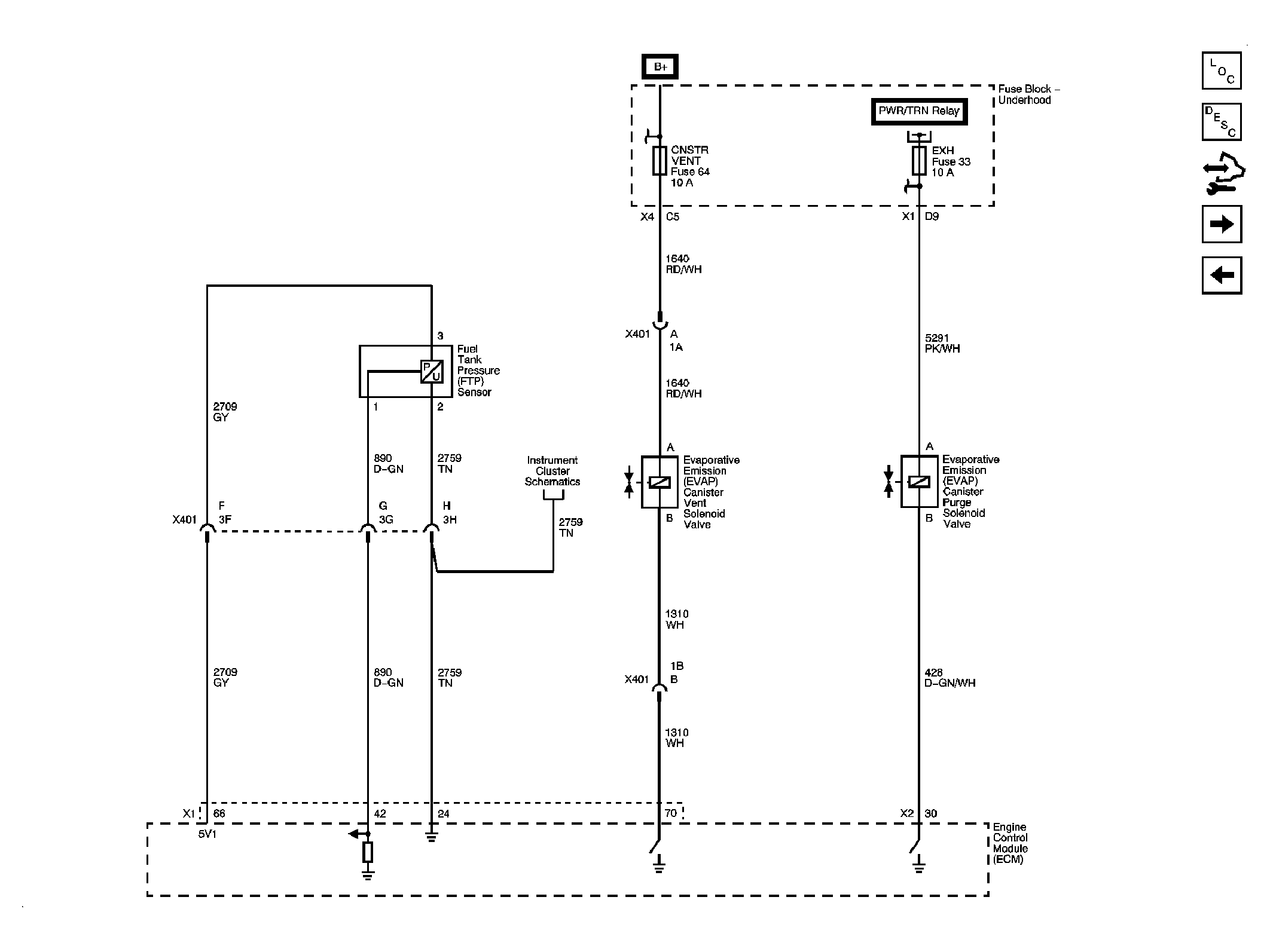

Fig 9: EVAP Controls - Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 10: Controlled/Monitored Subsystem References - Schematic

Courtesy of GENERAL MOTORS CORP.
