Moveable Window Schematics

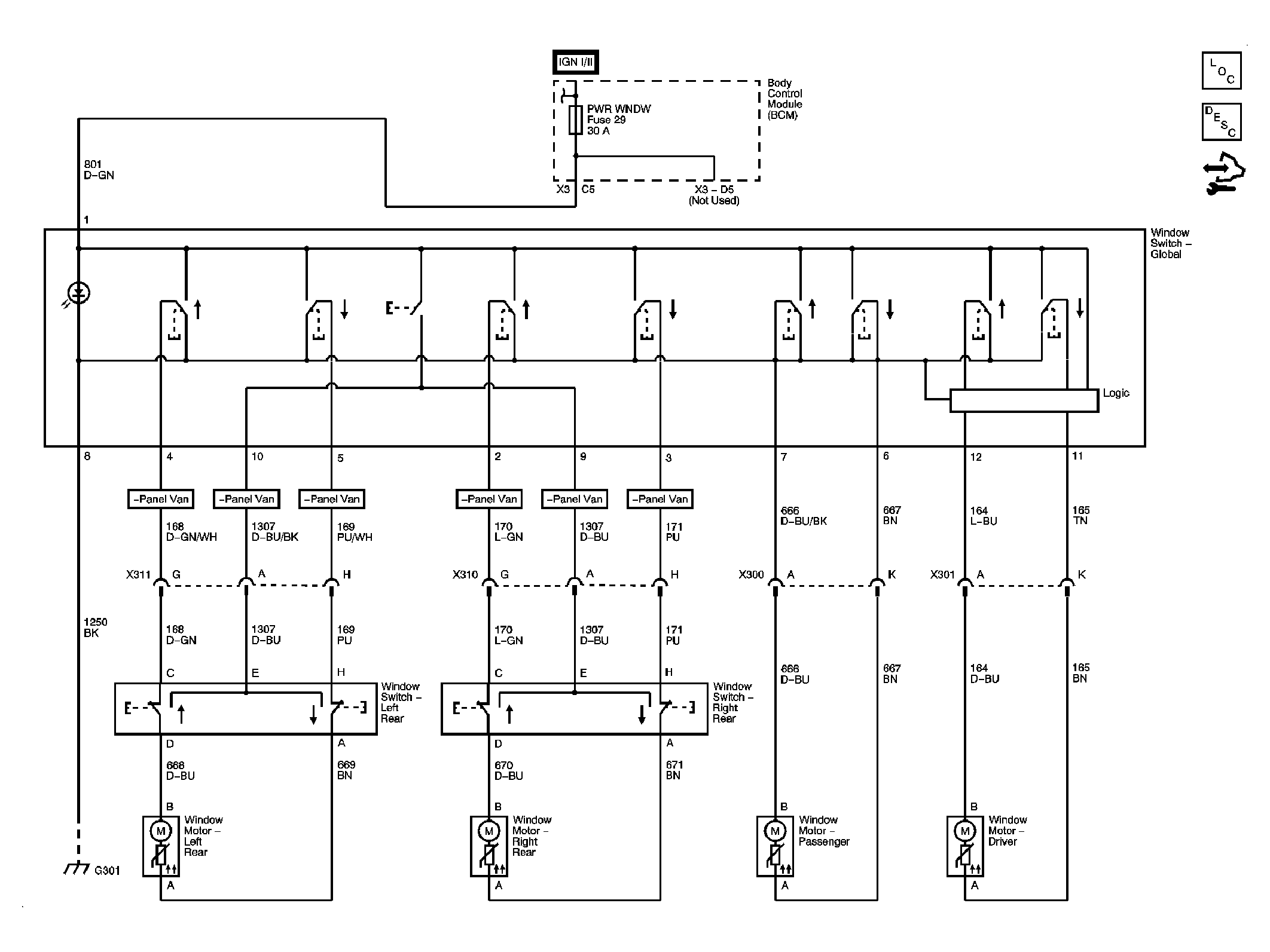

Fig 1: Power Windows Schematic

GM1887629

Courtesy of GENERAL MOTORS CORP.
