Home >> Chevrolet >> 2008 >> HHR LS, Standard >> Repair and Diagnosis >> Body & Frame >> Ignition Switch/Steering Lock >> Wiring Systems And Power Management - Introduction >> Schematic and Routing Diagrams >> Ignition Lock Schematics

Ignition Lock Schematics

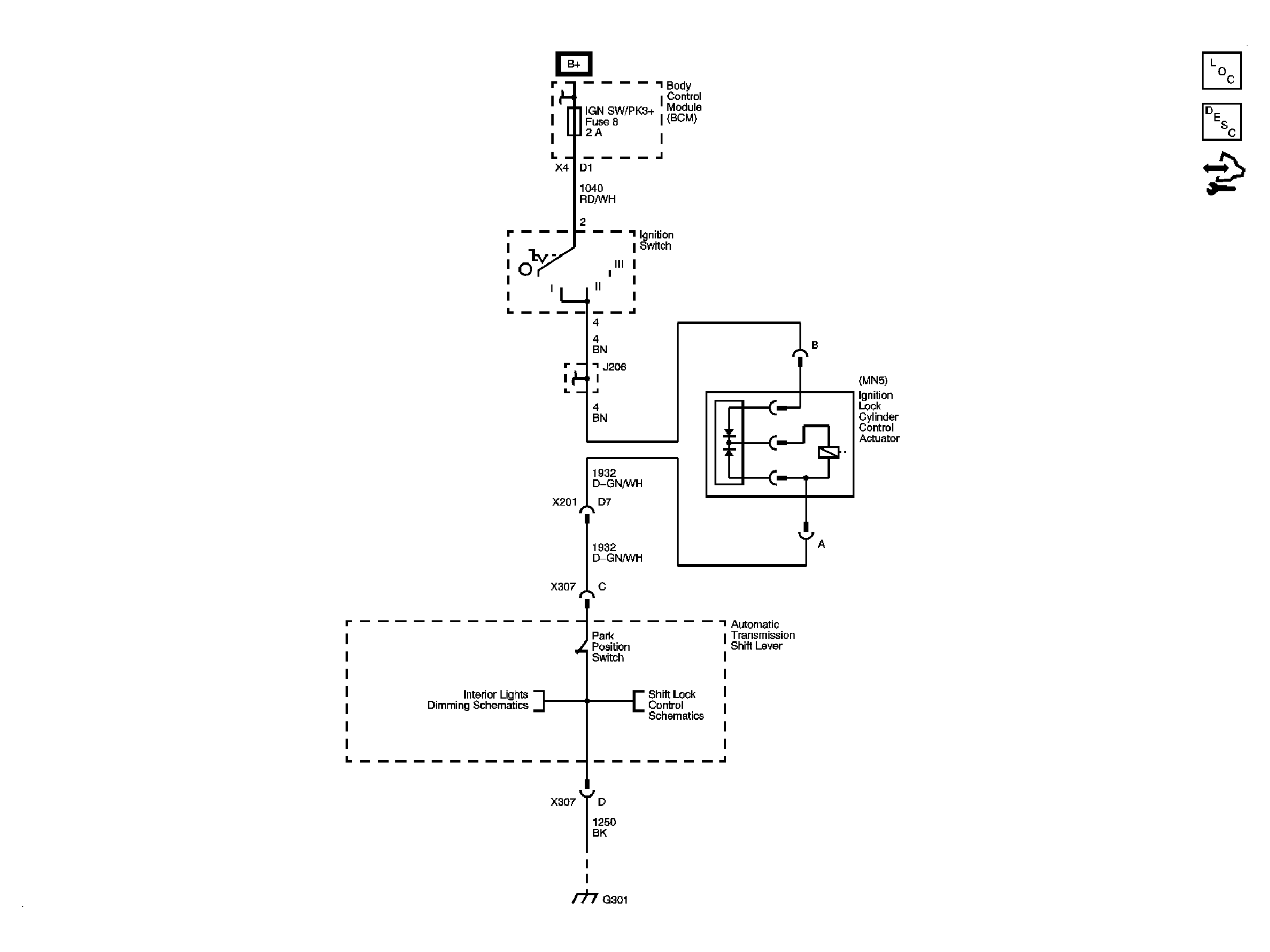

Fig 1: Column And Ignition Lock - Schematic

GM1887776

Courtesy of GENERAL MOTORS CORP.
