Ignition and Start Switch Replacement

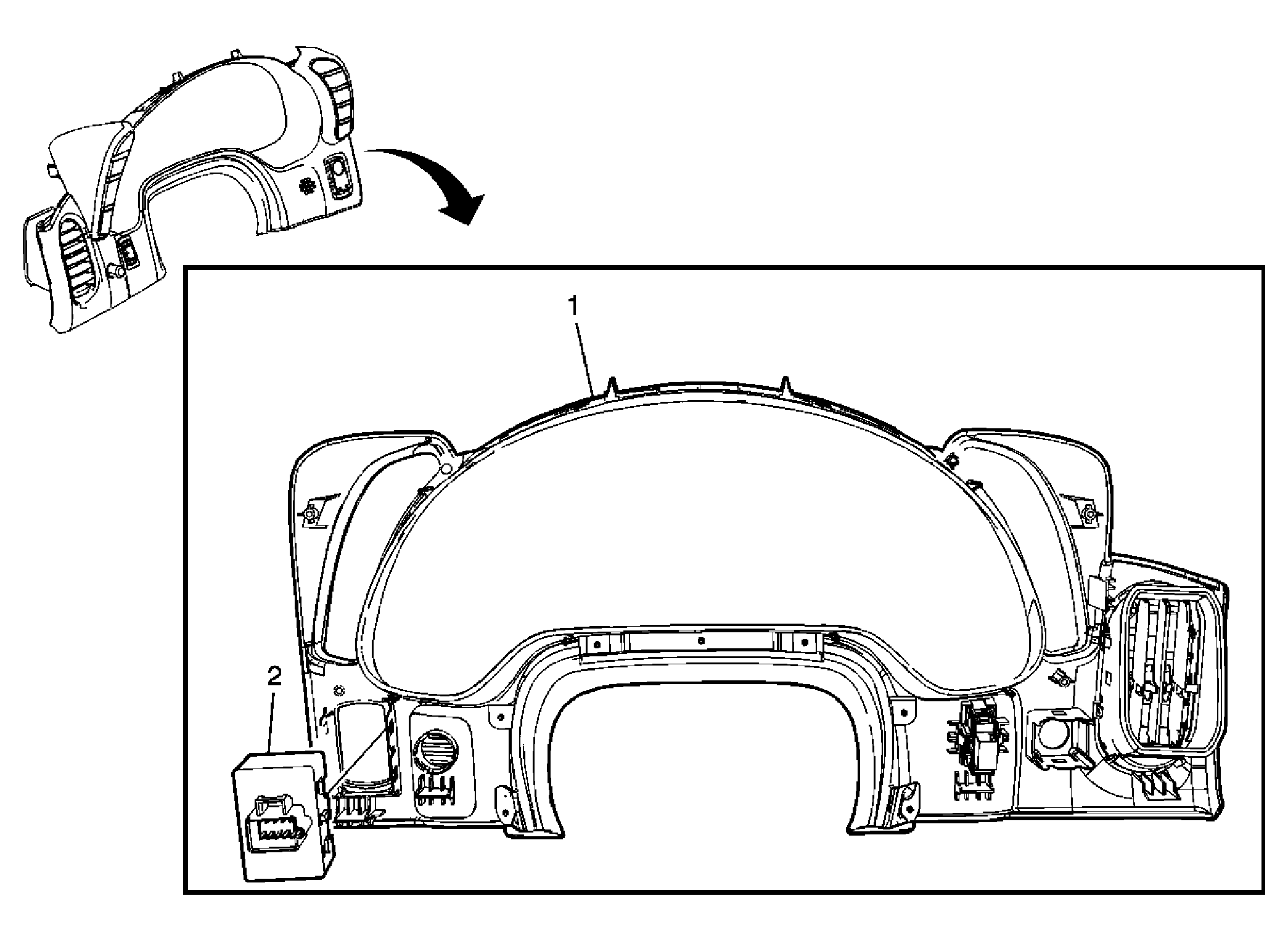

Fig 1: Ignition and Start Switch Replacement
GM1803407Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel Cluster Trim Plate
Refer to Instrument Cluster Trim Panel Replacement .
2 Ignition and Start Switch
Tip:  Use a flat-bladed tool in order to release the switch from the trim plate.
