Data Communication Schematics

Fig 1: Power, Ground, and Class 2 Schematic

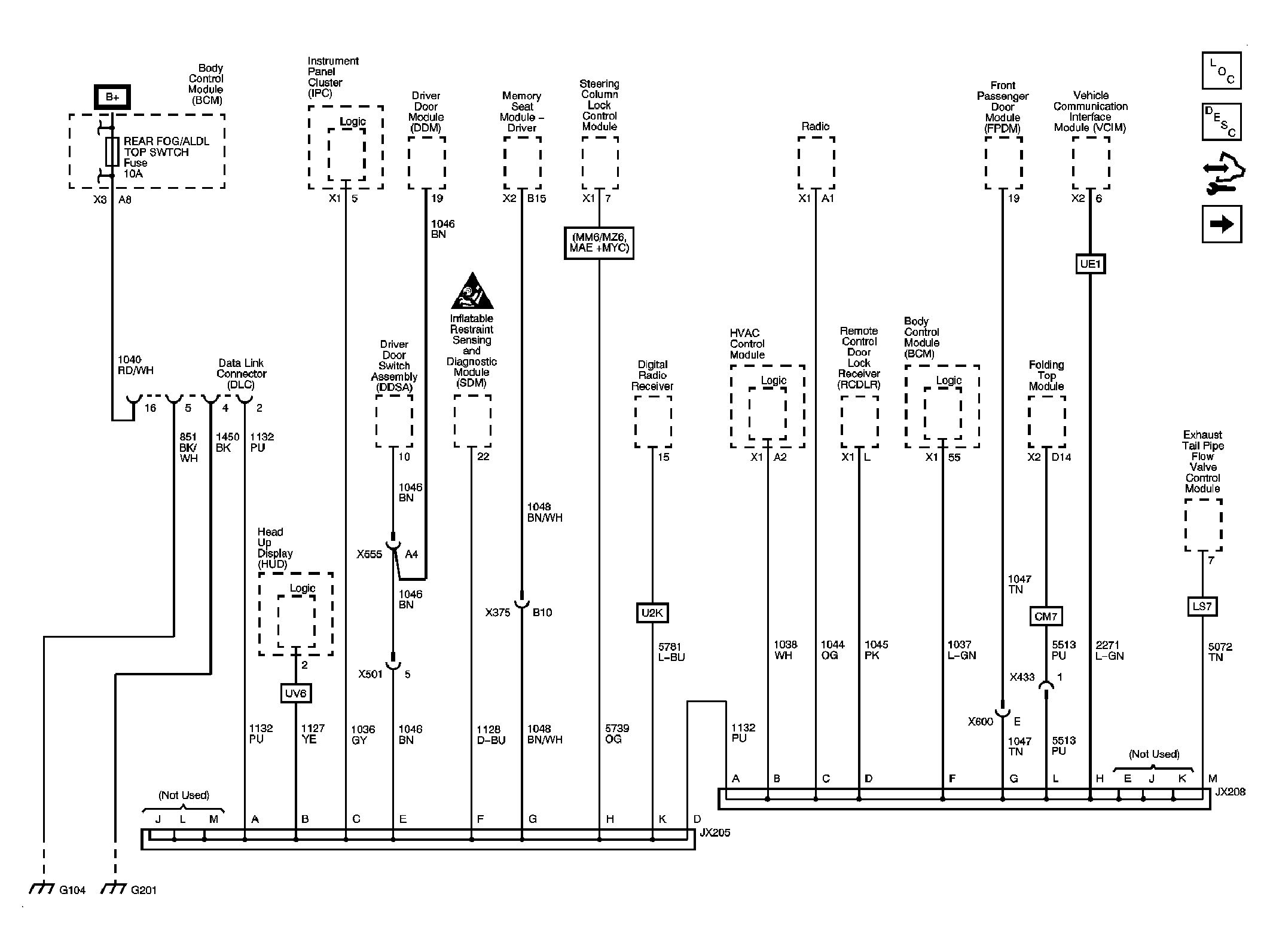

GM1892567Courtesy of GENERAL MOTORS CORP.
Fig 2: High Speed GMLAN - Automatic Transmission Schematic

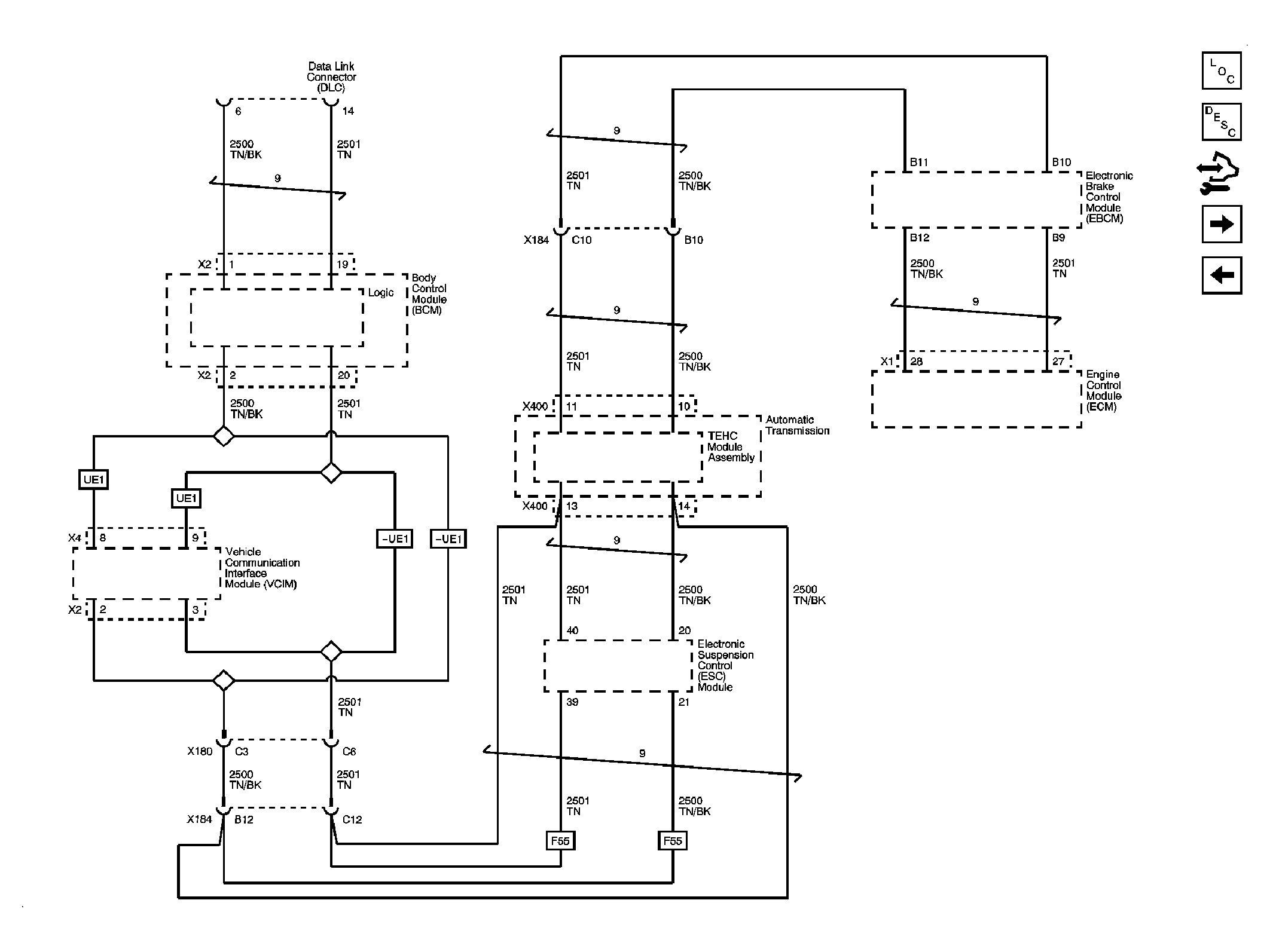

GM1892569Courtesy of GENERAL MOTORS CORP.
Fig 3: High Speed GMLAN - Manual Transmission Schematic

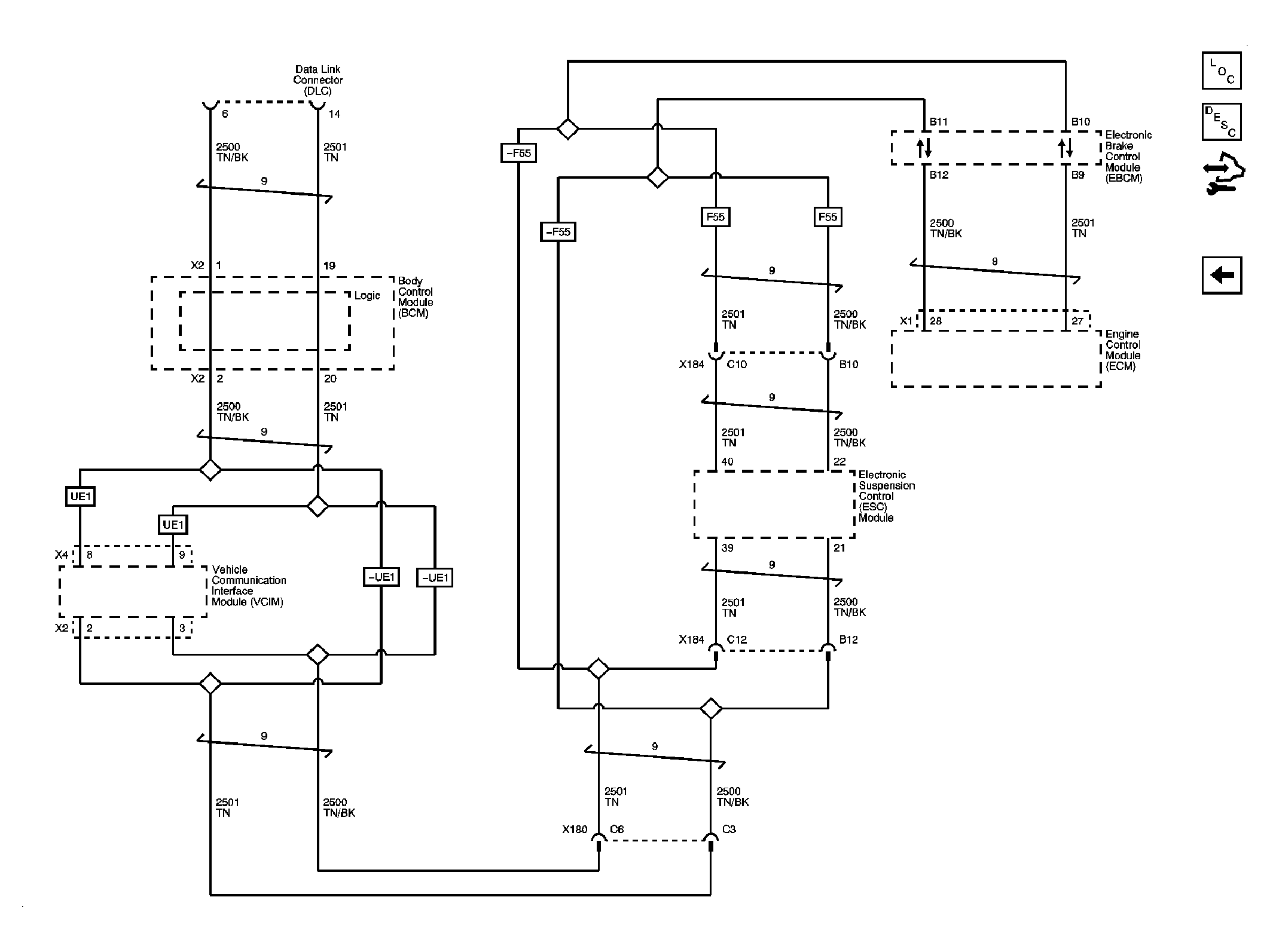

GM1892571Courtesy of GENERAL MOTORS CORP.
