Body Control System Schematics

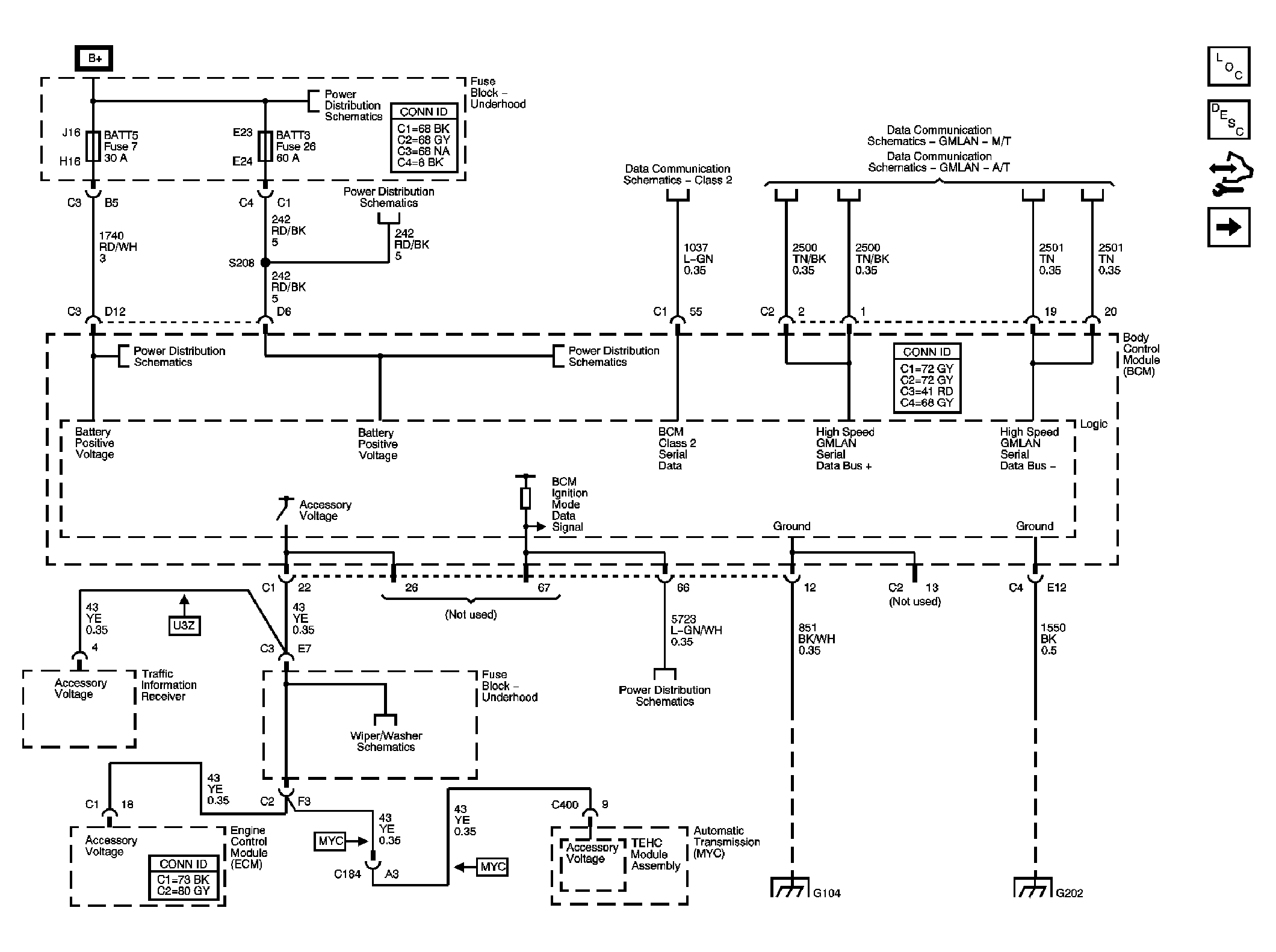

Fig 1: Power, Ground, and Serial Data Schematic
GM1893254Courtesy of GENERAL MOTORS CORP.

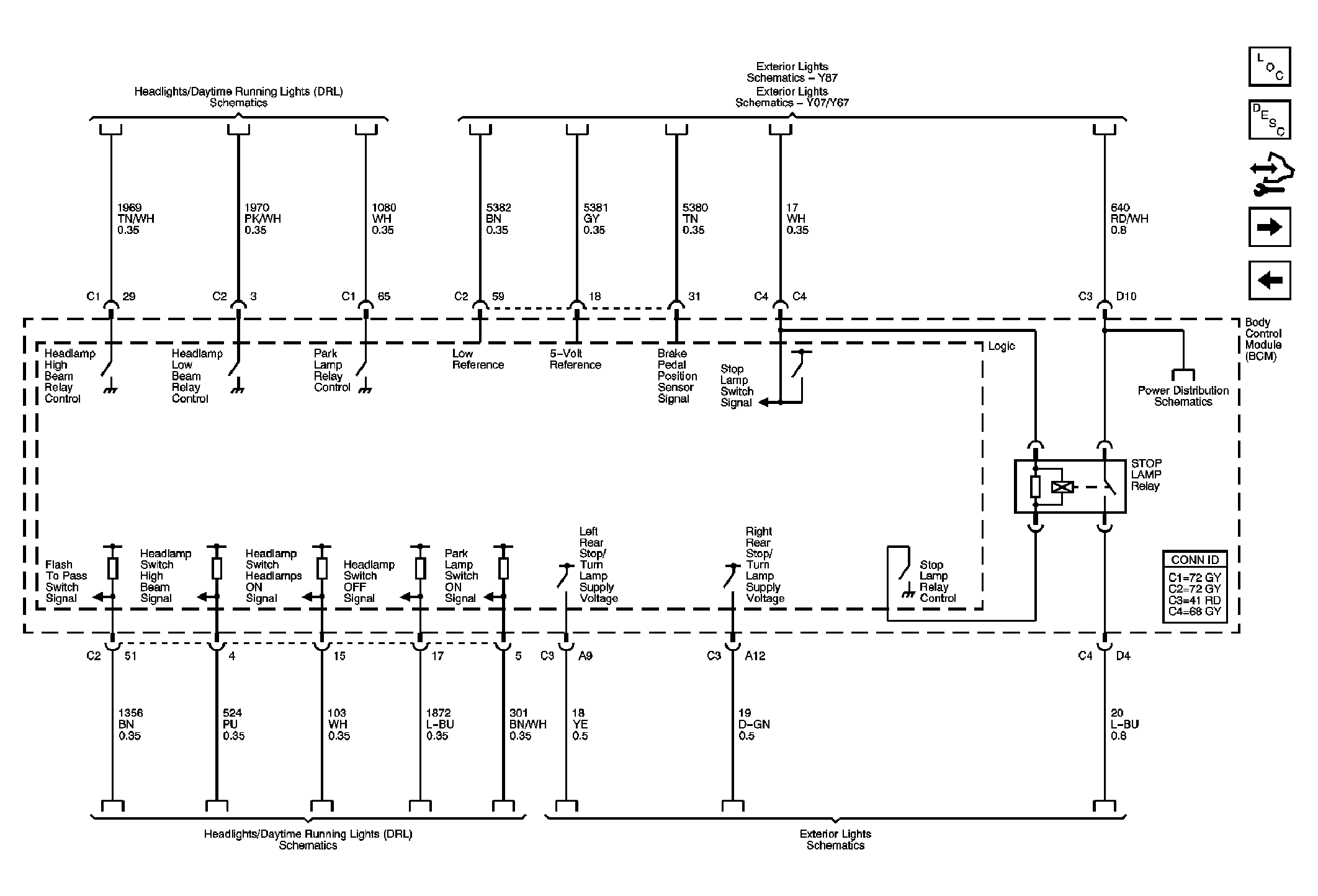

Fig 2: Lighting References Schematic (1 of 2)
GM1893257Courtesy of GENERAL MOTORS CORP.

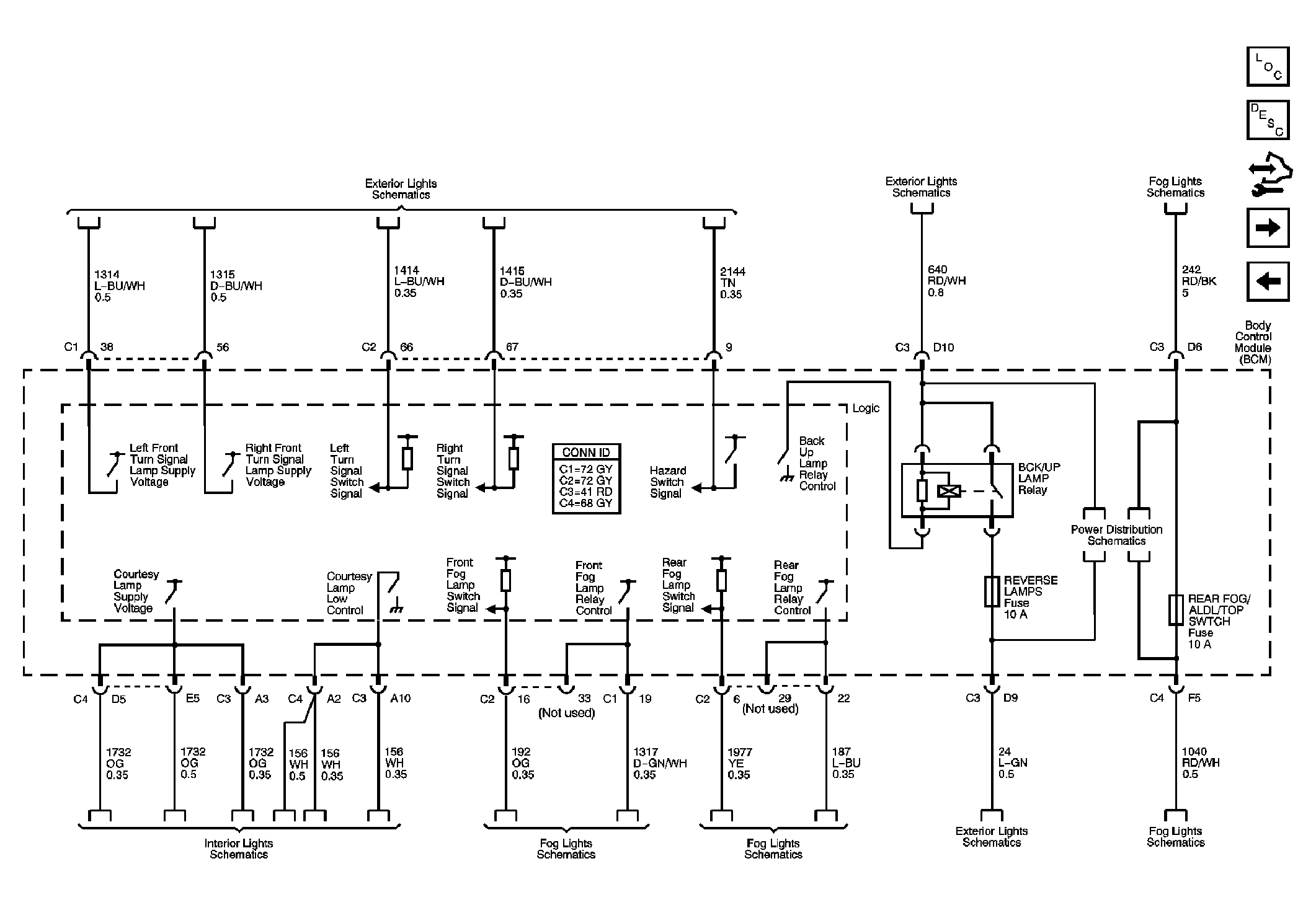

Fig 3: Lighting References Schematic (2 of 2)
GM1893259Courtesy of GENERAL MOTORS CORP.

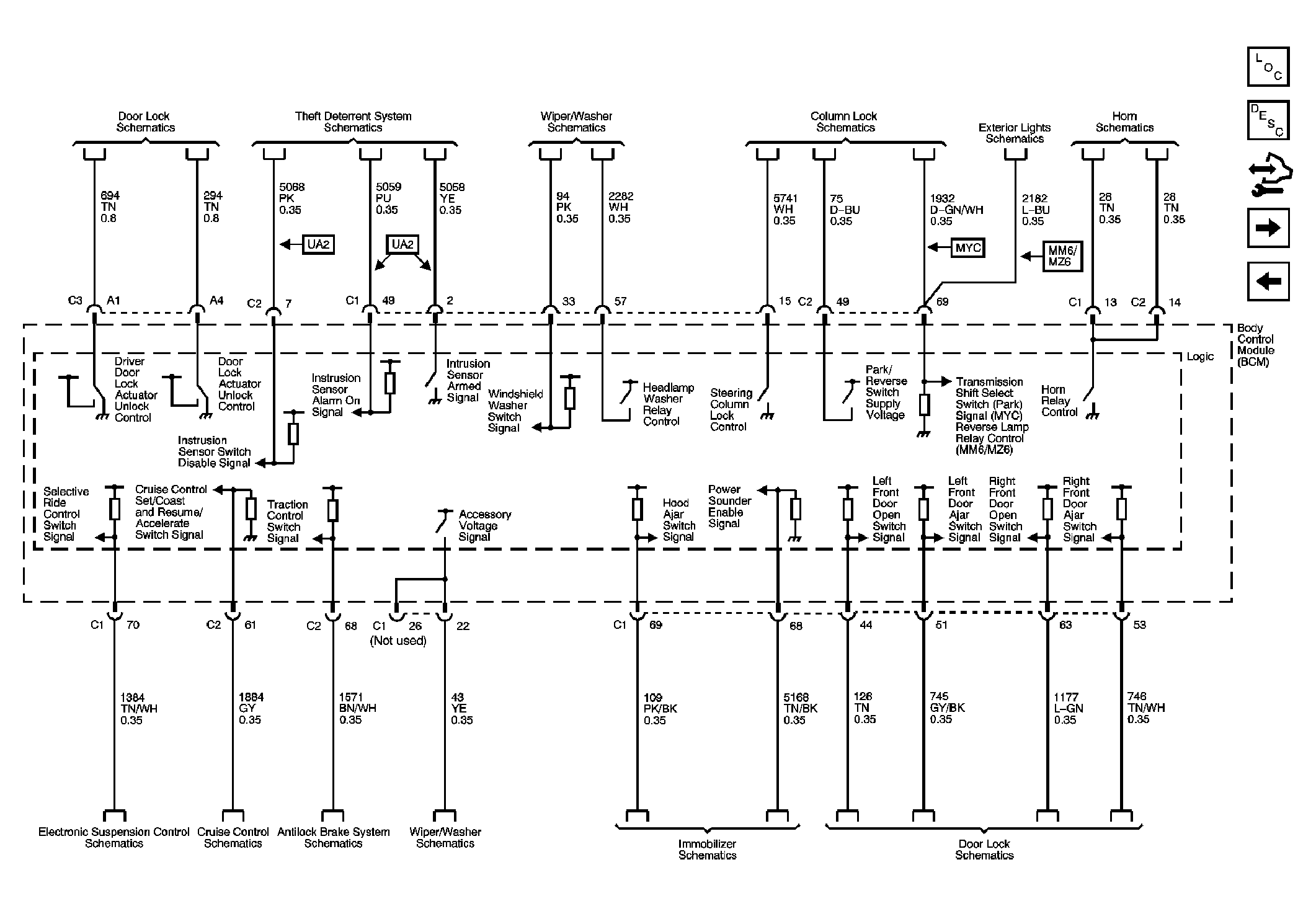

Fig 4: Subsystem References Schematic (1 of 2)
GM1893261Courtesy of GENERAL MOTORS CORP.

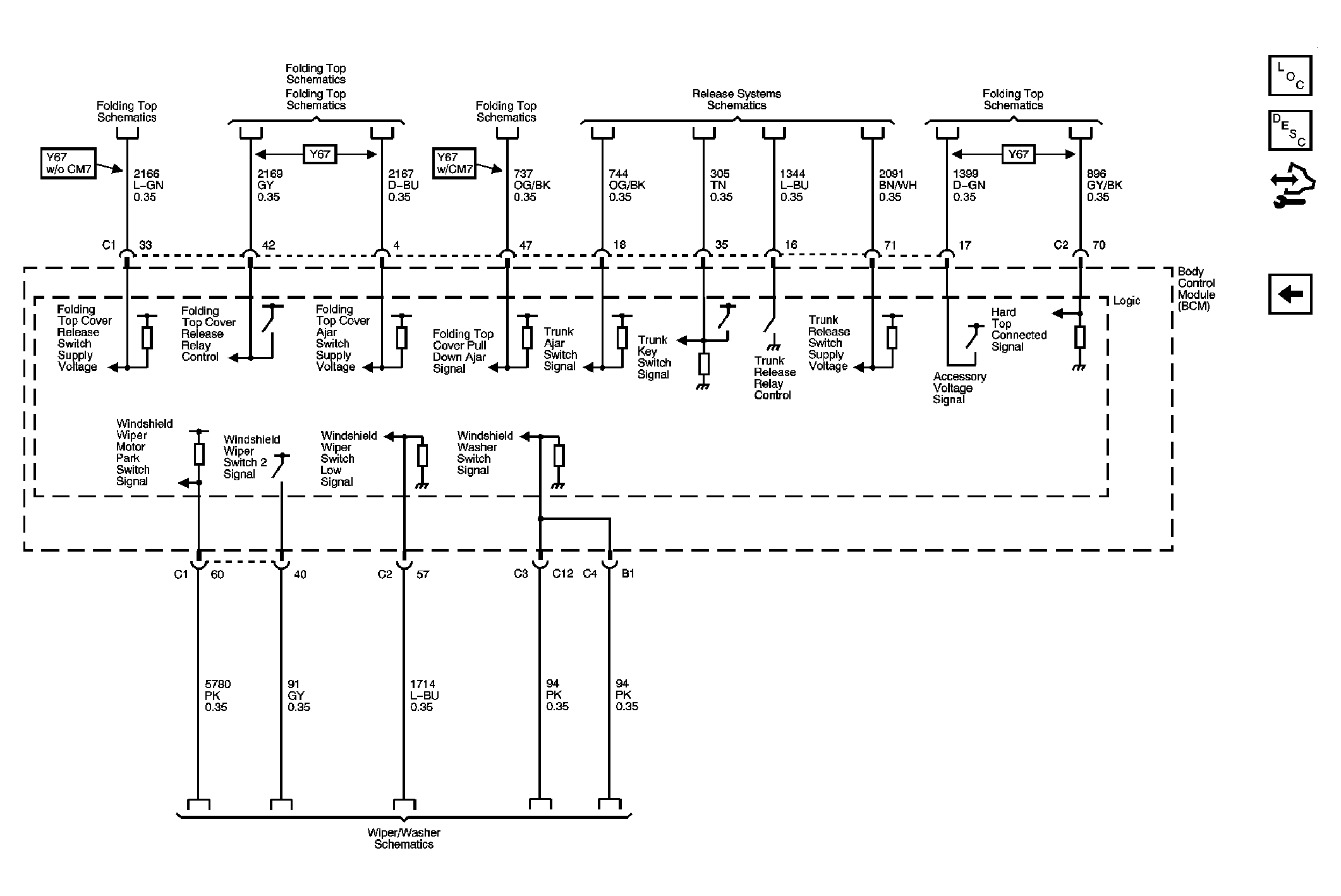

Fig 5: Subsystem References Schematic (2 of 2)
GM1893262Courtesy of GENERAL MOTORS CORP.
