Body Control System Schematics

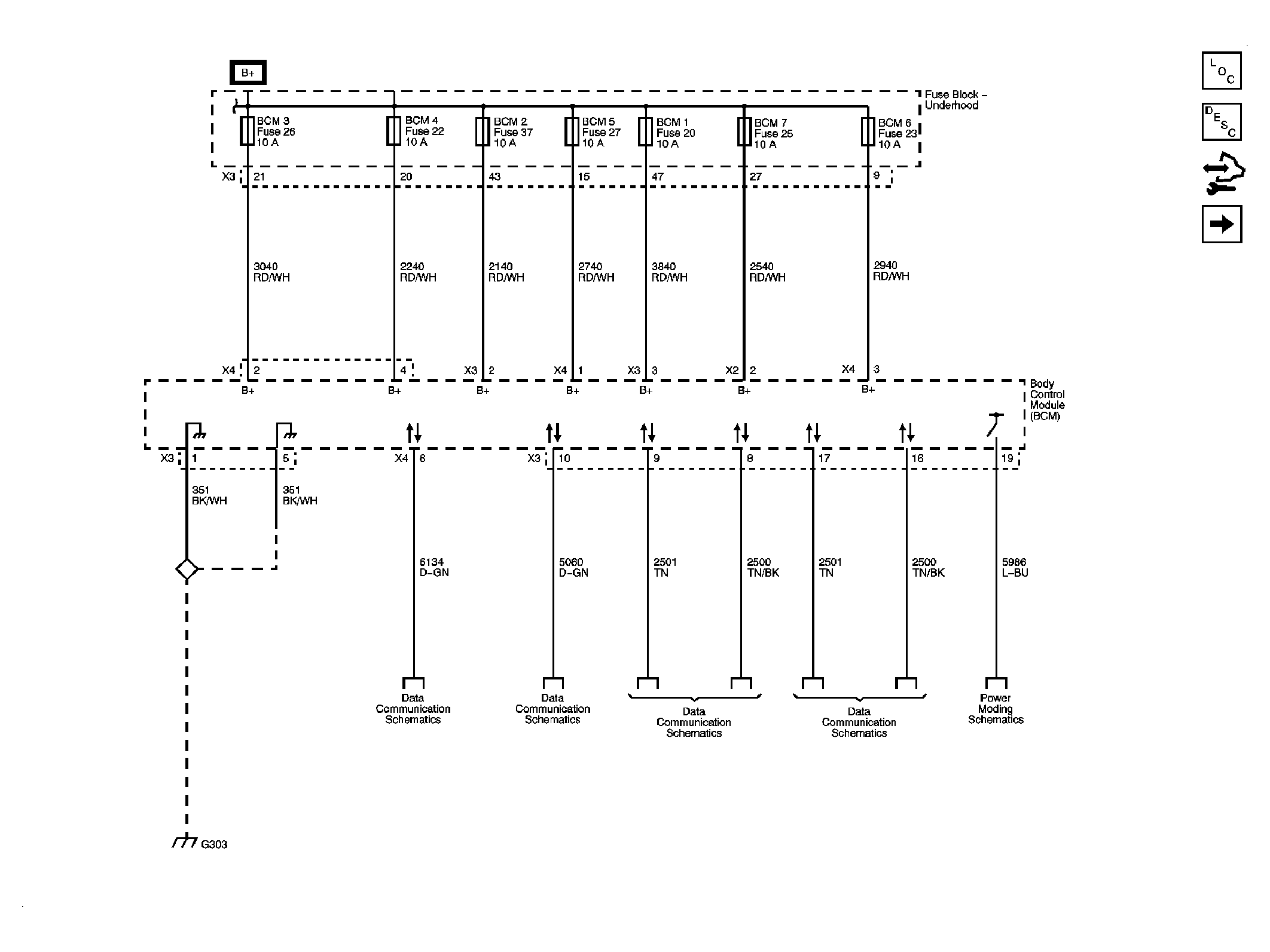

Fig 1: Power, Ground, Serial Data, and Controlled/Monitored Subsystem References Schematic
GM1884060Courtesy of GENERAL MOTORS CORP.

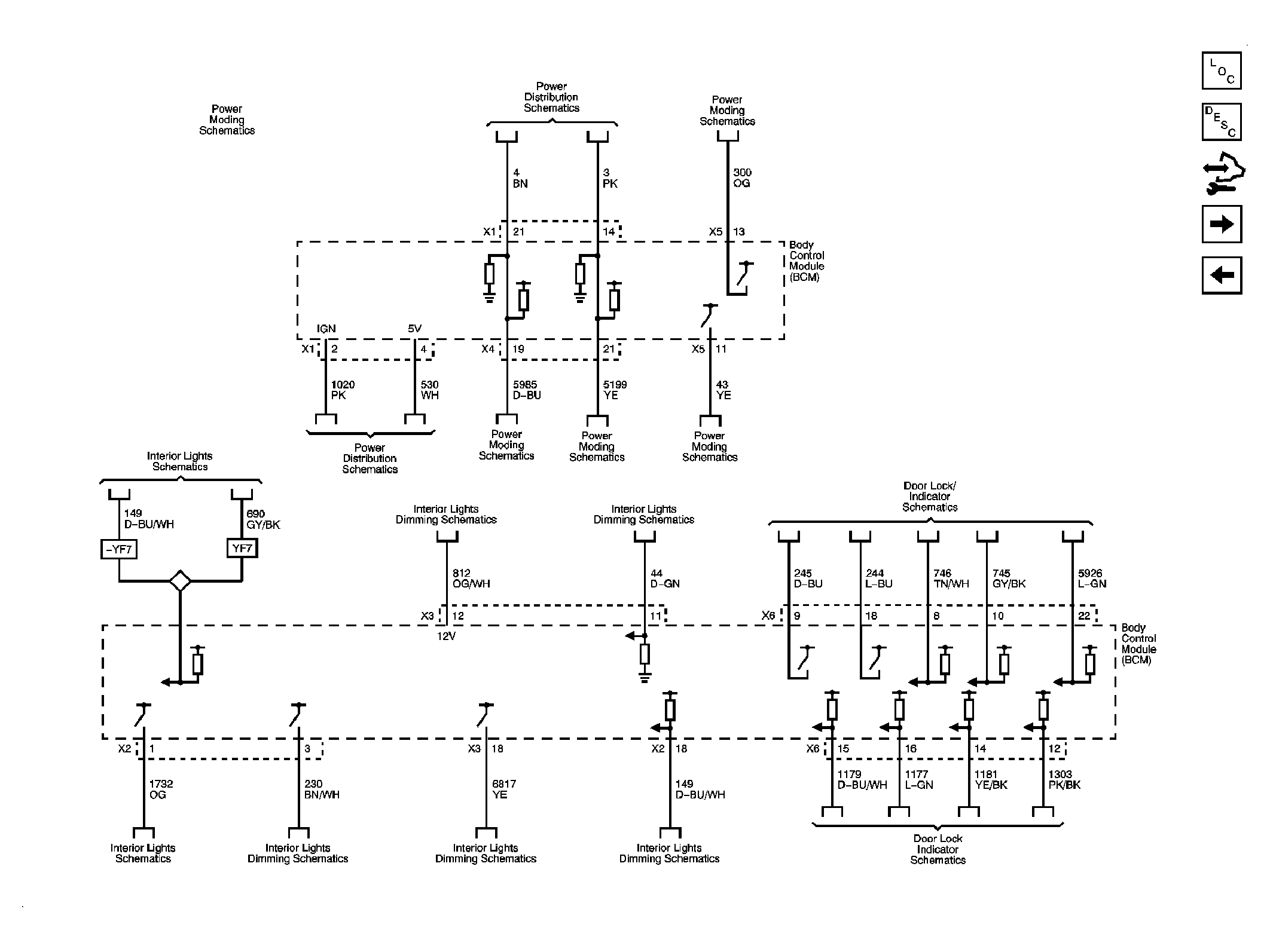

Fig 2: BCM Inputs and Outputs Schematic 1 of 4
GM1925692Courtesy of GENERAL MOTORS CORP.

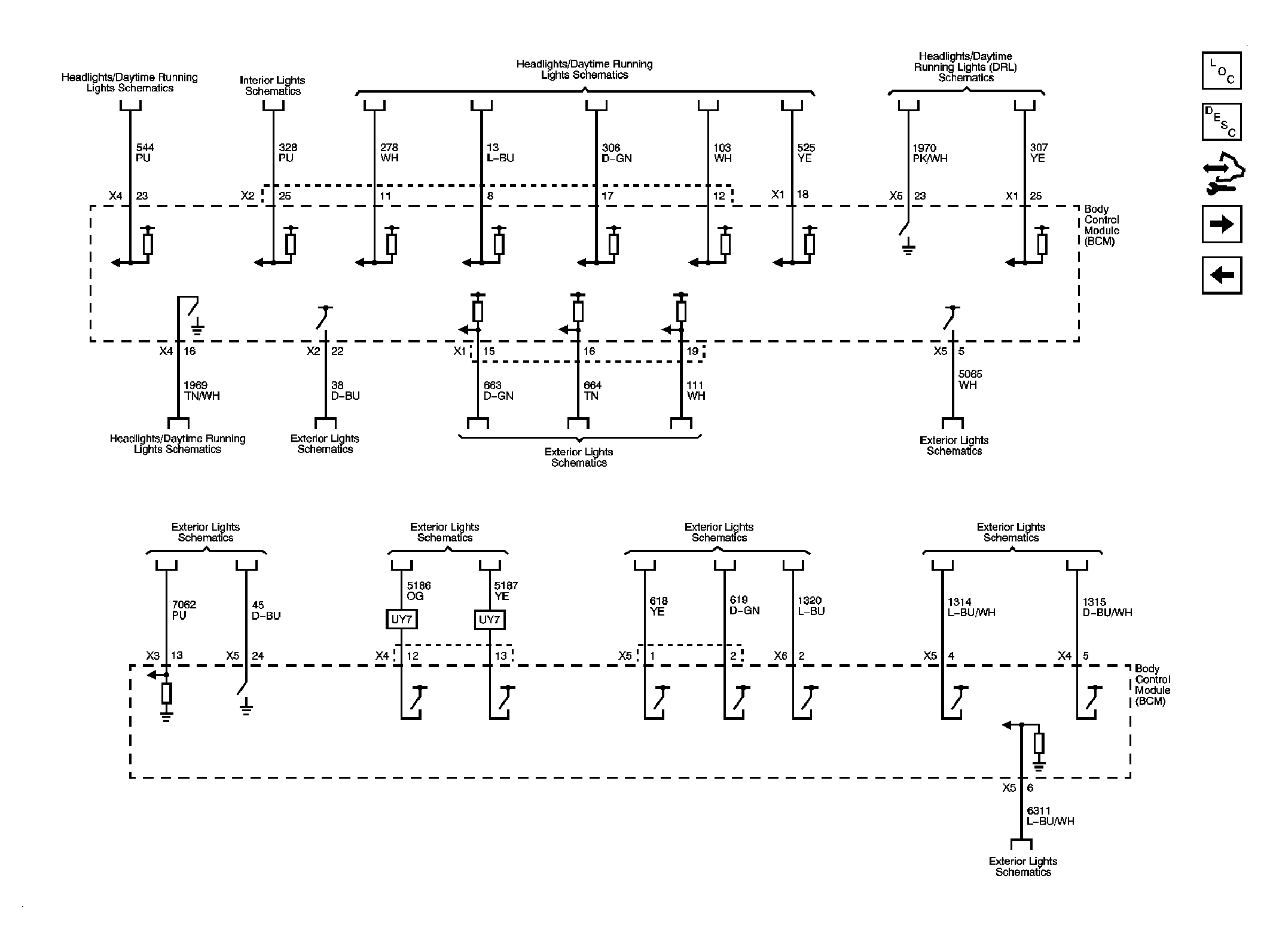

Fig 3: BCM Inputs and Outputs Schematic 2 of 4
GM1925707Courtesy of GENERAL MOTORS CORP.

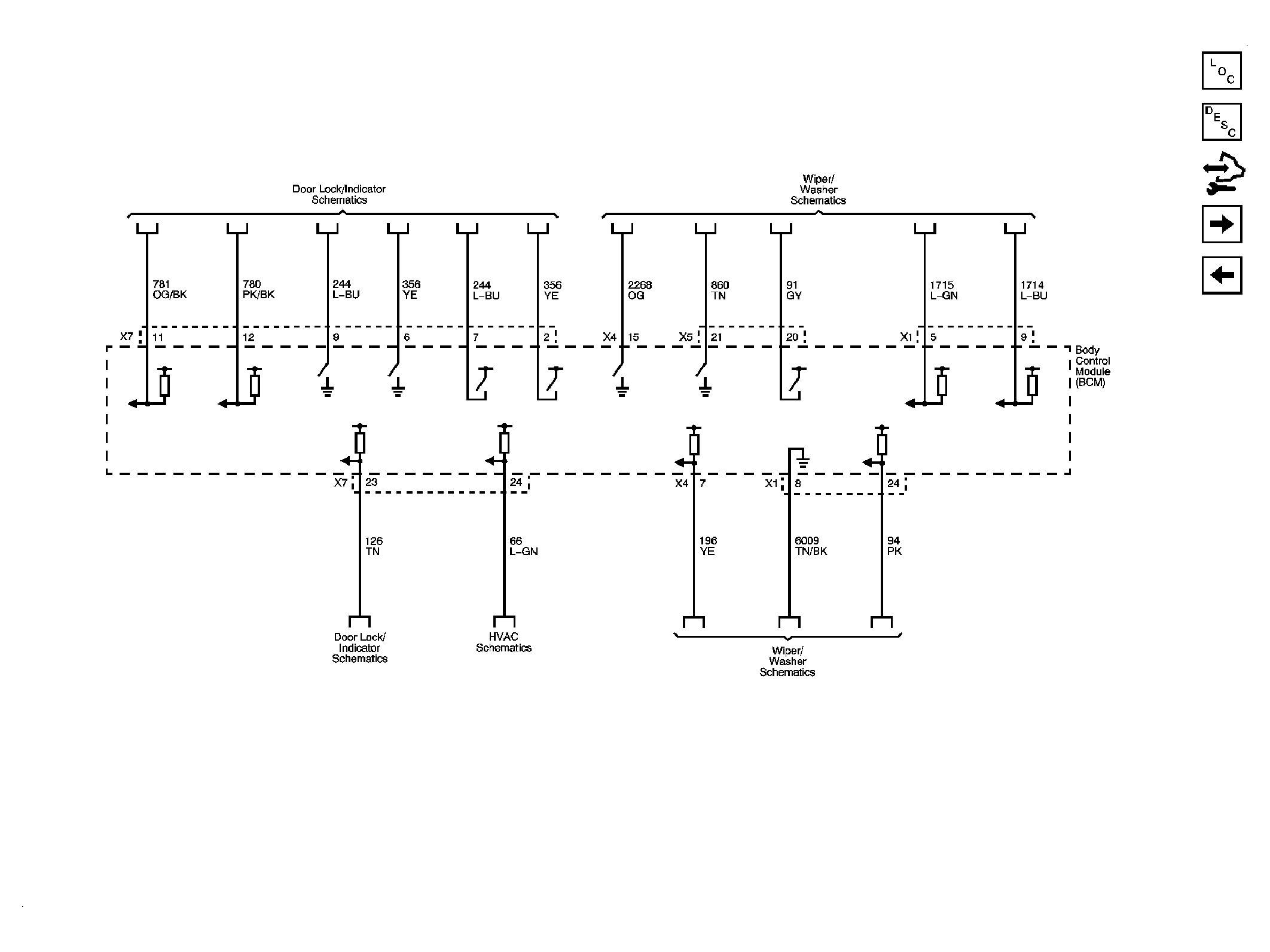

Fig 4: BCM Inputs and Outputs Schematic 3of 4
GM1925717Courtesy of GENERAL MOTORS CORP.

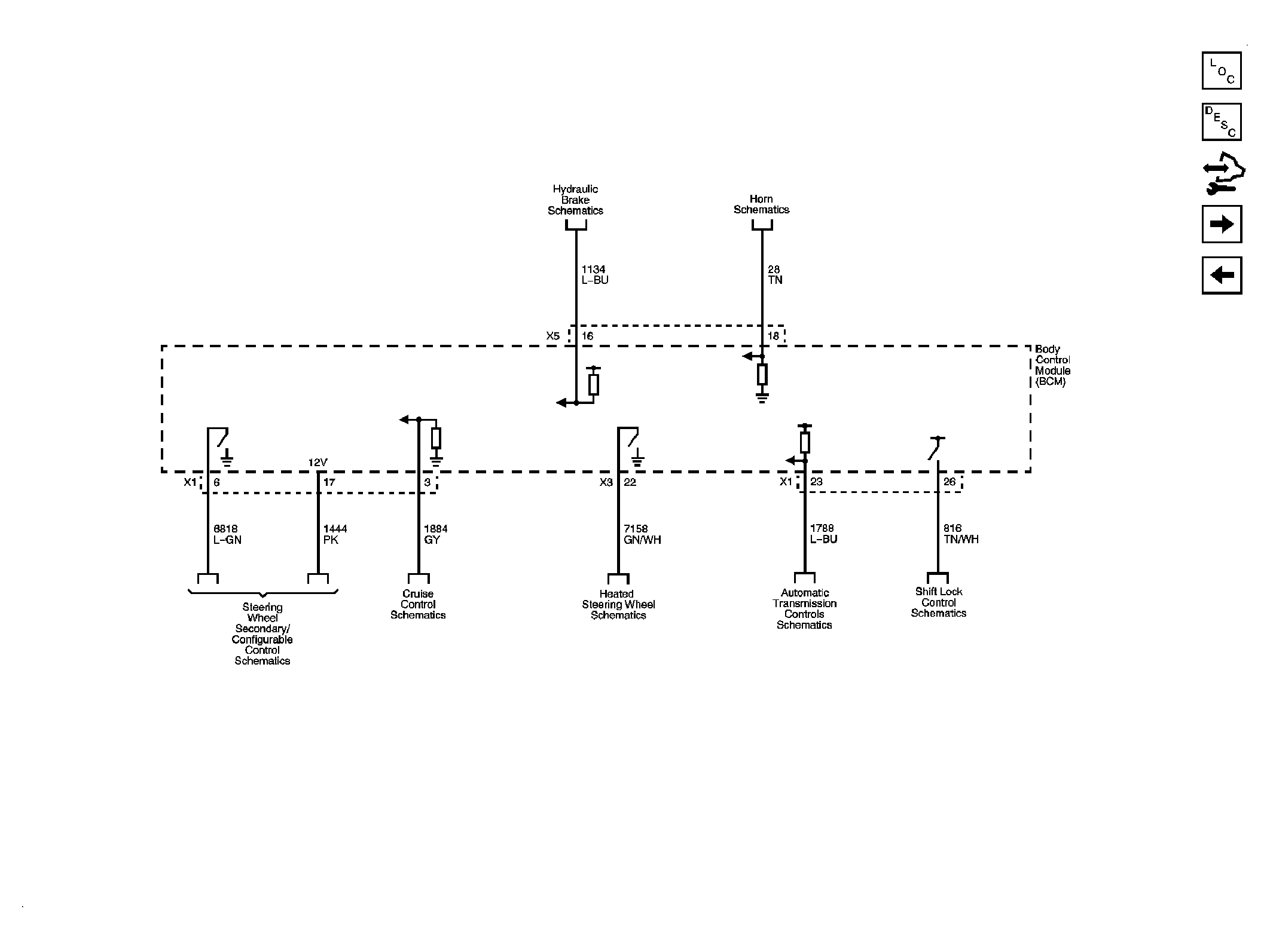

Fig 5: BCM Inputs and Outputs Schematic 4 of 4
GM1884064Courtesy of GENERAL MOTORS CORP.
