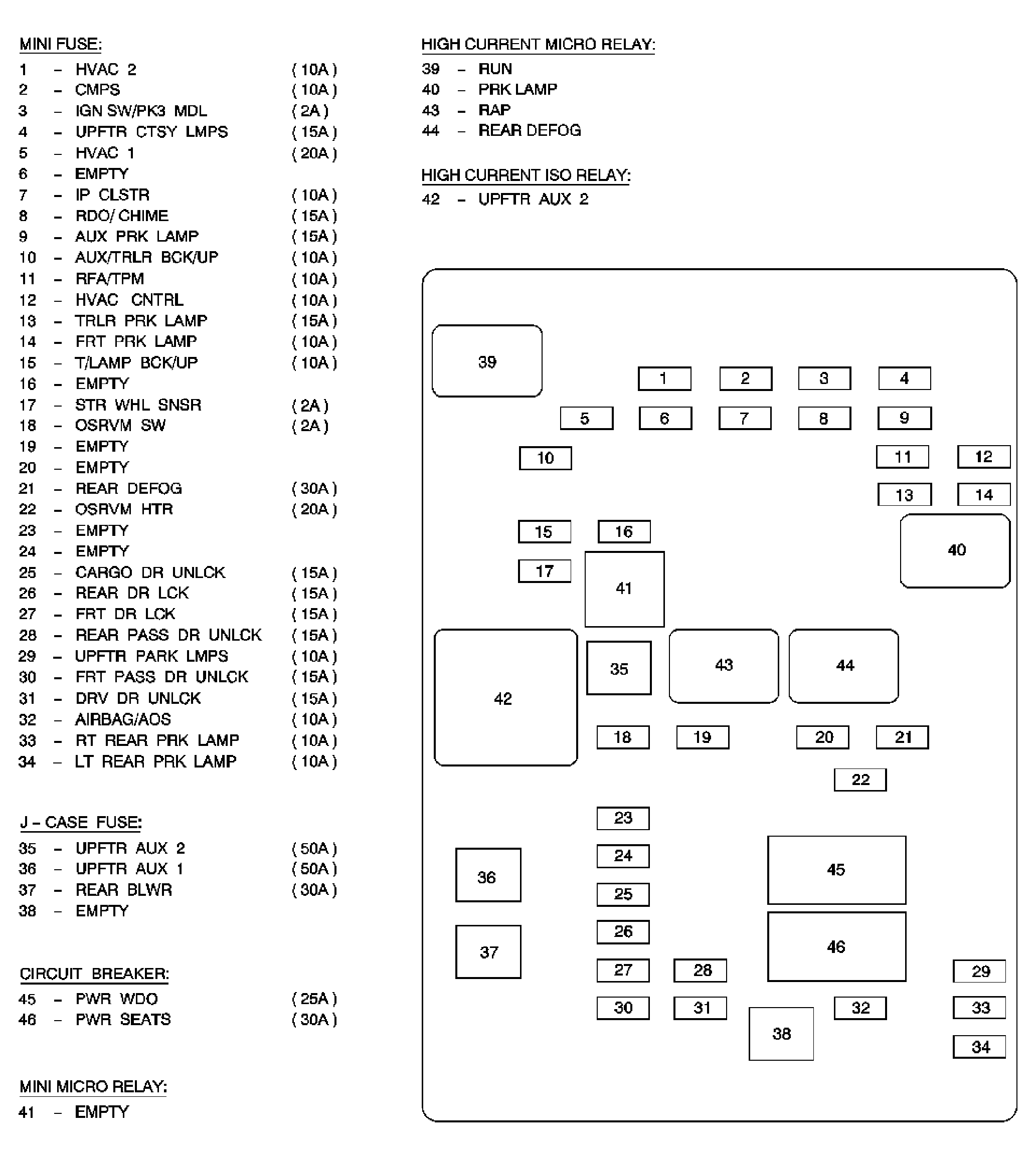

Fuse Block - Body Label
Fuse Block - Body - Label Usage
| No. | Device | Rating | Description |
|---|---|---|---|
| 1 | HVAC 2 Fuse | 10A | Air Temperature Actuator, HVAC Control Assembly (C49/DE5/DE7), HVAC Control Processor - Auxiliary, HVAC Control Assembly-Rear Auxiliary (C69 +Rear Auxiliary Controls), Low Speed Blower Motor Relay - Auxiliary (C36/C69), Med Speed Blower Motor Relay - Auxiliary (C36/C69), High Speed Blower Motor Relay - Auxiliary (C36/C69), Mode Actuator - Auxiliary (C69) and Air Temperature Actuator - Auxiliary (C69) |
| 2 | CMPS Fuse | 10A | Electroinc Compass Module |
| 3 | IGN SW/PK3 MDL Fuse | 2A | Ignition Switch and Theft Deterrent Control Module |
| 4 | UPFTR CTSY LMPS Fuse | 15A | Body Control Module (-YF7), X405 (Cutaway), Courtesy/Reading Lamp- Middle (Passenger), Dome Lamp Rear (Cargo), Courtesy/Reading Lamp - Rear (Passenger), X320 (YF7) and Courtesy/Reading Lamp Front |
| 5 | HVAC 1 Fuse | 20A | HVAC Control Assembly and Vacuum Pump - Diesel |
| 6 | EMPTY | - | Not Used |
| 7 | IP CLSTR Fuse | 10A | Instrument Panel Cluster |
| 8 | RDO/CHIME Fuse | 15A | Radio, Chime Module |
| 9 | AUX PRK LAMP Fuse | 15A | X405 (Cutaway) |
| 10 | AUX/TRLR BCK/UP Fuse | 10A | Backup Alarm (8S3), Trailer Connector (UY7) and X405 (Cutaway) |
| 11 | RFA/TPM Fuse | 10A | Remote Control Door Lock Receiver (RCDLR) (AUO) |
| 12 | HVAC CNTRL Fuse | 10A | HVAC Control Assembly (DE5/DE7/C49) |
| 13 | TRLR PRK LAMP Fuse | 15A | Trailer Connector (UY7) |
| 14 | FRT PRK LAMP Fuse | 10A | Park/Turn Signal Lamp - LF, Marker Lamp - LF, Park/Turn Signal Lamp -RF, Marker Lamp -RF and Inflatable Restraint I/P Module Disable Switch (C99) |
| 15 | T/LAMP BCK/UP Fuse | 10A | Backup Lamp - Right (Passenger/Cargo) and Backup Lamp - Left (Passenger/Cargo) |
| 16 | EMPTY | - | Not Used |
| 17 | STR WHL SNSR Fuse | 2A | Inflatable Restraint Steering Wheel Module Coil (K34/W1Y), |
| 18 | OSRVM SW Fuse | 2A | Outside Rearview Mirror Switch (DE5/DE7) |
| 19 | EMPTY | - | Not Used |
| 20 | EMPTY | - | Not Used |
| 21 | REAR DEFOG Fuse | 30A | Rear Window Defogger Grid - Left (C49) and Rear Window Defogger Grid - Right (C49) |
| 22 | OSRVW HTR Fuse | 20A | Outside Rearview Mirror - Driver (DE5/DE7) and Outside Rearview Mirror - Passenger (DE5/DE7) |
| 23 | EMPTY | - | Not Used |
| 24 | EMPTY | - | Not Used |
| 25 | CARGO DR UNLCK Fuse | 15A | Door Latch Assembly - Cargo (Passenger/Cargo +AU3) |
| 26 | REAR DR LCK Fuse | 15A | Door Contact Plate - Left Side (E26), Door Contact Plate - Right Side (E24/YA2) and Door Latch Assembly - Cargo (Passenger/Cargo) |
| 27 | FRT DR LCK Fuse | 15A | Door Latch Assembly - Driver (AU3) and Door Latch Assembly - Passenger (AU3) |
| 28 | REAR PASS DR UNLCK Fuse | 15A | Door Contact Plate - Left Side (E26/AU3), Door Contact Plate - Right Side (Passenger/Cargo +AU3) and Fuse Block - Body |
| 29 | UPFTR PARK LAMPS Fuse | 10A | X320 (YF2/YF7) |
| 30 | FRT PASS DR UNLCK Fuse | 15A | Door Latch Assembly - Passenger (AU3) |
| 31 | DRV DR UNLCK Fuse | 15A | Door Latch Assembly - Driver (AU3) |
| 32 | AIRBAG/AOS Fuse | 10A | Inflatable Restraint Sensing and Diagnostic Module (SDM), Inflatable Restraint Vehicle Rollover Sensor (ASF) and Inflatable Restraint Front Passenger Presence System (PPS) Sensor (-YF7 +Light Duty ) |
| 33 | RT REAR PRK LAMP Fuse | 10A | Tail/Stop and Turn Signal Lamp - Right (Passenger/Cargo) |
| 34 | LT REAR PRK LAMP Fuse | 10A | Tail/Stop and Turn Signal Lamp - Left (Passenger/Cargo) and, License Lamp (Passenger/Cargo) |
| 35 | UPFTR AUX 2 Fuse | 50A | Blunt Cut (YF1), X321 (YF2/YF7) and X222 (YF2/YF7) |
| 36 | UPFTR AUX 1 Fuse | 50A | Blunt Cut (YF1), X321 (YF2/YF7) and X222 (YF2/YF7) |
| 37 | REAR BLWR Fuse | 30A | Low Speed Blower Motor Relay - Auxiliary (C36/C69), Medium Speed Blower Motor Relay - Auxiliary (C36/C69) and High Speed Blower Motor Relay - Auxiliary (C36/C69) |
| 38 | EMPTY | - | Not Used |
| 39 | RUN Relay | - | HVAC 1, HVAC 2, CMPS Fuses and UPFTR AUX 2 Relay |
| 40 | PRK LAMP Relay | - | LT REAR PRK LAMP, RT REAR PRK LAMP, FRT PRK LAMP, TRLR PRK LAMP, AUX PRK LAMP and UPFTR PARK LMPS Fuses |
| 41 | EMPTY | - | Not Used |
| 42 | UPFTR AUX 2 Relay | - | UPFTR AUX 2 Fuse |
| 43 | RAP Relay | - | PWR WDO Circuit Breaker |
| 44 | REAR DEFOG Relay | - | REAR DEFOG and OSRVM HTR Fuses |
| 45 | PWR WDO Circuit Breaker | 25A | Window Switch - Driver (A31) and Window Switch - Passenger (A31) |
| 46 | PWR SEATS Circuit Braker | 30A | Seat Adjuster Switch - Driver (AG1) and Seat Adjuster Switch - Passenger (AG1) |
|
IMPORTANT:
Relays listed below are non-serviceable Printed Circuit Board (PCB) relays and are internal to the block.
|
|||
| - | UPFITTER CTSY LAMPS PCB Relay | - | UPFTR CTSY LMPS Fuses |
| - | DRV UNLOCK PCB Relay | - | DRV DR UNLCK Fuse |
| - | PASS/CGO UNLOCK PCB Relay | - | FRT PASS DR UNLCK and REAR PASS DR UNLCK Fuses |
| - | CGO UNLOCK PCB Relay | - | CARGO DR UNLCK Fuse |
| - | ALL DRS LOCK PCB Relay | - | FRT DR LCK and REAR DR LCK Fuses |
| - | BACK UP LAMP PCB Relay | - | AUX/TRLR BCK/UP and T/LAMP BCK UP Fuses |
