Recirculation Actuator Replacement

WARNING: This page is about a different car, the 2007 Chevrolet Monte Carlo and 2007 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

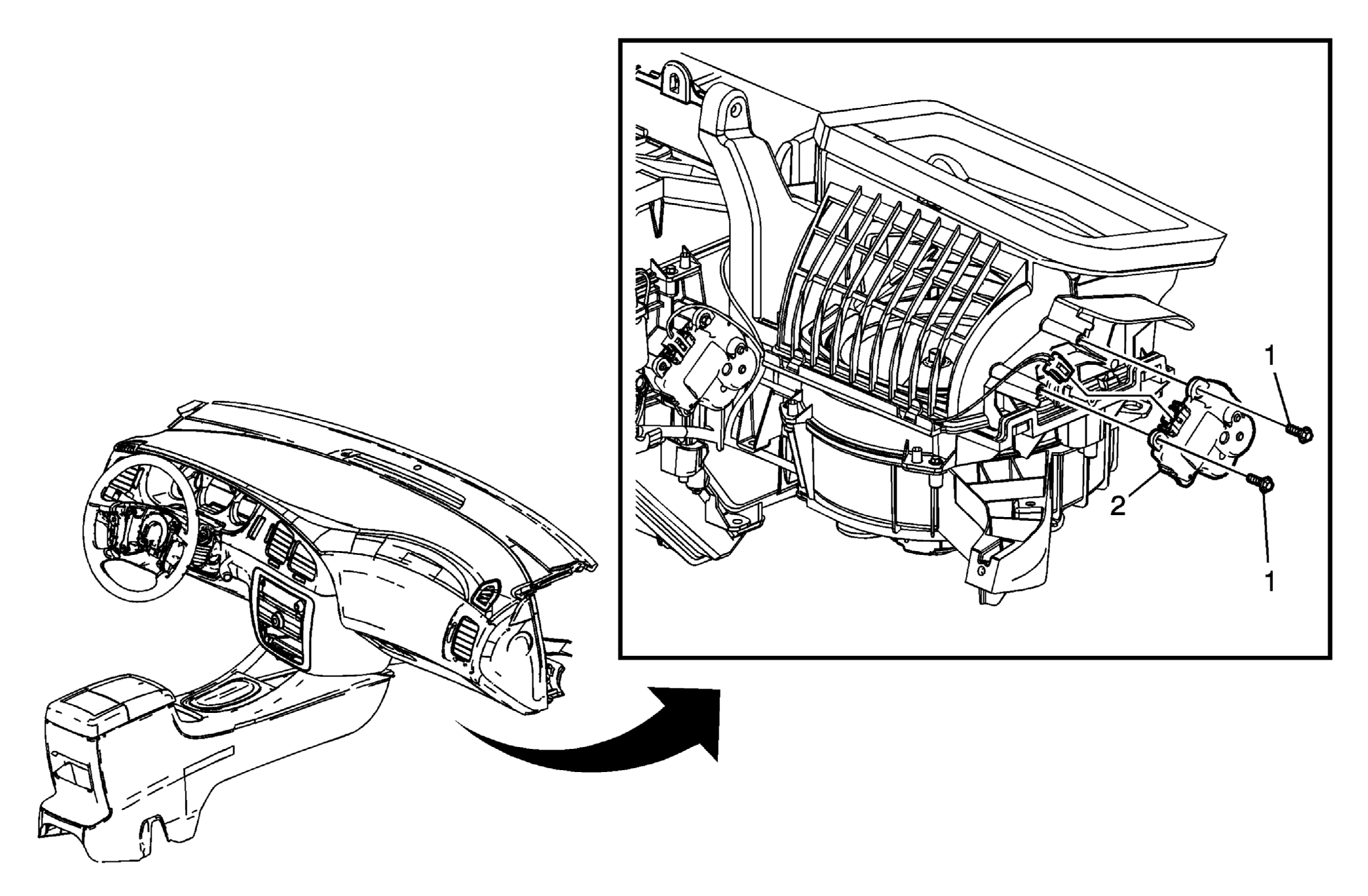

Fig 1: Exploded View Of Recirculation Actuator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the right closeout panel. Refer to Instrument Panel Insulator Panel Replacement - Right Side . Disconnect the recirculation actuator electrical connector.
1	Recirculation Actuator Screw (Qty: 2) Tighten: 1.5 N.m (13 lb in) NOTE: Refer to Fastener Notice .
2	Recirculation Actuator Tip: Refer to Control Module References for programming and setup information.

Callout

Component Name

Preliminary Procedure

Remove the right closeout panel. Refer to Instrument Panel Insulator Panel Replacement - Right Side .
Disconnect the recirculation actuator electrical connector.

Recirculation Actuator Screw (Qty: 2)

Tighten: 1.5 N.m (13 lb in)

NOTE: Refer to Fastener Notice .

Recirculation Actuator
Tip: Refer to Control Module References for programming and setup information.
