Front Seat Belt Buckle Replacement
Front Seat Belt Buckle Replacement

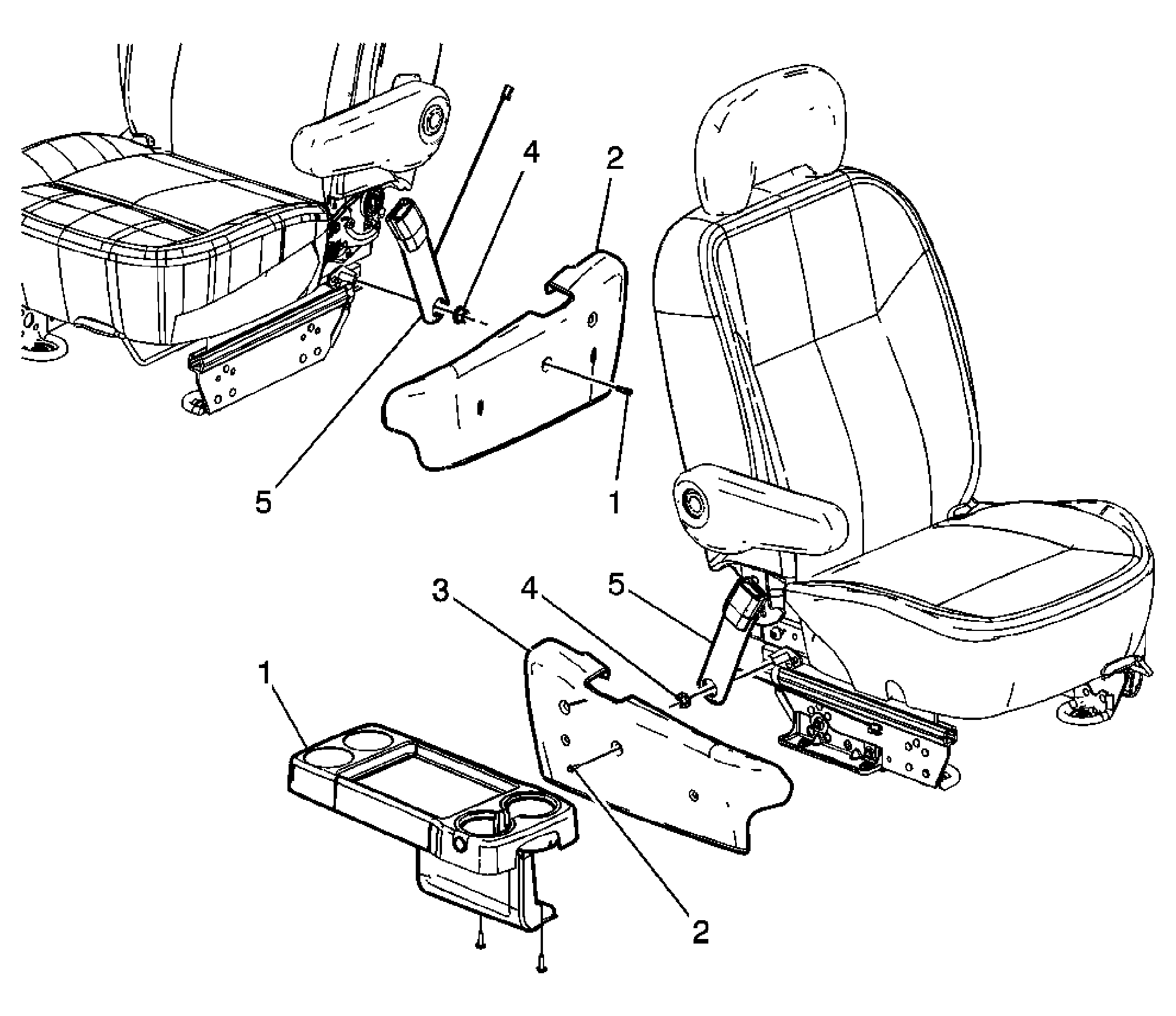

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove driver or passenger seat, if necessary. Refer to Front Seat Replacement - Bucket . |
|
| 1 | Convenience Tray (if equipped) Refer to Front Seat Storage Tray Replacement . |
| 2 | Passenger Seat Cushion Inner Finish Panel Screw
NOTE:
Refer to Fastener Notice
.
Tighten: 2 N.m (18 lb in) |
| 3 | Passenger Seat Cushion Inner Finish Panel |
| 4 | Passenger Seat Belt Buckle Nut Tighten: 53 N.m (39 lb ft) |
| 5 | Passenger Seat Belt Buckle Tip: Disconnect the electrical connector. |
