Moveable Window Schematics

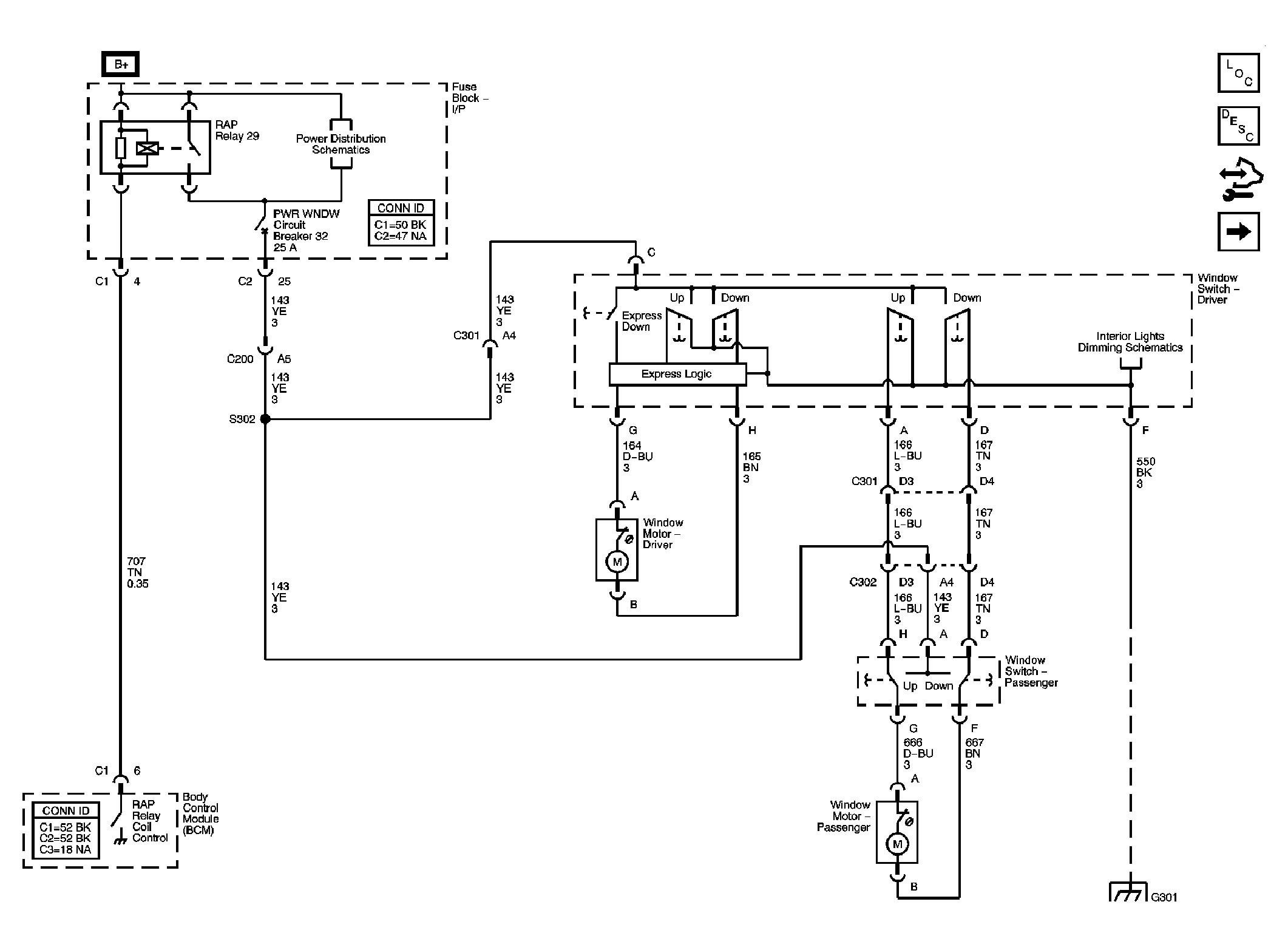

Fig 1: Front Door Windows

GM1740112

Courtesy of GENERAL MOTORS CORP.

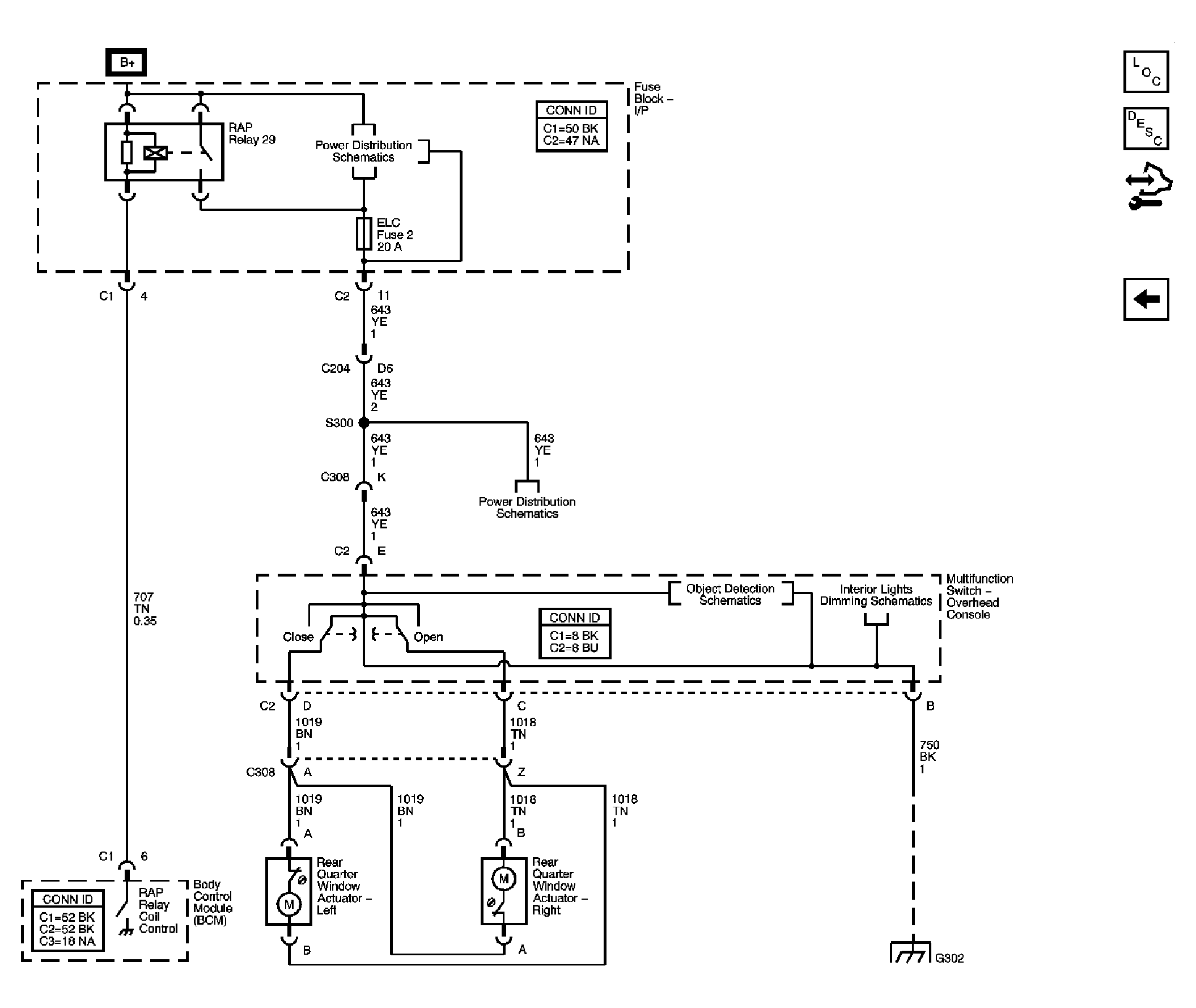

Fig 2: Rear Quarter Windows

GM1740113

Courtesy of GENERAL MOTORS CORP.
