Engine Controls Schematics

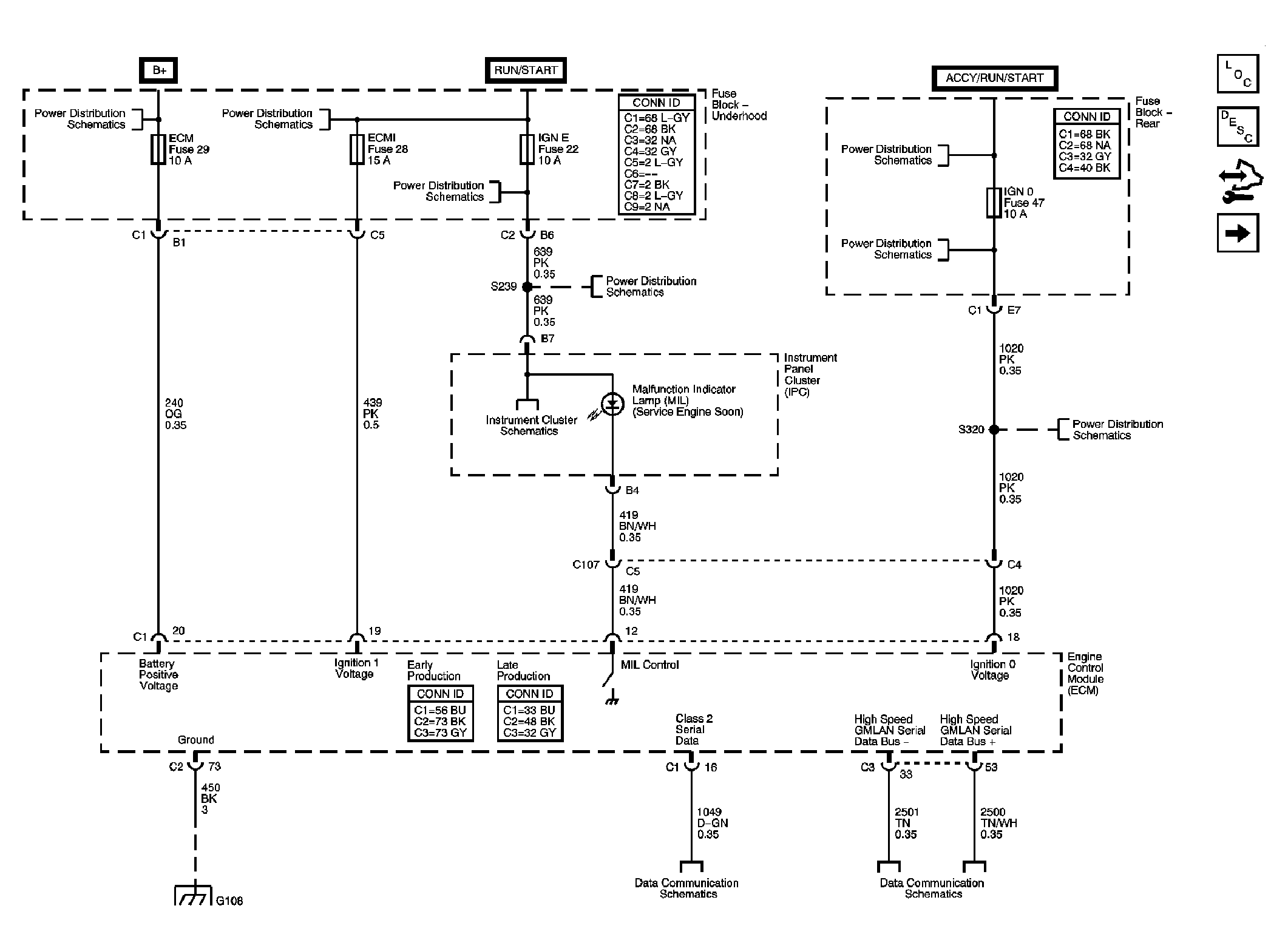

Fig 1: Module Power, Ground, Serial Data & MIL Schematic

Courtesy of GENERAL MOTORS CORP.

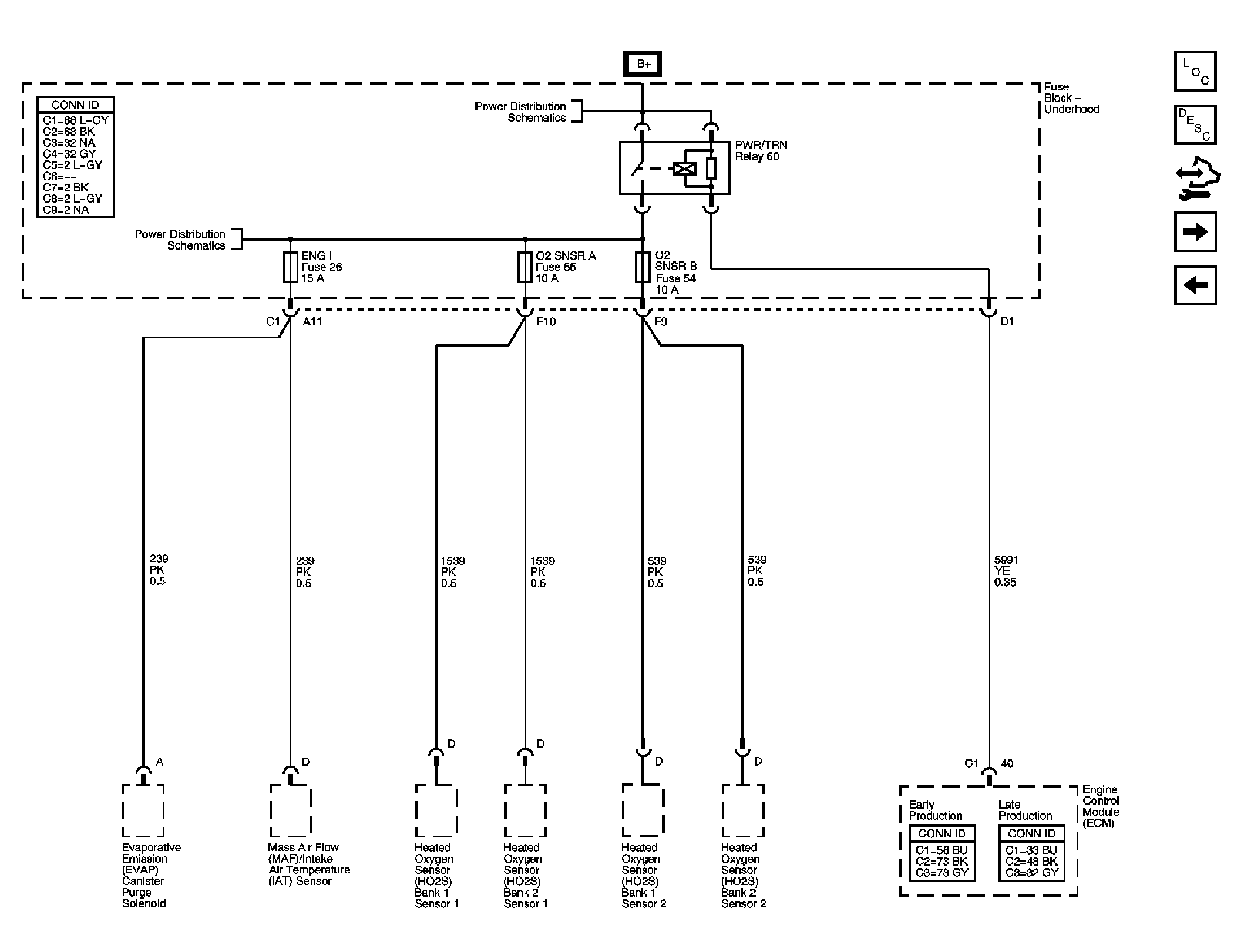

Fig 2: Underhood Fuse Block Schematic - PWR/TRN Relay - 1 Of 2

Courtesy of GENERAL MOTORS CORP.

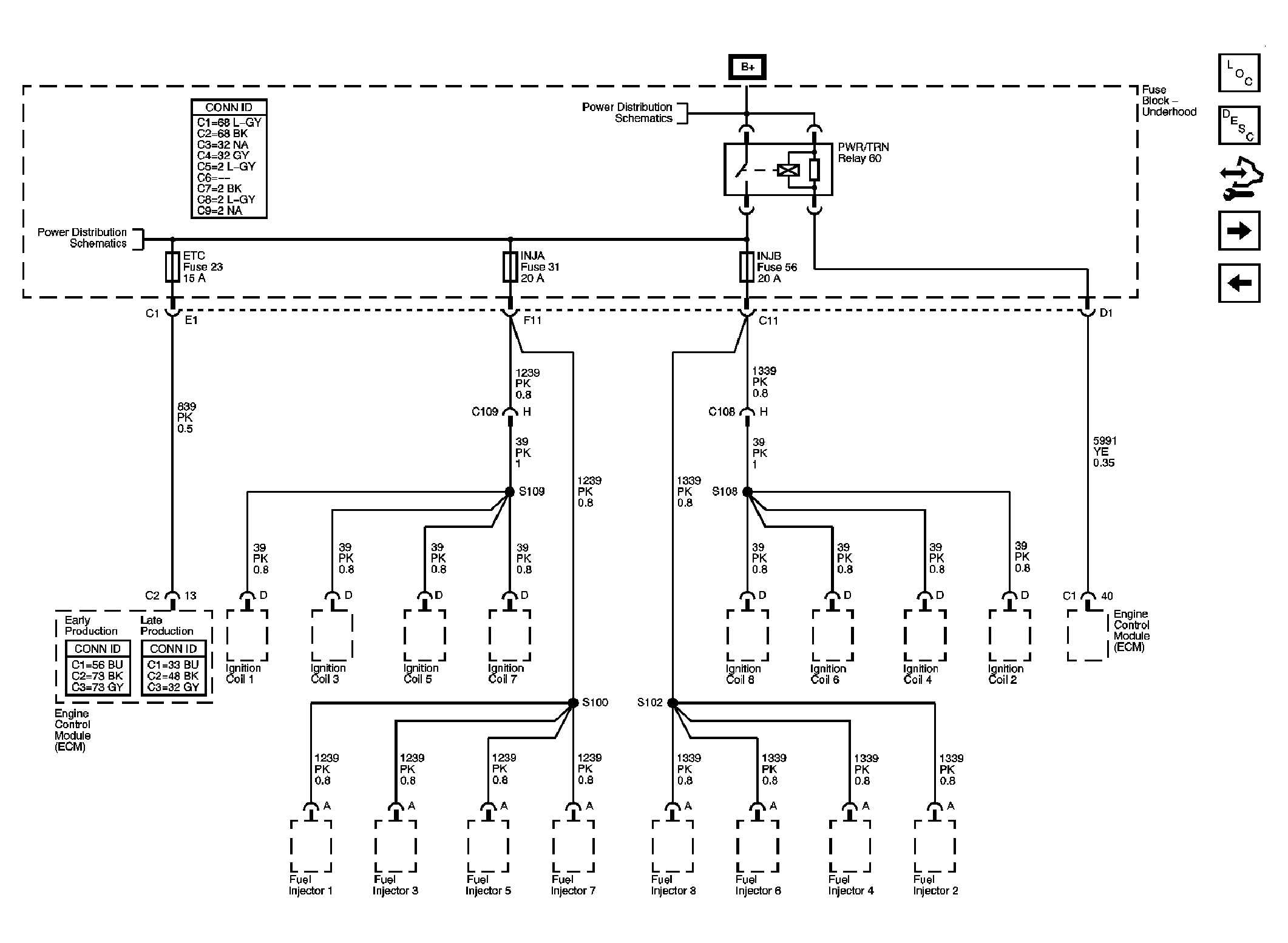

Fig 3: Underhood Fuse Block Schematic - PWR/TRN Relay - 2 Of 2

Courtesy of GENERAL MOTORS CORP.

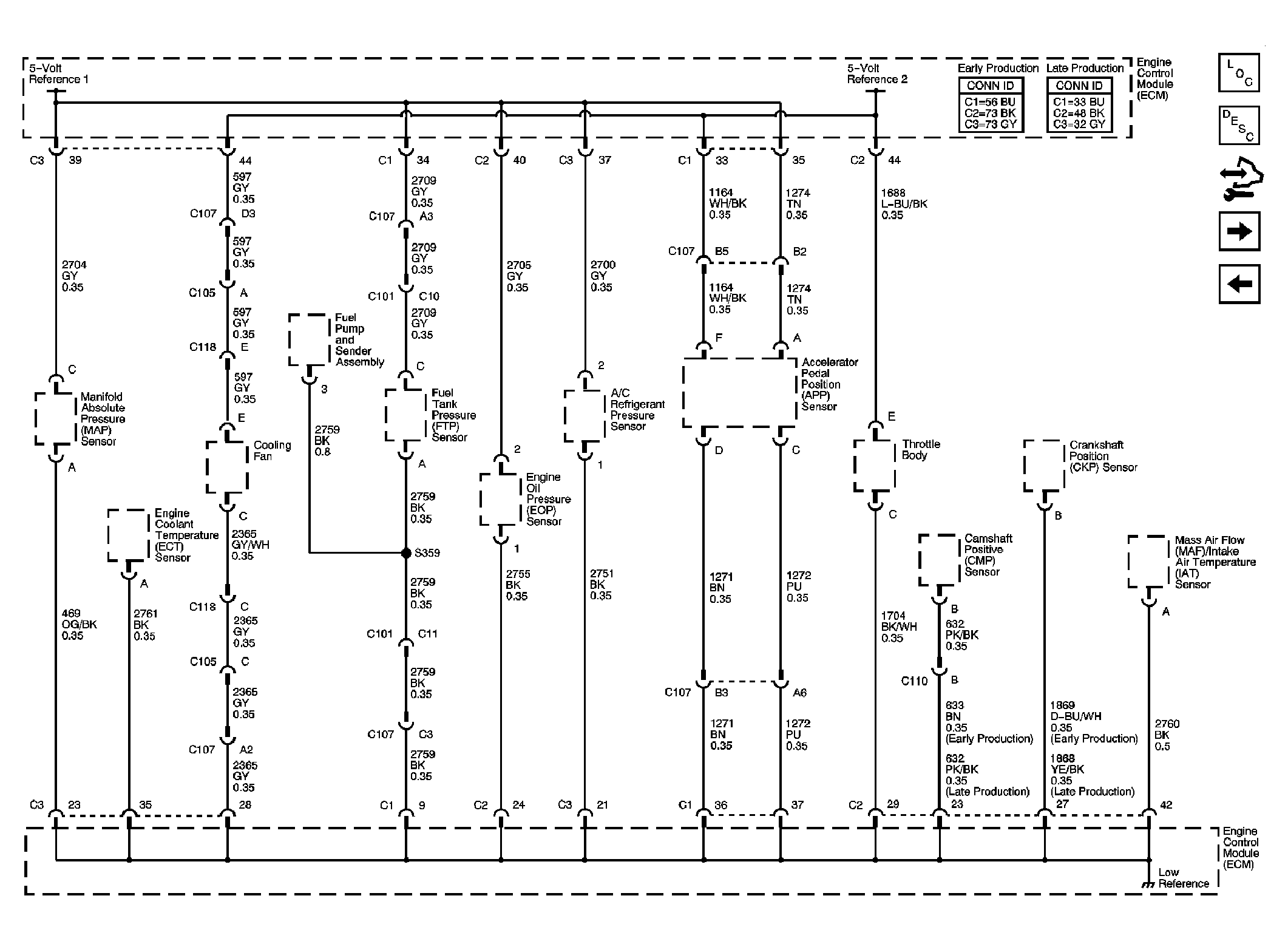

Fig 4: Engine Data Sensors Schematic - 5-Volt & Low Reference

Courtesy of GENERAL MOTORS CORP.

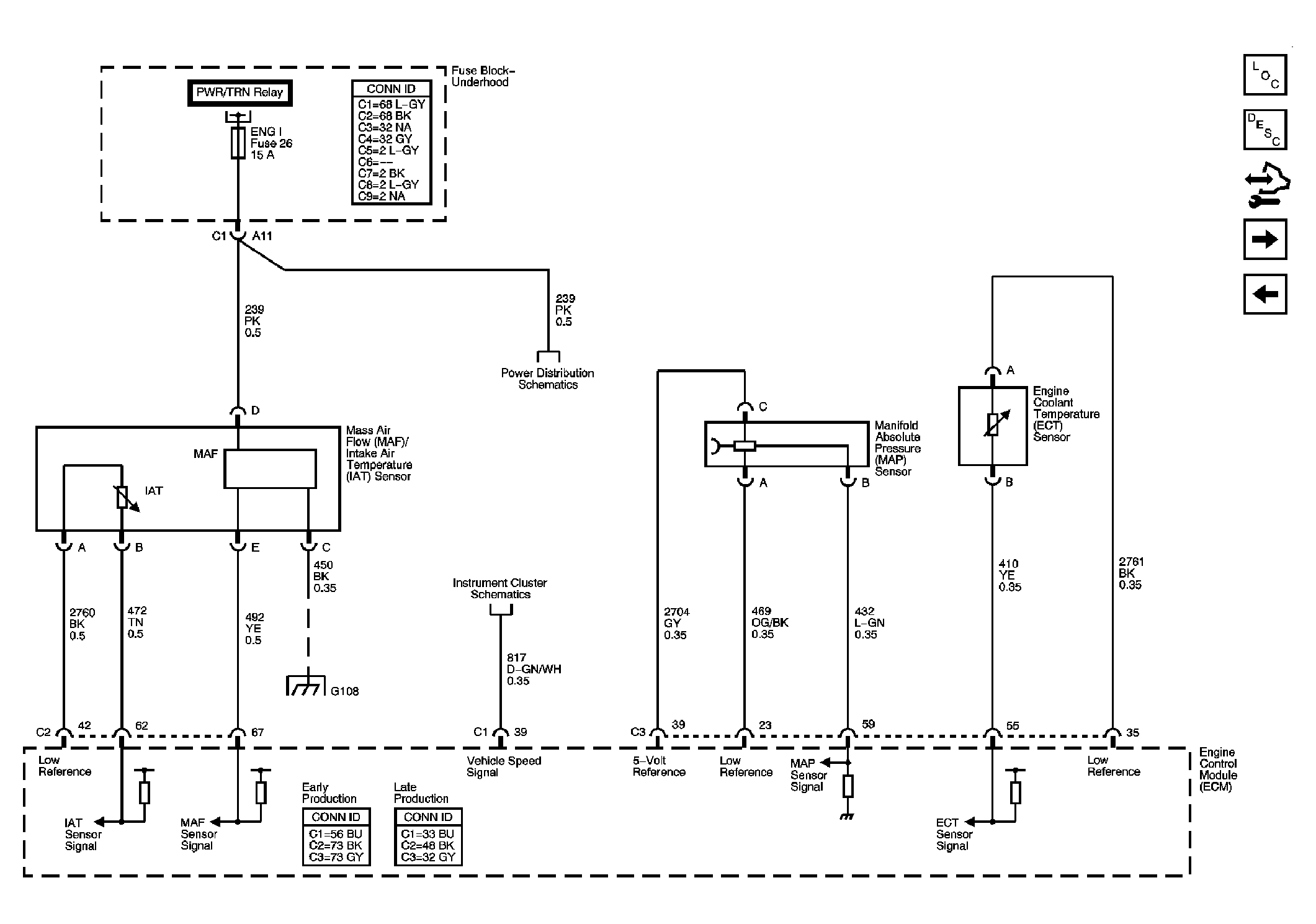

Fig 5: Engine Data Sensors Schematic - MAF, Pressure, Temperature & VSS

Courtesy of GENERAL MOTORS CORP.

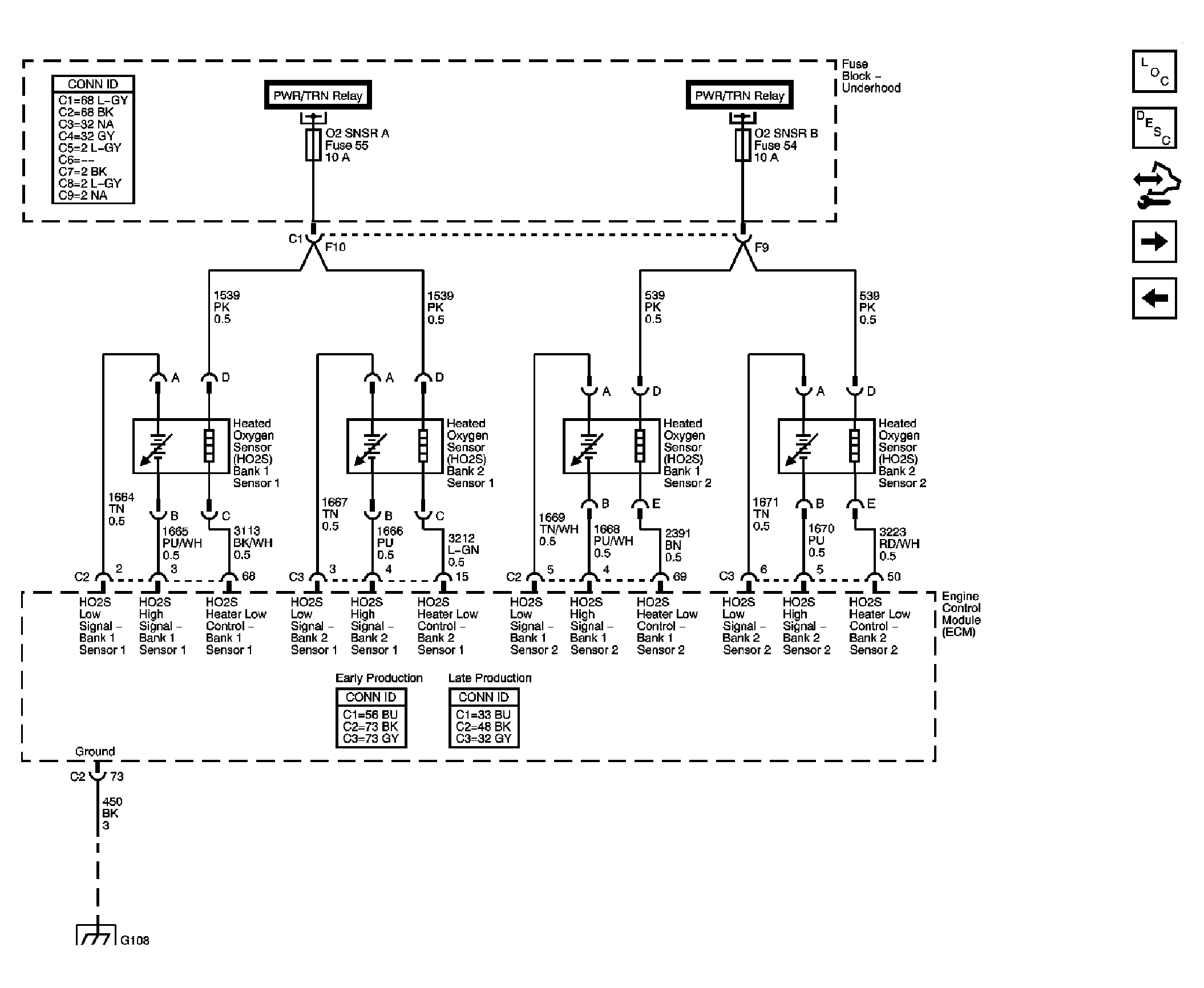

Fig 6: Engine Data Sensors Schematic - Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

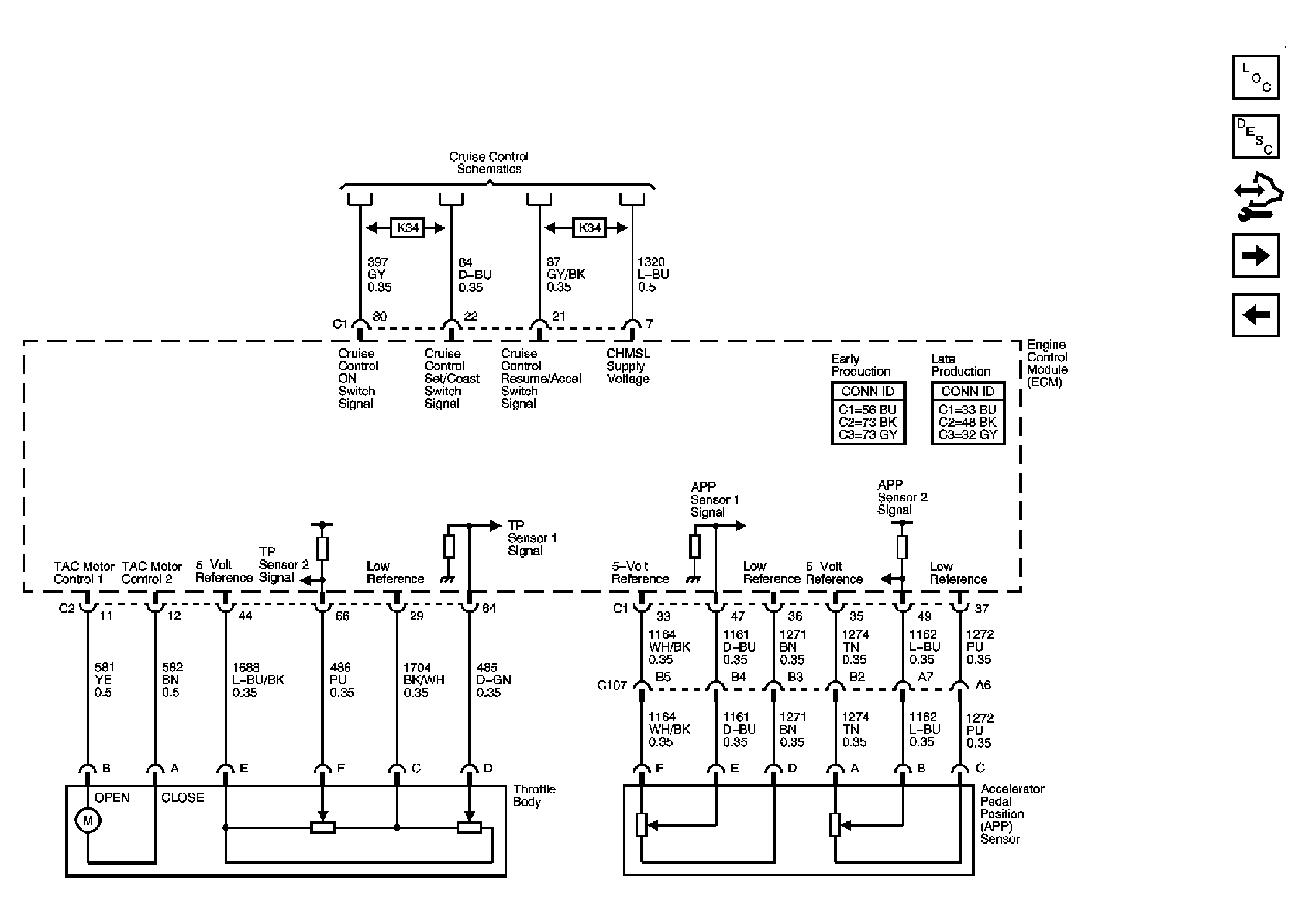

Fig 7: Engine Data Sensors Schematic - Throttle Actuator Controls

Courtesy of GENERAL MOTORS CORP.

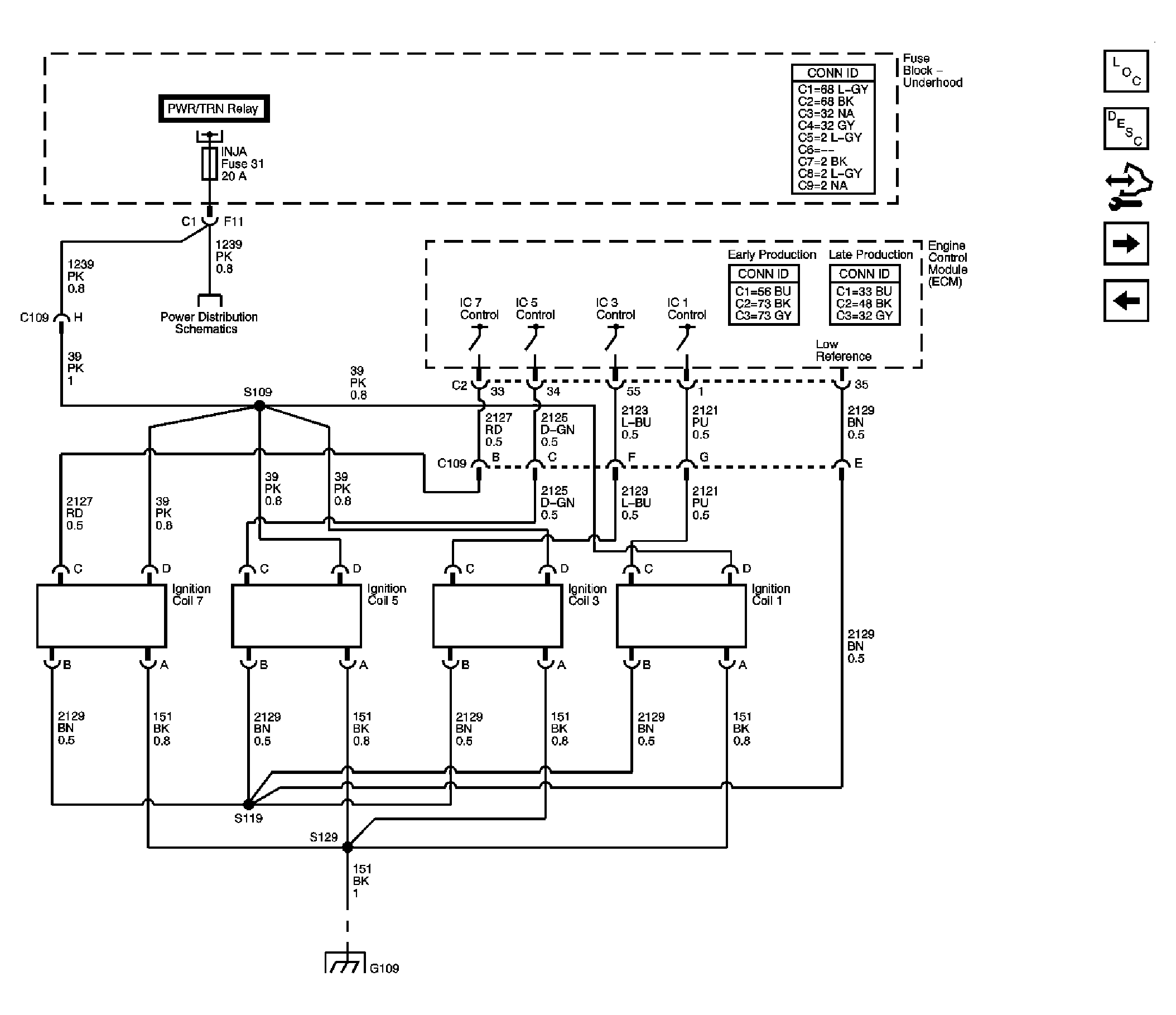

Fig 8: Ignition Controls Schematic - Ignition Coils 1, 3, 5 & 7

Courtesy of GENERAL MOTORS CORP.

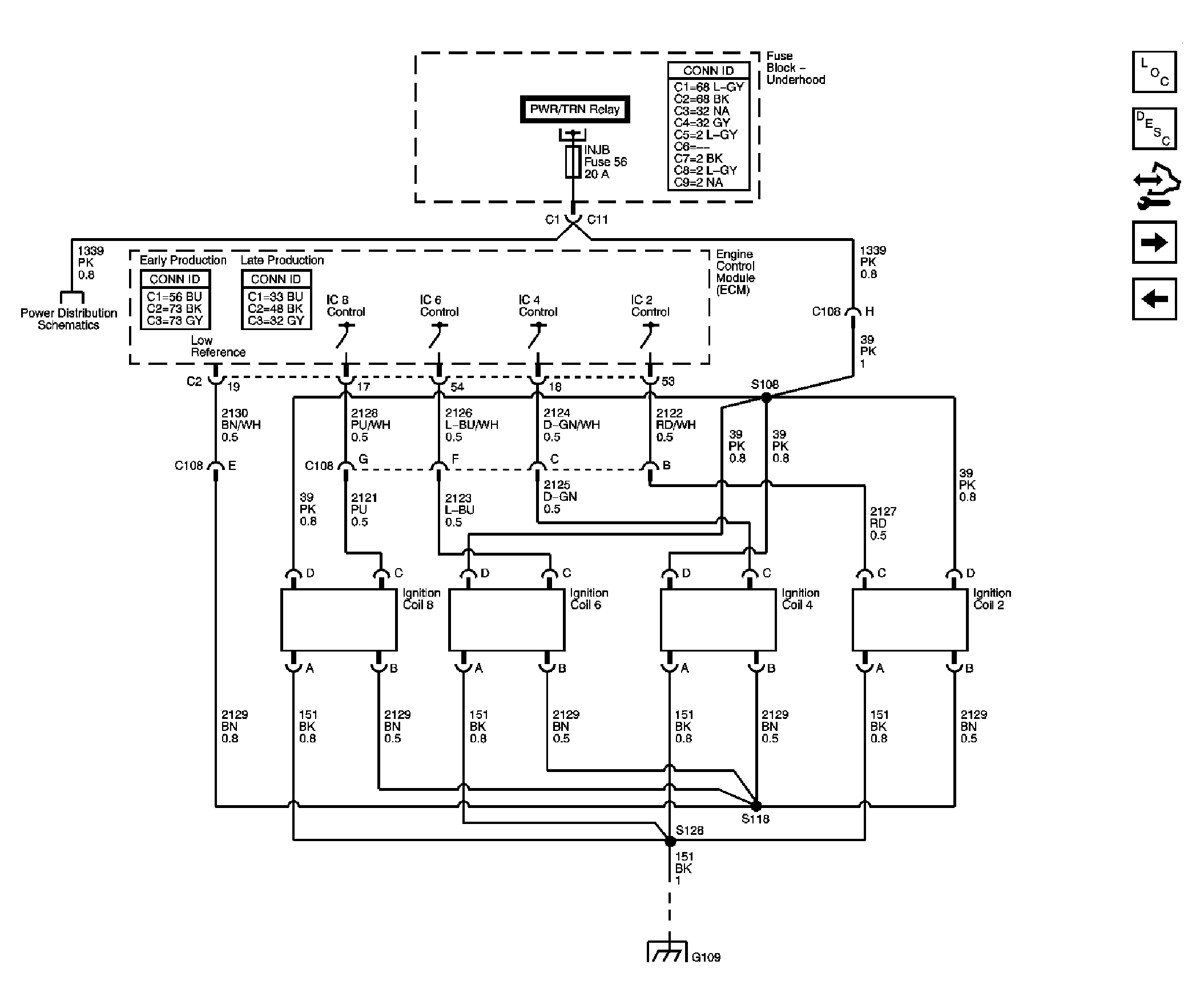

Fig 9: Ignition Controls Schematic - Ignition Coils 2, 4, 6 & 8

Courtesy of GENERAL MOTORS CORP.

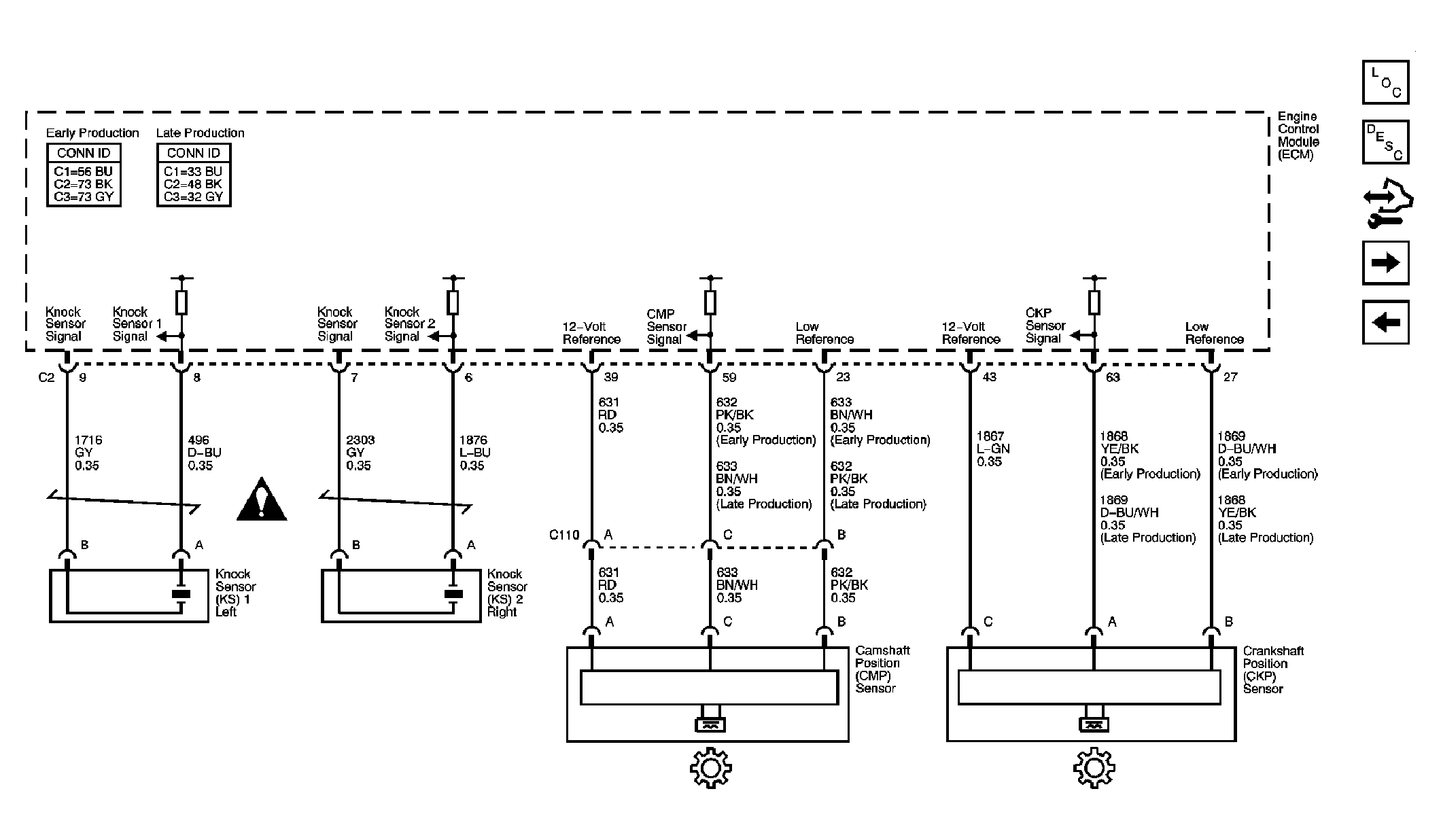

Fig 10: Ignition Controls Schematic - Sensors

Courtesy of GENERAL MOTORS CORP.

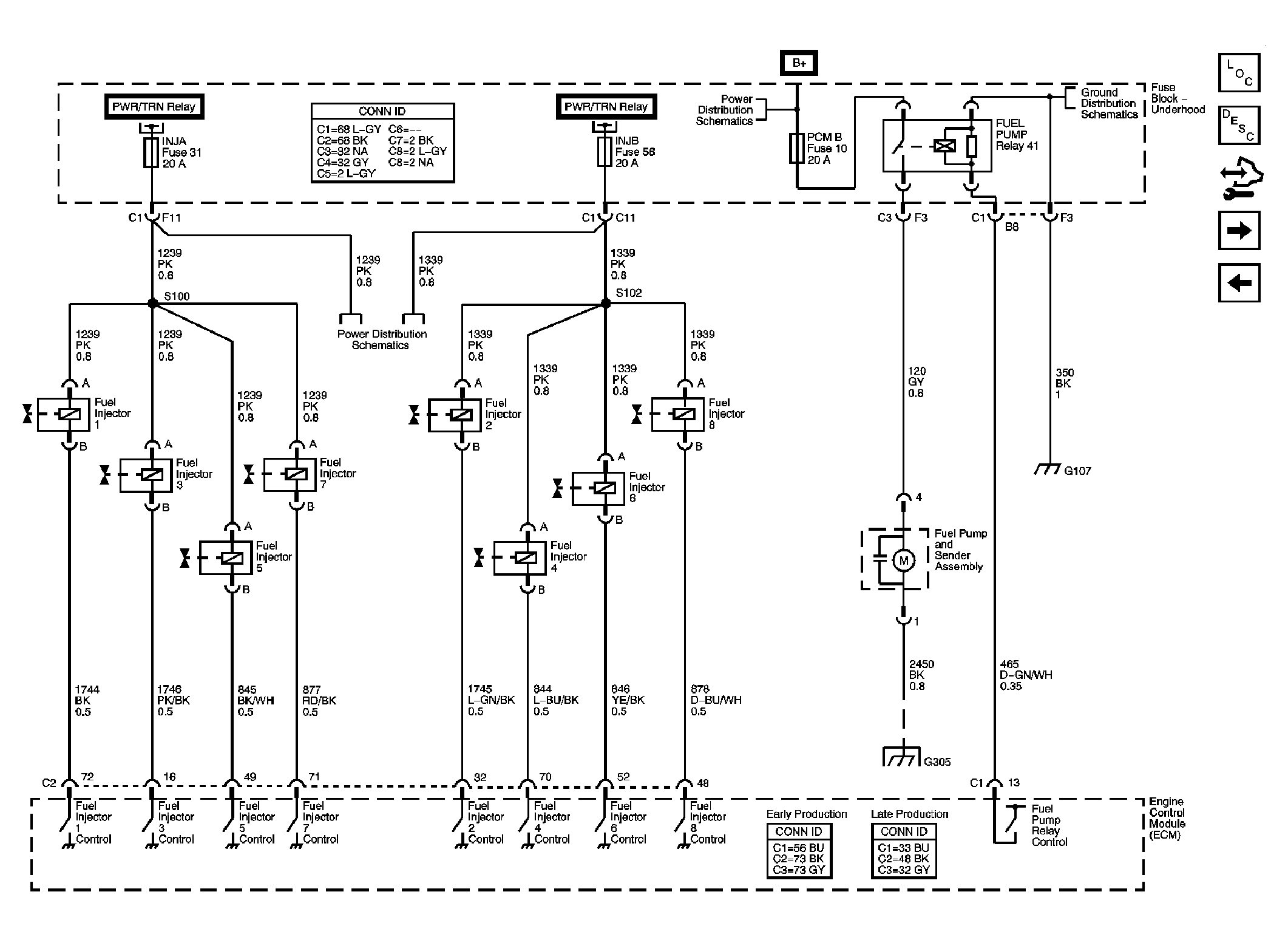

Fig 11: Fuel Controls Schematic - Fuel Pump & Fuel Injectors

Courtesy of GENERAL MOTORS CORP.

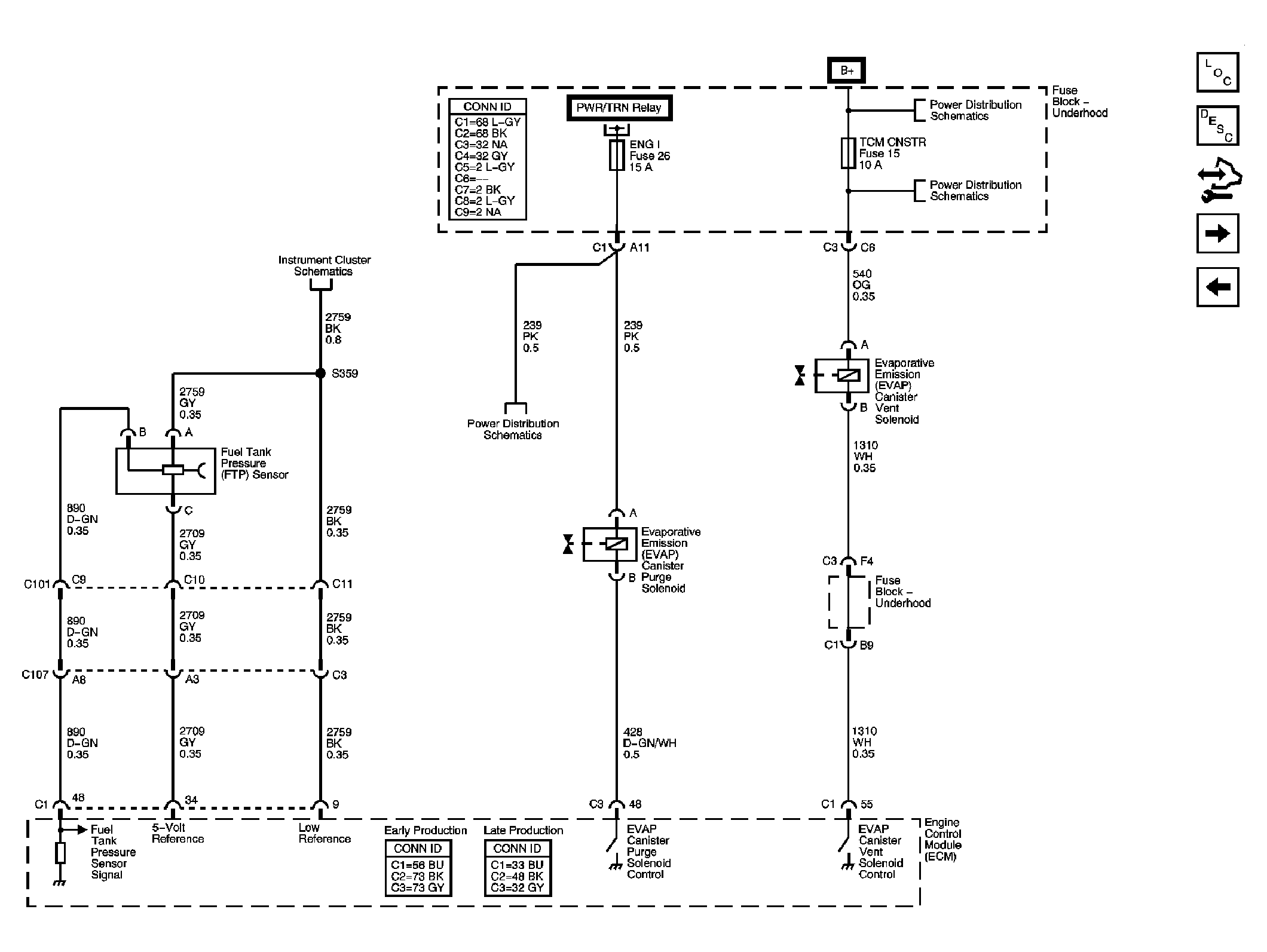

Fig 12: Fuel Controls Schematic - EVAP Controls

Courtesy of GENERAL MOTORS CORP.

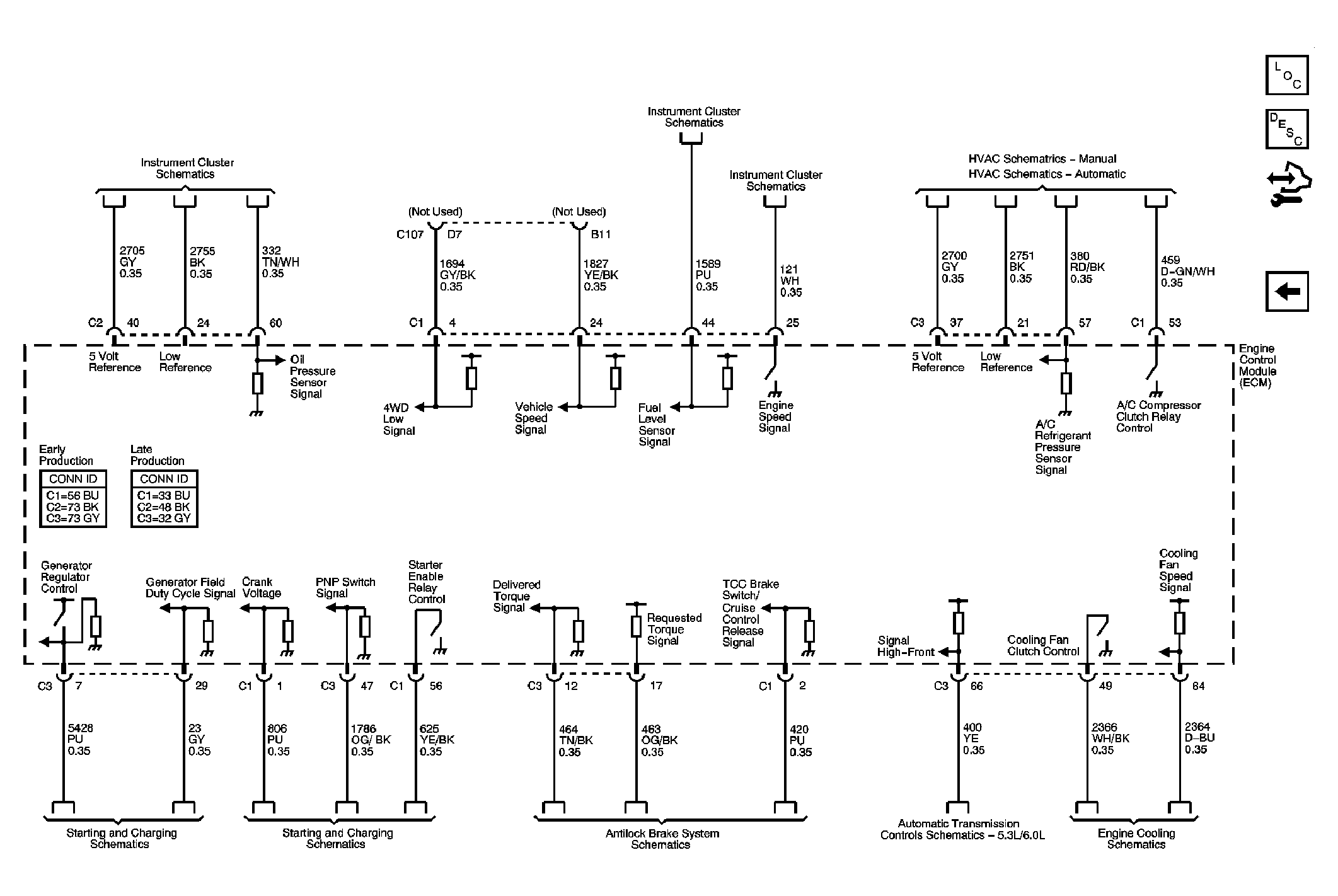

Fig 13: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.
