Automatic Transmission Controls Schematics

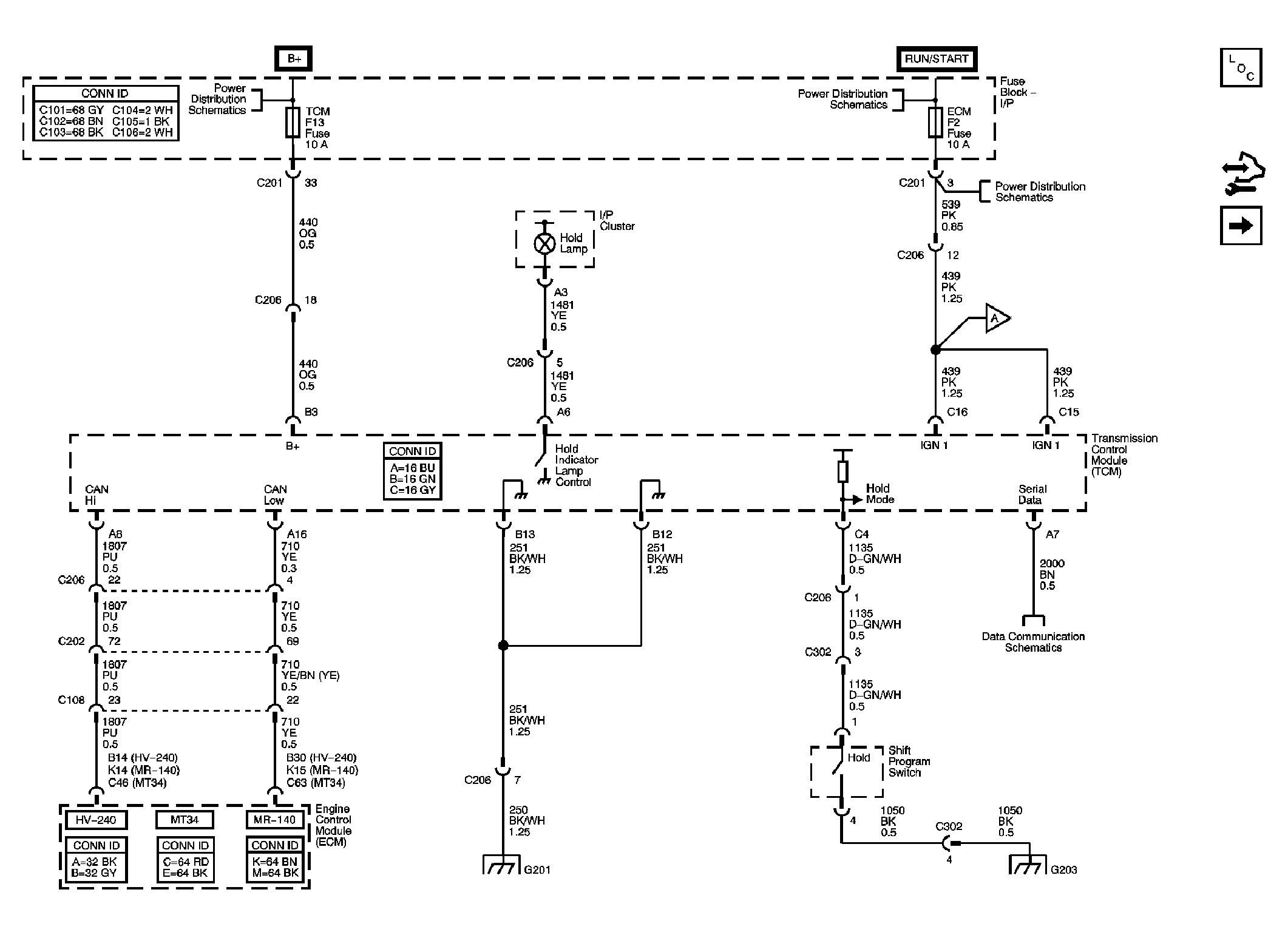

Fig 1: Power, Ground, Hold Switch and DLC Schematic

Courtesy of GENERAL MOTORS CORP.

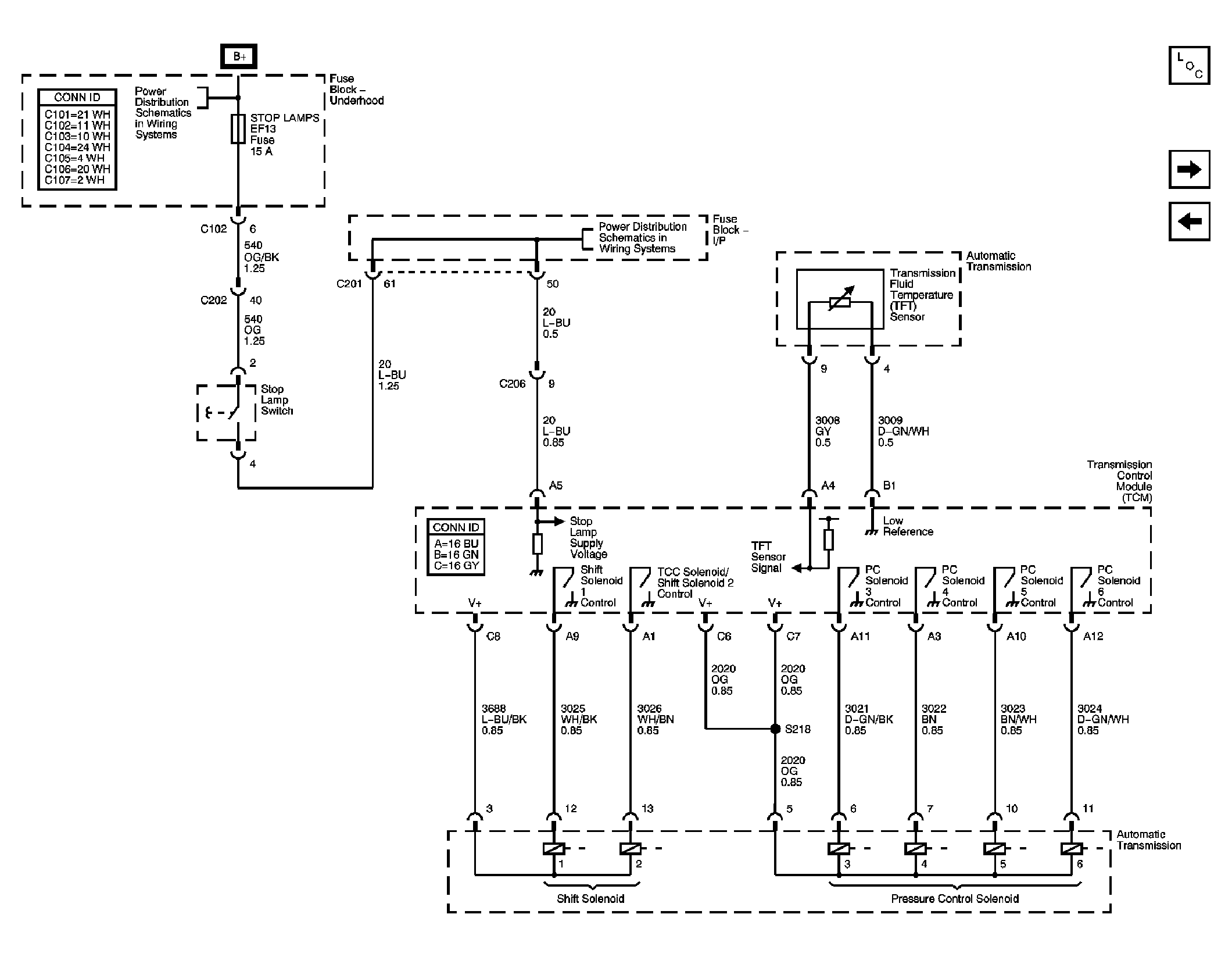

Fig 2: Shift and Pressure Control Solenoids Schematic

Courtesy of GENERAL MOTORS CORP.

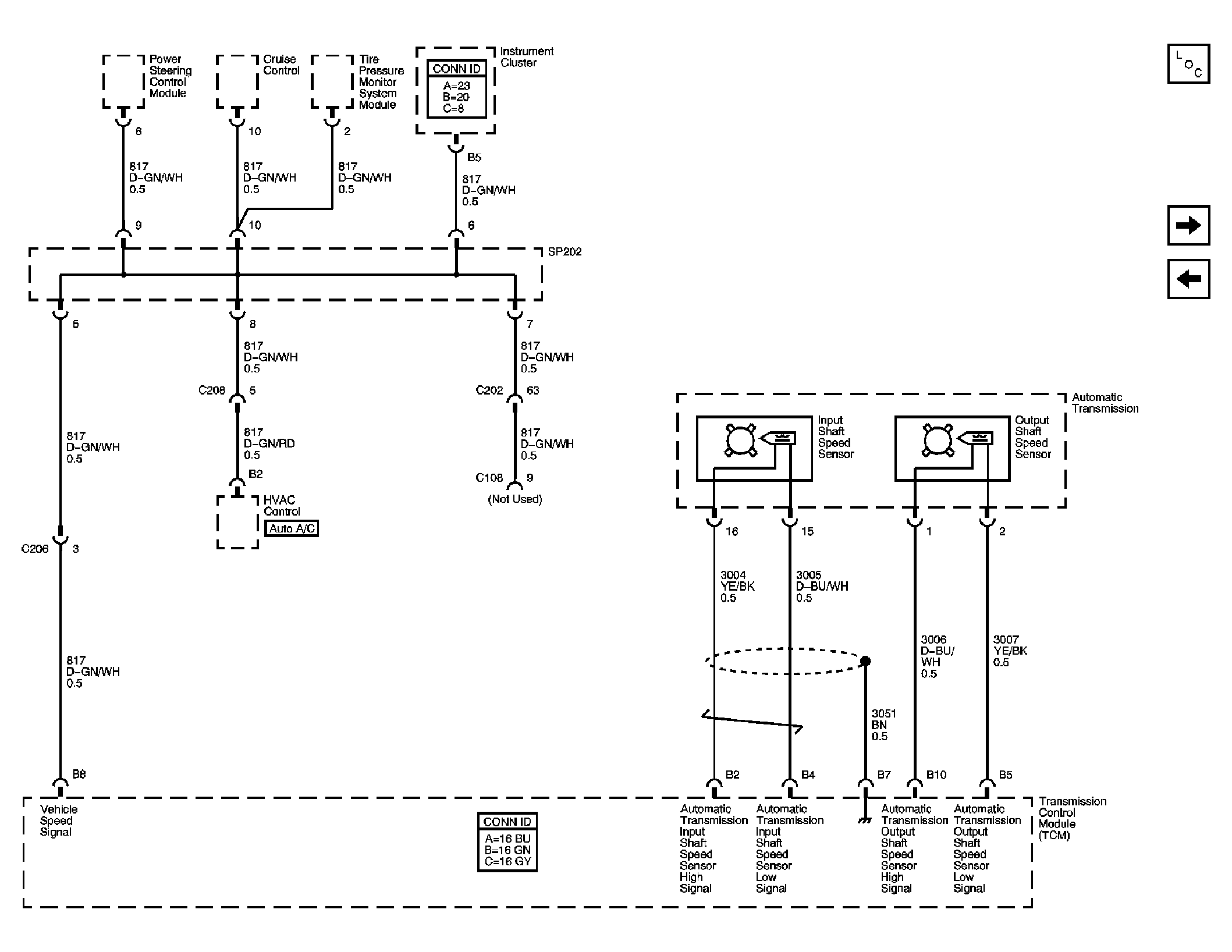

Fig 3: Vehicle Speed Signal Schematic

Courtesy of GENERAL MOTORS CORP.

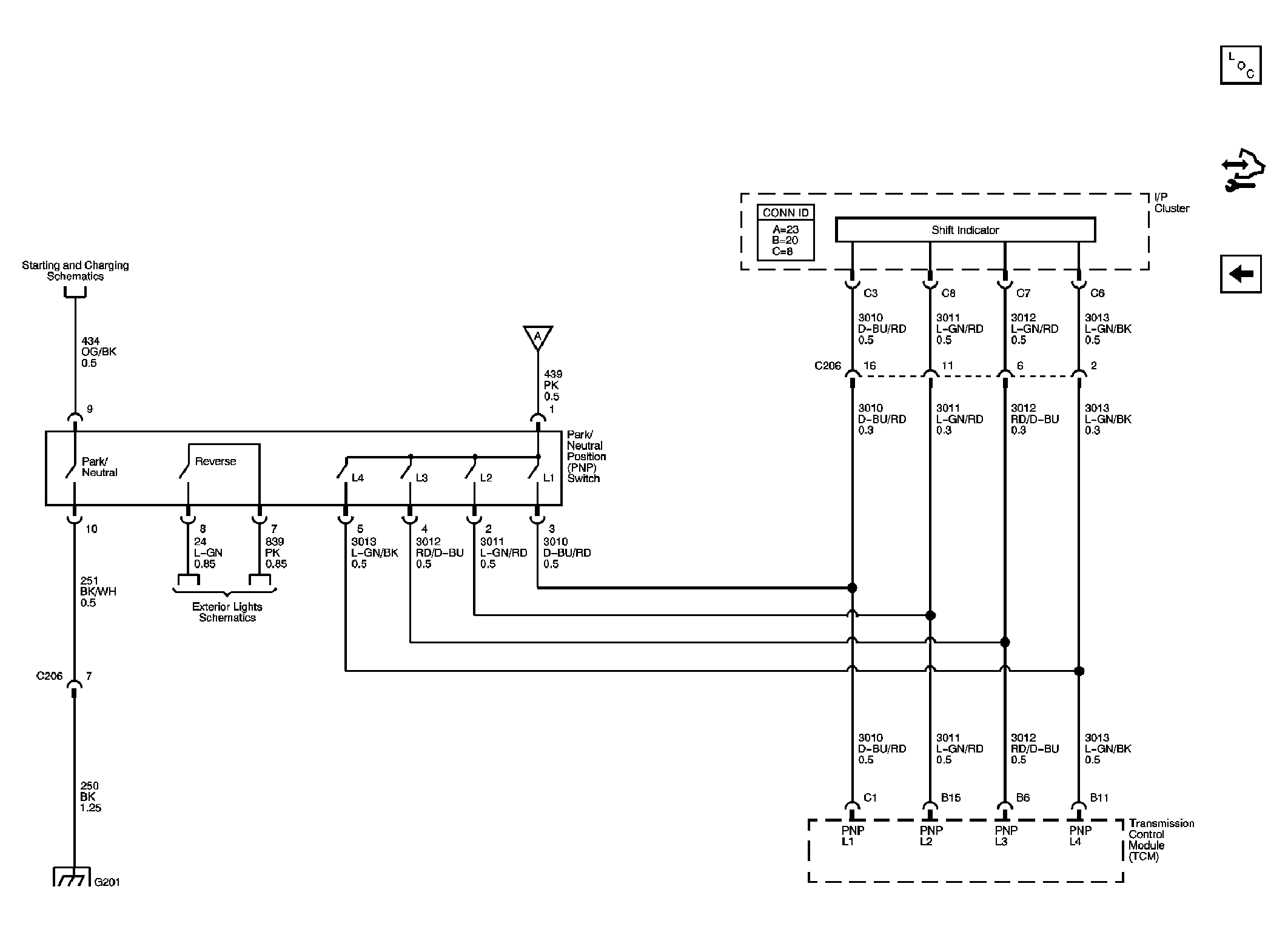

Fig 4: Park/Neutral Position (PNP) Switch Schematic

Courtesy of GENERAL MOTORS CORP.
