Installation Procedure

    Fig 1: View Of Shift Control Cable, E-Ring And Bracket
    GM1376105Courtesy of GENERAL MOTORS CORP.
  1. Install the shift control cable to the vehicle.
  2. Connect the shift control cable to the shift control cable fastener.
  3. Install the E-ring to the shift control cable bracket and connect the shift control cable.

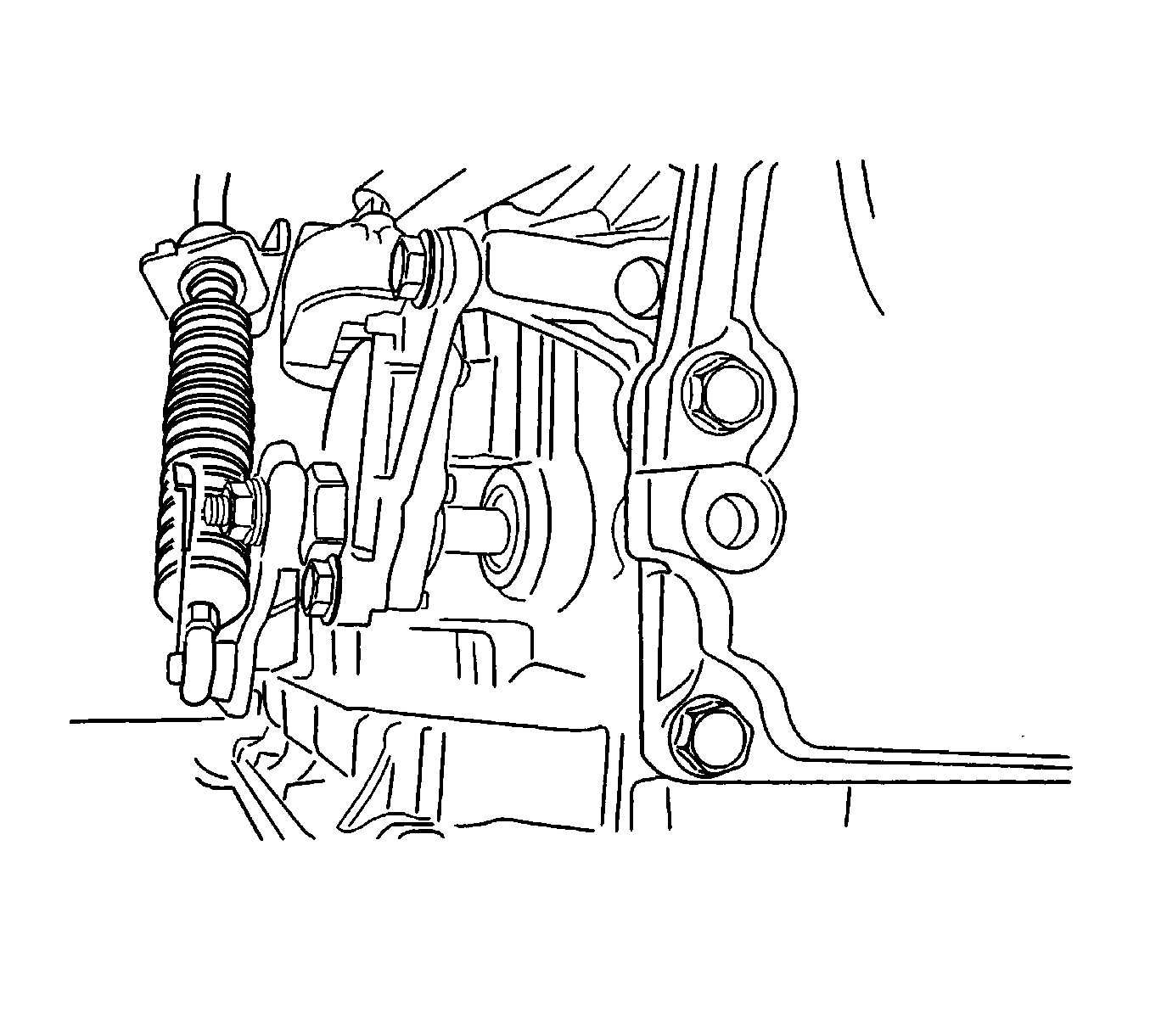

    4. Fig 2: View Of Shift Control Cable And PNP Switch Lever
    GM1245820Courtesy of GENERAL MOTORS CORP.
  4. Connect the shift control cable to the PNP switch.
  5. Install the shift control cable retaining E-ring.
    6. Fig 3: View Of Control Cable Pinch Bolt And Nut
    GM1290878Courtesy of GENERAL MOTORS CORP.
  6. Connect the shift control cable to the shift control lever assembly.
    7. NOTE: Refer to Fastener Notice .
  7. Install the cable adjusting nut.

    Tighten:  Tighten the cable adjusting nut to 8 N.m (71 lb in)  .

  8. Install the trim panel to the floor console. Refer to Front Floor Console Replacement .
  9. Connect the negative battery cable.
