Power Mode - 1.8 DOHC

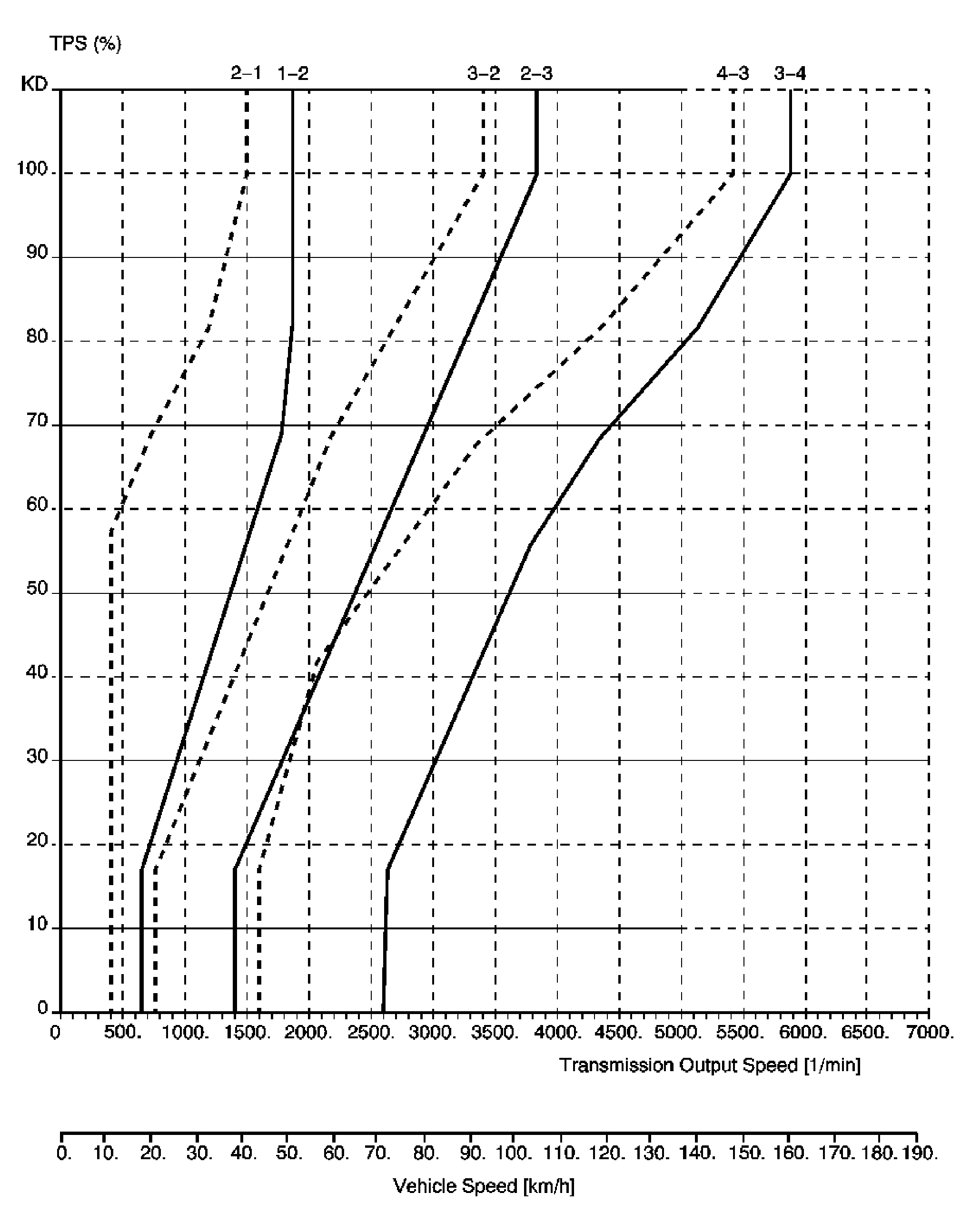

Fig 1: Power Mode Schematic - 1.8 DOHC

GM1308640

Courtesy of GENERAL MOTORS CORP.
