Installation Procedure

    Fig 1: View Of Cable, Cowl And Grommet
    GM1290877Courtesy of GENERAL MOTORS CORP.
  1. Install the shift control cable and the grommet into the cowl.
  2. Install the cable onto the transaxle mount.
    3. Fig 2: View Of Shift Control Cable Adjuster, Bracket And Pinch Nut
    GM1290875Courtesy of GENERAL MOTORS CORP.
  3. Install the cable onto the shift control assembly.
    4. NOTE: Refer to Fastener Notice .
  4. Install the pinch nut to the cable adjuster.

    Tighten:  Tighten the nut to 8 N.m (71 lb in)  .

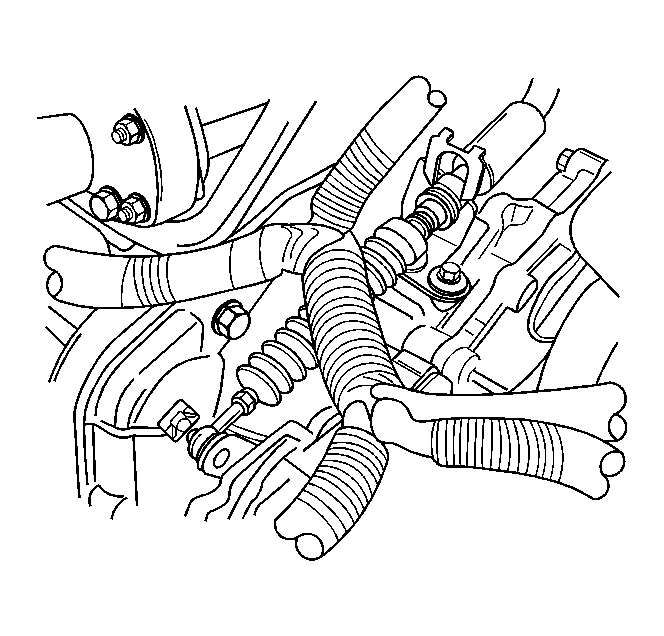

    5. Fig 3: Identifying Shift Control Cable And Clip
    GM1255921Courtesy of GENERAL MOTORS CORP.
  5. Install the clip to the shift control cable at the transaxle mount connection.
  6. Install the clip to the select lever connection on the transaxle case.
  7. Adjust the shift control cable. Refer to Range Selector Lever Cable Adjustment .
  8. Connect the negative battery cable.
