Special Tools

Illustration	Tool Number/Description

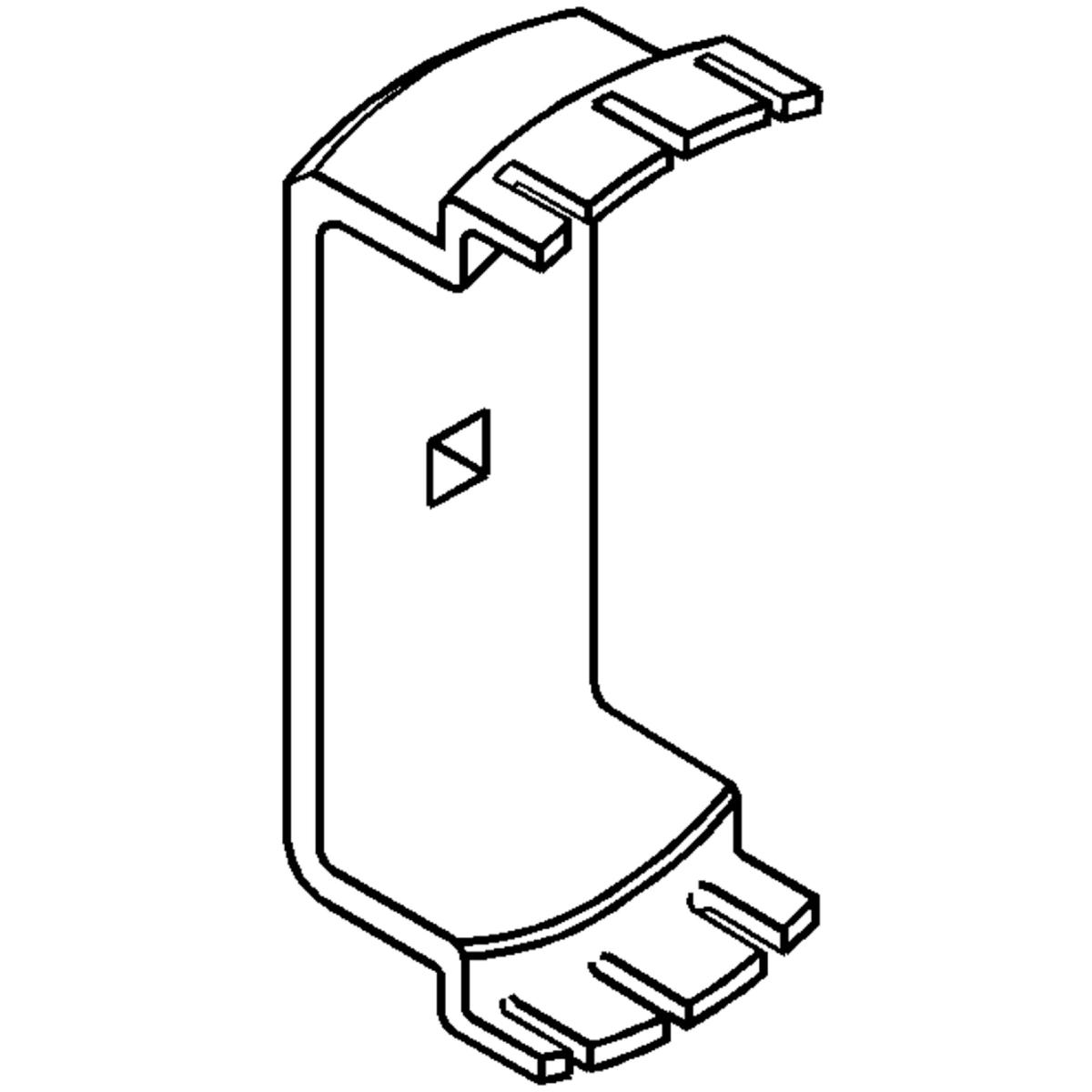

Courtesy of GENERAL MOTORS CORP.	CH-47717 Fuel Lock Ring Remover Tool
Courtesy of GENERAL MOTORS CORP.	CH-47831 Fuel Line Disconnect Tool
Courtesy of GENERAL MOTORS CORP.	J-23738-A Vacuum Pump
Courtesy of GENERAL MOTORS CORP.	J-26792 Spark Tester
Courtesy of GENERAL MOTORS CORP.	J-34730-1A Fuel Pressure Gage
Courtesy of GENERAL MOTORS CORP.	J-34730-405 Injector Test Lamp
Courtesy of GENERAL MOTORS CORP.	J-35616-B Connector Test Adapter Kit
Courtesy of GENERAL MOTORS CORP.	J-35616-200 Un-powered Test Light Kit
Courtesy of GENERAL MOTORS CORP.	J-37027-A Idle Air Control Motor Analyzer
Courtesy of GENERAL MOTORS CORP.	J-37287 Fuel Line Shut- OFF Adapters
Courtesy of GENERAL MOTORS CORP.	J-39021 Fuel Injector Coil/Balance Test
Courtesy of GENERAL MOTORS CORP.	J-39194-B Heated Oxygen Sensor Wrench
Courtesy of GENERAL MOTORS CORP.	J-39200 Digital Multimeter (DMM)
Courtesy of GENERAL MOTORS CORP.	J-42960-02 Fuel Flap Door Holder
Courtesy of GENERAL MOTORS CORP.	J-42982 Fuel Pressure Gage Adapter
Courtesy of GENERAL MOTORS CORP.	J-43244 Relay Puller Pliers
Courtesy of GENERAL MOTORS CORP.	J-44175 Fuel Composition Tester
Courtesy of GENERAL MOTORS CORP.	J-45004 Fuel Tank Drain Hose
Courtesy of GENERAL MOTORS CORP.	70000081 Tech II Scan Tool
