Harness Routing Views

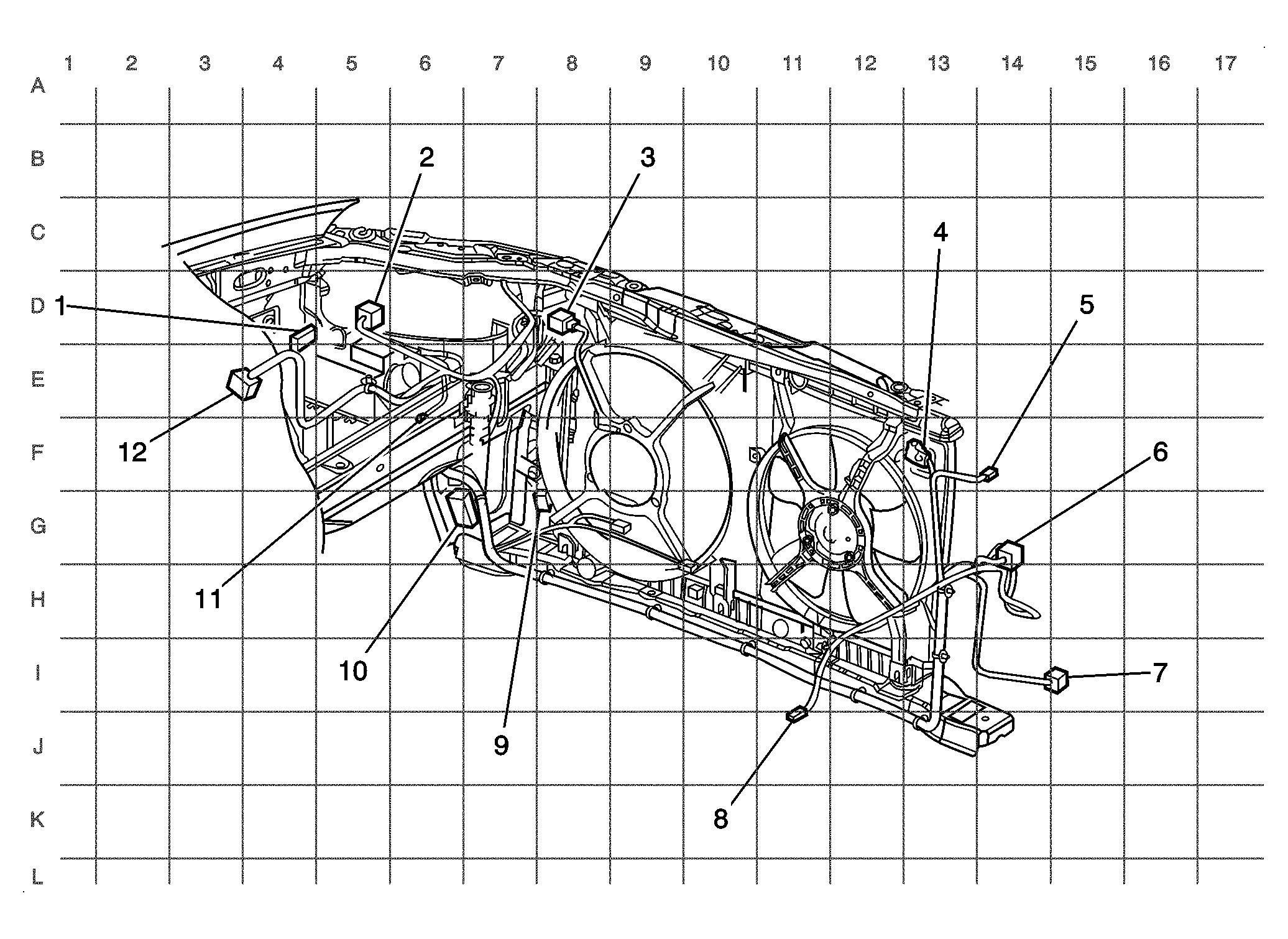

| Callout | Component Name |
|---|---|
| 1 | C109 |
| 2 | Left Hand Headlamp |
| 3 | Main Cooling Fan |
| 4 | Auxiliary Cooling Fan |
| 5 | Right Hand Turn Signal Lamp |
| 6 | Right Hand Headlamp |
| 7 | Right Hand Fog Lamp |
| 8 | Side Turn Signal Lamp |
| 9 | Horn |
| 10 | Cooling Fan Resistor |
| 11 | G101 |
| 12 | C104 |

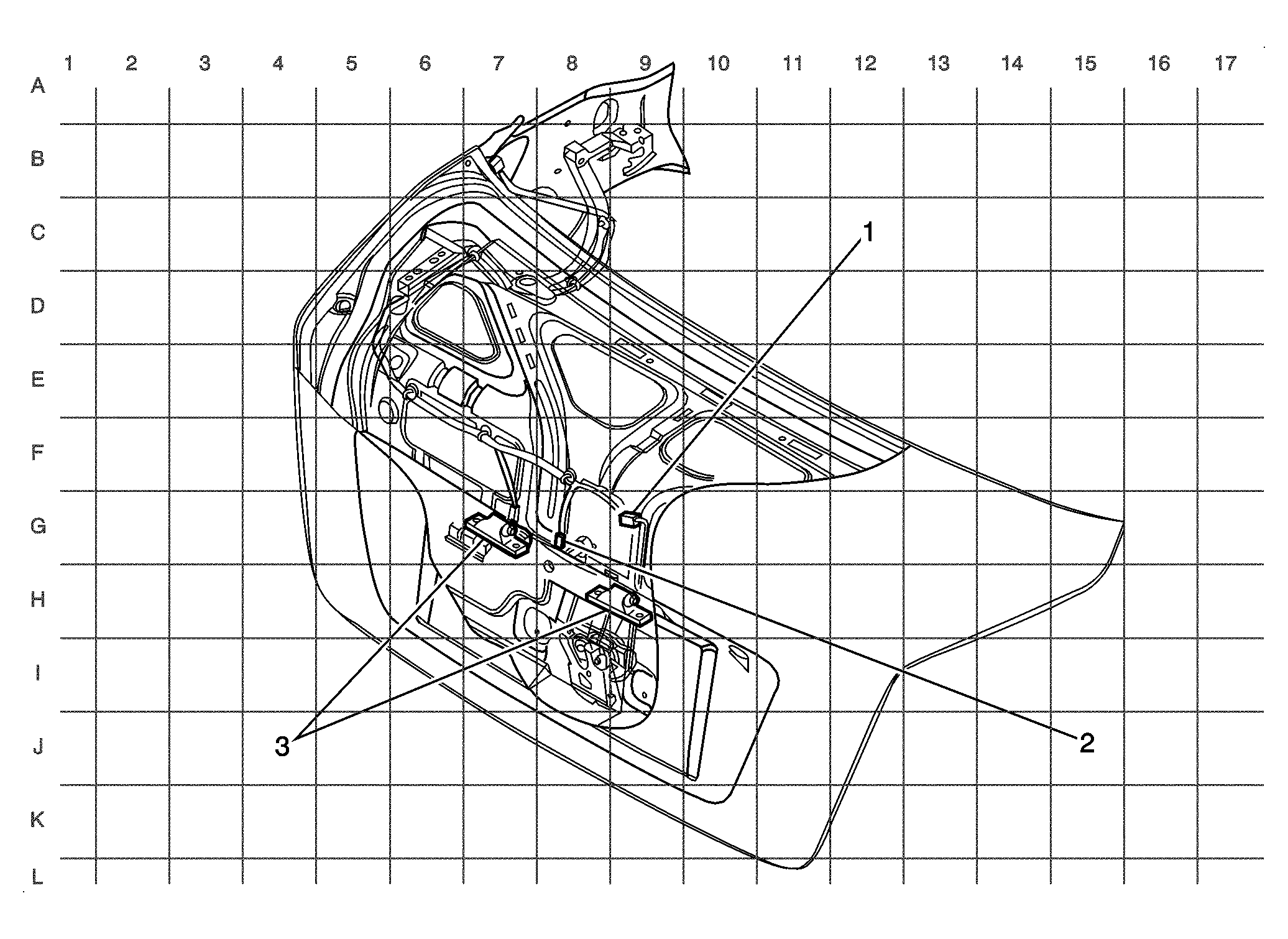

| Callout | Component Name |
|---|---|
| 1 | Trunk Latch Switch |
| 2 | Theft Deterrent Tamper Switch |
| 3 | License Plate Lamp |

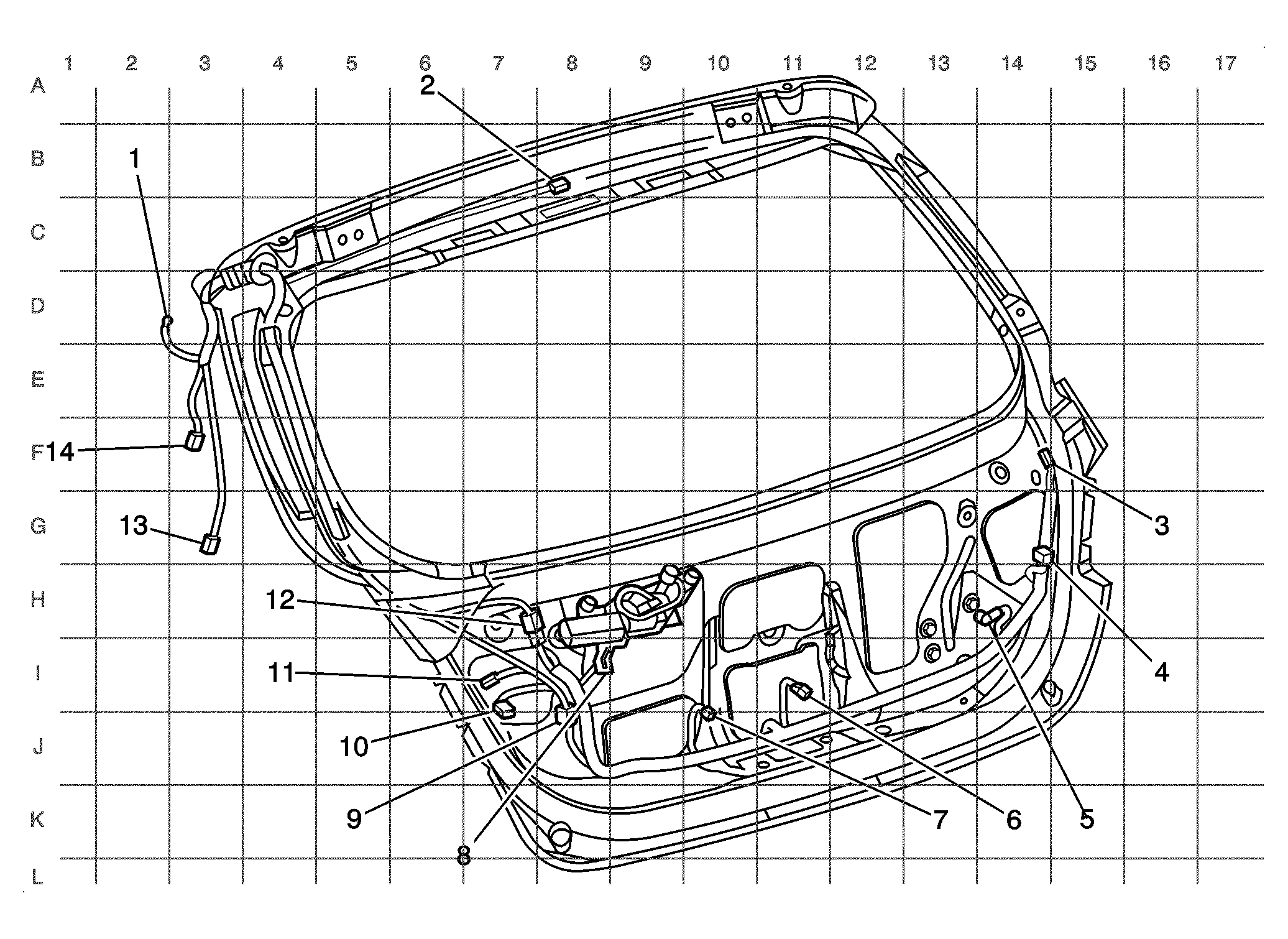

| Callout | Component Name |
|---|---|
| 1 | C402 |
| 2 | CHMSL |
| 3 | Defog (+) |
| 4 | RR Combination Lamp RH |
| 5 | T/Gate Actuator |
| 6 | Temper Switch |
| 7 | License Lamp |
| 8 | RR Wiper Motor |
| 9 | C406 |
| 10 | RR Combination Lamp LH |
| 11 | Defog (-) |
| 12 | C405 |
| 13 | C404 |
| 14 | C403 |

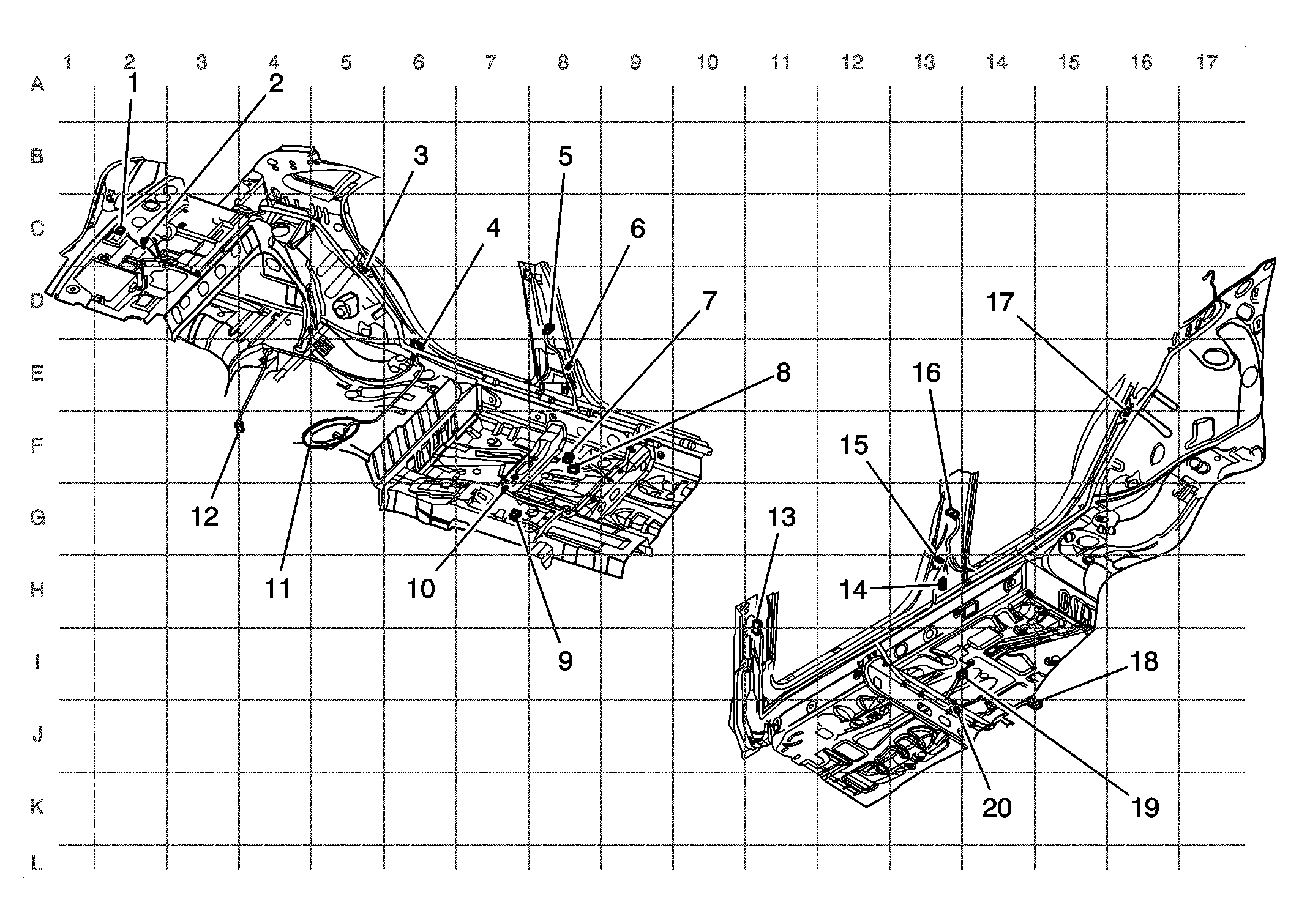

| Callout | Component Name |
|---|---|
| 1 | Trunk Room Lamp |
| 2 | CHMSL |
| 3 | Rear Door Contact Switch |
| 4 | G302 |
| 5 | C351 |
| 6 | Front Door Contact Switch |
| 7 | Side Air Bag |
| 8 | Side Air Bag Sensor |
| 9 | C301 |
| 10 | Parking Brake Switch |
| 11 | Fuel Pump |
| 12 | C302 |
| 13 | C351 |
| 14 | Side Air Bag Sensor |
| 15 | Front Door Contact Switch |
| 16 | C371 |
| 17 | Rear Door Contact Switch |
| 18 | C207 |
| 19 | Side Air Bag |
| 20 | G301 |

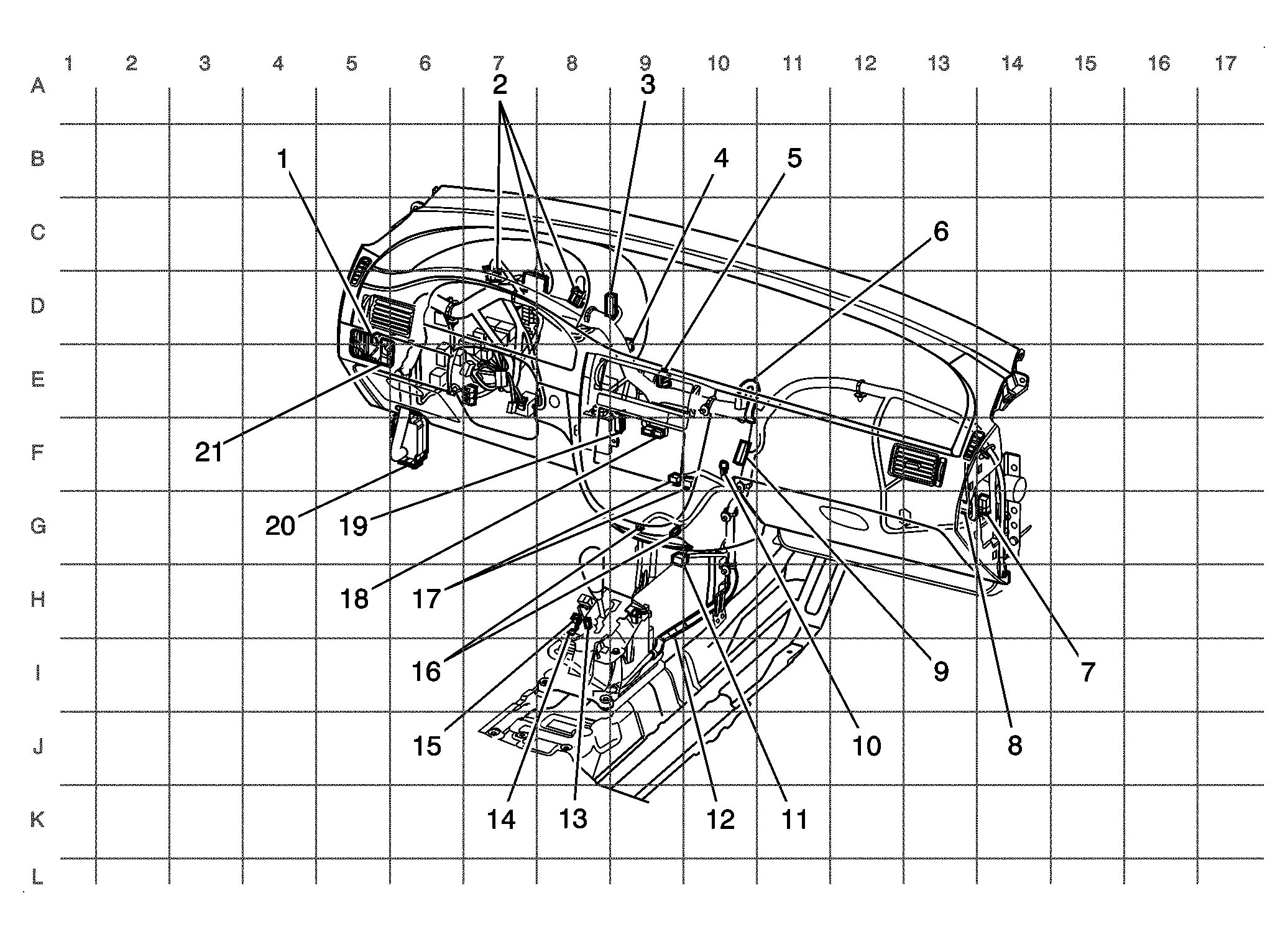

| Callout | Component Name |
|---|---|
| 1 | Headlamp Leveling Switch |
| 2 | Instrument Cluster |
| 3 | SP202 |
| 4 | C207 |
| 5 | Hazard Switch |
| 6 | Clock |
| 7 | Outside Rearview Mirror |
| 8 | C208 |
| 9 | SP204 |
| 10 | G204 |
| 11 | Auxiliary Power Outlet |
| 12 | C210 |
| 13 | PRNDL Illumination |
| 14 | BTSI Solenoid |
| 15 | Hold Switch |
| 16 | Cigar Lighter and Ash Tray |
| 17 | A/C Control Switch |
| 18 | Radio |
| 19 | SP203 |
| 20 | C202 |
| 21 | Dimmer Control Unit |

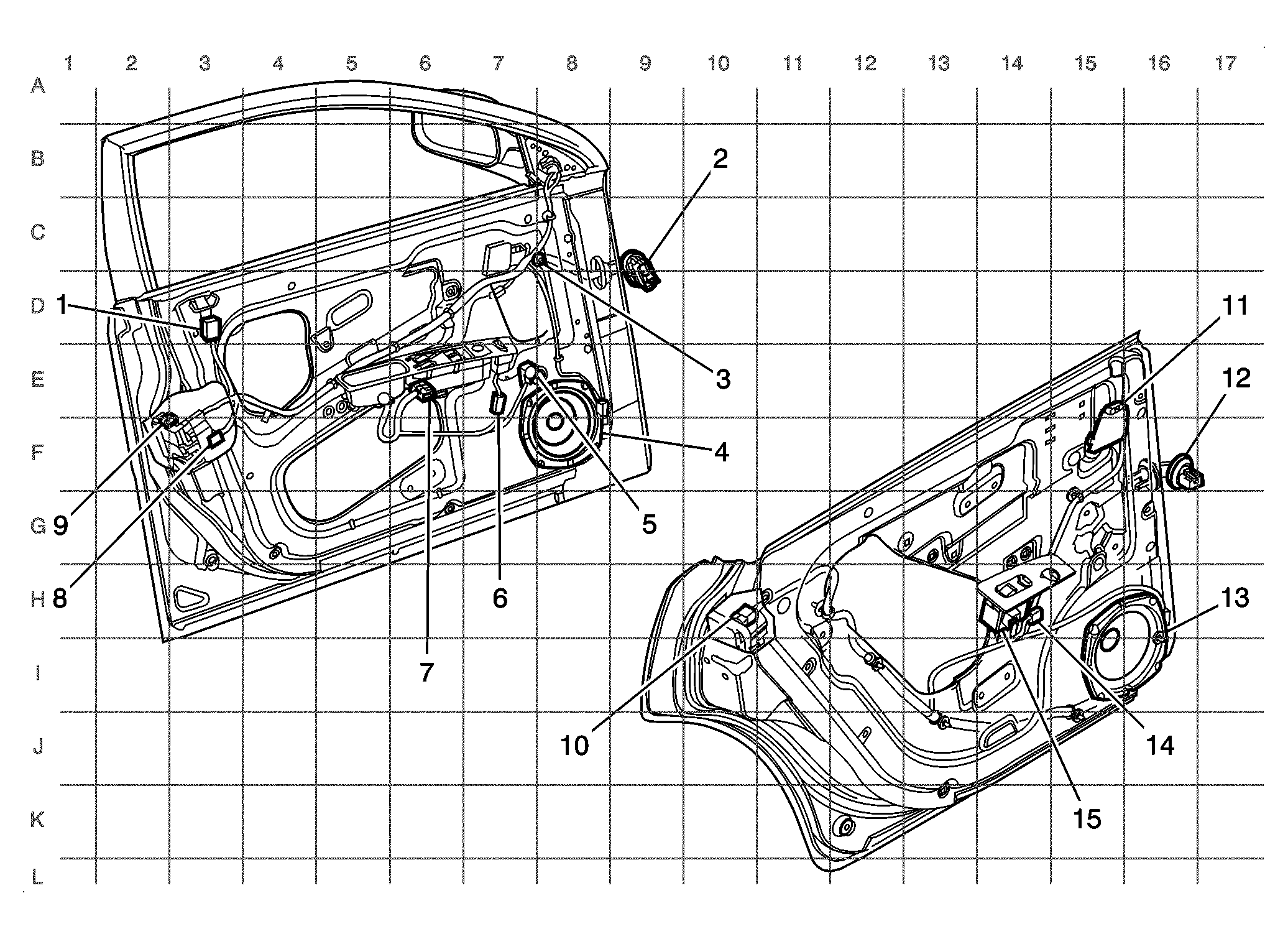

| Callout | Component Name |
|---|---|
| 1 | Status Display |
| 2 | C351 |
| 3 | Tweeter |
| 4 | Door Speaker |
| 5 | Trunk Open Switch |
| 6 | Door Lock Switch |
| 7 | Power Window Switch |
| 8 | Door Lock Actuator |
| 9 | Central Locking and Theft Deterrent |
| 10 | Rear Door Lock Actuator |
| 11 | Tweeter |
| 12 | C371/C381 |
| 13 | Rear Door Speaker |
| 14 | Rear Door Power Window Motor |
| 15 | Rear Door Power Window Switch |
