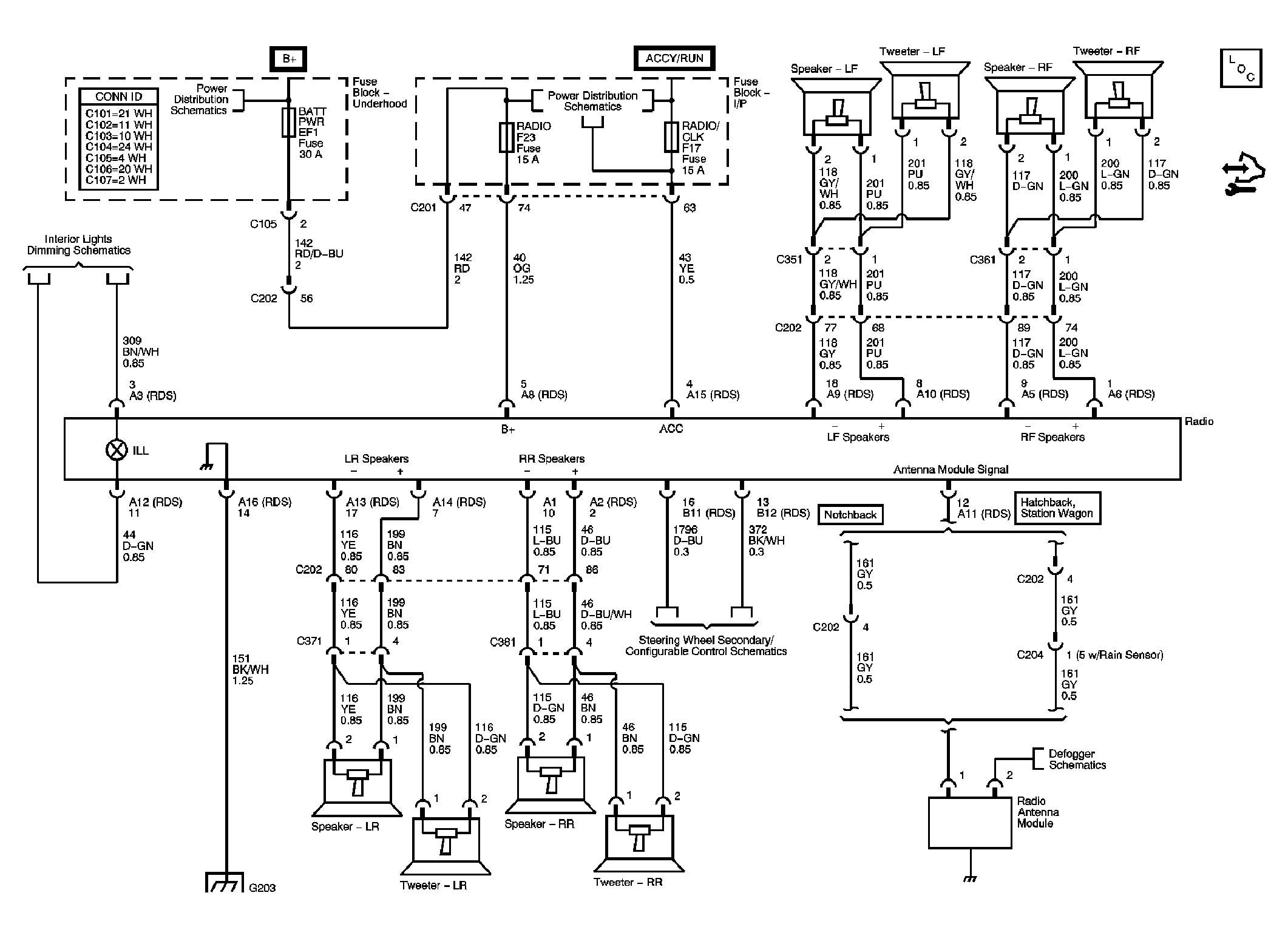

Home >> Chevrolet >> 2007 >> Optra LS, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Cellular, Entertainment, And Navigation >> Schematic and Routing Diagrams >> Radio/Navigation System Schematics
