Engine Controls Wiring Schematics

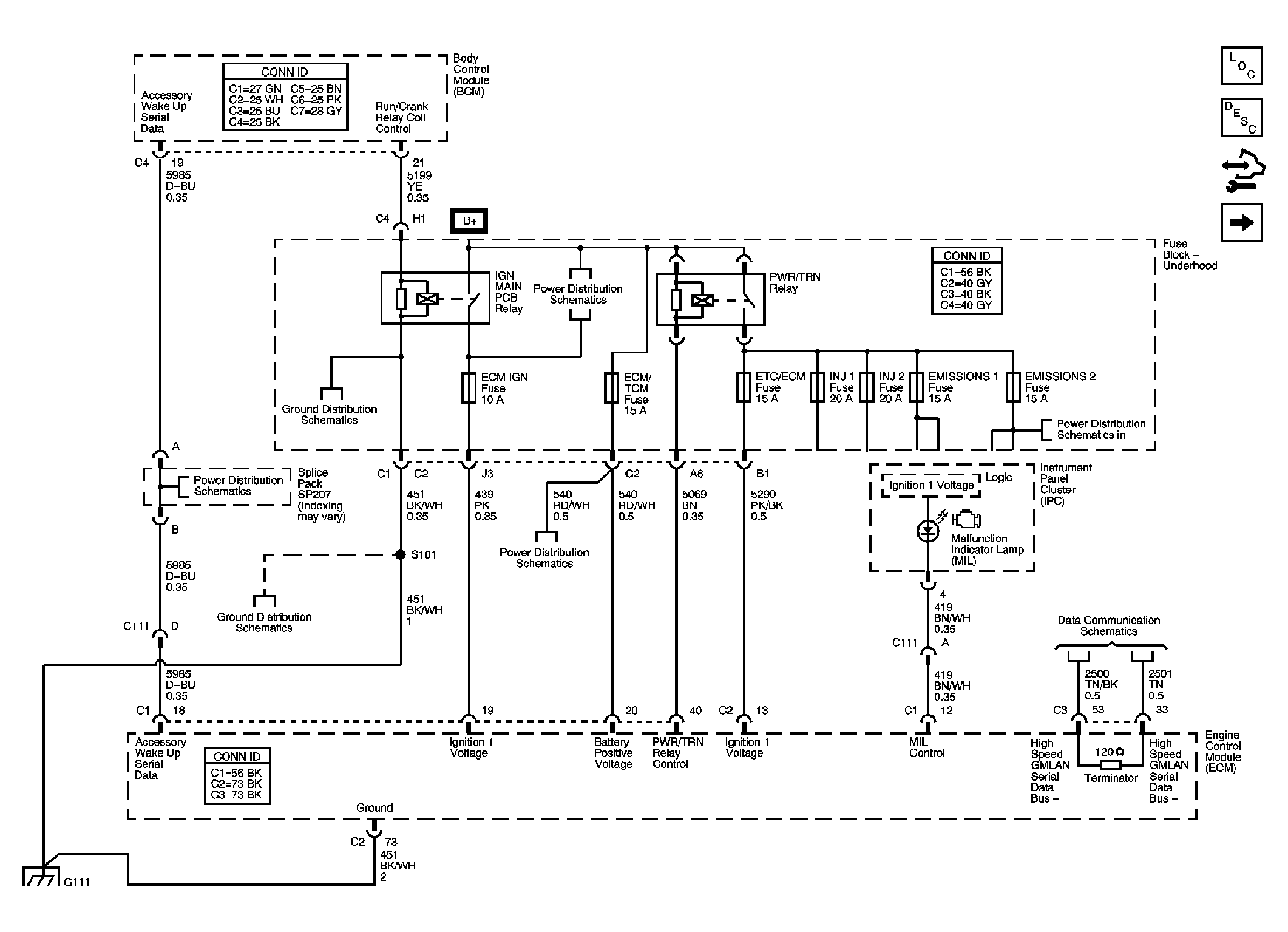

Fig 1: ECM Power, Ground, MIL, and Serial Data Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

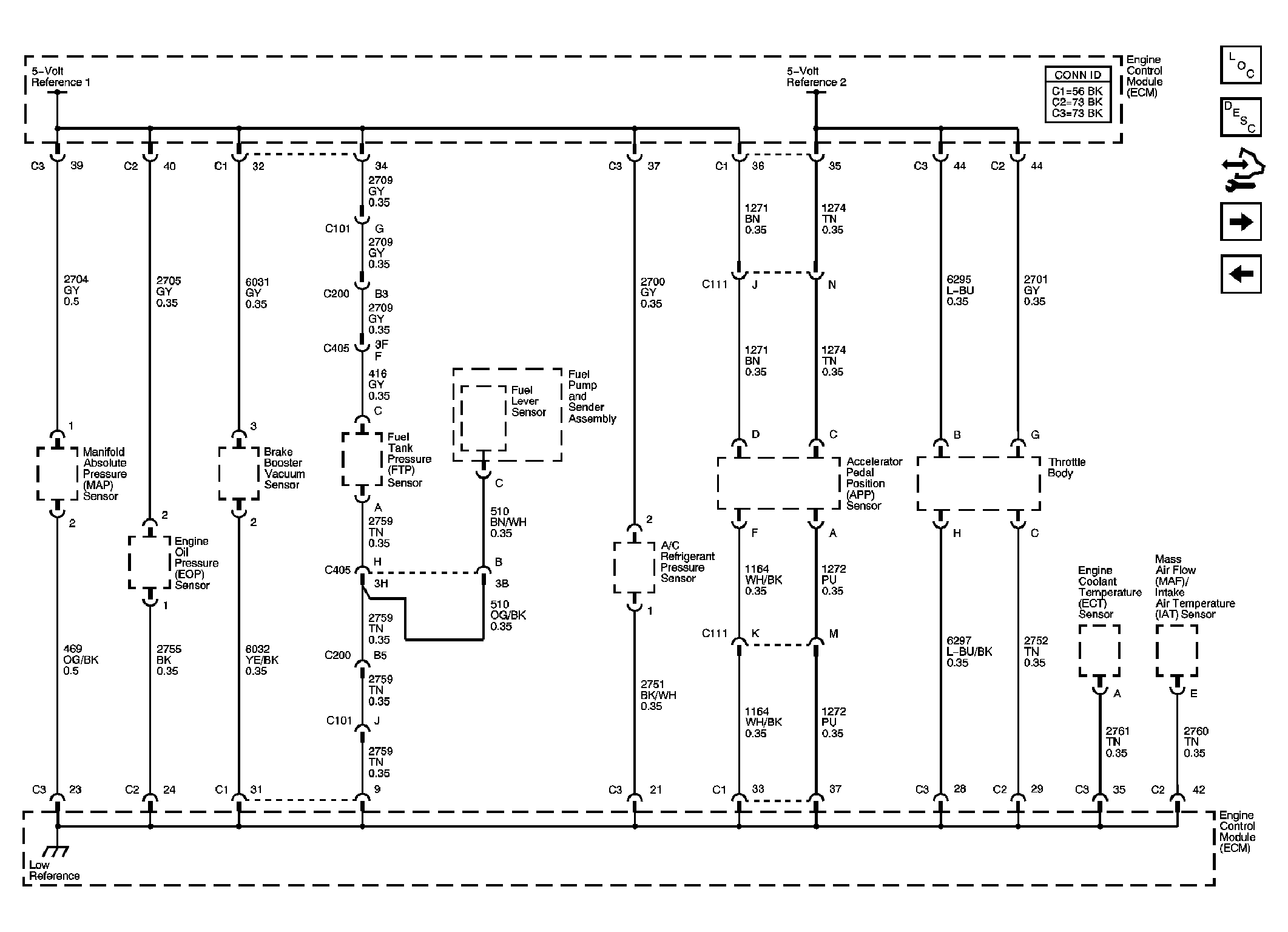

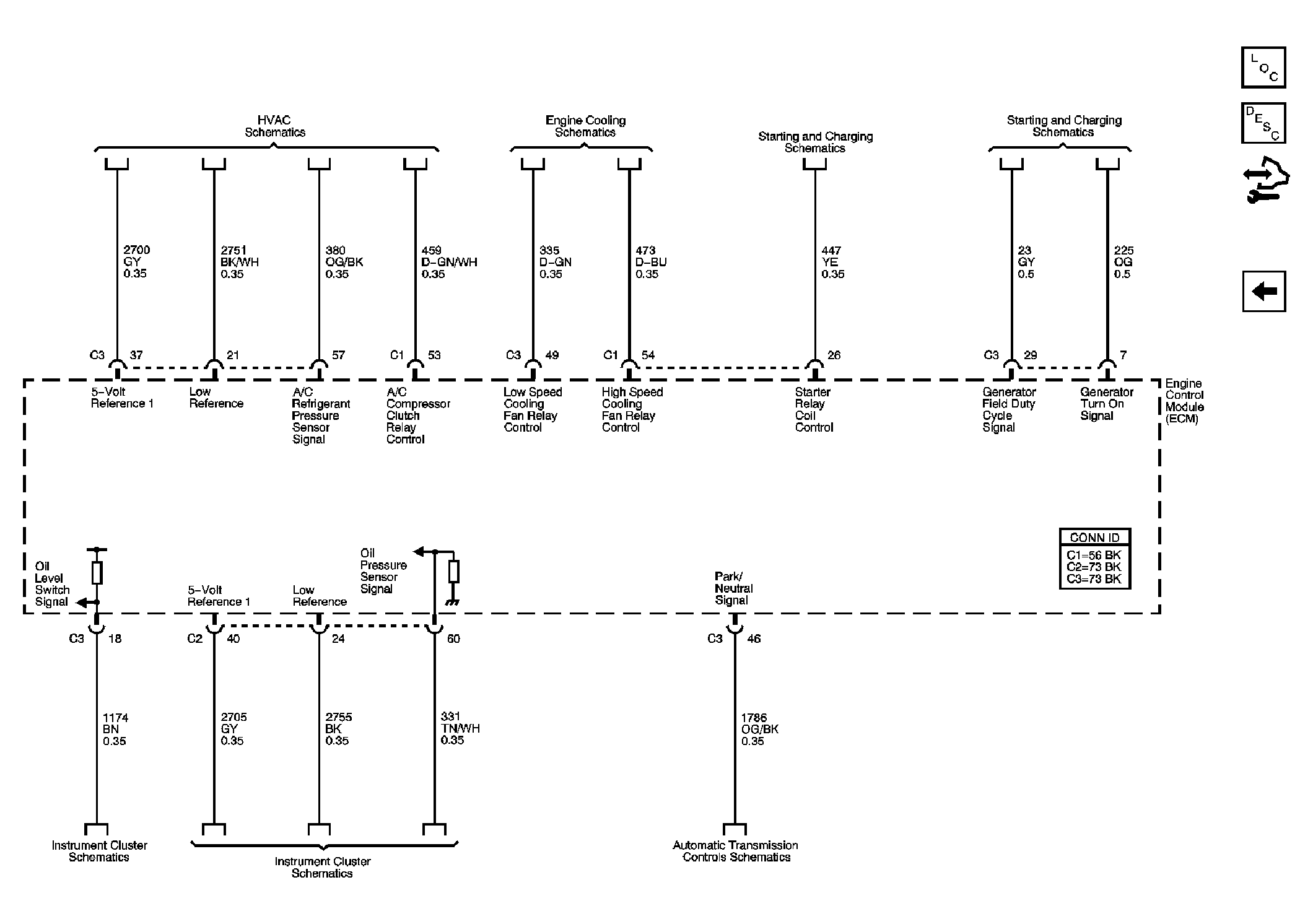

Fig 2: 5-Volt and Low Reference Bussing Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

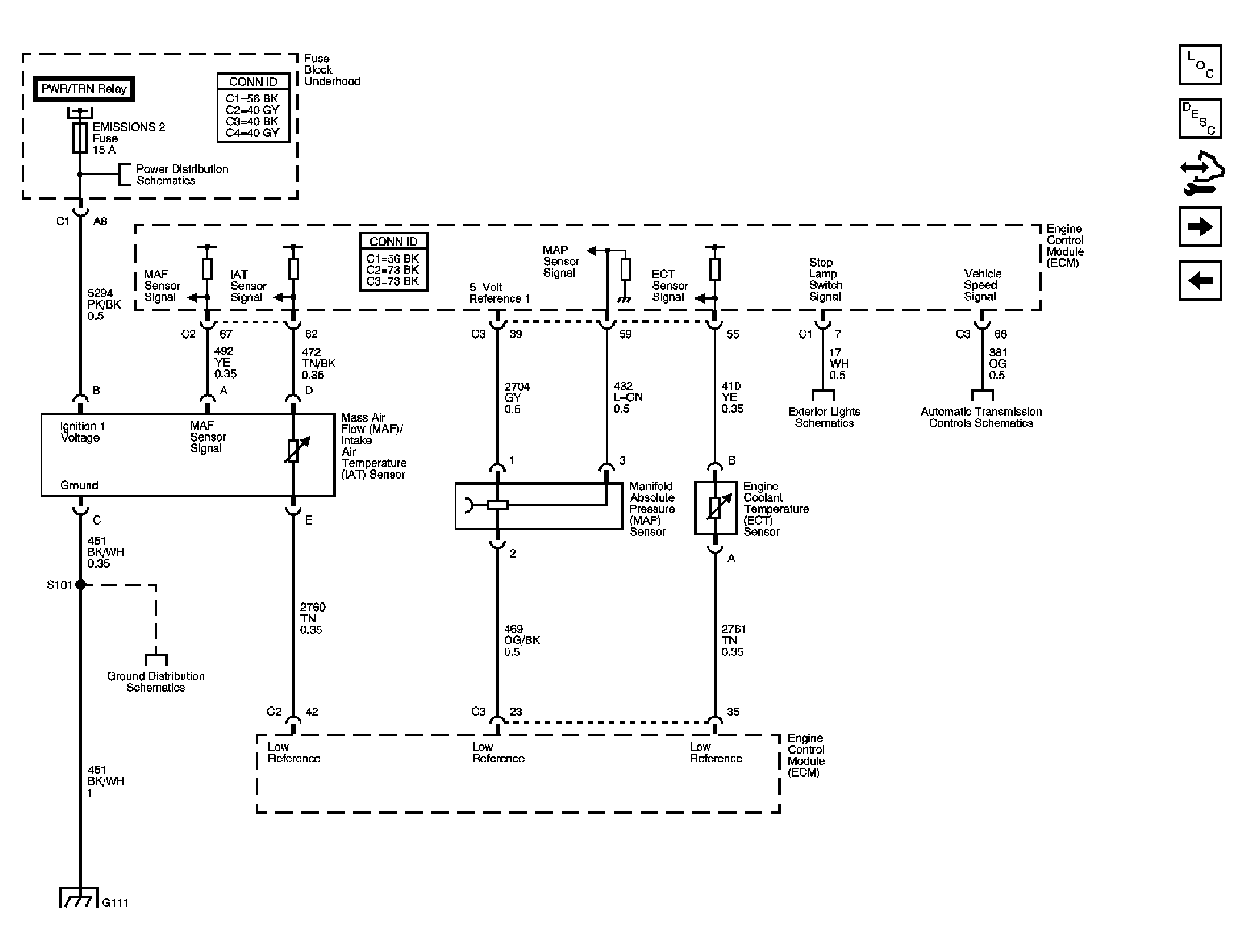

Fig 3: MAP, ECT, and MAF/IAT Sensors Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

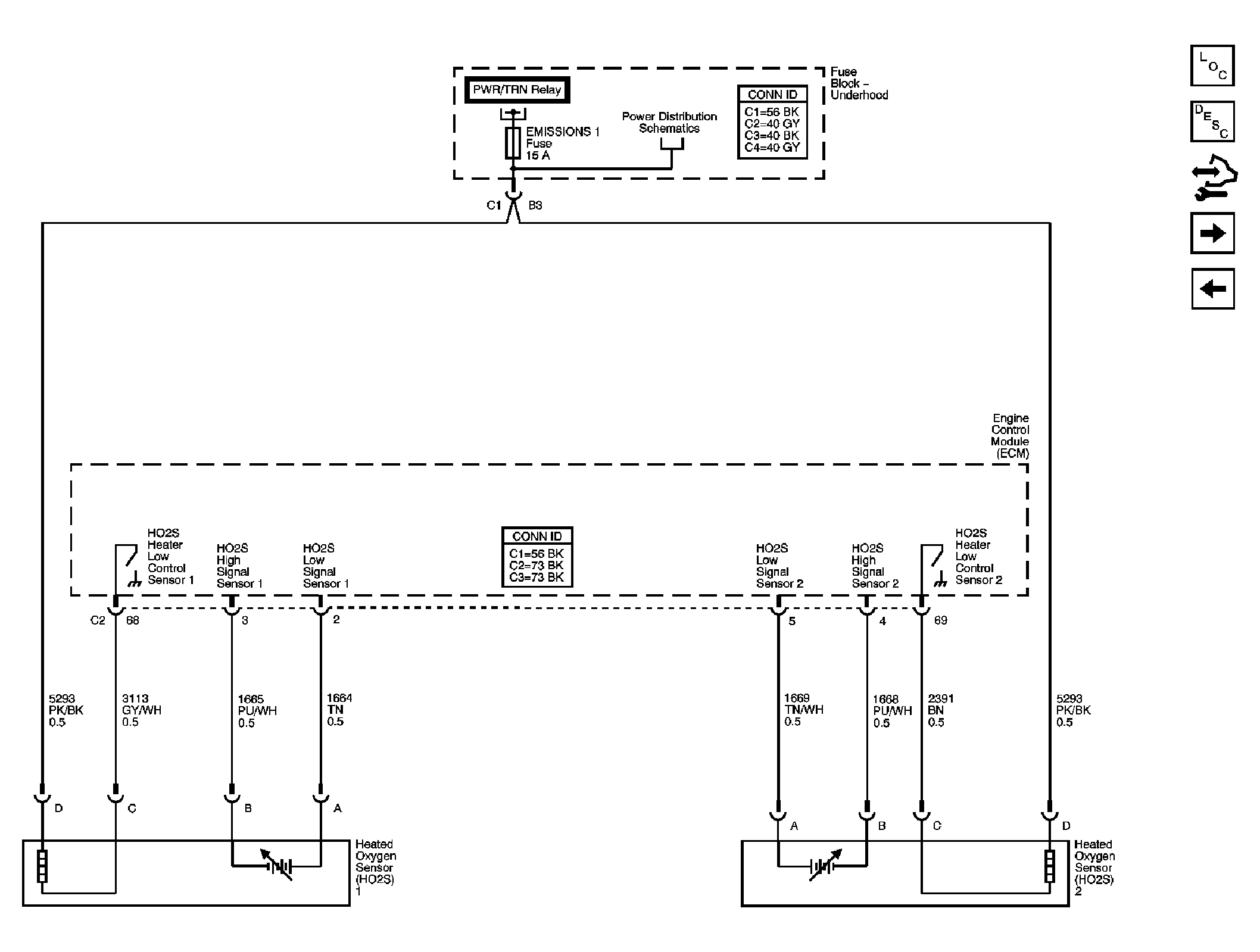

Fig 4: Heated Oxygen Sensors Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

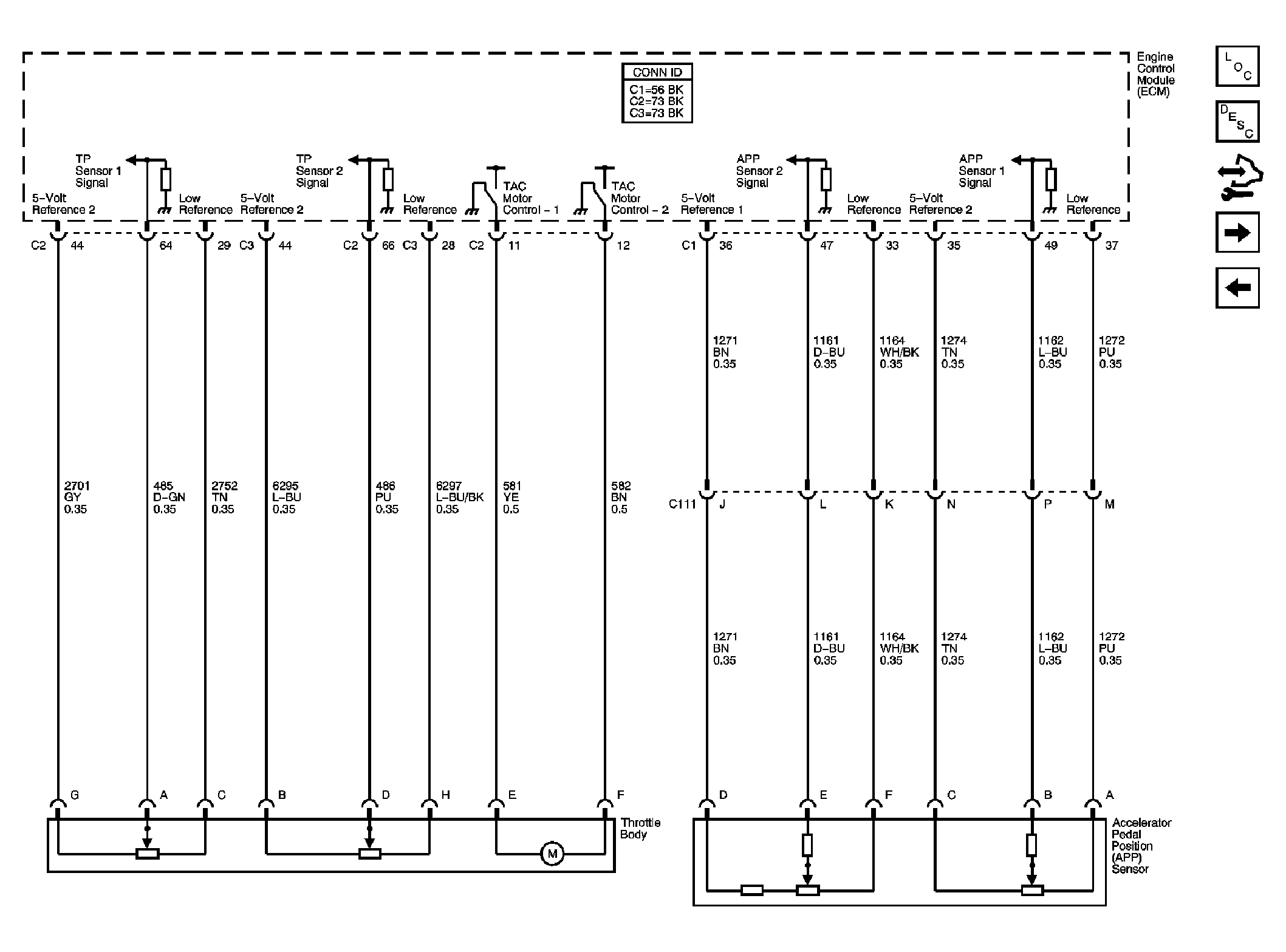

Fig 5: Electronic Throttle Controls Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

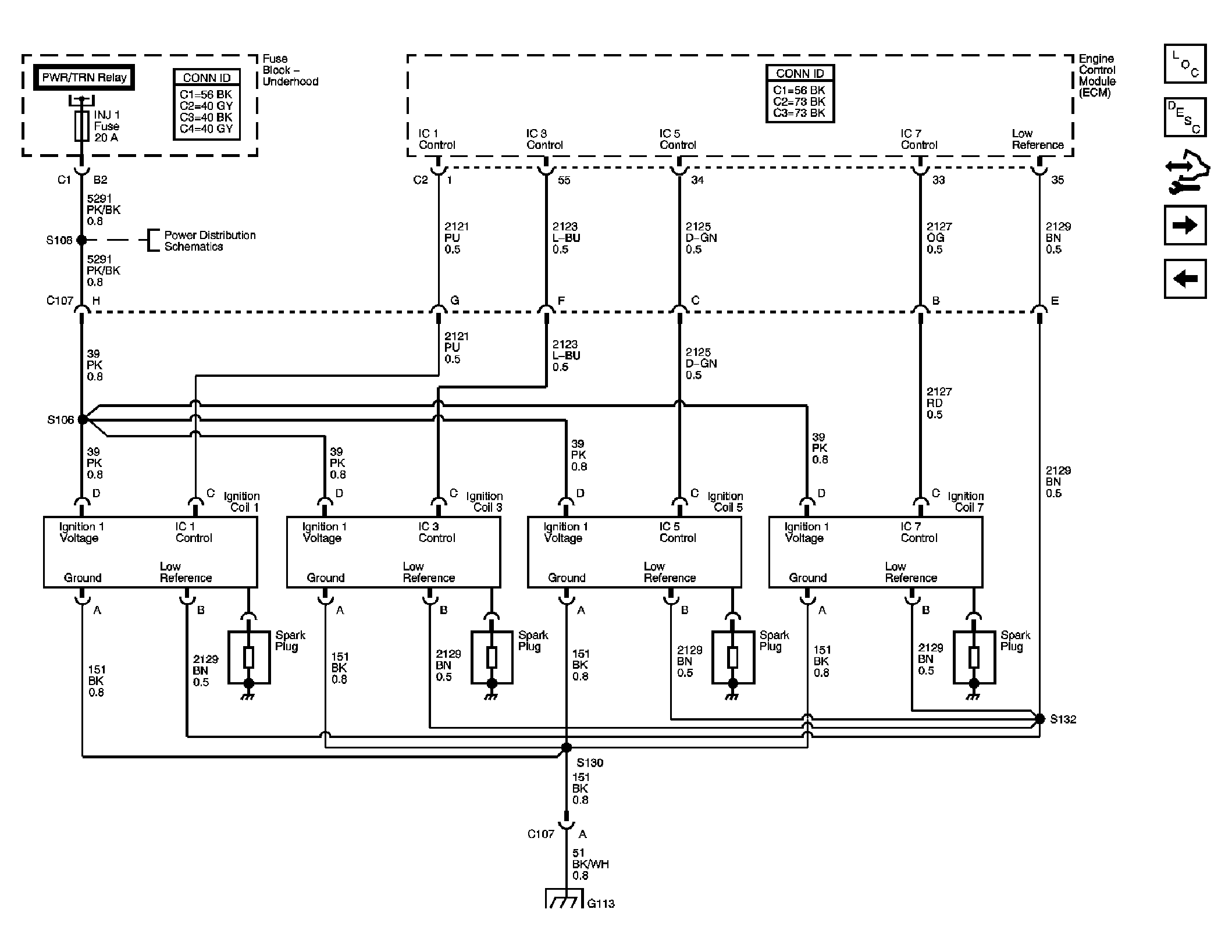

Fig 6: Ignition Controls Bank 1 (Odd) Ignition Coils Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

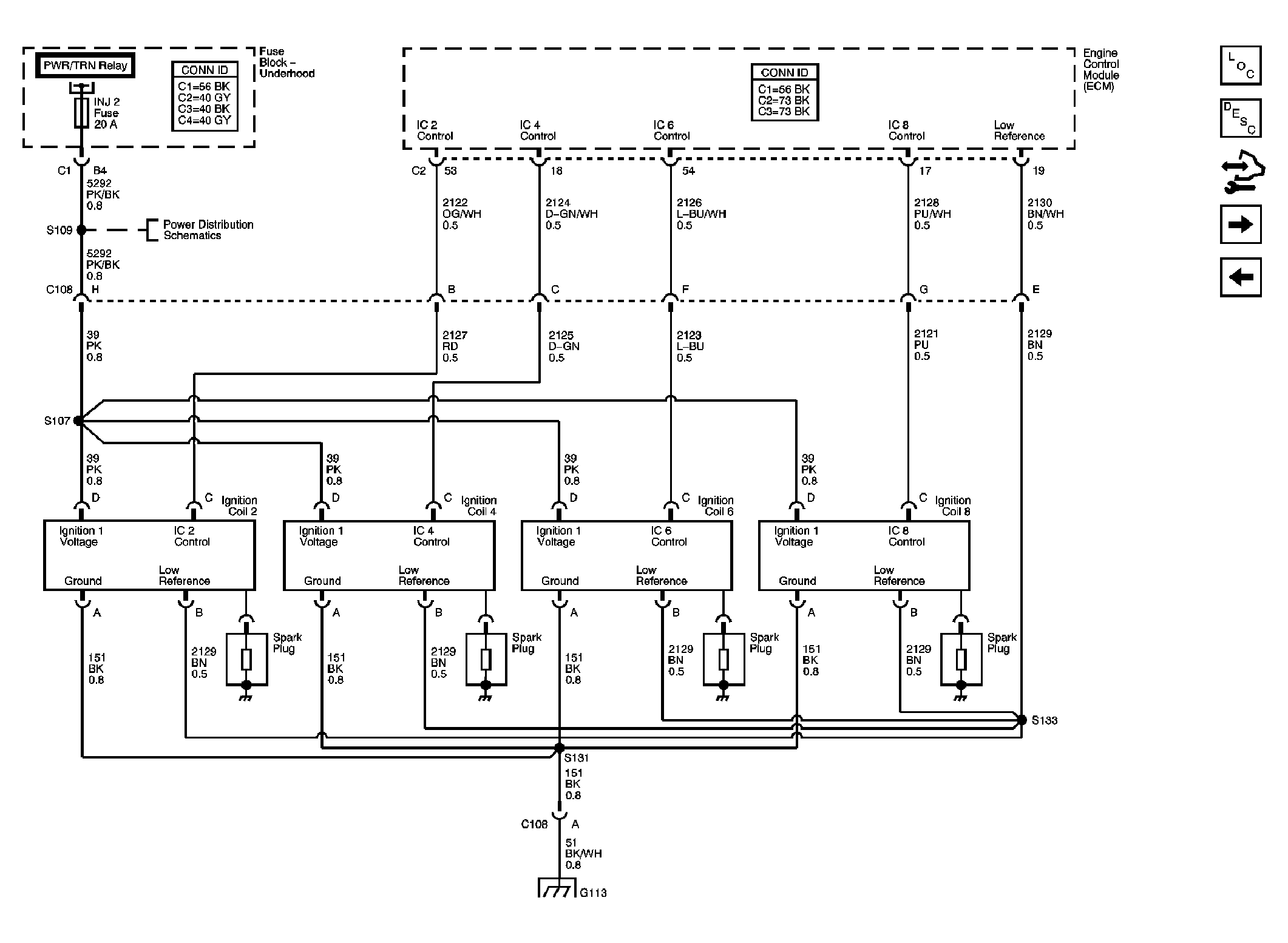

Fig 7: Ignition Controls Bank 2 (Even) Ignition Coils Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

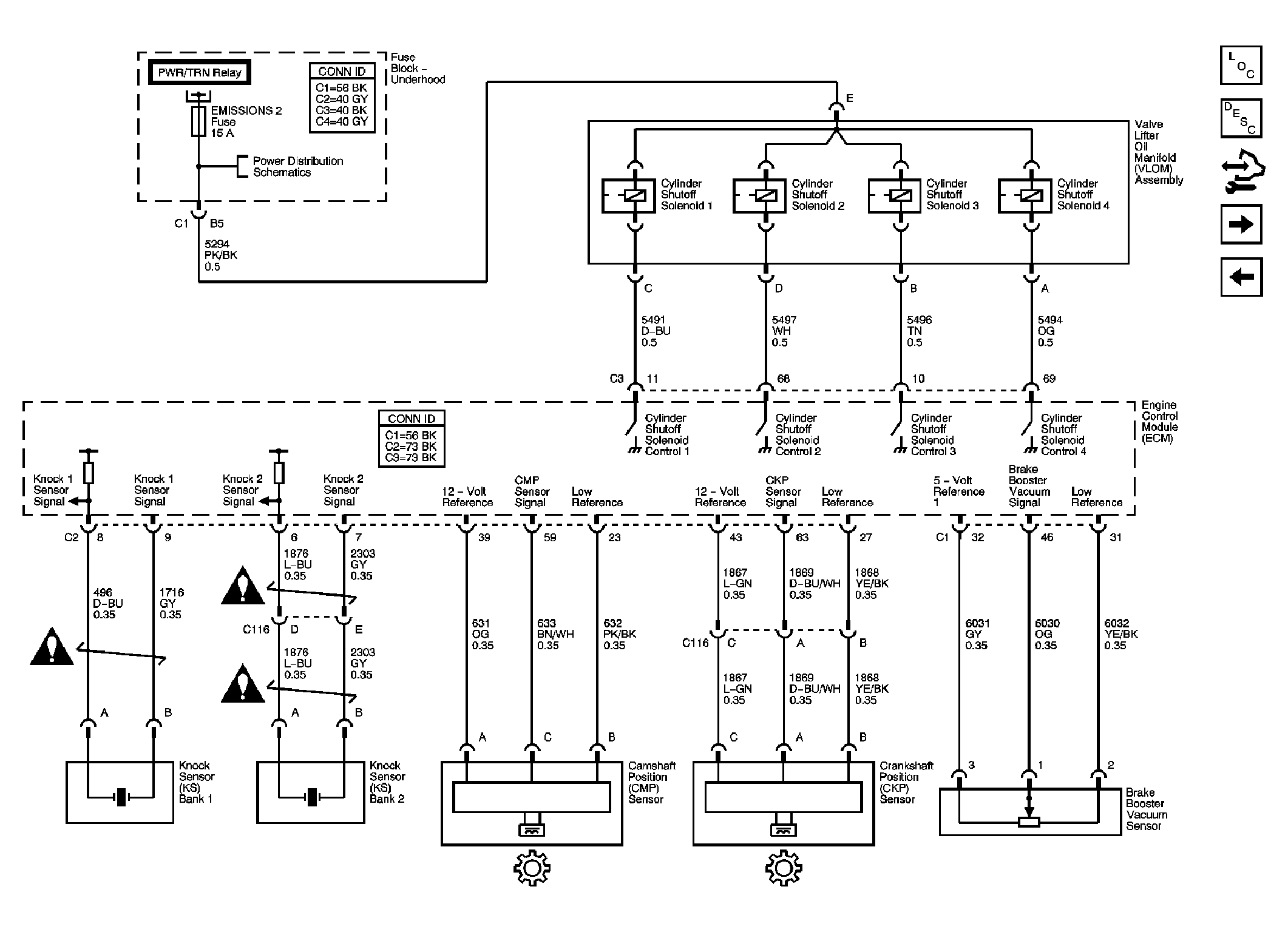

Fig 8: Ignition Controls Knock, CMP, CKP, Brake Booster Vacuum Sensors, and Valve Lifter Oil Manifold Assembly Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

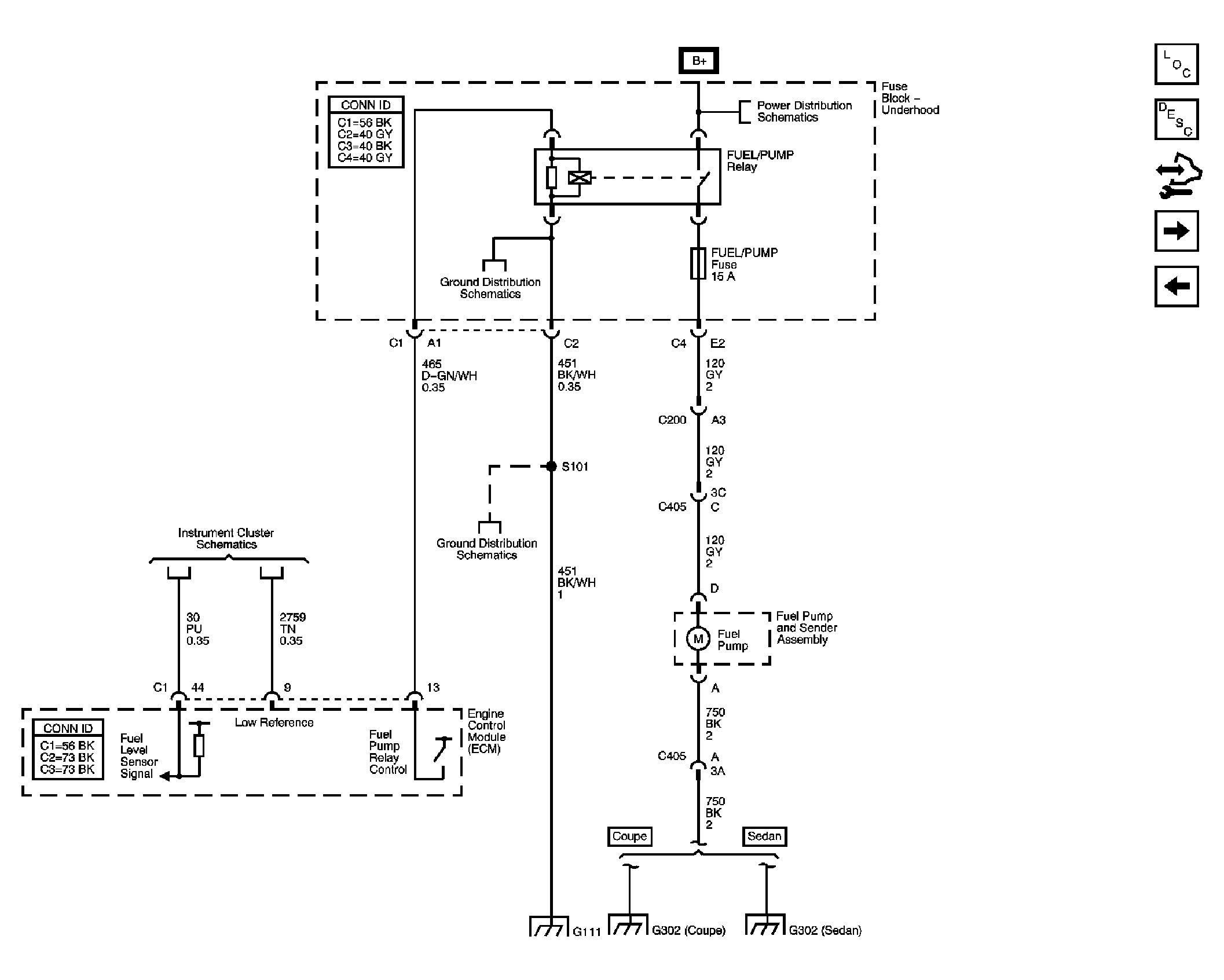

Fig 9: Fuel Pump Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

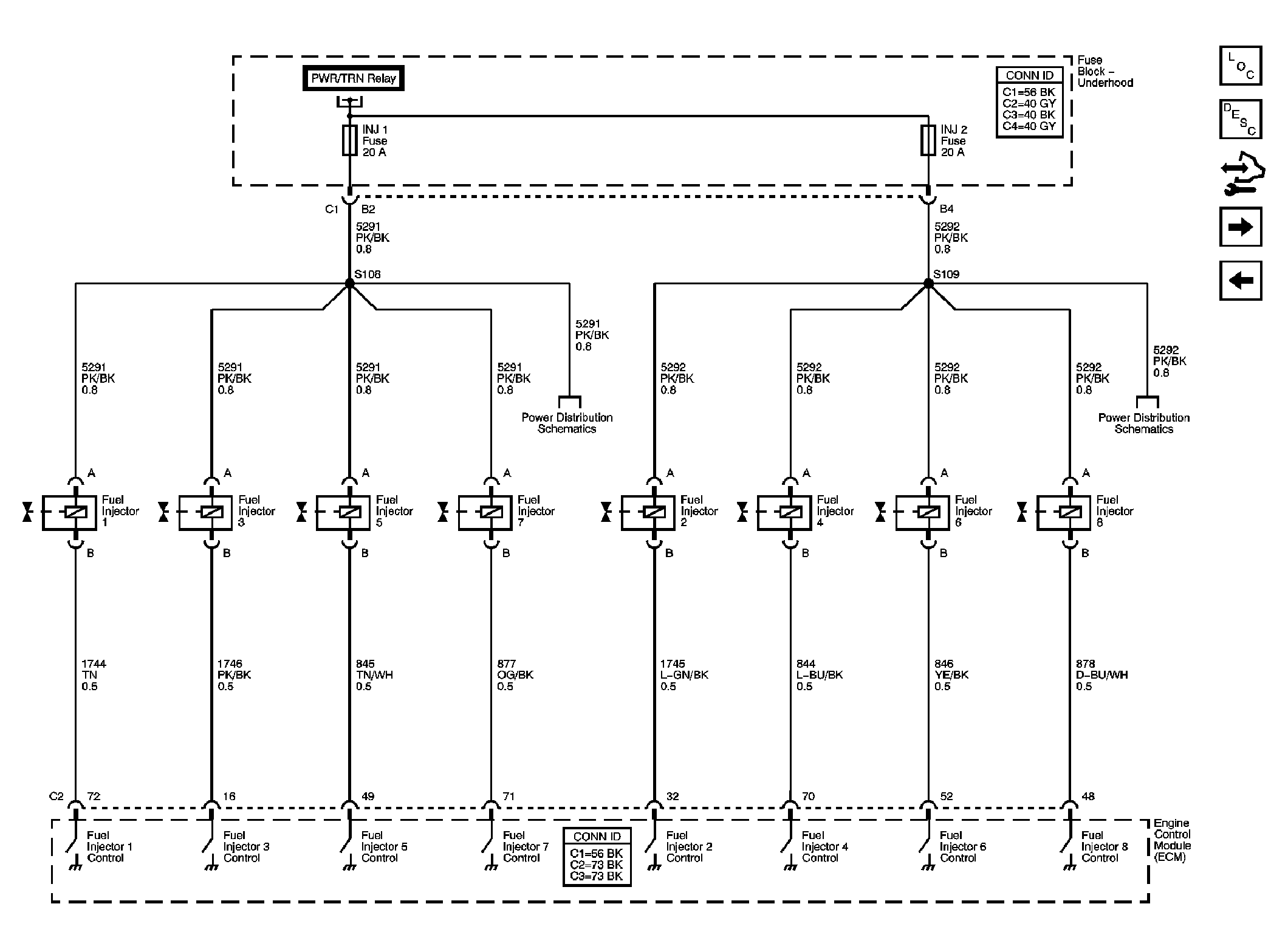

Fig 10: Fuel Injectors Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

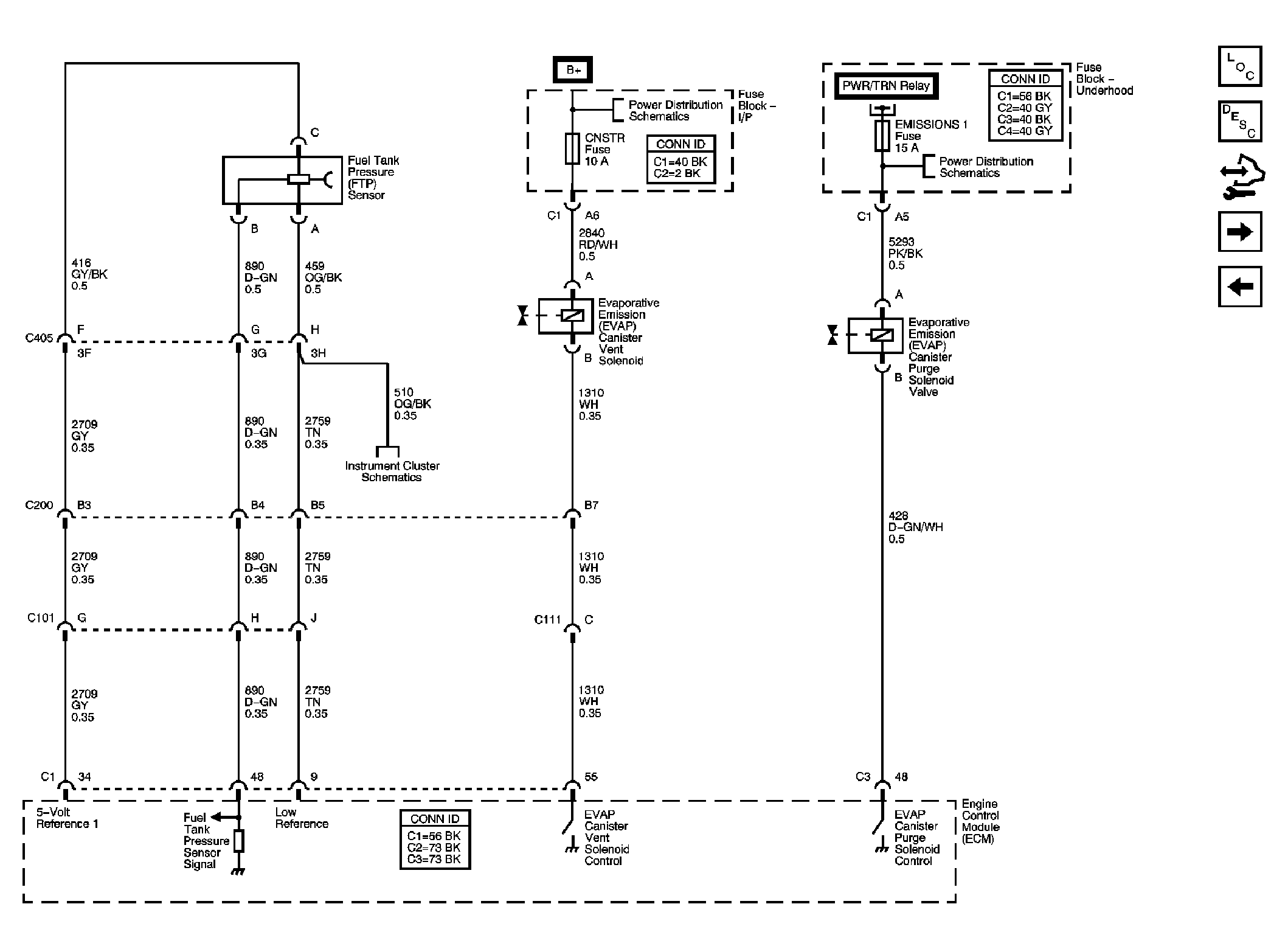

Fig 11: EVAP Solenoids and FTP Sensor Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 12: Controlled/Monitored Subsystem References Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
