Removal Procedure

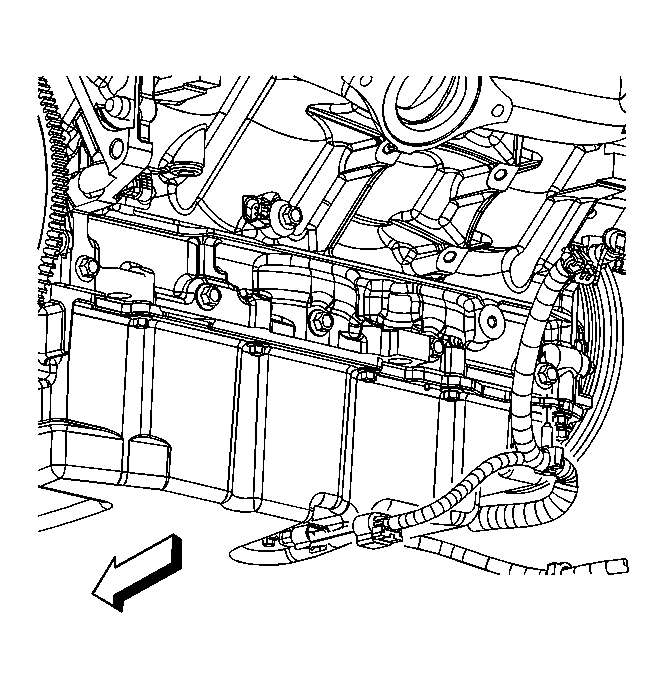

    Fig 1: View Of Oil Level Sensor Electrical Connector
    GM1551872Courtesy of GENERAL MOTORS CORP.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Drain the oil from the oil pan.
  3. Disconnect the oil level sensor electrical connector.
    4. Fig 2: View Of Oil Pan, Drain Plug & O-Ring, Oil Level Sensor, Bolt & O-Ring
    GM1411954Courtesy of GENERAL MOTORS CORP.
  4. Remove the oil level sensor bolt (751).
  5. Remove the oil level sensor (727) and O-ring (728) from the oil pan.
