Power Distribution Schematics

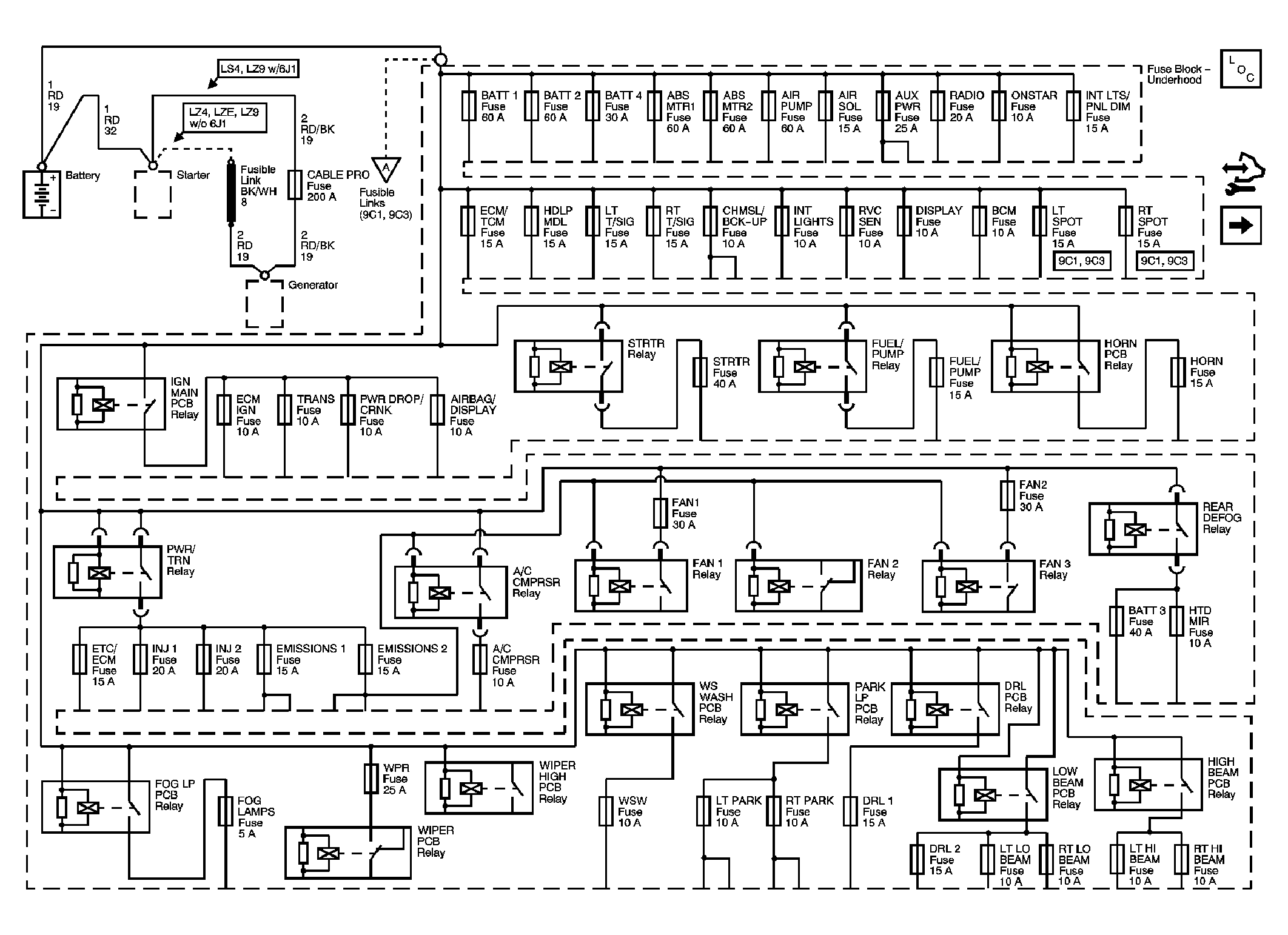

Fig 1: Fuse Block - Underhood Bussing Power Distribution Schematics

Courtesy of GENERAL MOTORS CORP.

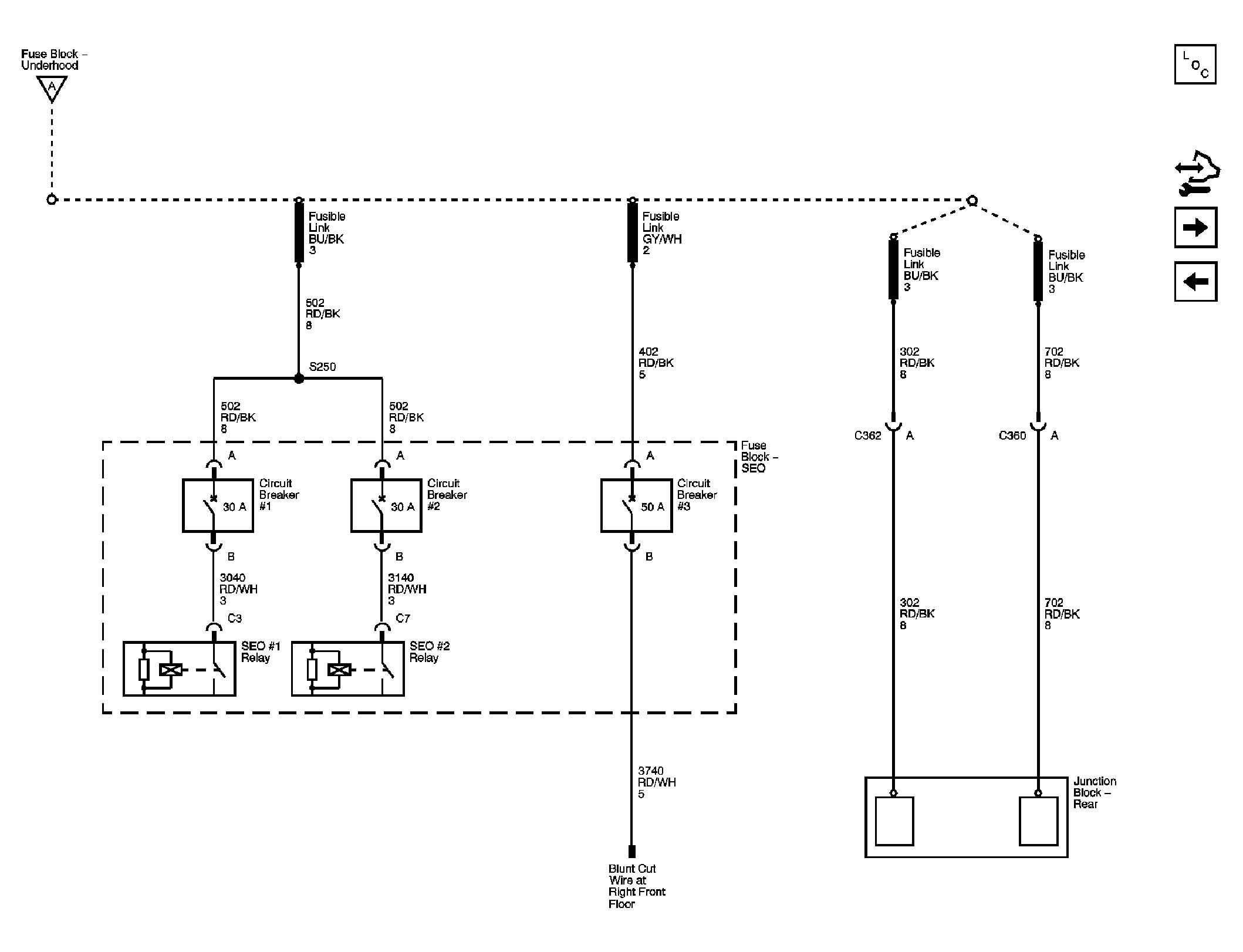

Fig 2: SEO 9C1, 9C3 Power Distribution Schematics

Courtesy of GENERAL MOTORS CORP.

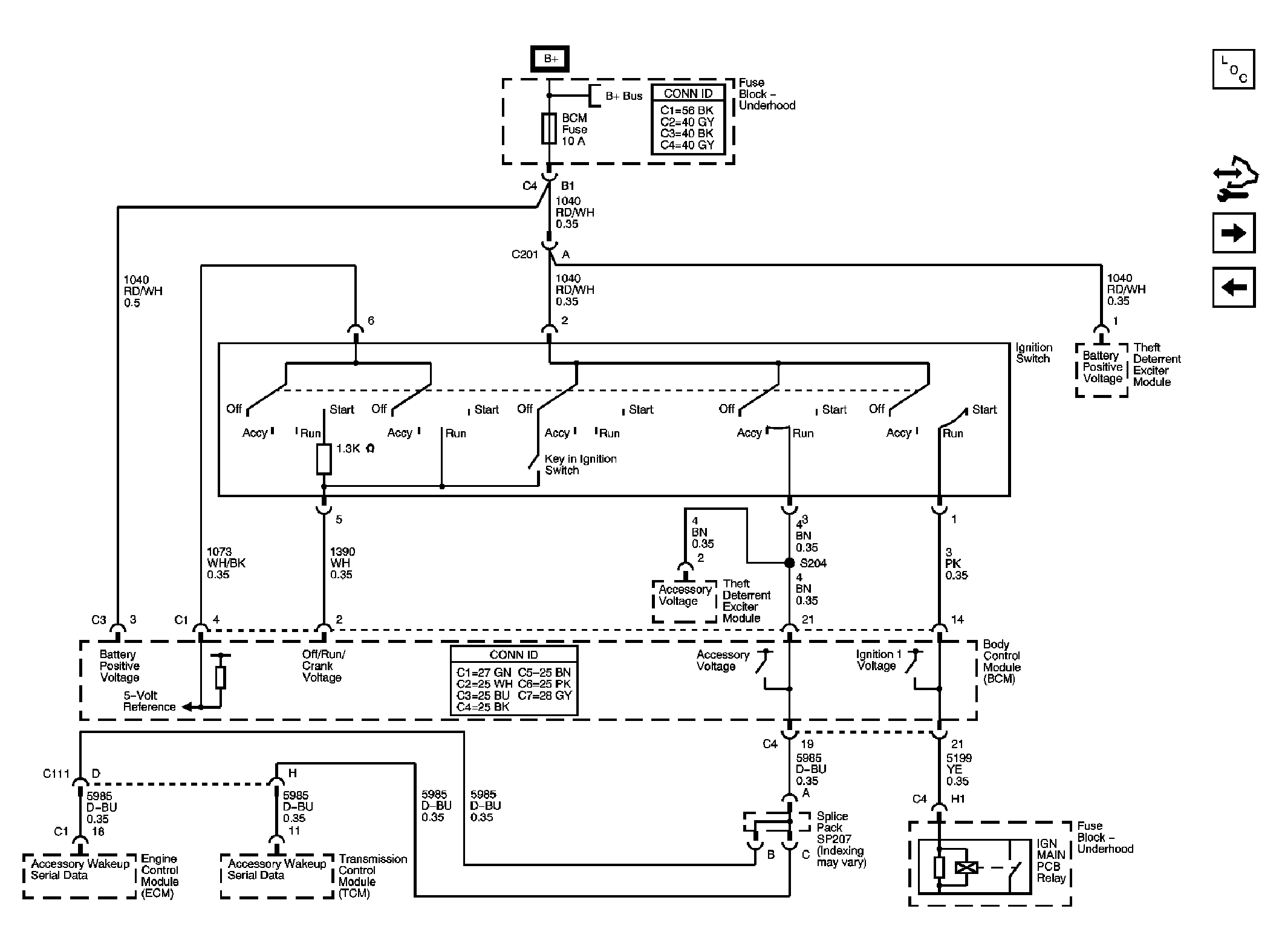

Fig 3: Ignition Switch Power Distribution Schematics

Courtesy of GENERAL MOTORS CORP.

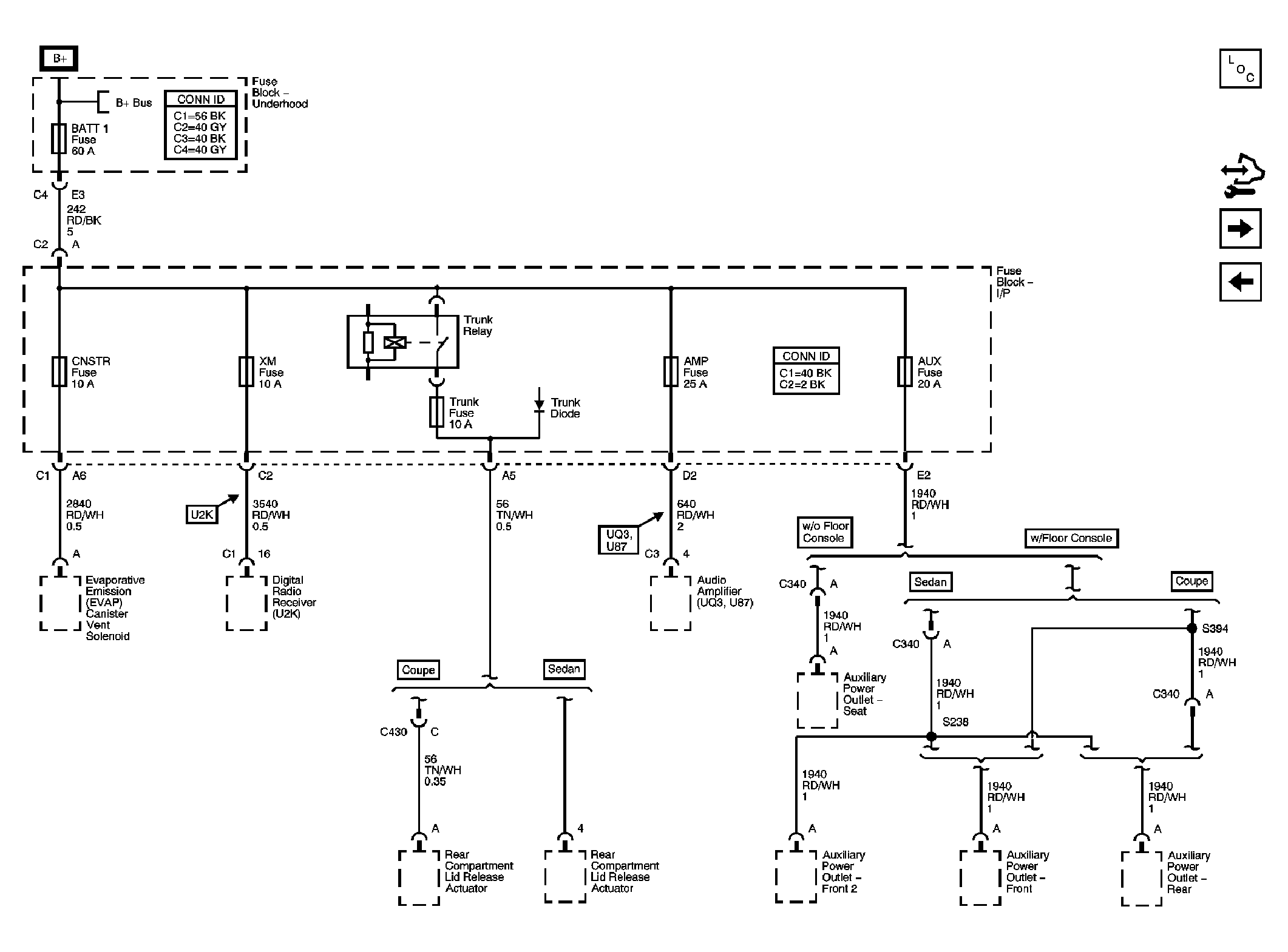

Fig 4: BATT 1, CNSTR, ONSTAR, TRUNK, AMP, AUX Fuses, & TRUNK Relay Power Distribution Schematics

Courtesy of GENERAL MOTORS CORP.

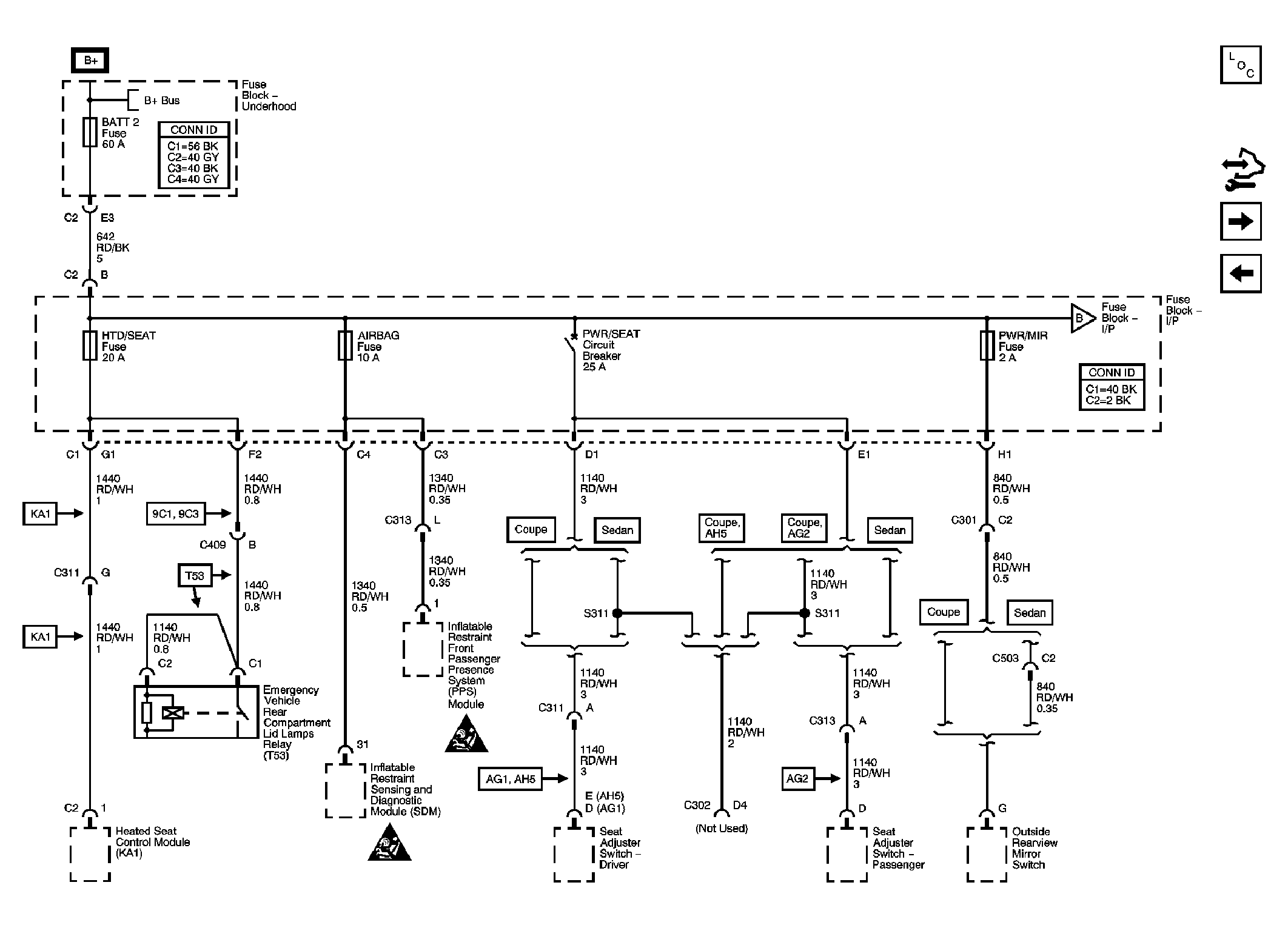

Fig 5: BATT 2, HTD/SEAT, AIRBAG, PWR/MIR Fuses, & PWR/SEAT Circuit Breaker Power Distribution Schematics

Courtesy of GENERAL MOTORS CORP.

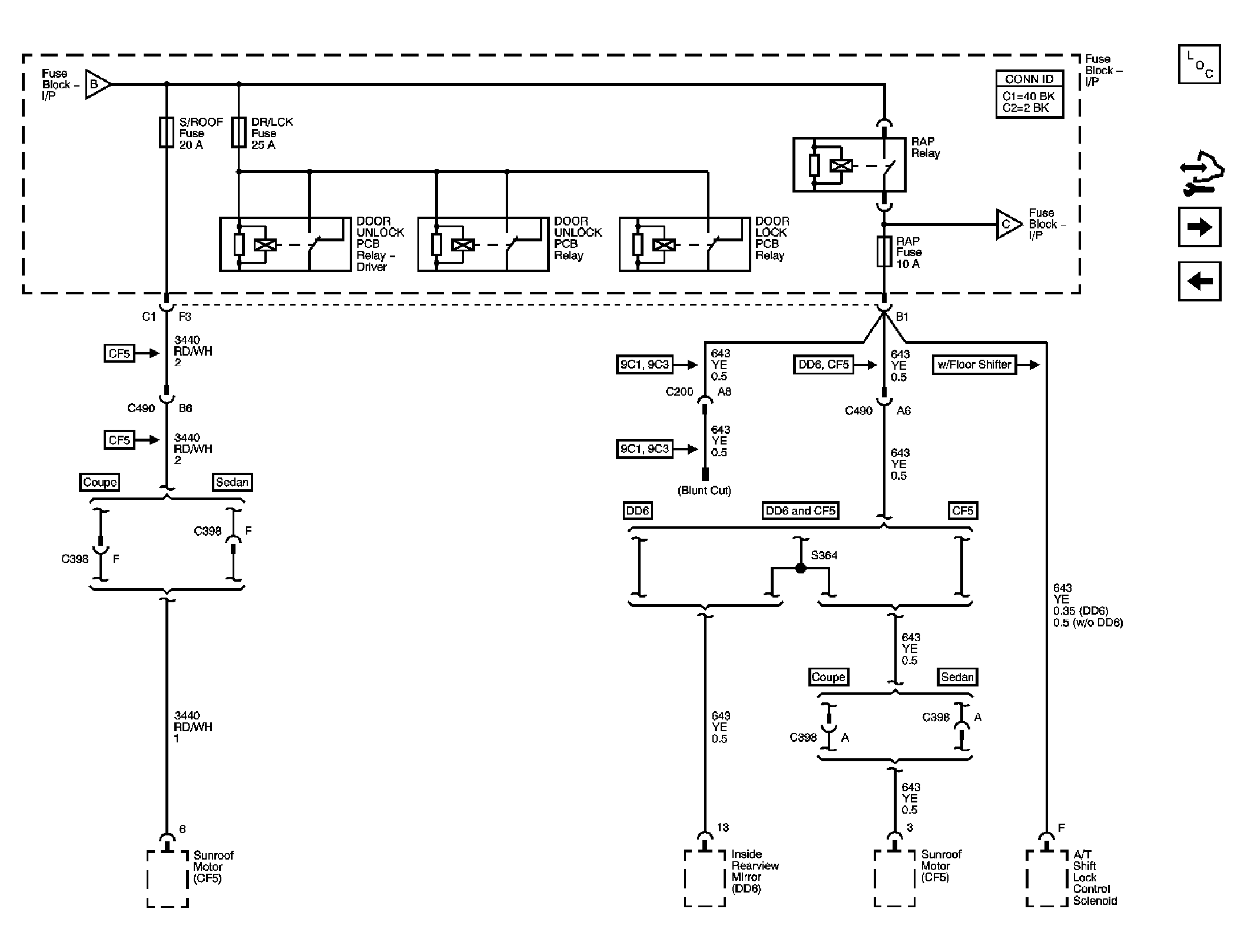

Fig 6: S/ROOF, DR/LCK, RAP Fuses & RAP Relay, DOOR UNLOCK PCB Relay - Driver, DOOR UNLOCK PCB Relay, & DOOR LOCK PCB Relay Power Distribution Schematics

Courtesy of GENERAL MOTORS CORP.

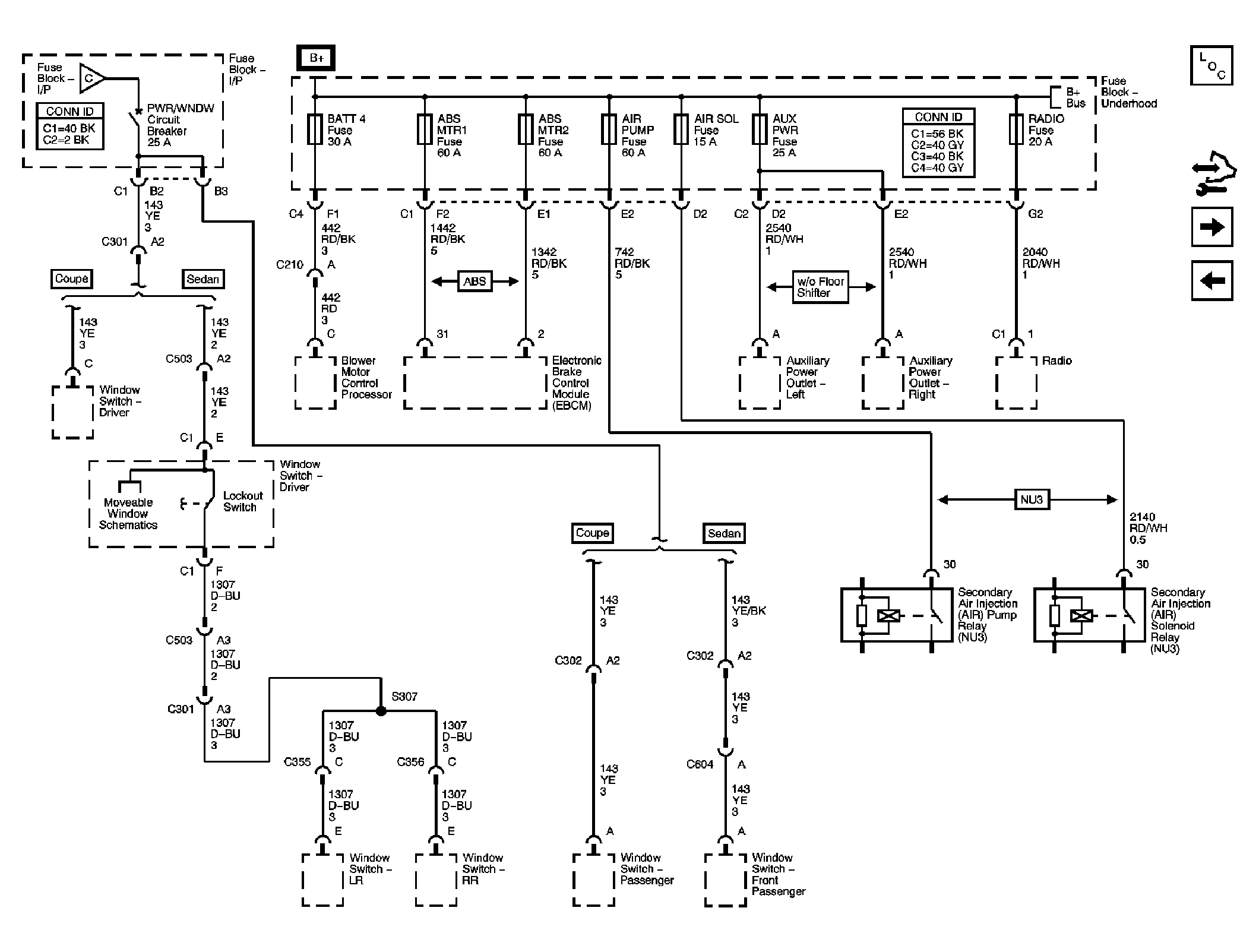

Fig 7: BATT 4, ABS MTR1, ABS MTR2, AUX PWR, Radio Fuses, & PWR/WNDW Circuit Breaker Power Distribution Schematics

Courtesy of GENERAL MOTORS CORP.

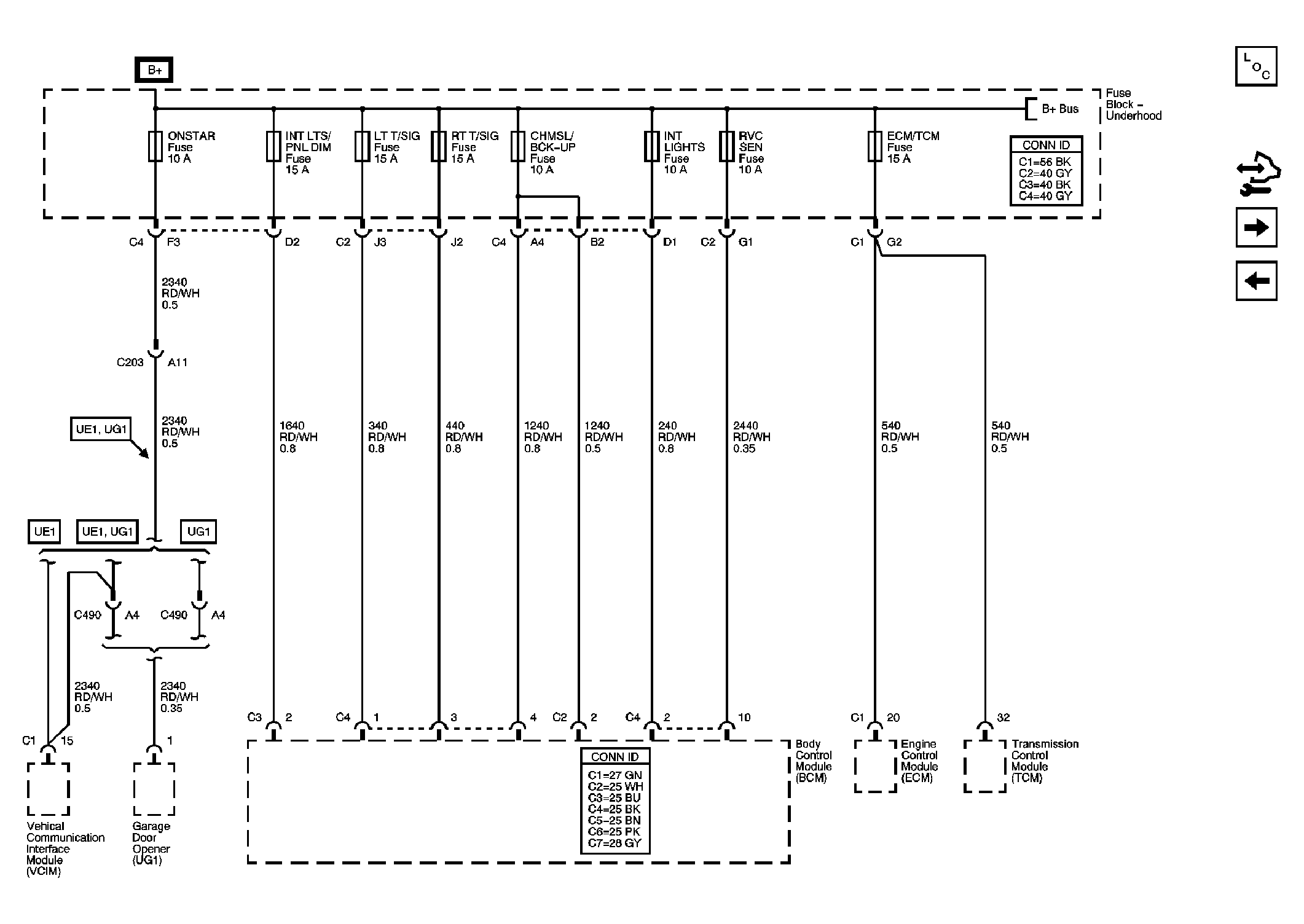

Fig 8: INT LTS/PNL DIM, LT T/SIG, RT T/SIG, CHMSL/BACKUP, INT LIGHTS, RVC SEN, & ECM/TCM Fuses Power Distribution Schematics

Courtesy of GENERAL MOTORS CORP.

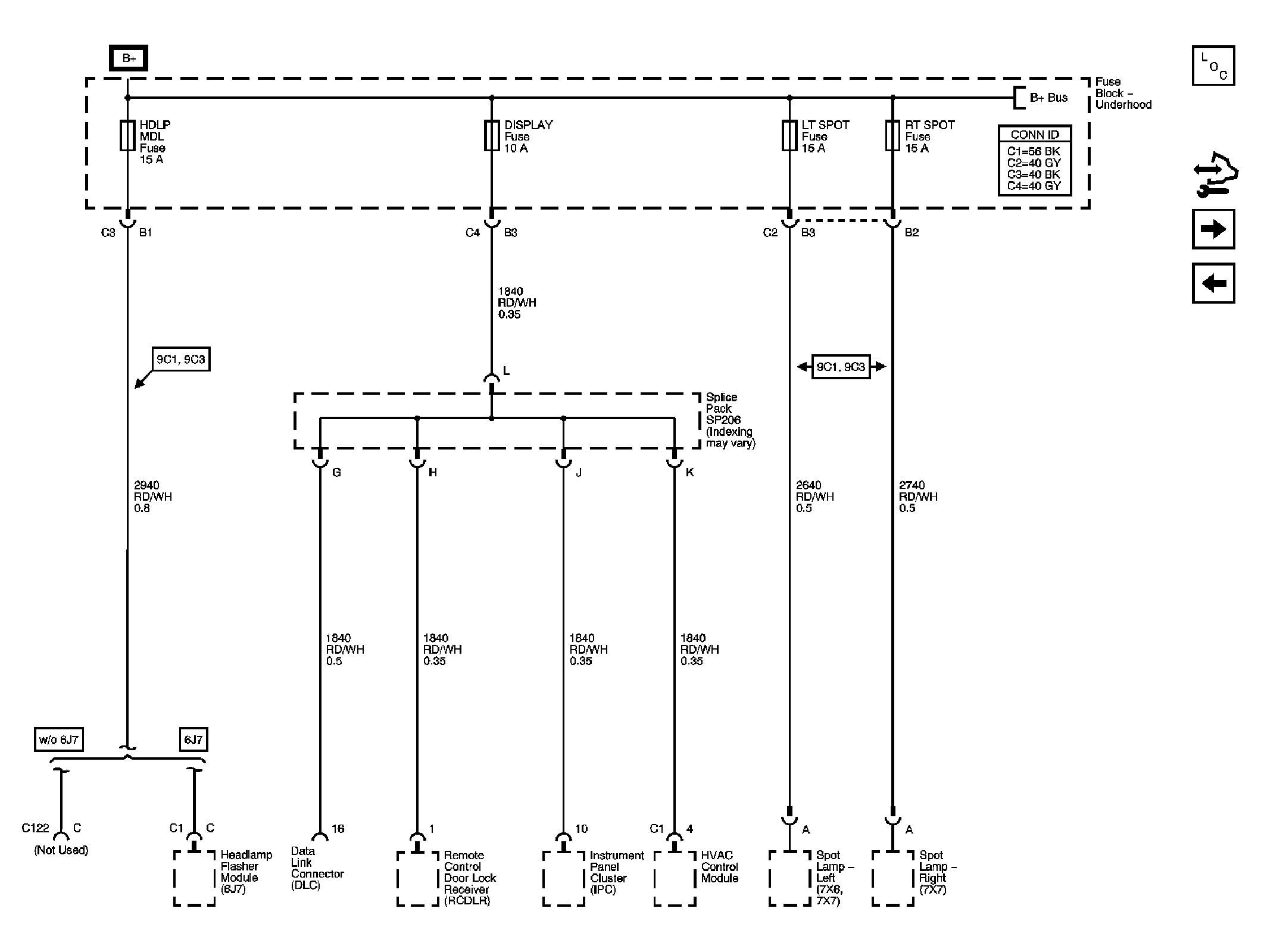

Fig 9: HDLP MDL, DISPLAY, LT SPOT, & RT SPOT Fuses Power Distribution Schematics

Courtesy of GENERAL MOTORS CORP.

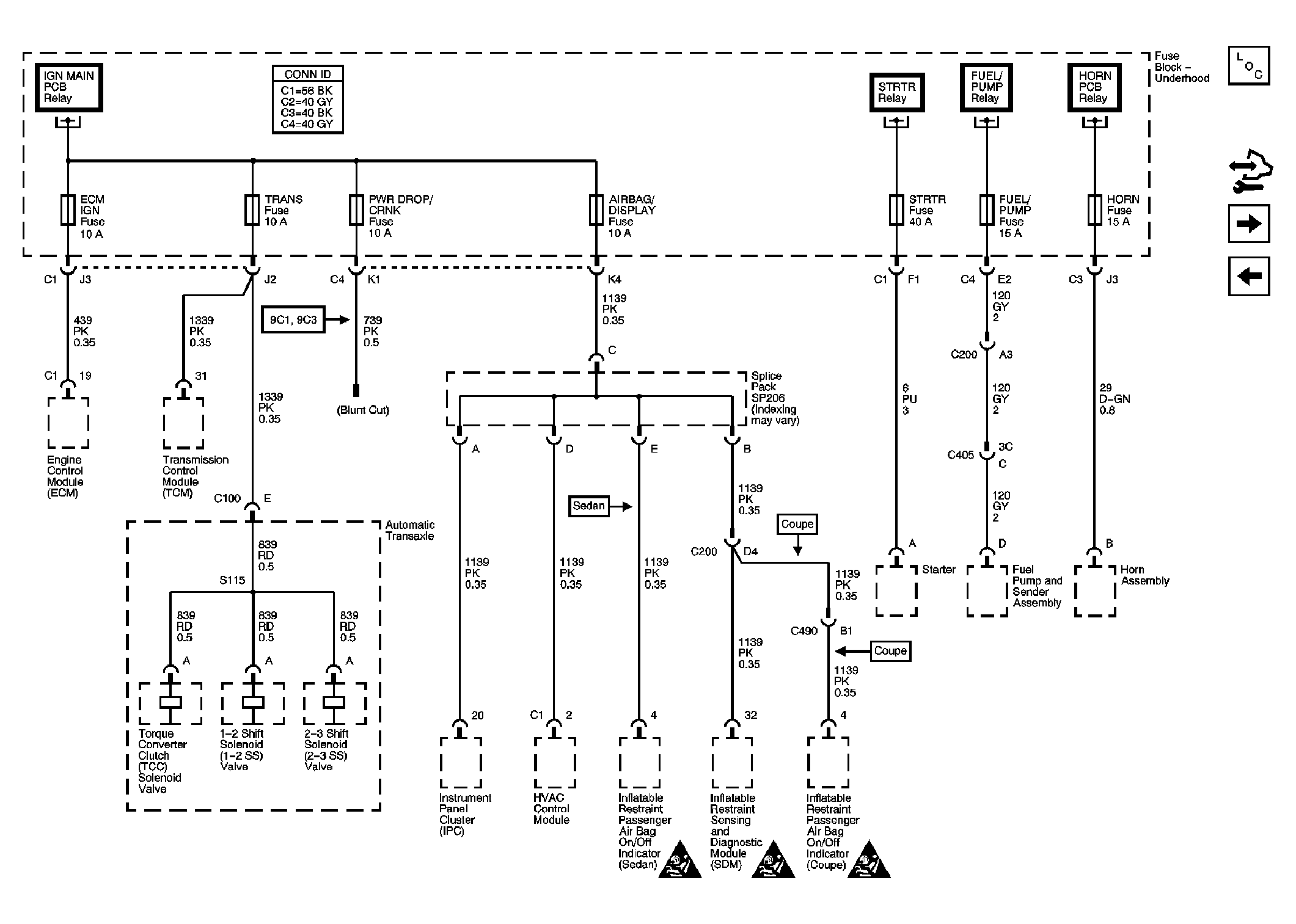

Fig 10: ECM IGN, TRANS, PWR DROP/CRANK, AIRBAG/DISPLAY, STRTR, FUEL/PUMP, & HORN Fuses Power Distribution Schematics

Courtesy of GENERAL MOTORS CORP.

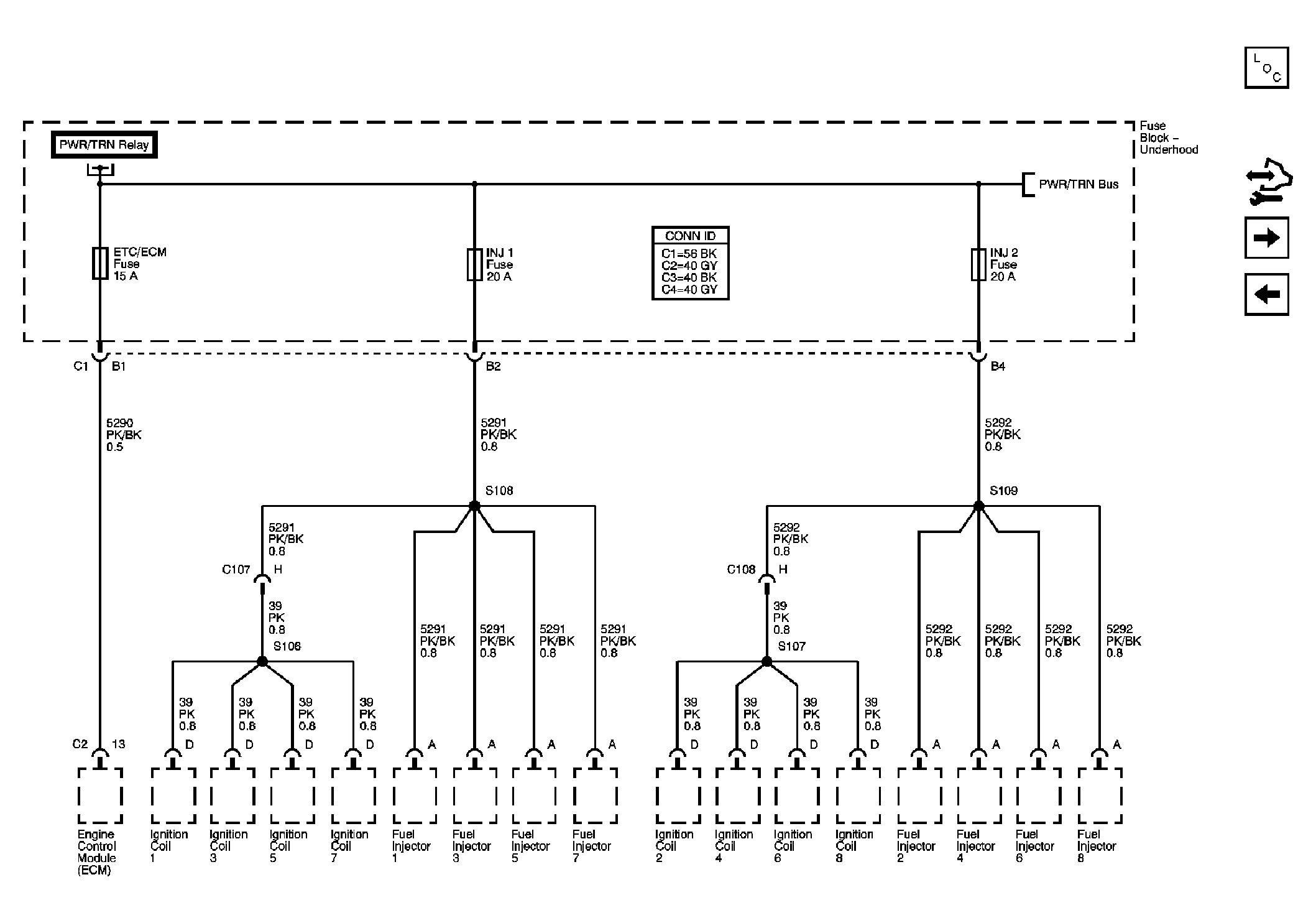

Fig 11: ETC/ECM, INJ 1, & INJ 2 Fuses (LZE, LZ4, LZ8) Power Distribution Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 12: ETC/ECM, INJ 1, & INJ 2 Fuses (LS4) Power Distribution Schematics

Courtesy of GENERAL MOTORS CORP.

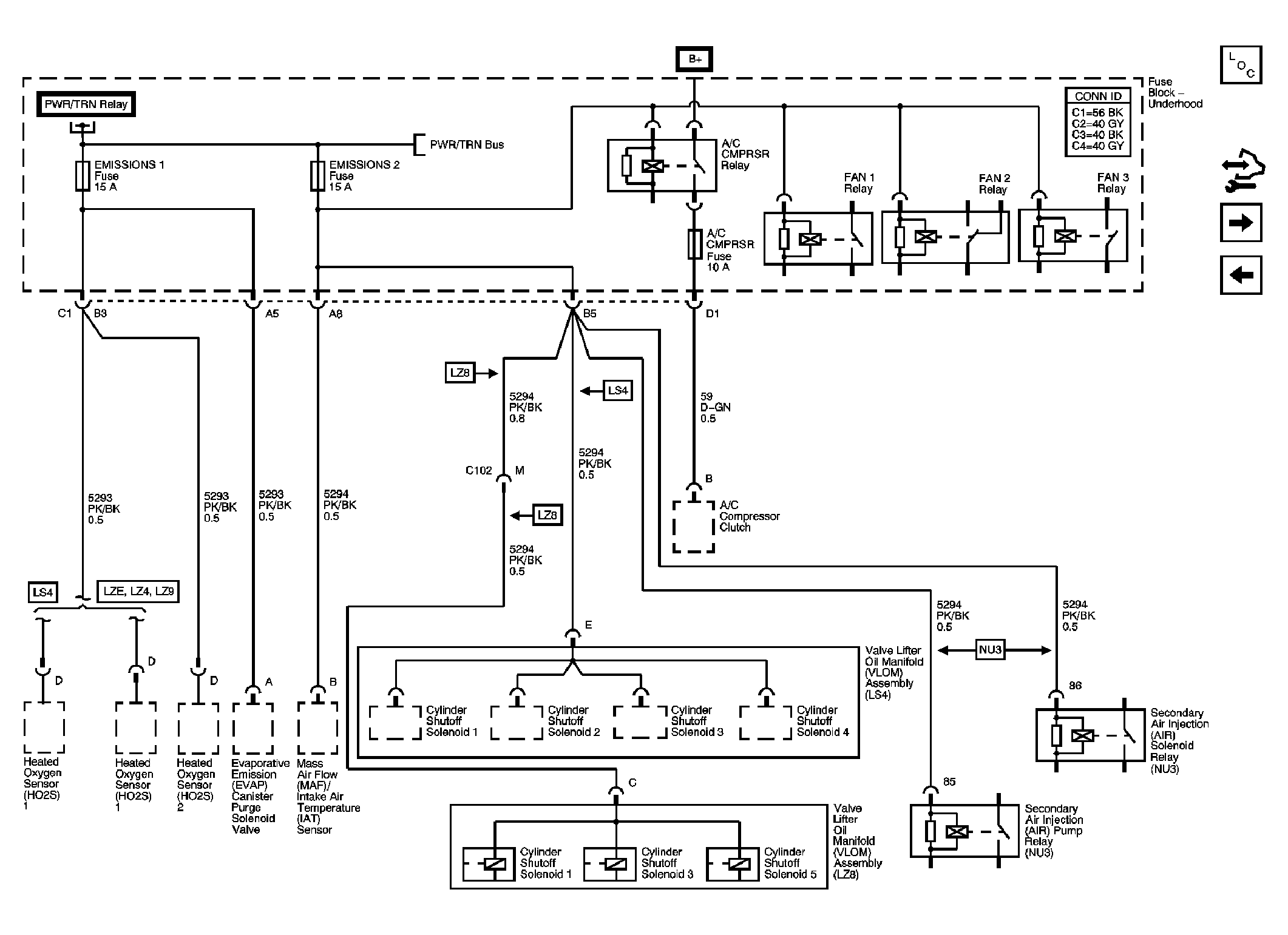

Fig 13: EMISSIONS 1, EMISSIONS 2, A/C CMPRSR Fuses, A/C CMPRSR, FAN 1, FAN 2, & FAN 3 Relays Power Distribution Schematics

Courtesy of GENERAL MOTORS CORP.

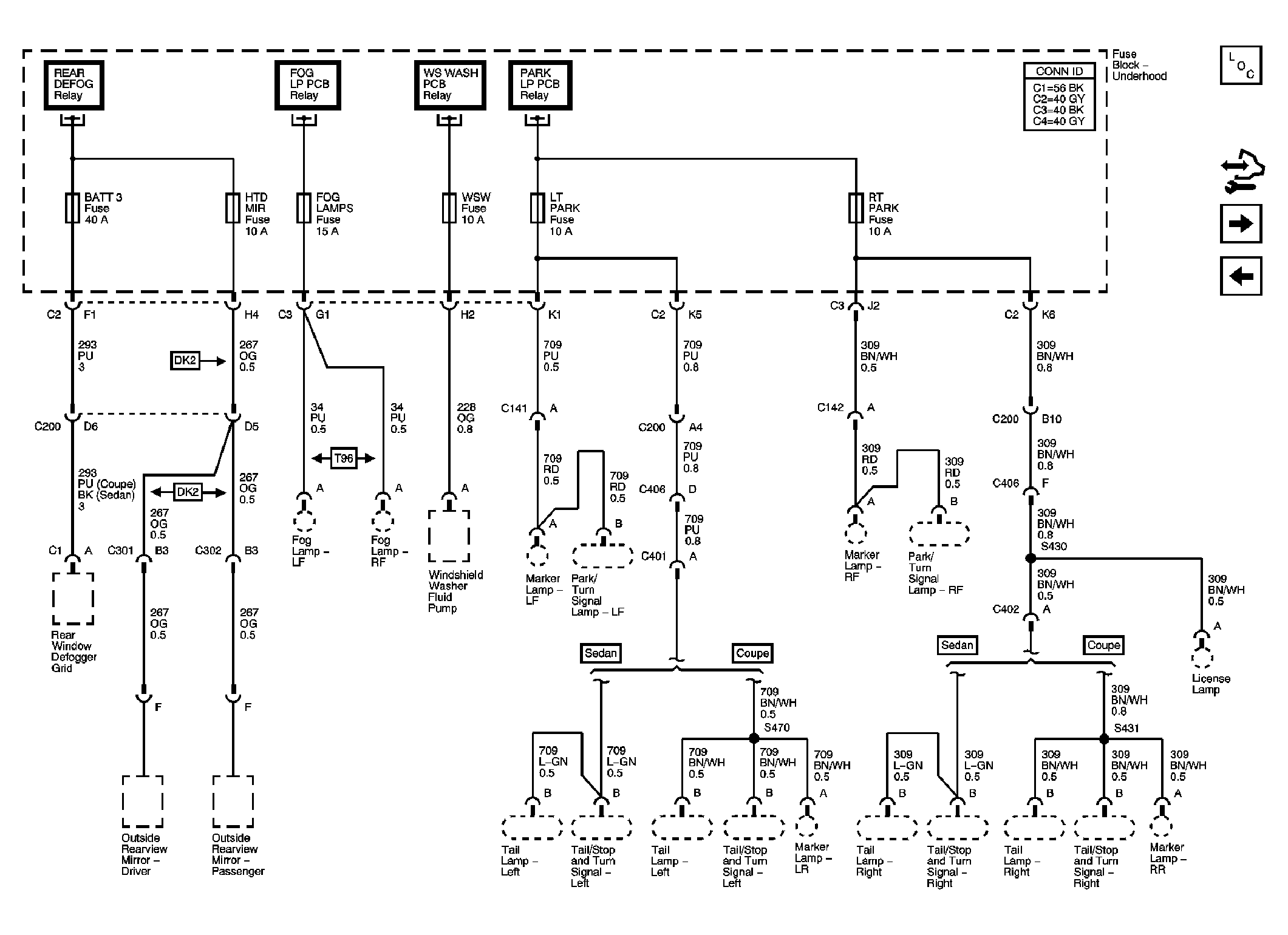

Fig 14: BATT 3, HTD MIR, FOG LAMPS, WSW, LT PARK, & RT PARK Fuses Power Distribution Schematics

Courtesy of GENERAL MOTORS CORP.

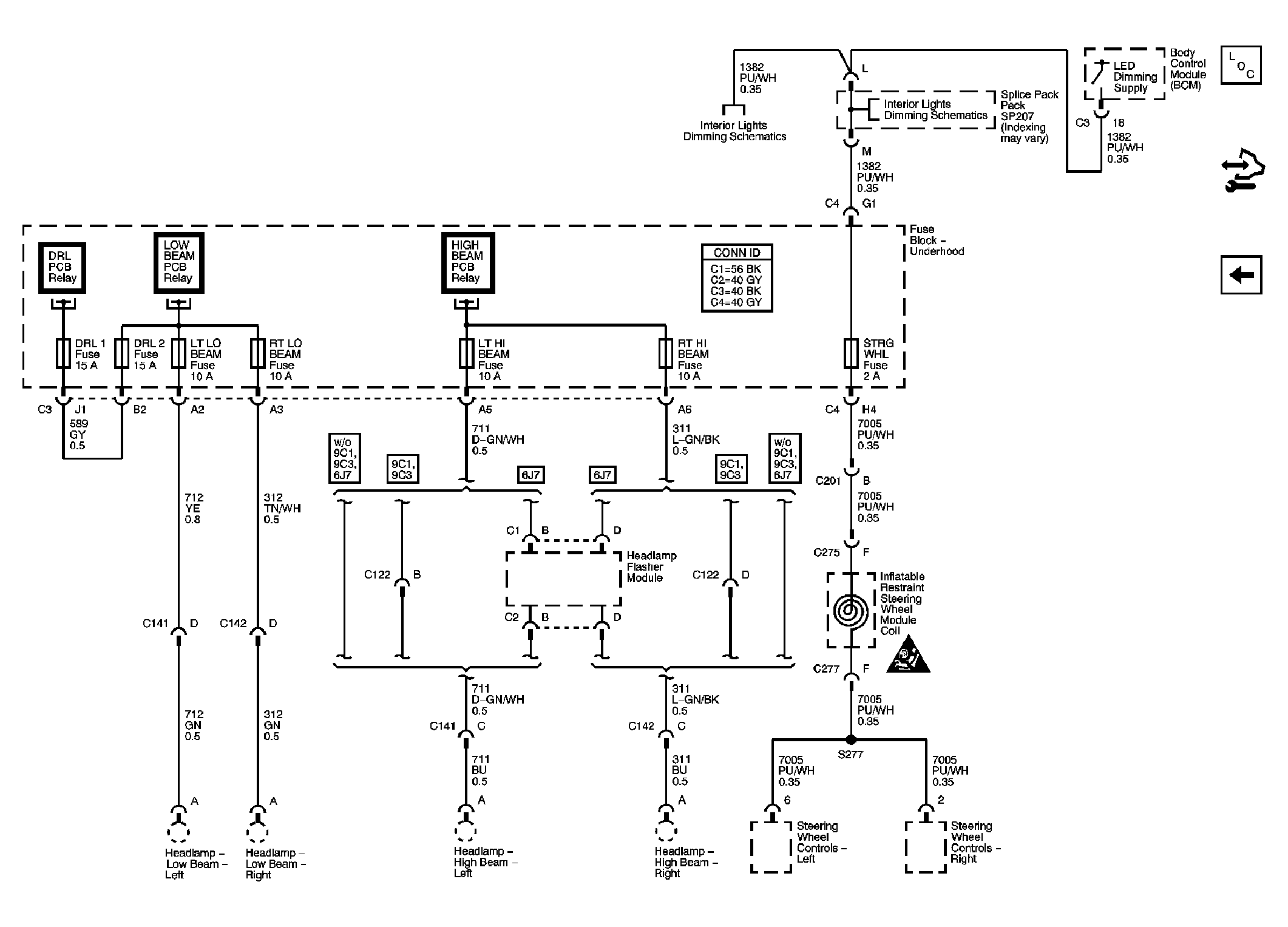

Fig 15: DRL 1, DRL 2, LT LO BEAM, RT LO BEAM, LT HI BEAM, RT HI BEAM, & STRG WHL Fuses Power Distribution Schematics

Courtesy of GENERAL MOTORS CORP.
