Ground Distribution Schematics

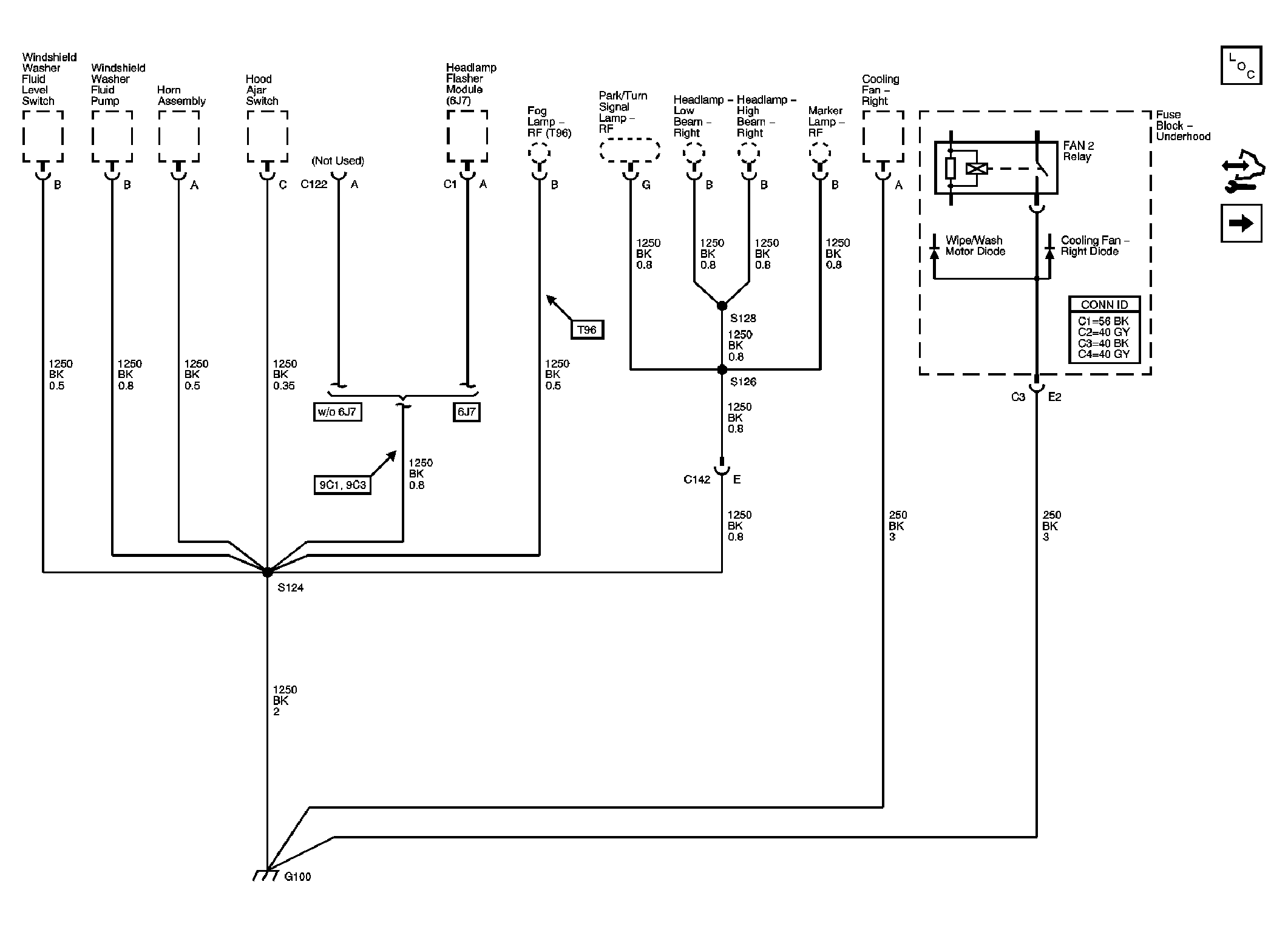

Fig 1: G100 Ground Distribution Schematics

Courtesy of GENERAL MOTORS CORP.

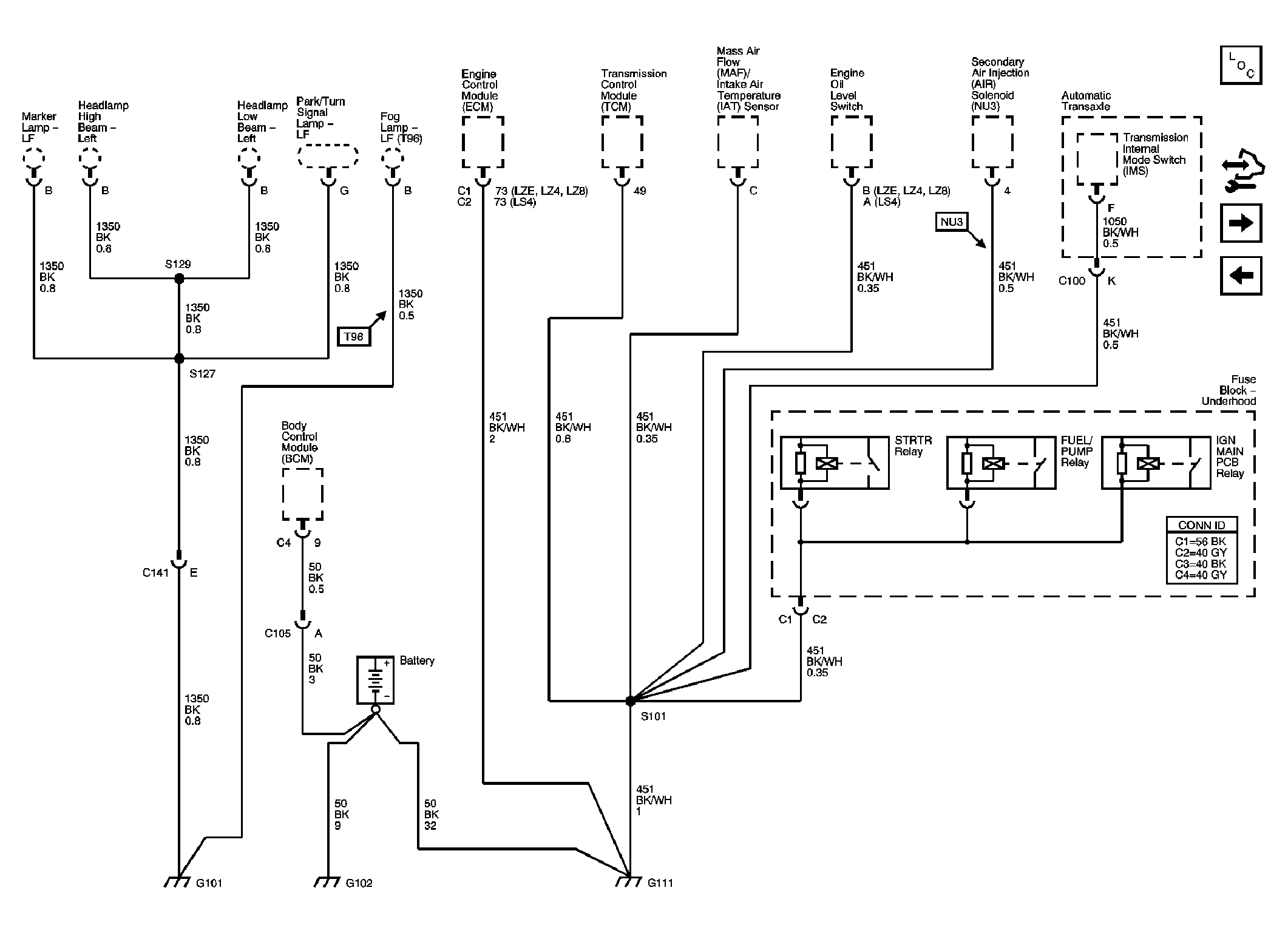

Fig 2: G101, G102, & G111 Ground Distribution Schematics

Courtesy of GENERAL MOTORS CORP.

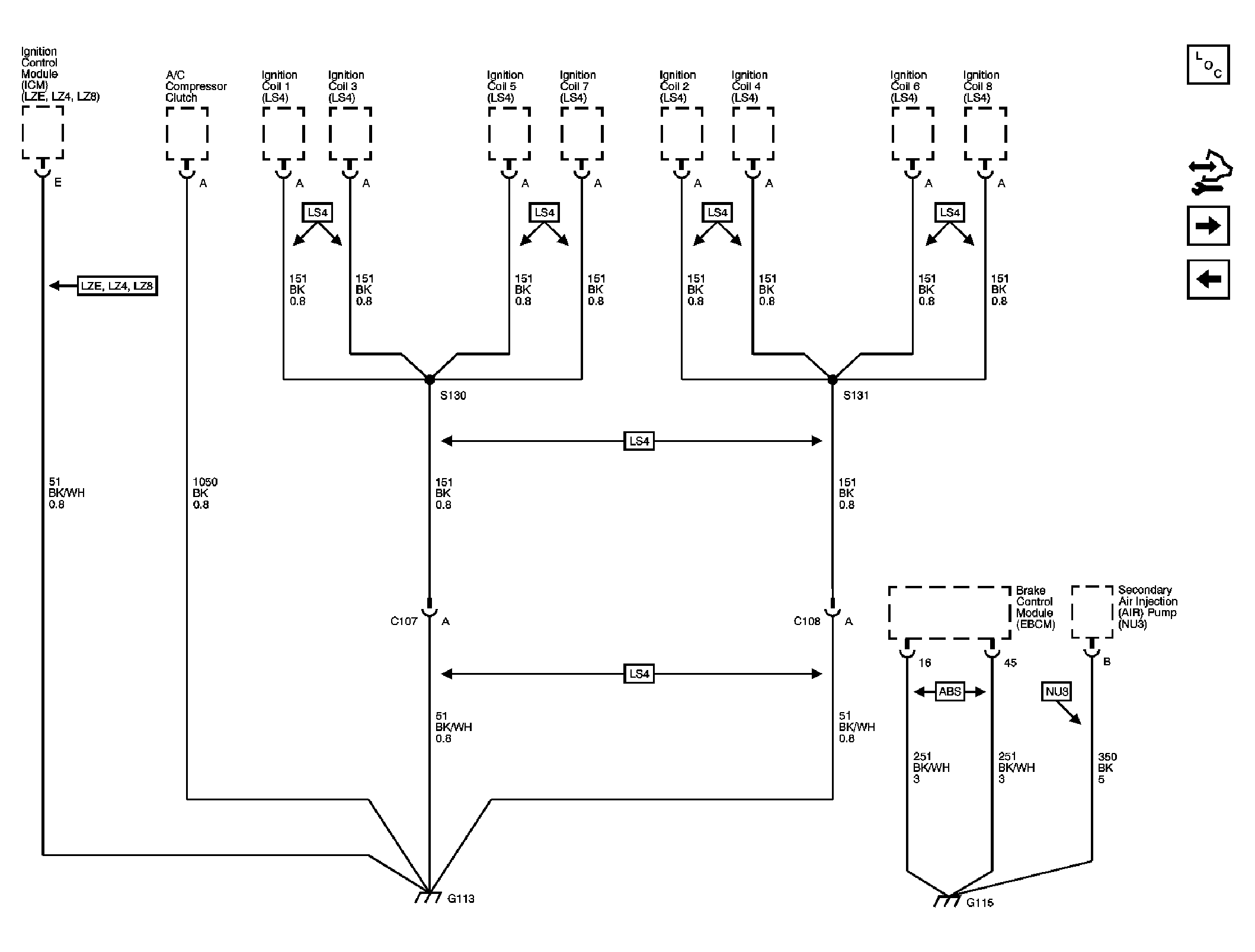

Fig 3: G113 & G115 Ground Distribution Schematics

Courtesy of GENERAL MOTORS CORP.

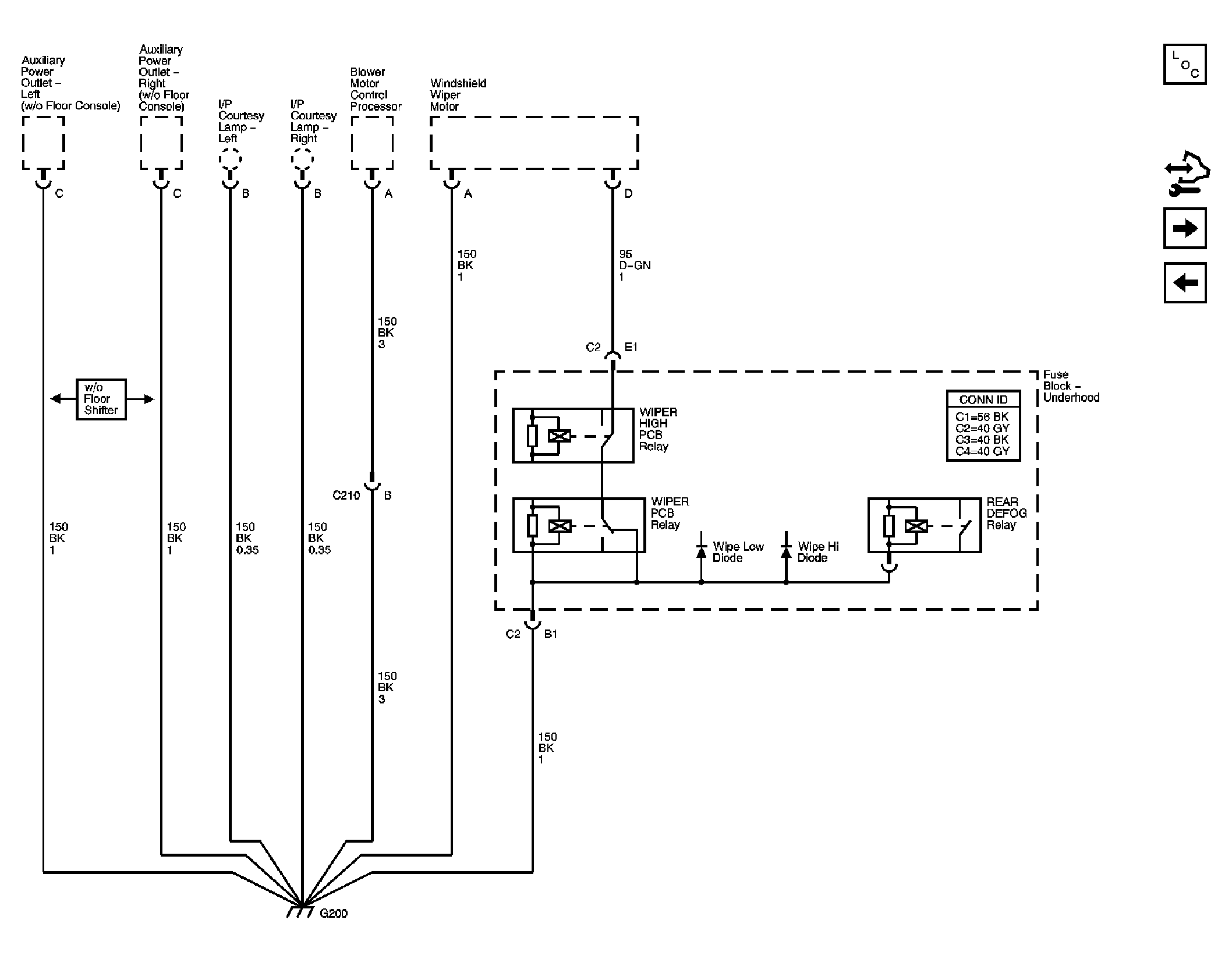

Fig 4: G200 Ground Distribution Schematics

Courtesy of GENERAL MOTORS CORP.

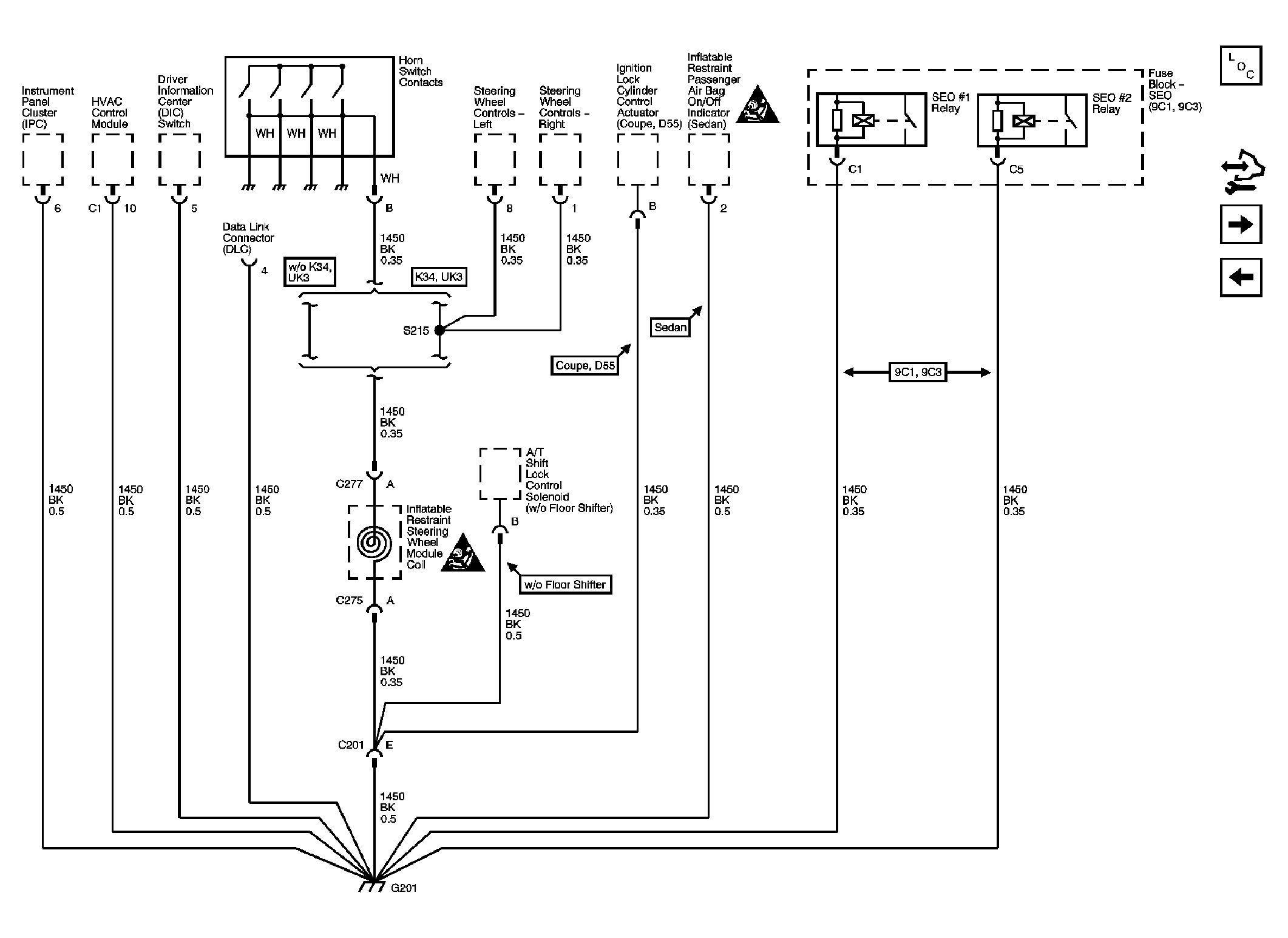

Fig 5: G201 Ground Distribution Schematics

Courtesy of GENERAL MOTORS CORP.

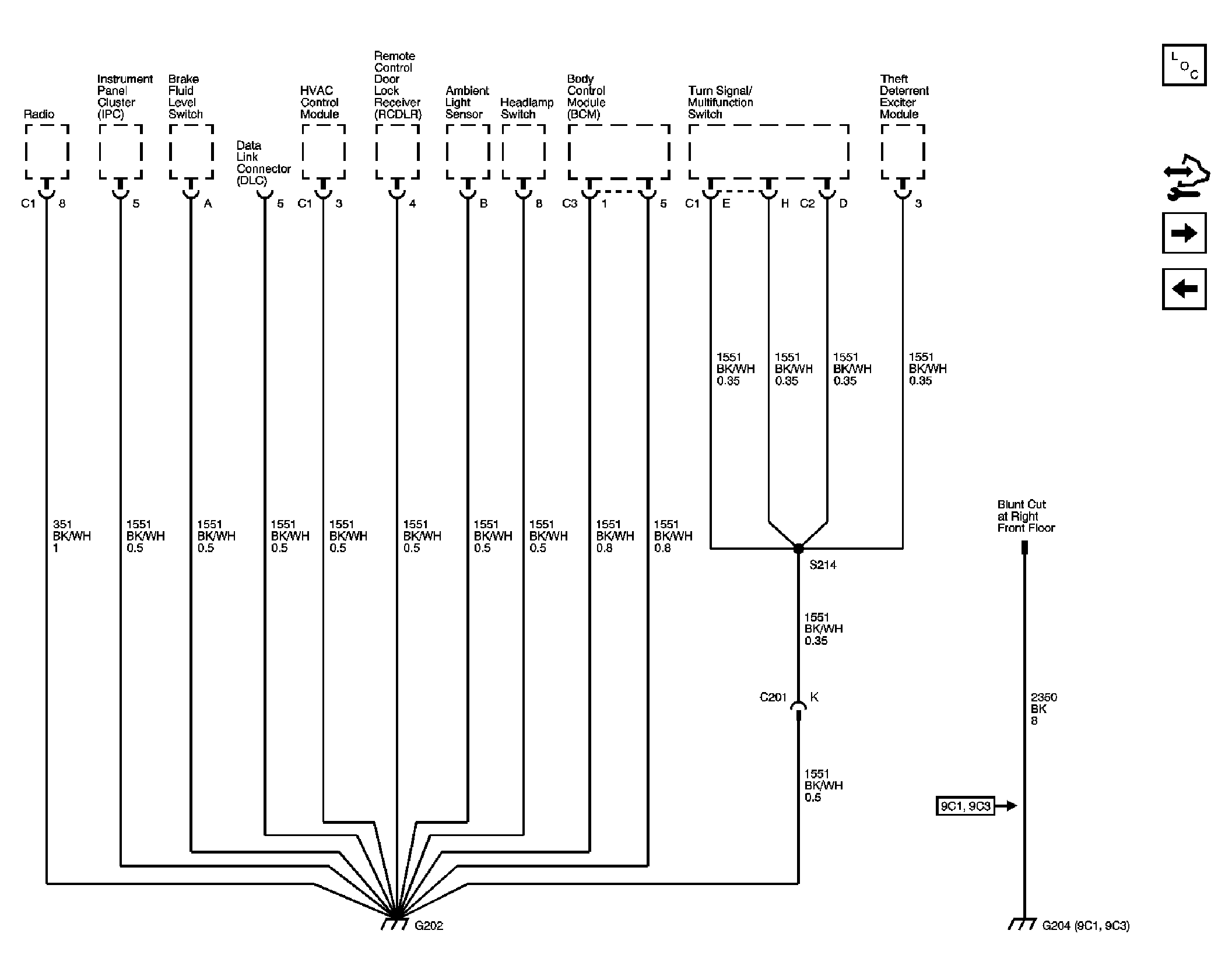

Fig 6: G202 & G204 Ground Distribution Schematics

Courtesy of GENERAL MOTORS CORP.

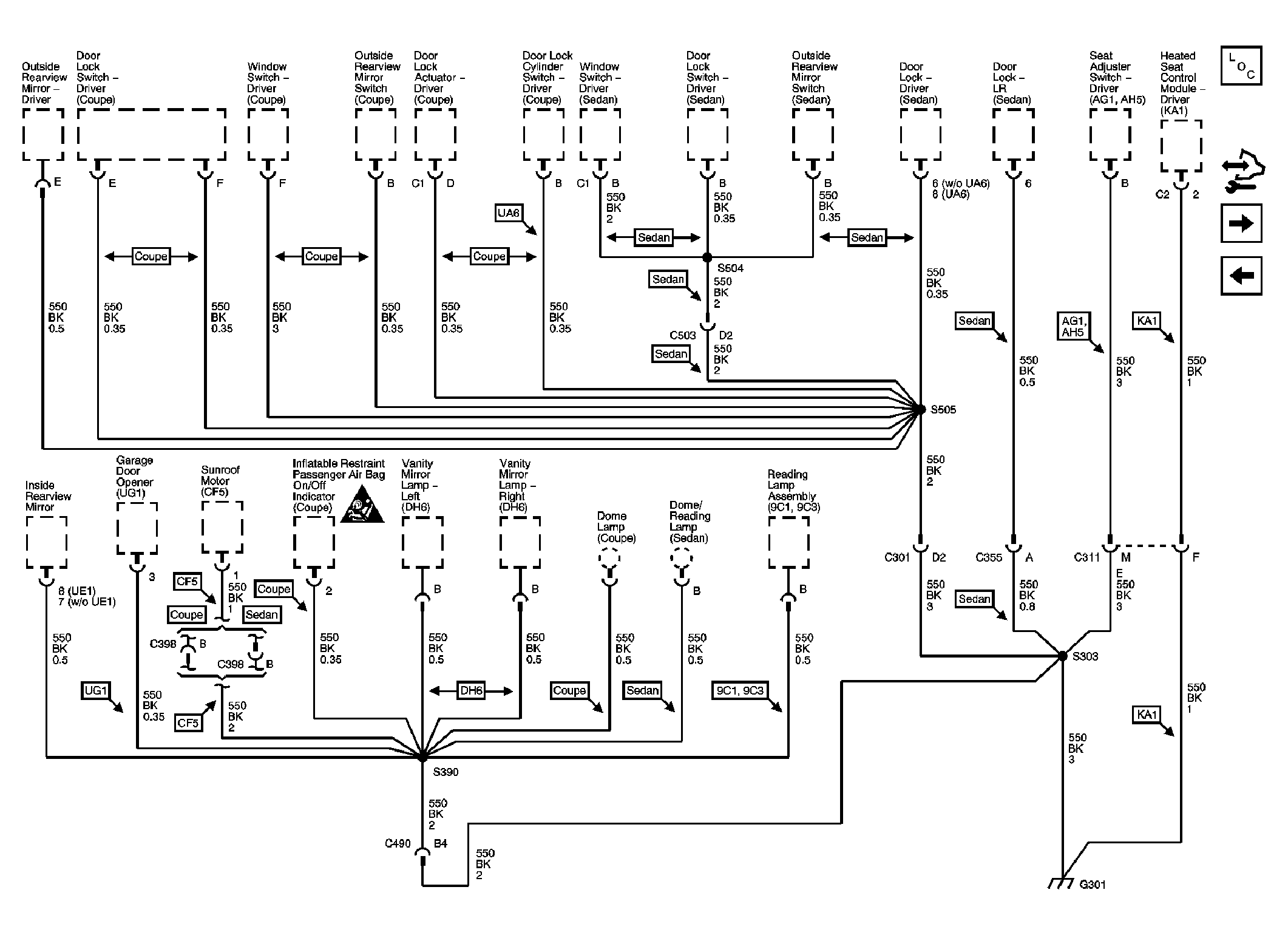

Fig 7: G301 Ground Distribution Schematics

Courtesy of GENERAL MOTORS CORP.

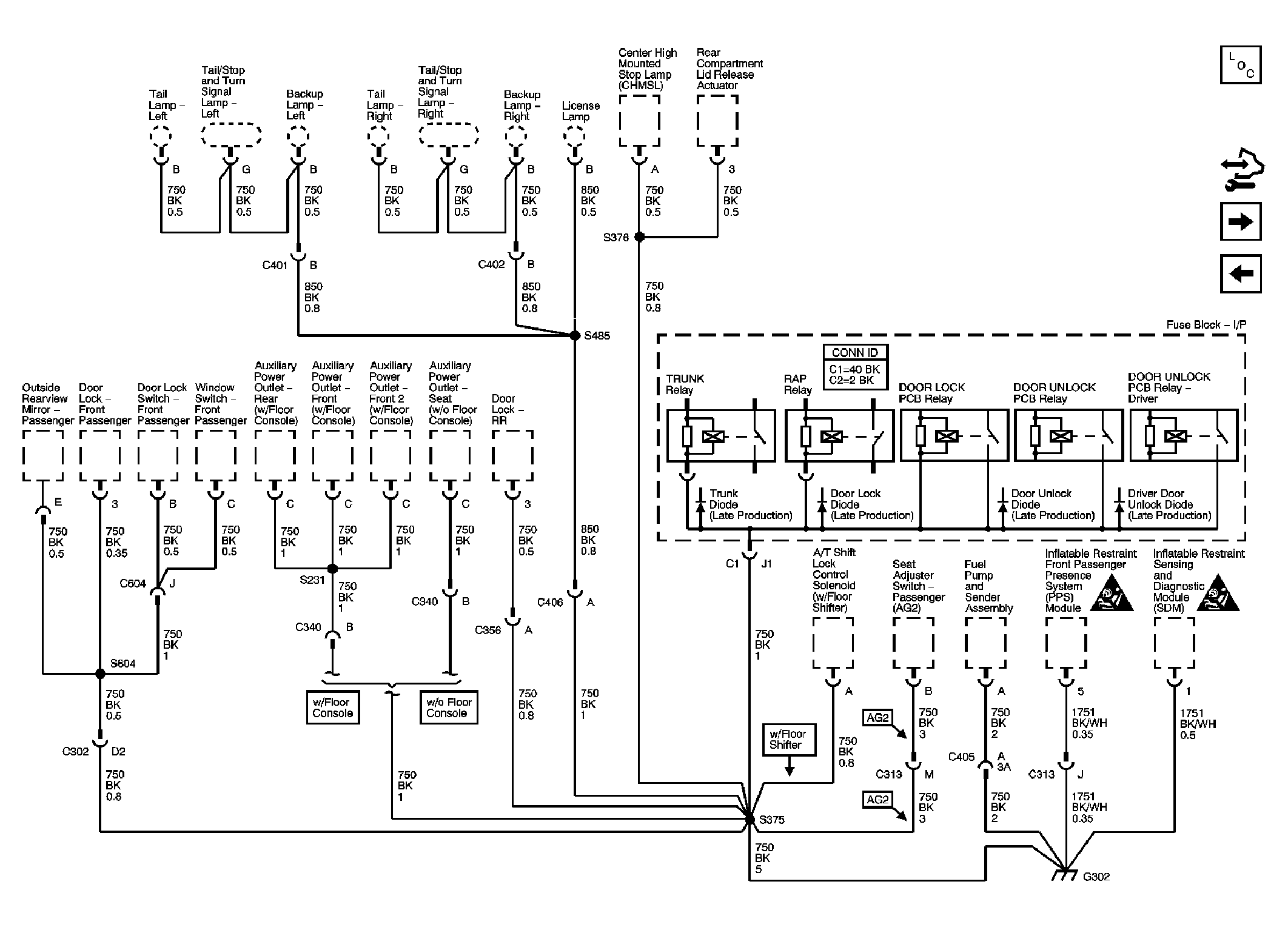

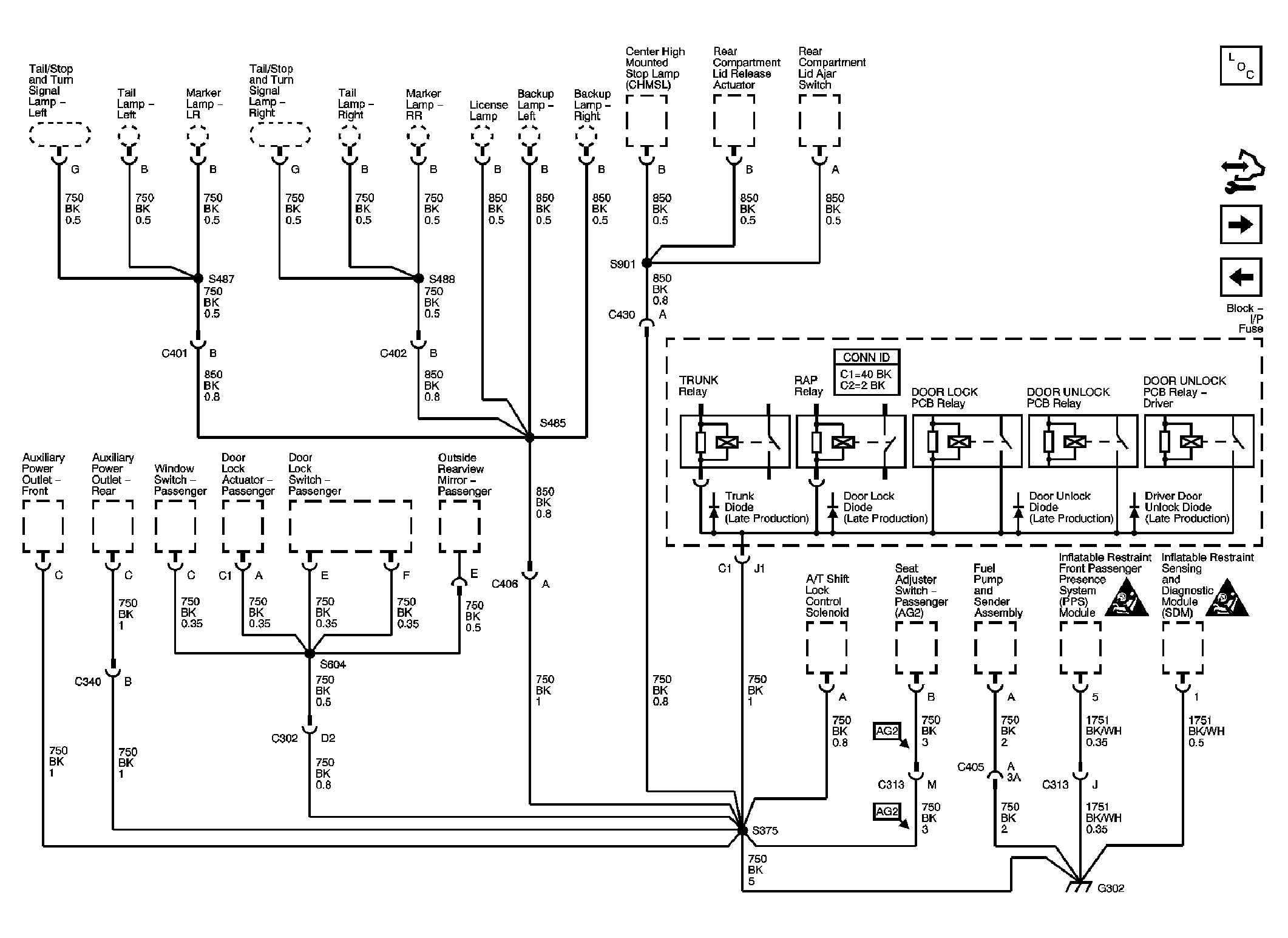

Fig 8: G302 (Coupe) Ground Distribution Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 9: G302 (Sedan) Ground Distribution Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 10: G403 & G404 Ground Distribution Schematics

Courtesy of GENERAL MOTORS CORP.
