Engine Controls Schematics

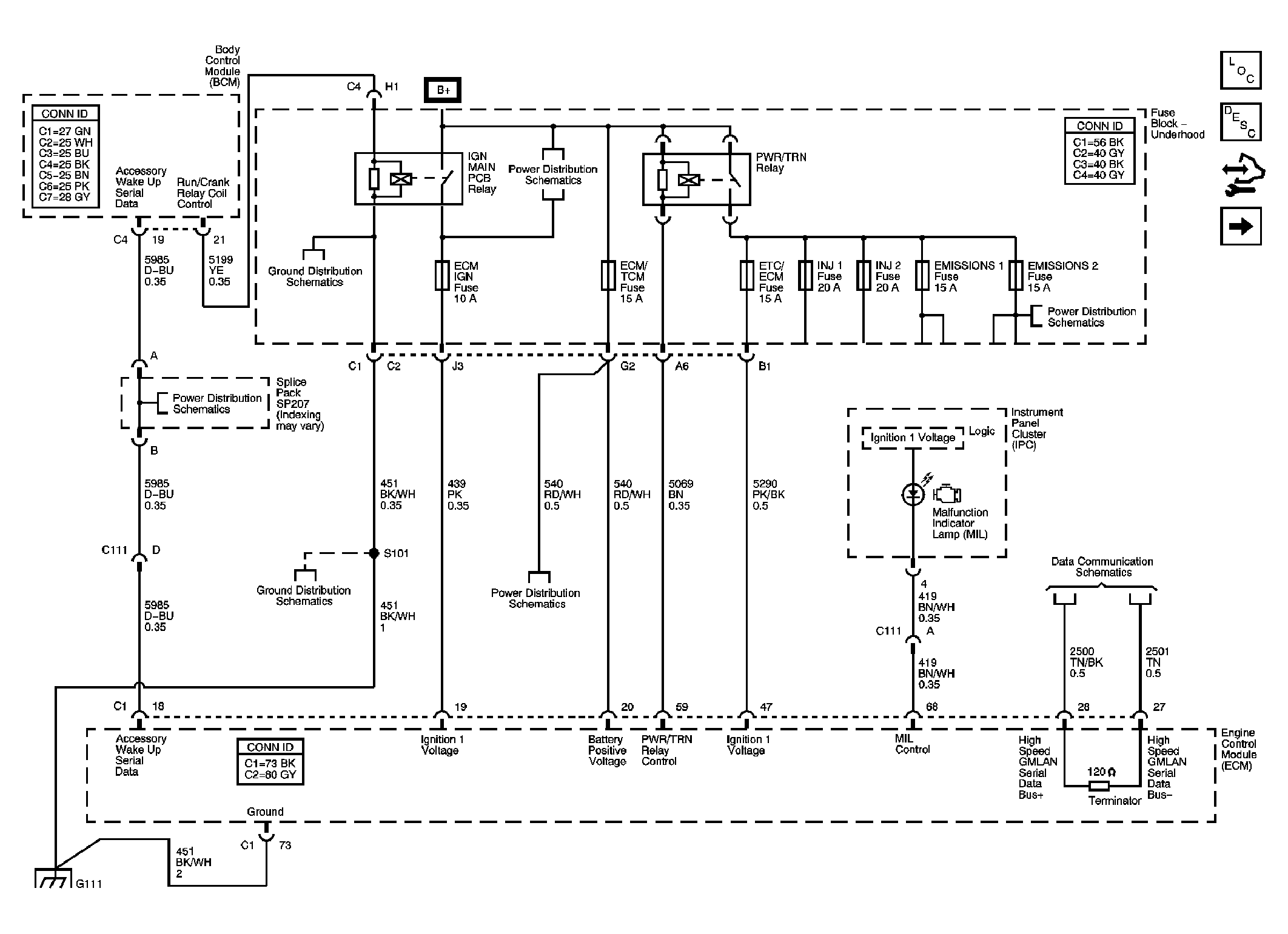

Fig 1: ECM Power, Ground, MIL, and Serial Data
GM1760323Courtesy of GENERAL MOTORS CORP.

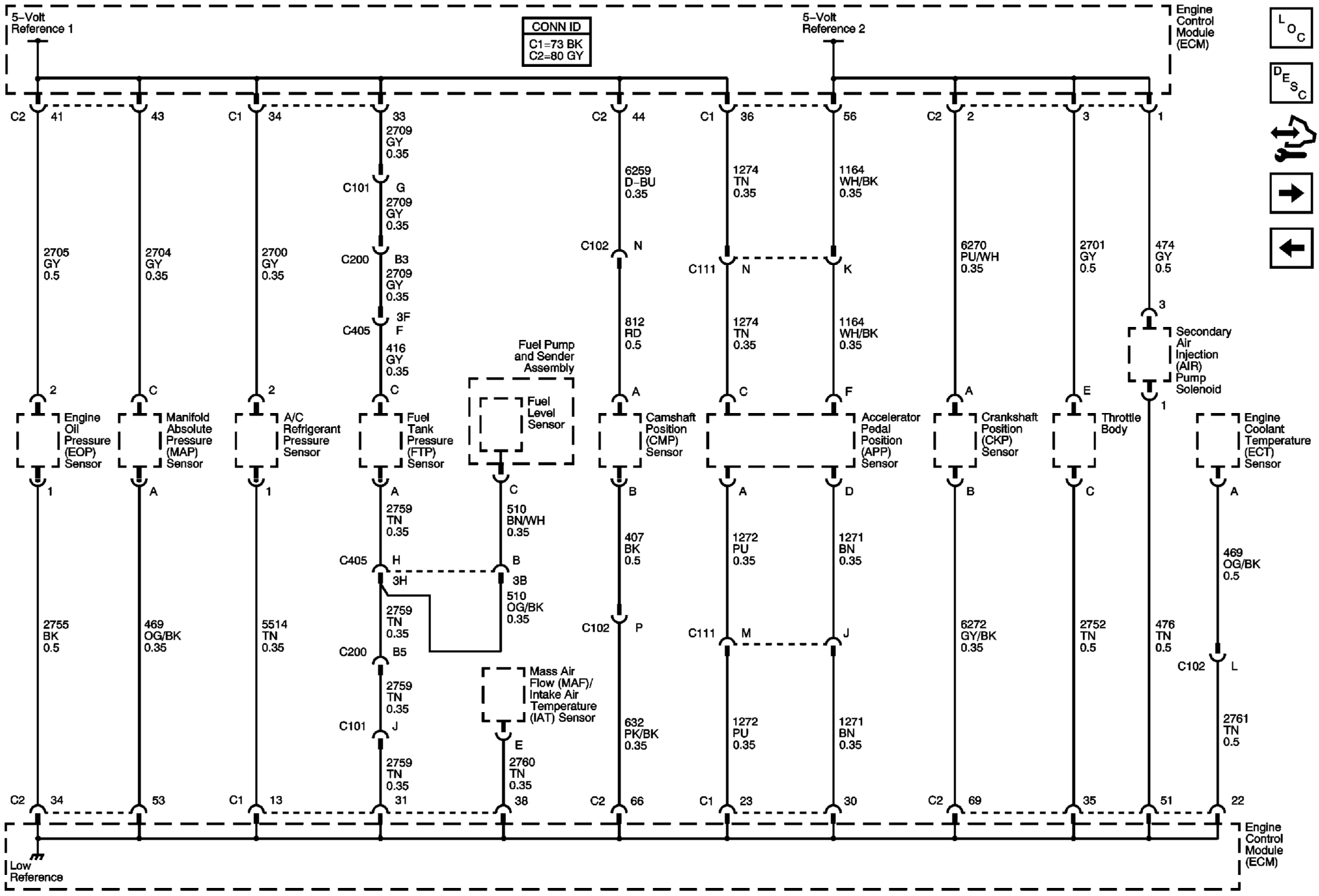

Fig 2: 5-Volt and Low Reference Bussing
GM1760329Courtesy of GENERAL MOTORS CORP.

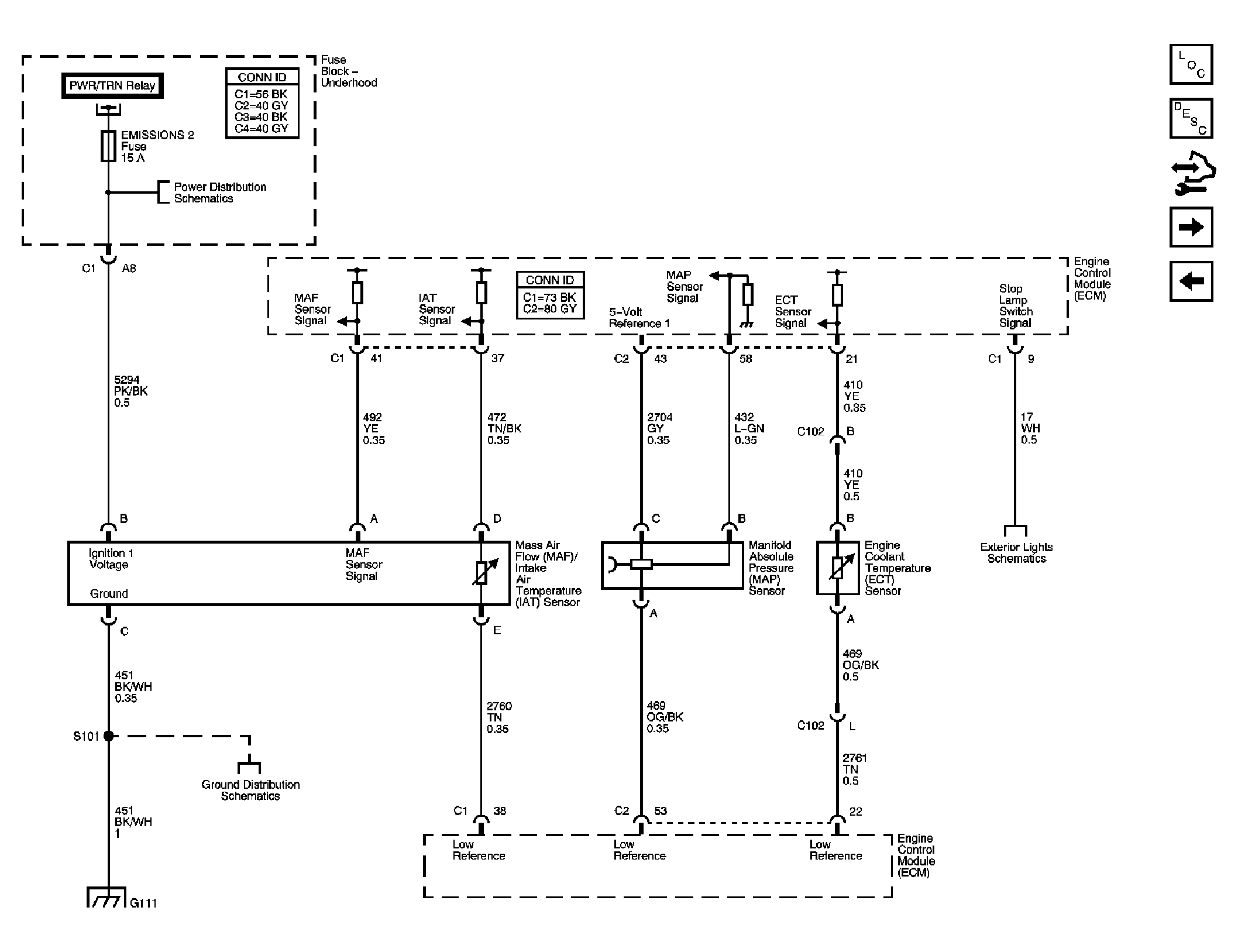

Fig 3: MAF/IAT, MAP, and ECT Sensors
GM1760333Courtesy of GENERAL MOTORS CORP.

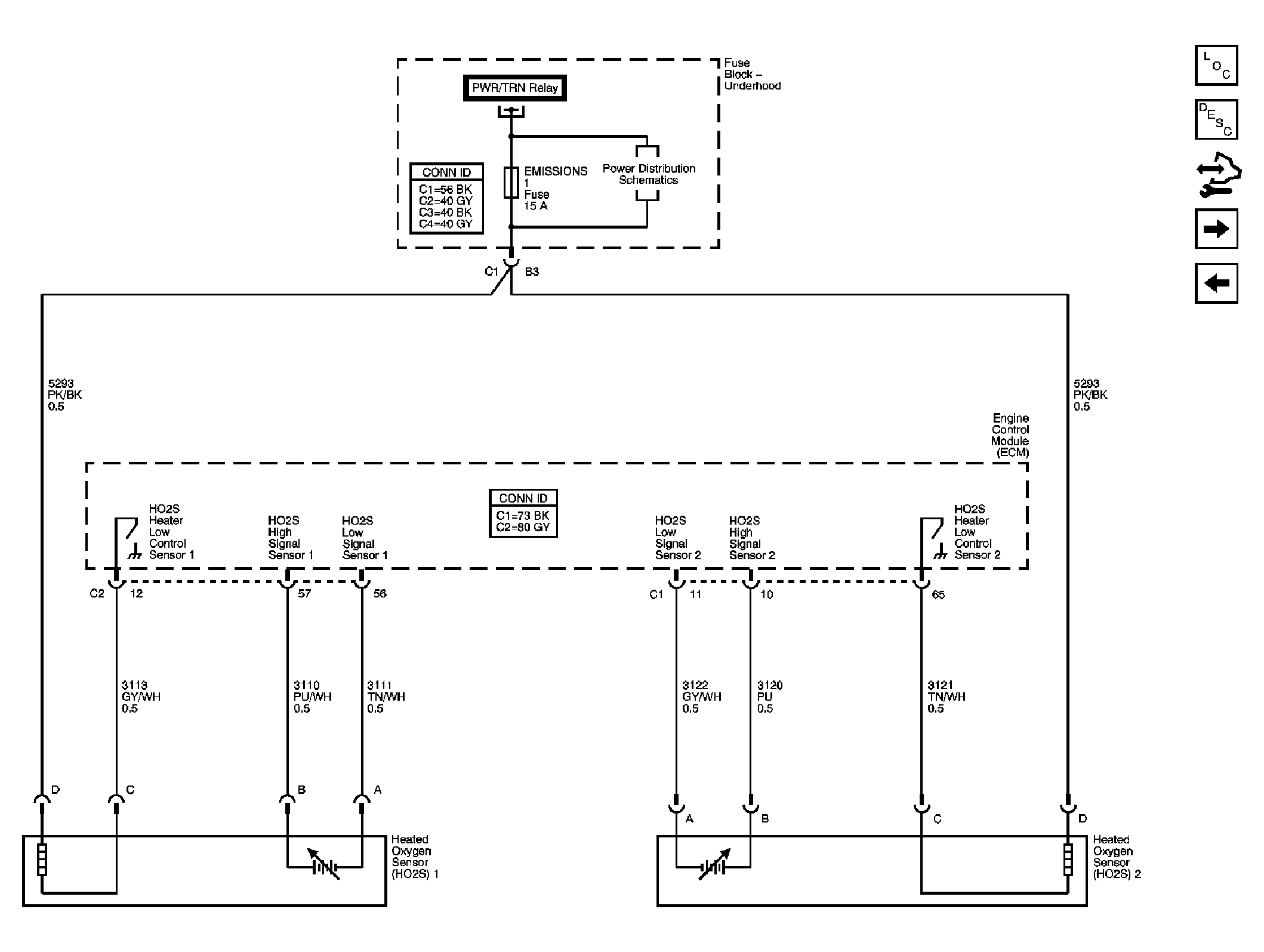

Fig 4: Heated Oxygen Sensors
GM1760337Courtesy of GENERAL MOTORS CORP.

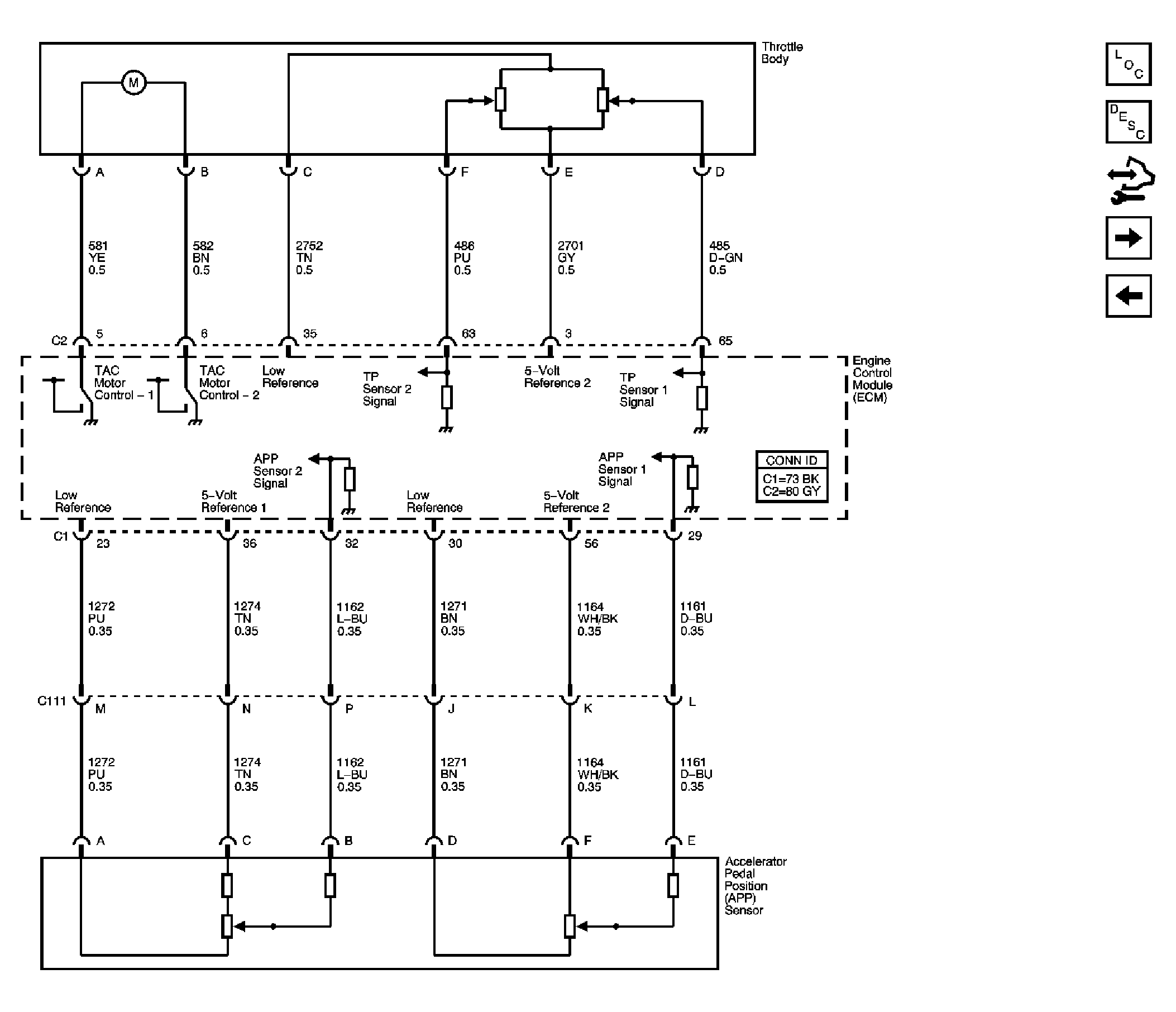

Fig 5: Electronic Throttle Controls
GM1760343Courtesy of GENERAL MOTORS CORP.

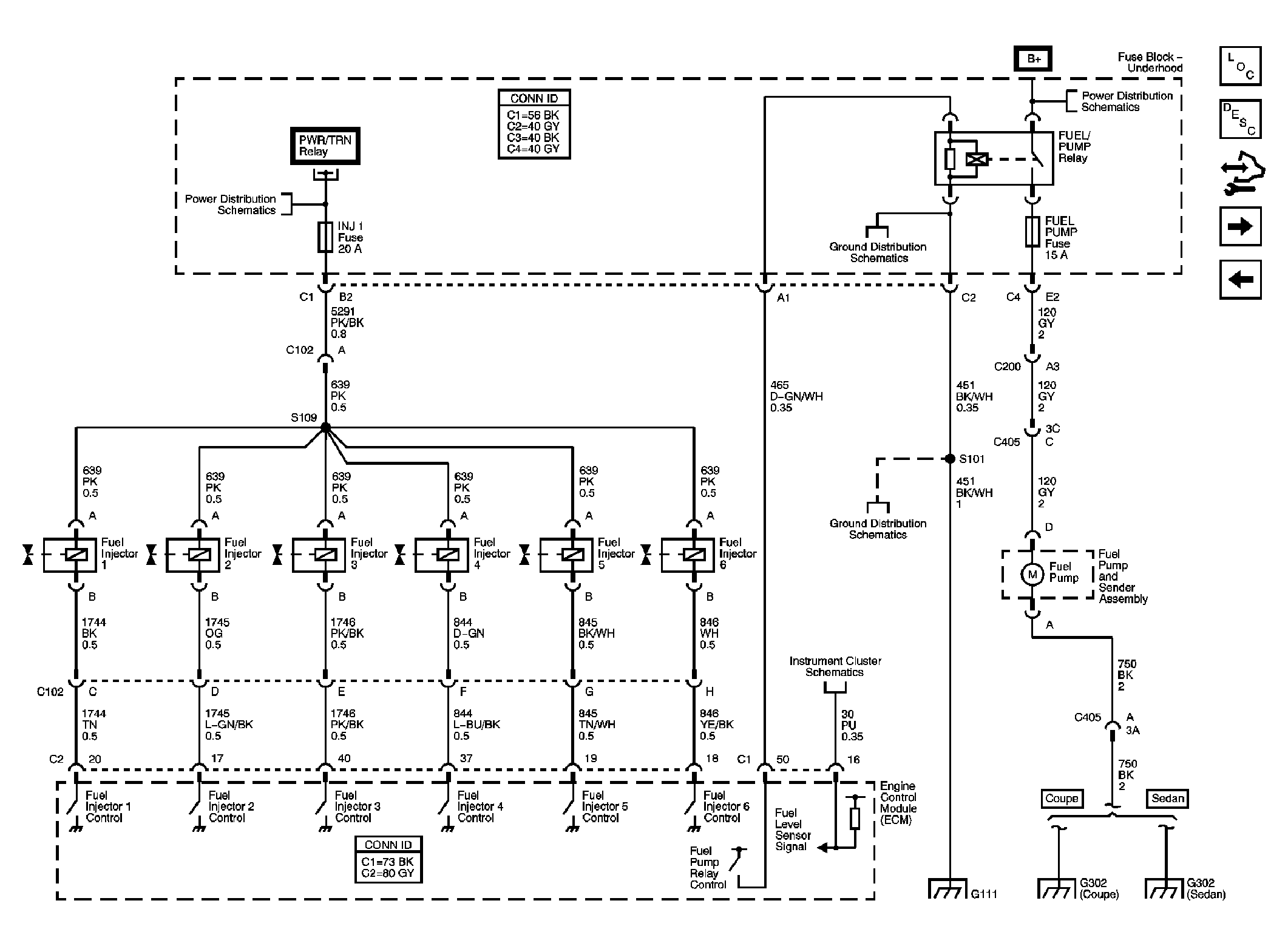

Fig 6: Fuel Injectors and Fuel Pump Controls
GM1760348Courtesy of GENERAL MOTORS CORP.

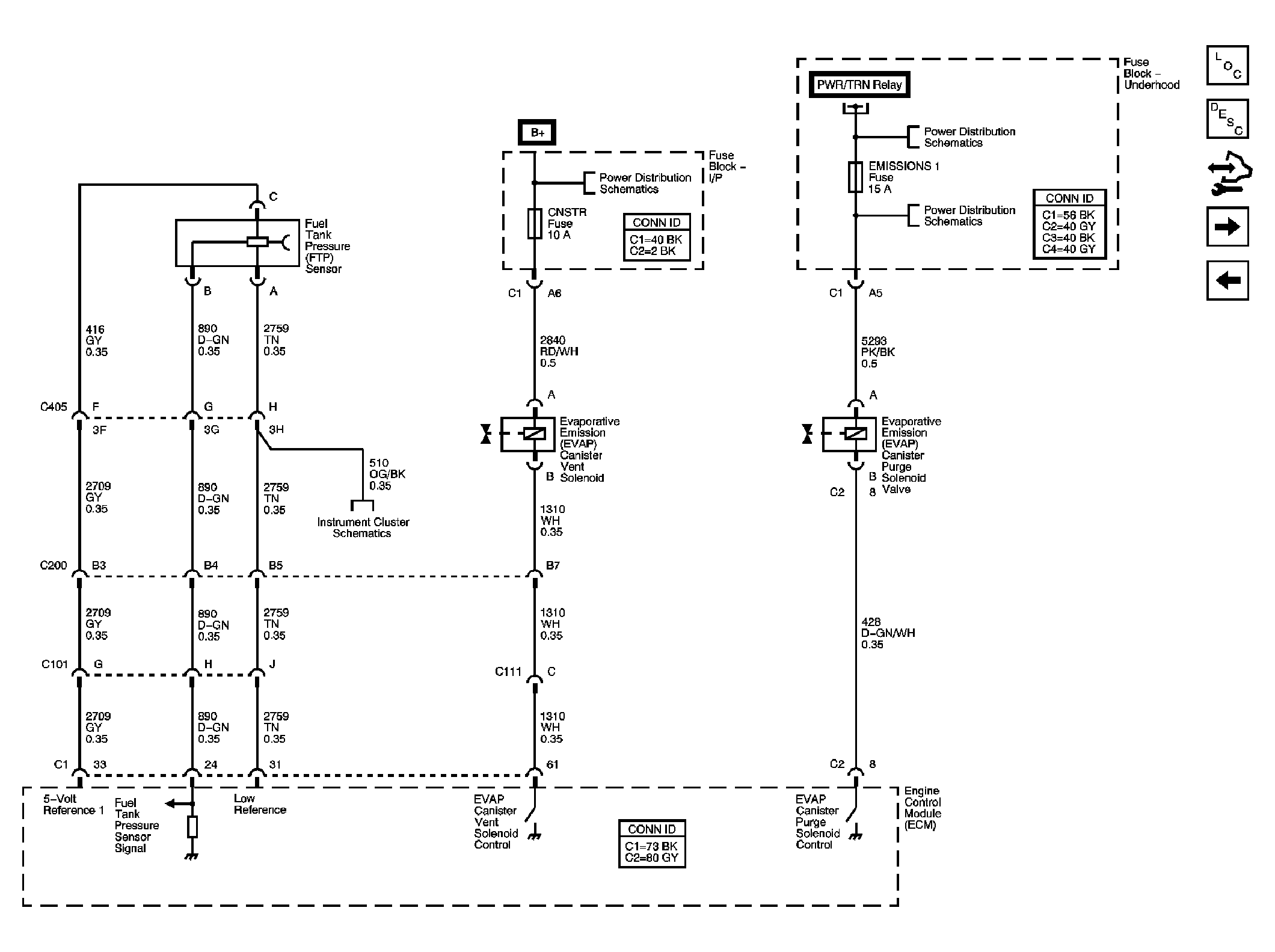

Fig 7: EVAP Solenoids and FTP Sensor
GM1760355Courtesy of GENERAL MOTORS CORP.

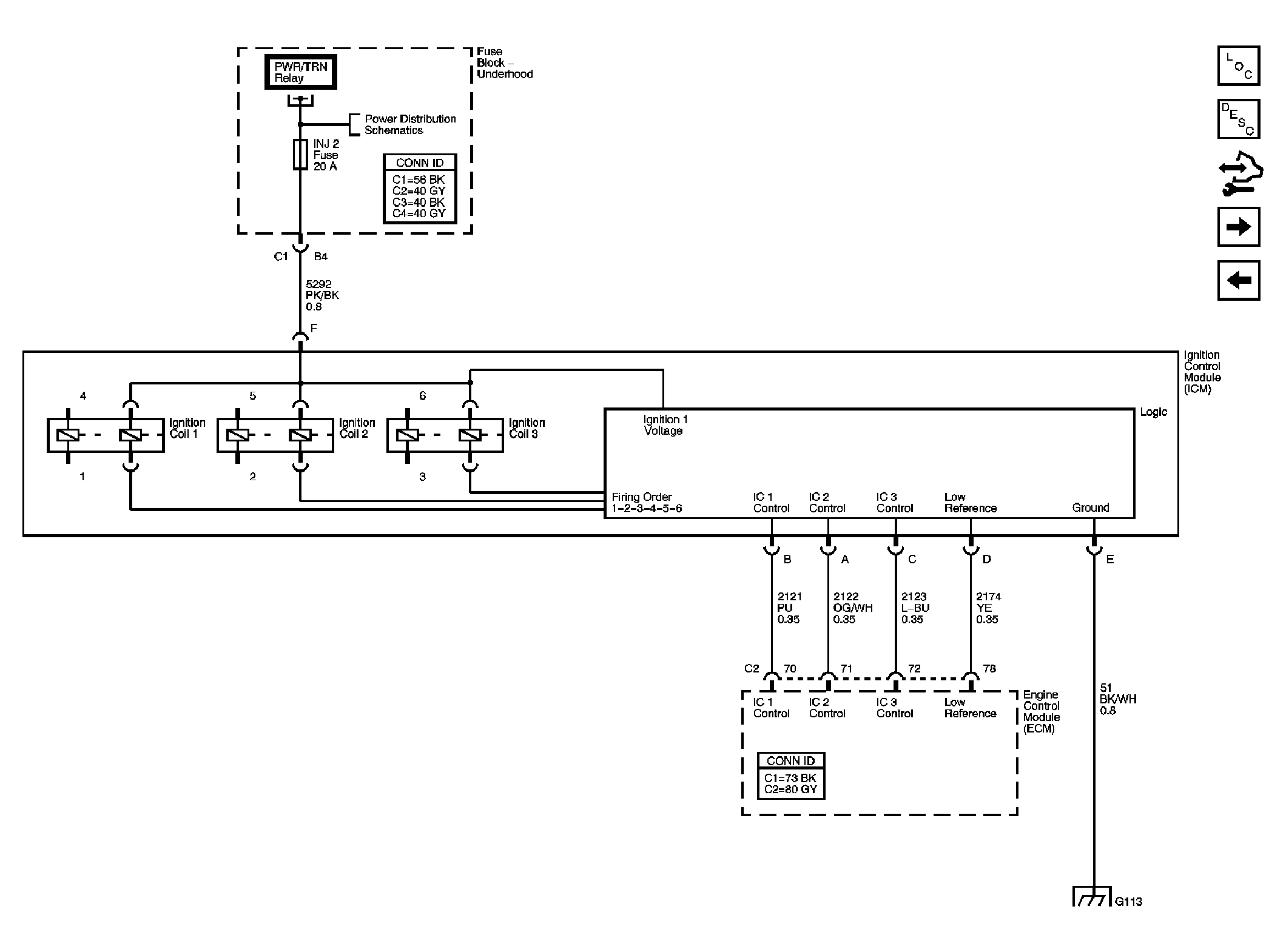

Fig 8: Ignition Control Module
GM1760363Courtesy of GENERAL MOTORS CORP.

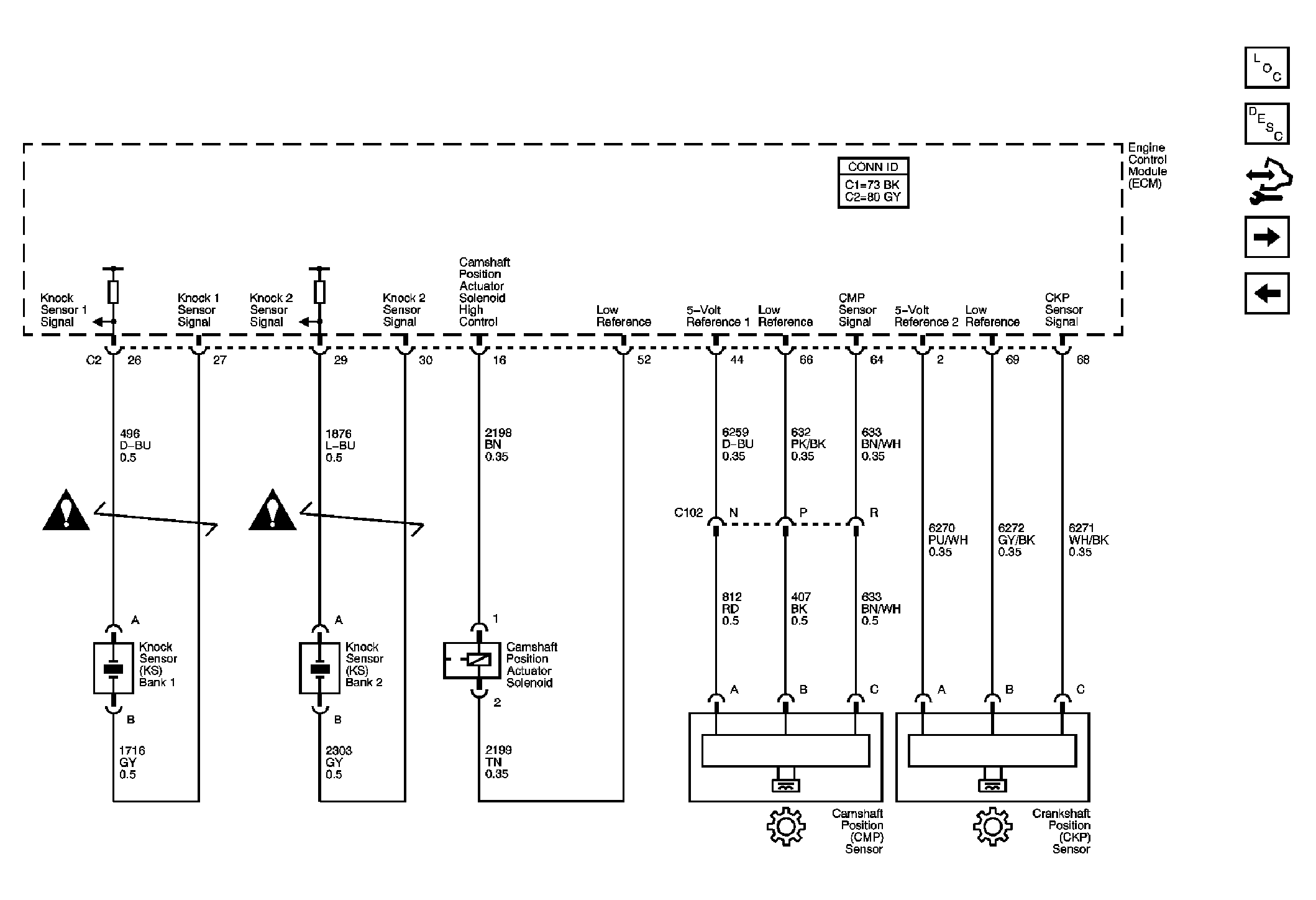

Fig 9: Camshaft, Crankshaft, Knock Sensors, and Camshaft Position Actuator Solenoid
GM1760366Courtesy of GENERAL MOTORS CORP.

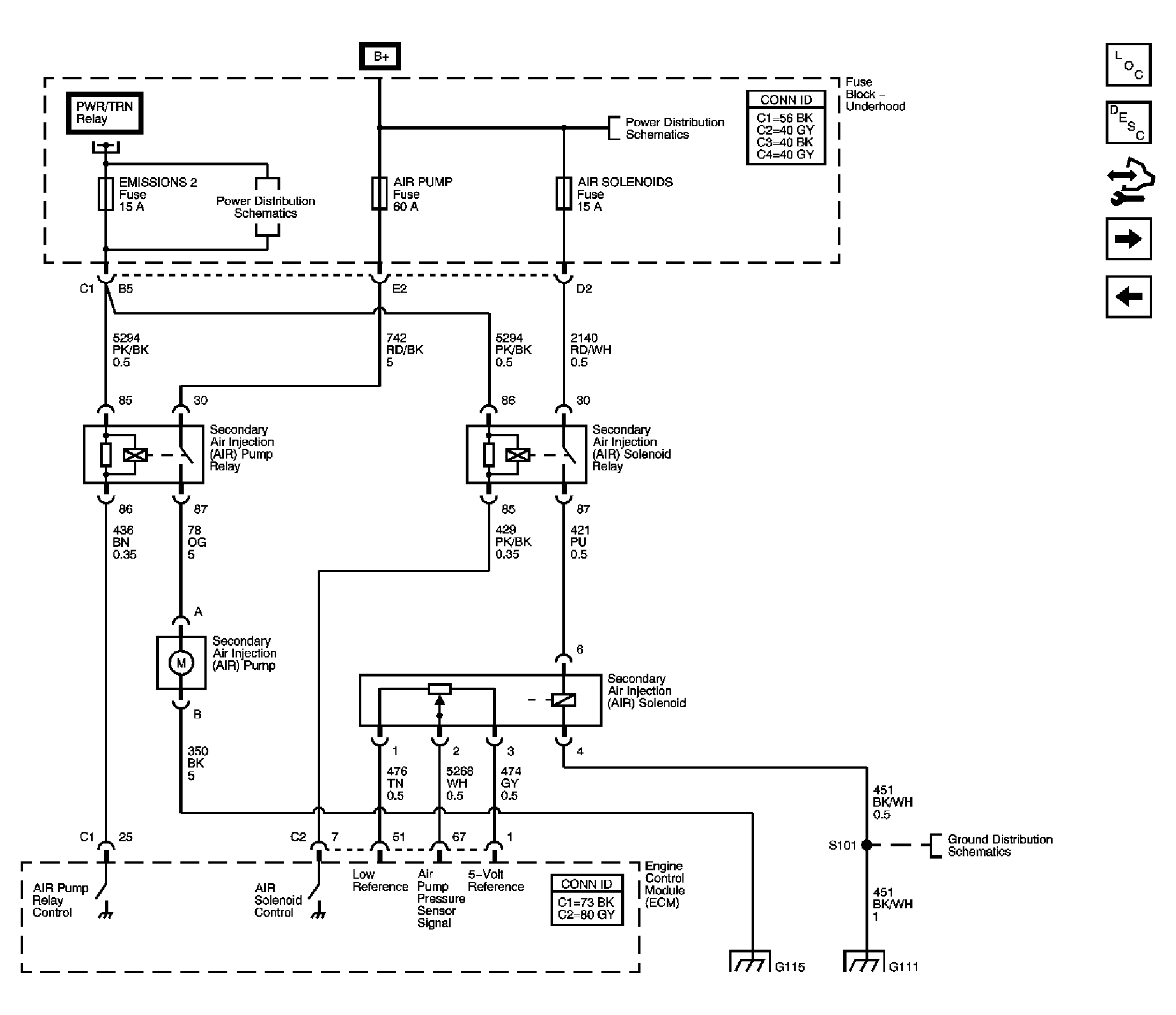

Fig 10: Secondary Air Injection - NU3
GM1840479Courtesy of GENERAL MOTORS CORP.

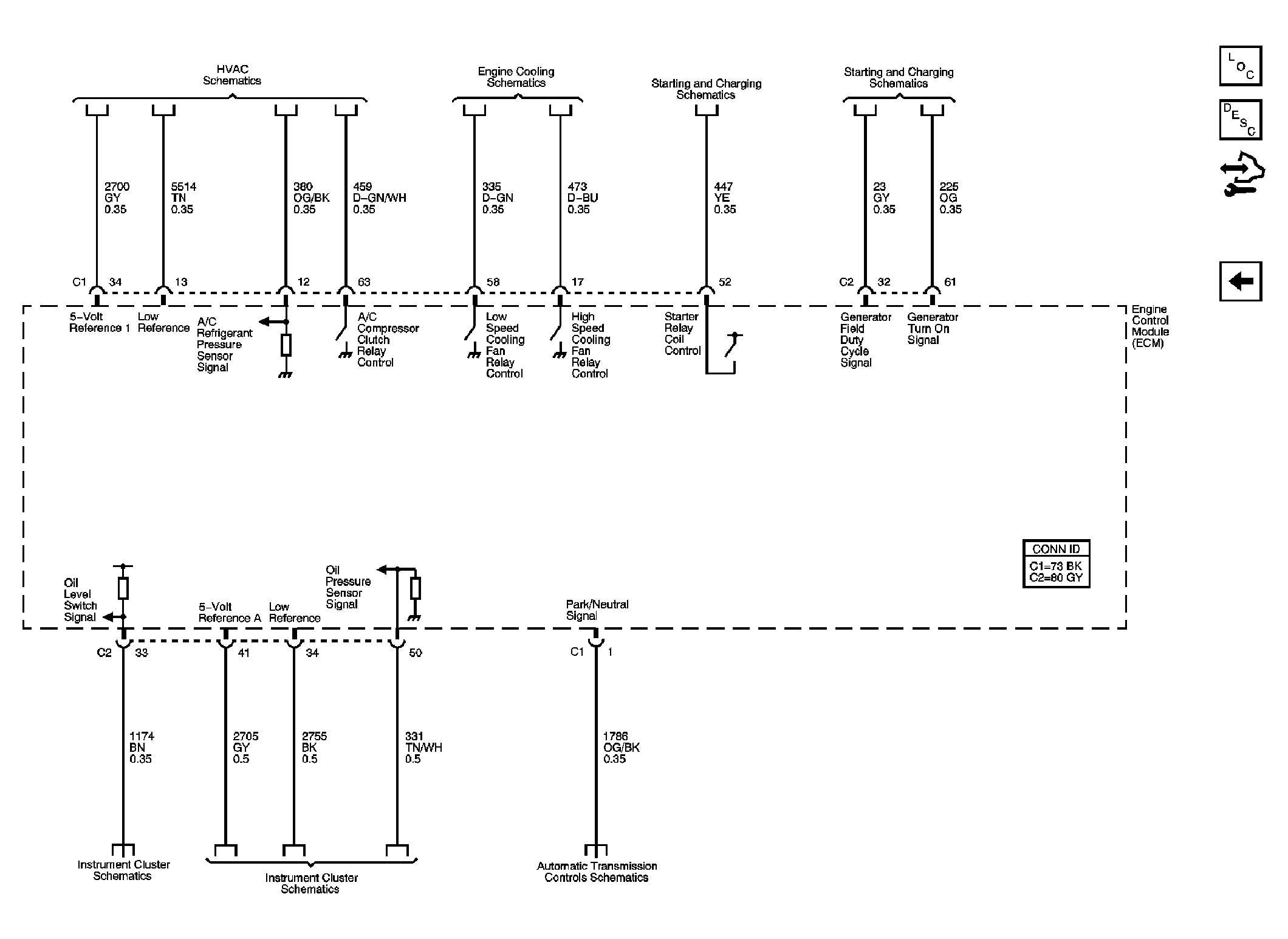

Fig 11: Controlled/Monitored Subsystem References
GM1760373Courtesy of GENERAL MOTORS CORP.
