Engine Controls Schematics

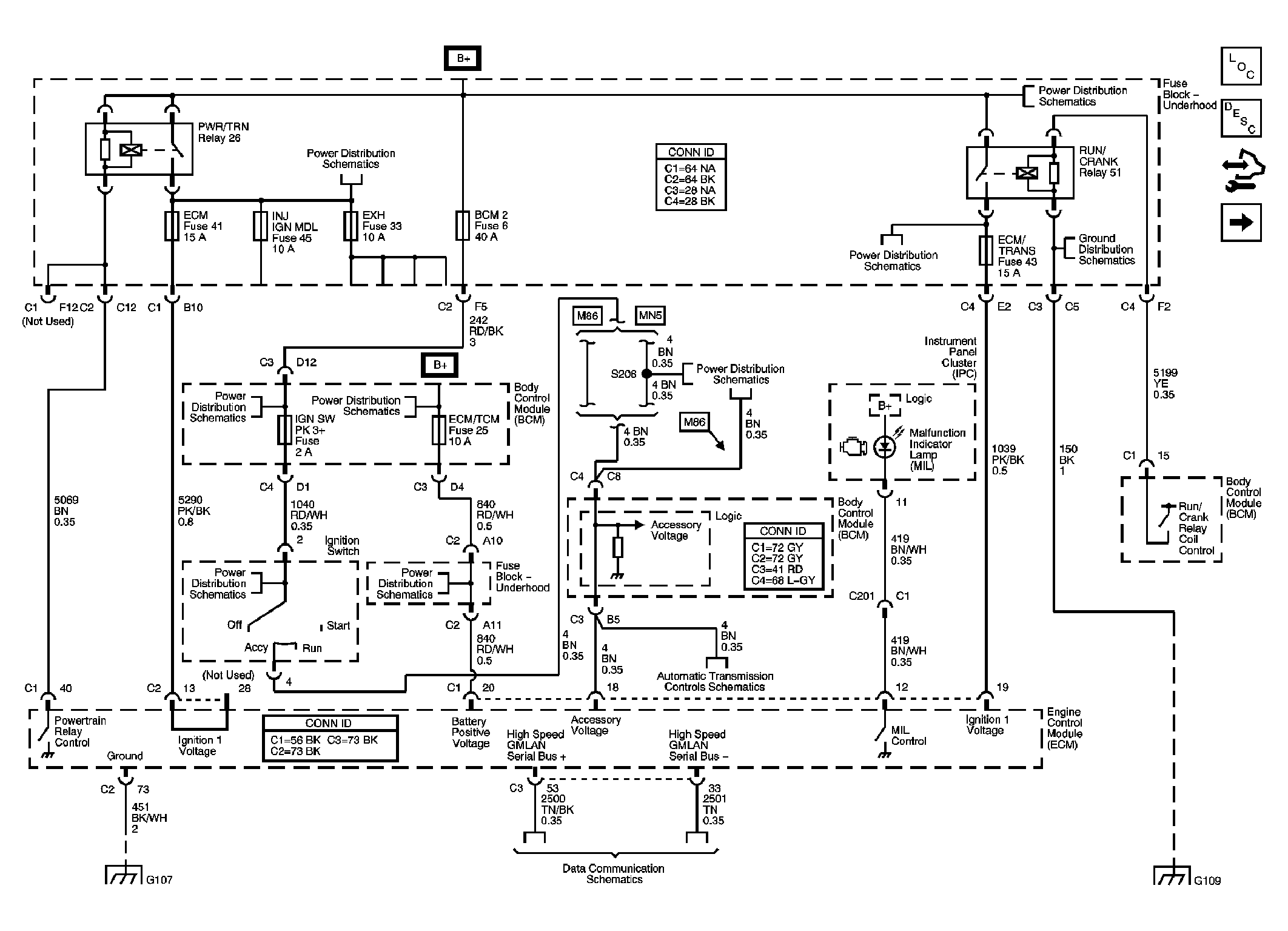

Fig 1: Power, Ground, MIL, and DLC
GM1769225Courtesy of GENERAL MOTORS CORP.

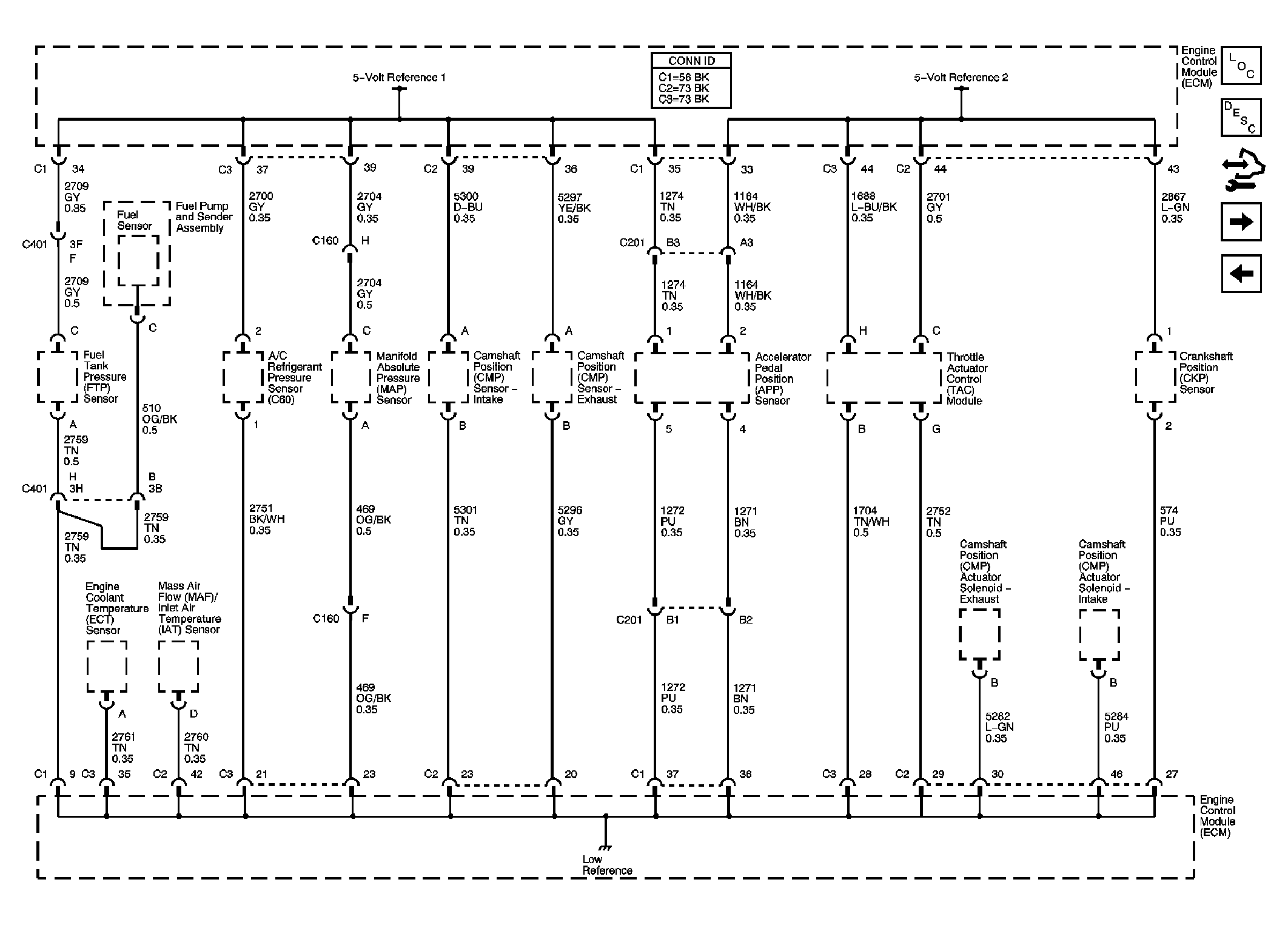

Fig 2: Engine Data Sensors - 5-Volt and Low References
GM1769227Courtesy of GENERAL MOTORS CORP.

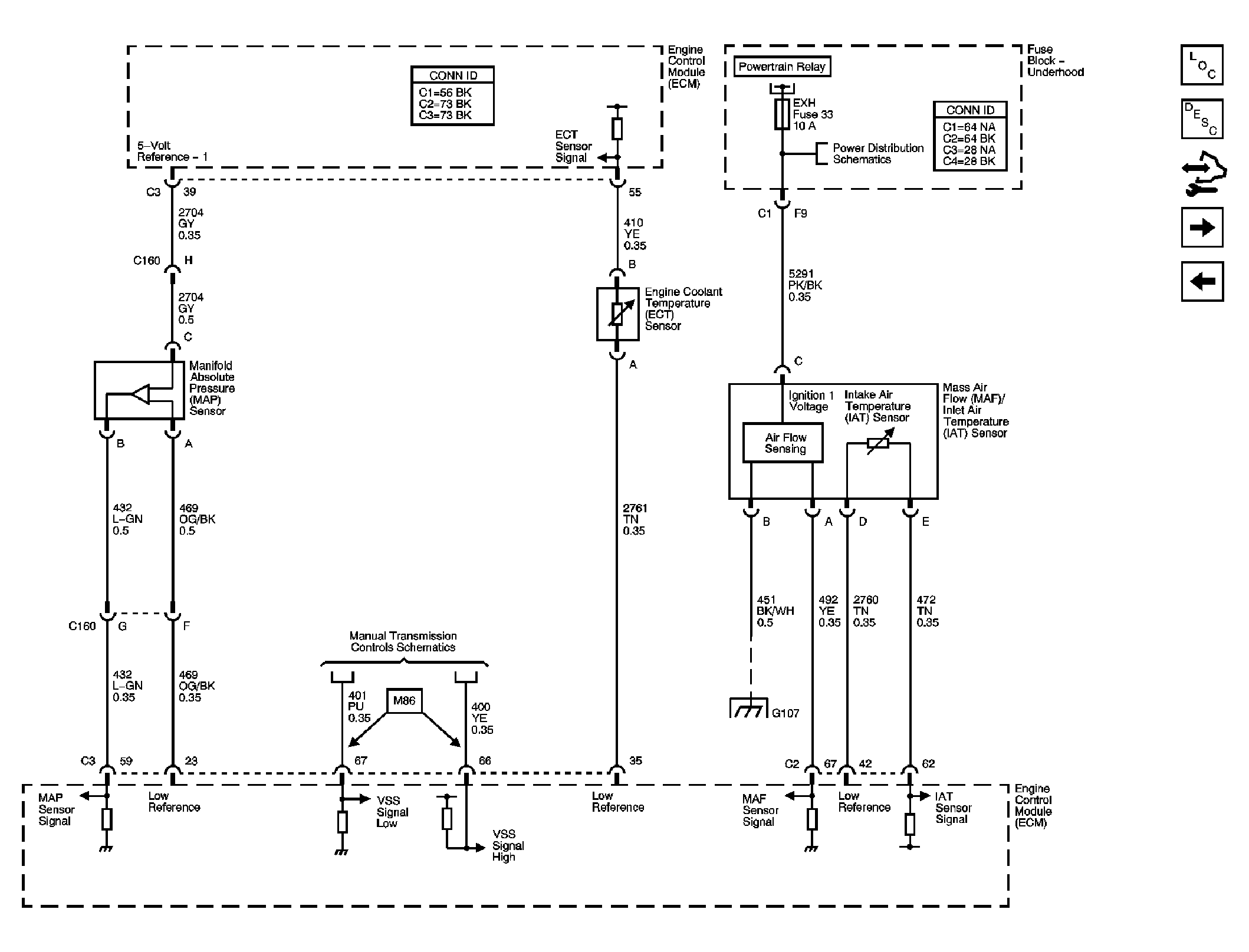

Fig 3: Engine Data Sensors - Pressure, Temp, and MAF/IAT
GM1769231Courtesy of GENERAL MOTORS CORP.

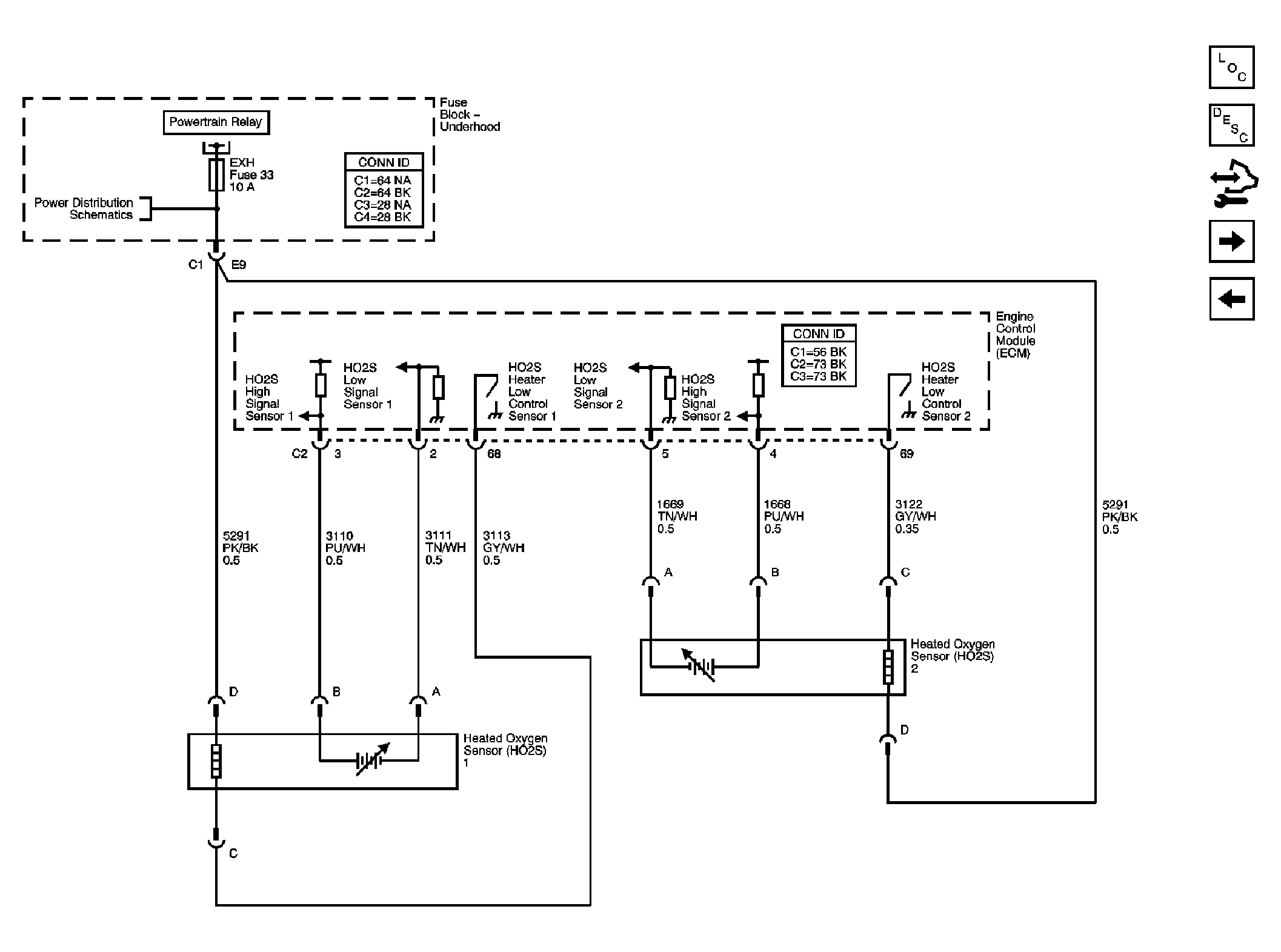

Fig 4: Engine Data Sensors - HO2S
GM1769233Courtesy of GENERAL MOTORS CORP.

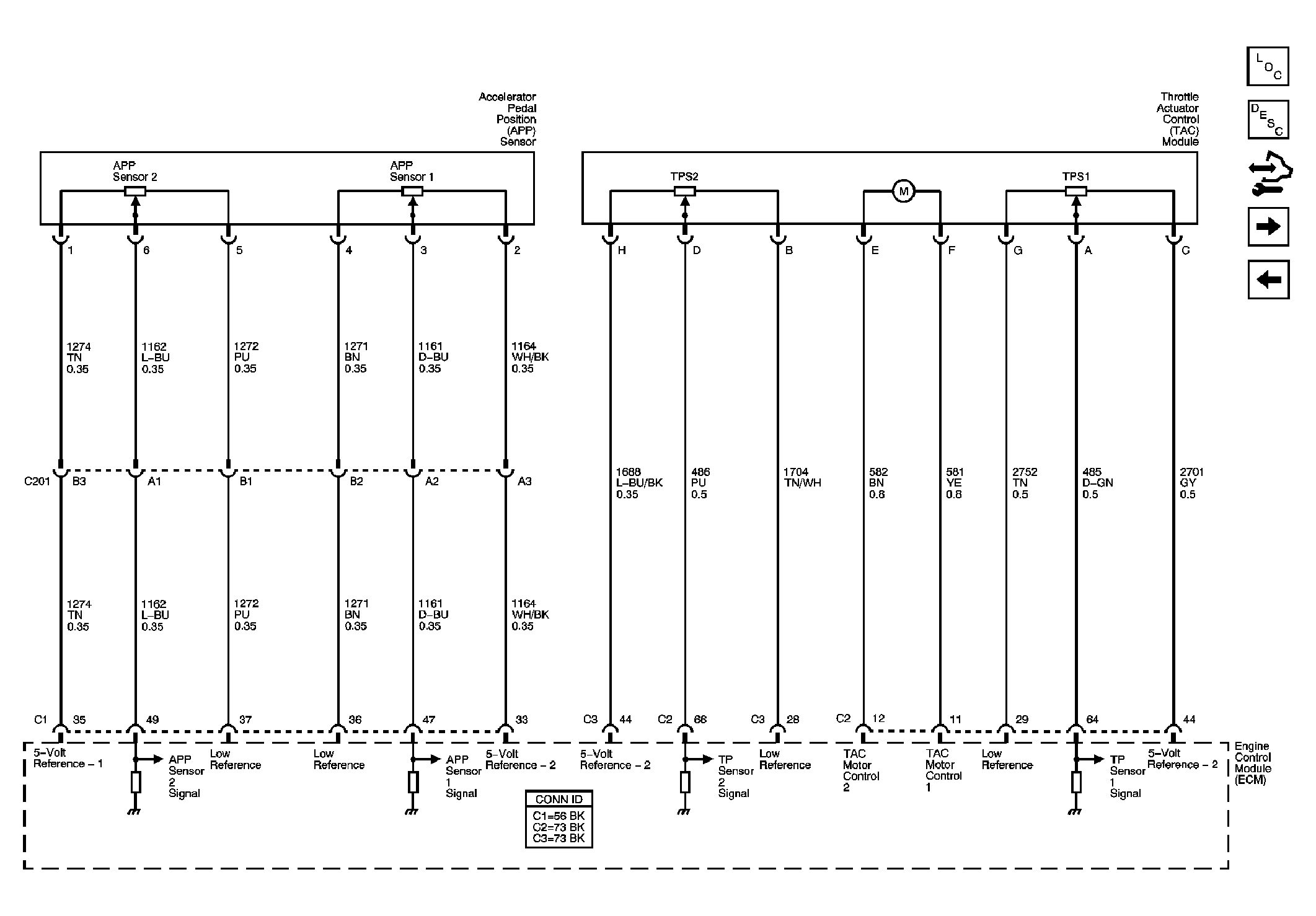

Fig 5: Engine Data Sensors - APP and TAC
GM1769235Courtesy of GENERAL MOTORS CORP.

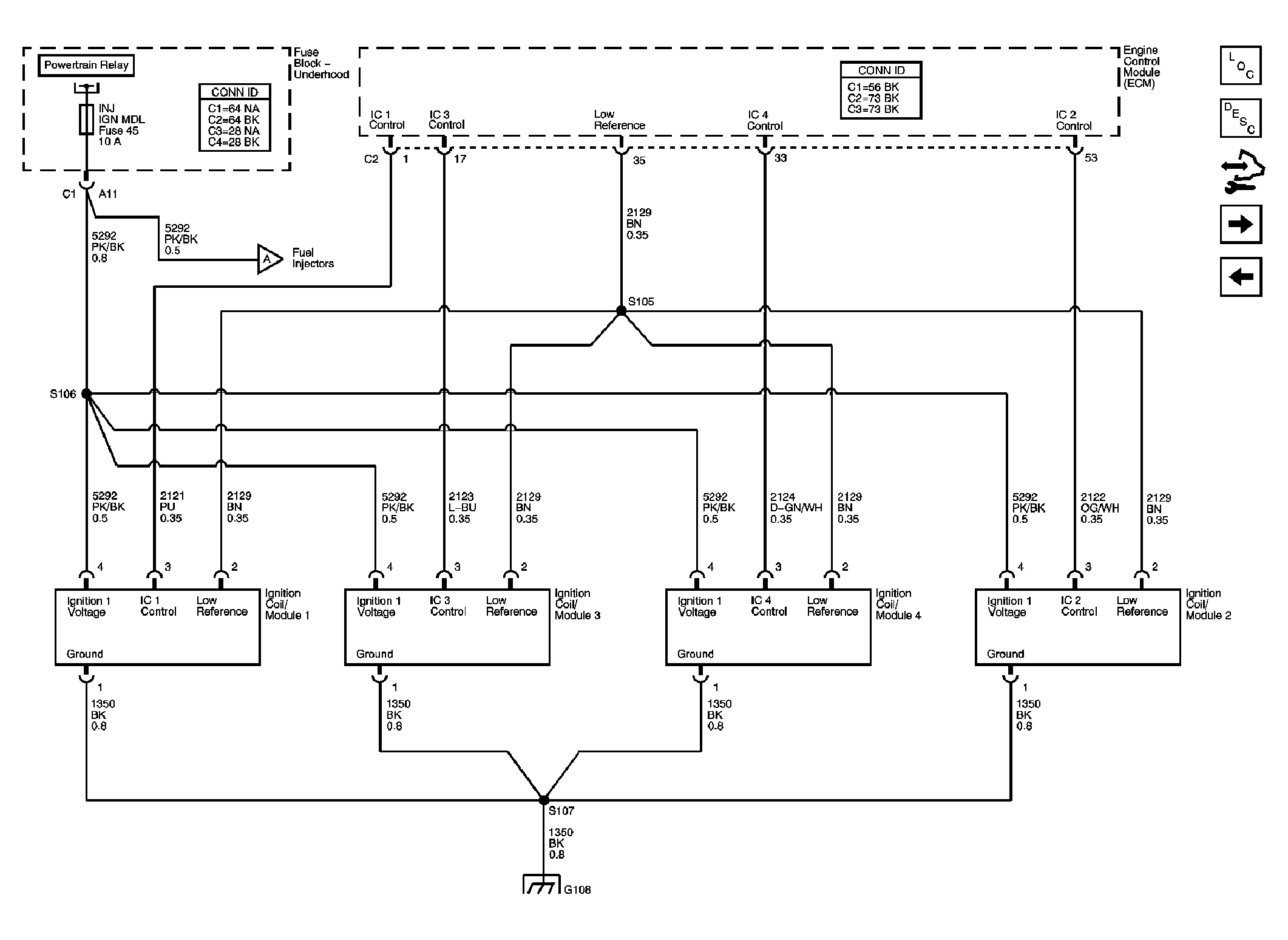

Fig 6: Ignition Controls - Ignition System
GM1769241Courtesy of GENERAL MOTORS CORP.

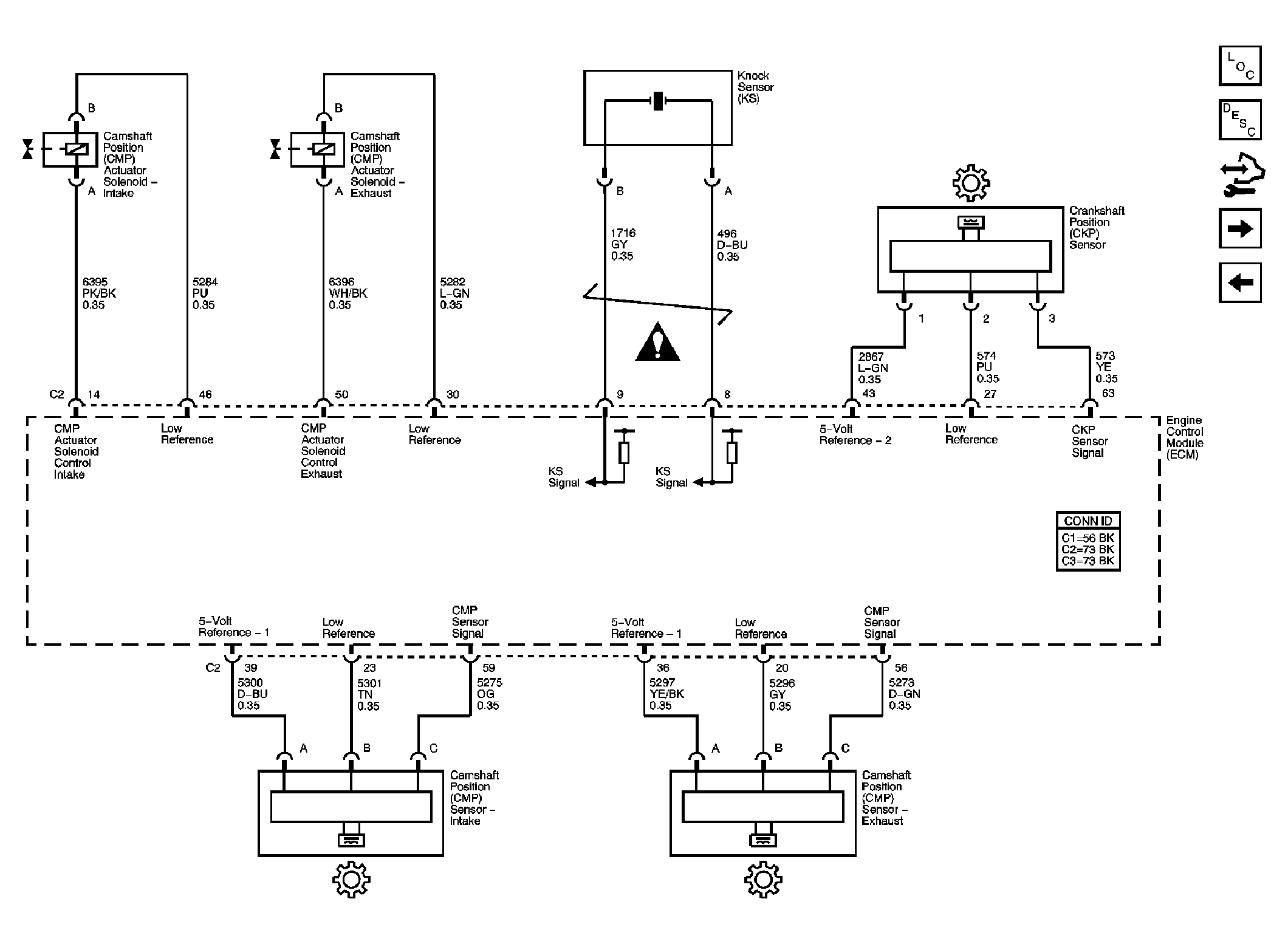

Fig 7: Ignition Controls - Sensors
GM1769271Courtesy of GENERAL MOTORS CORP.

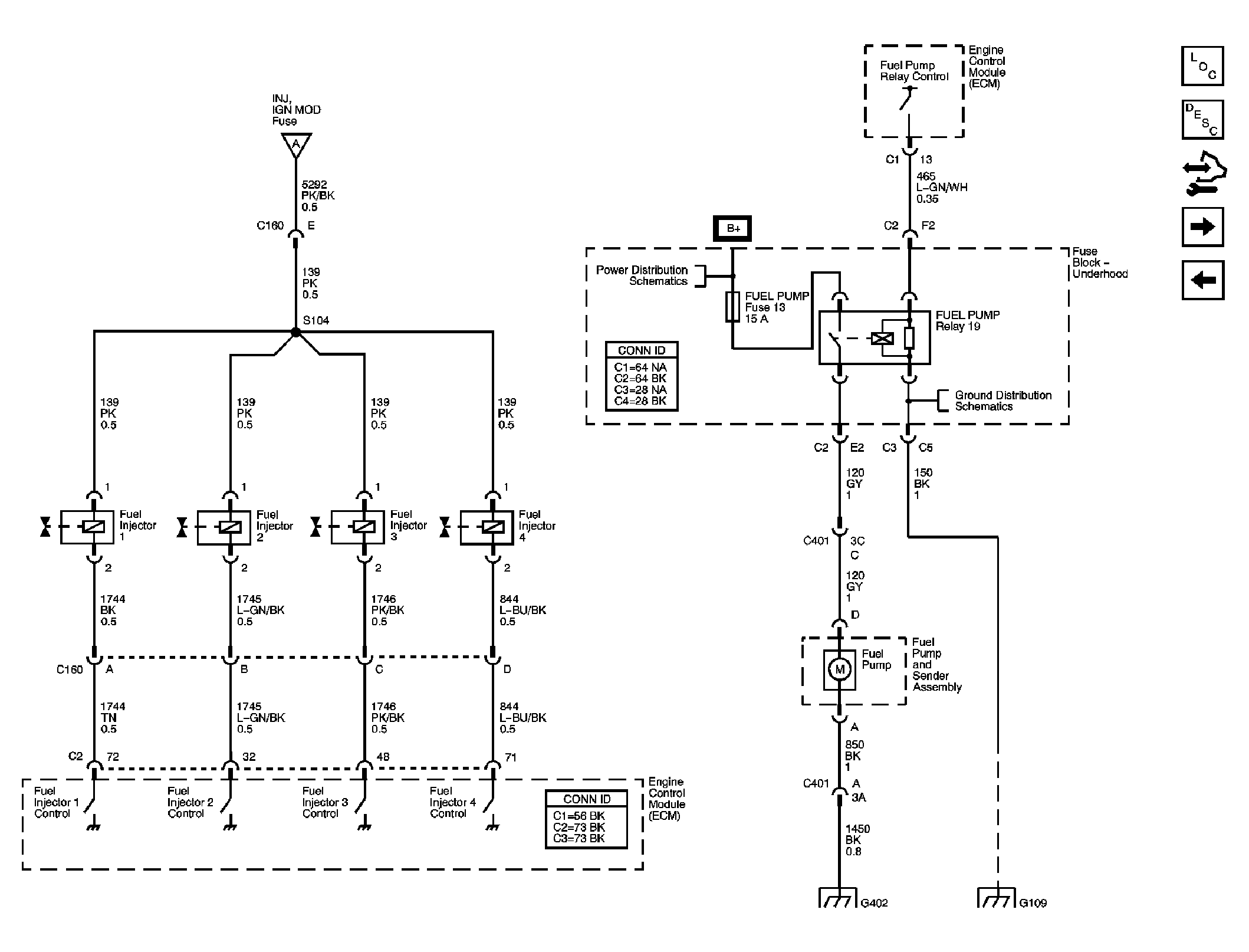

Fig 8: Fuel Controls
GM1769280Courtesy of GENERAL MOTORS CORP.

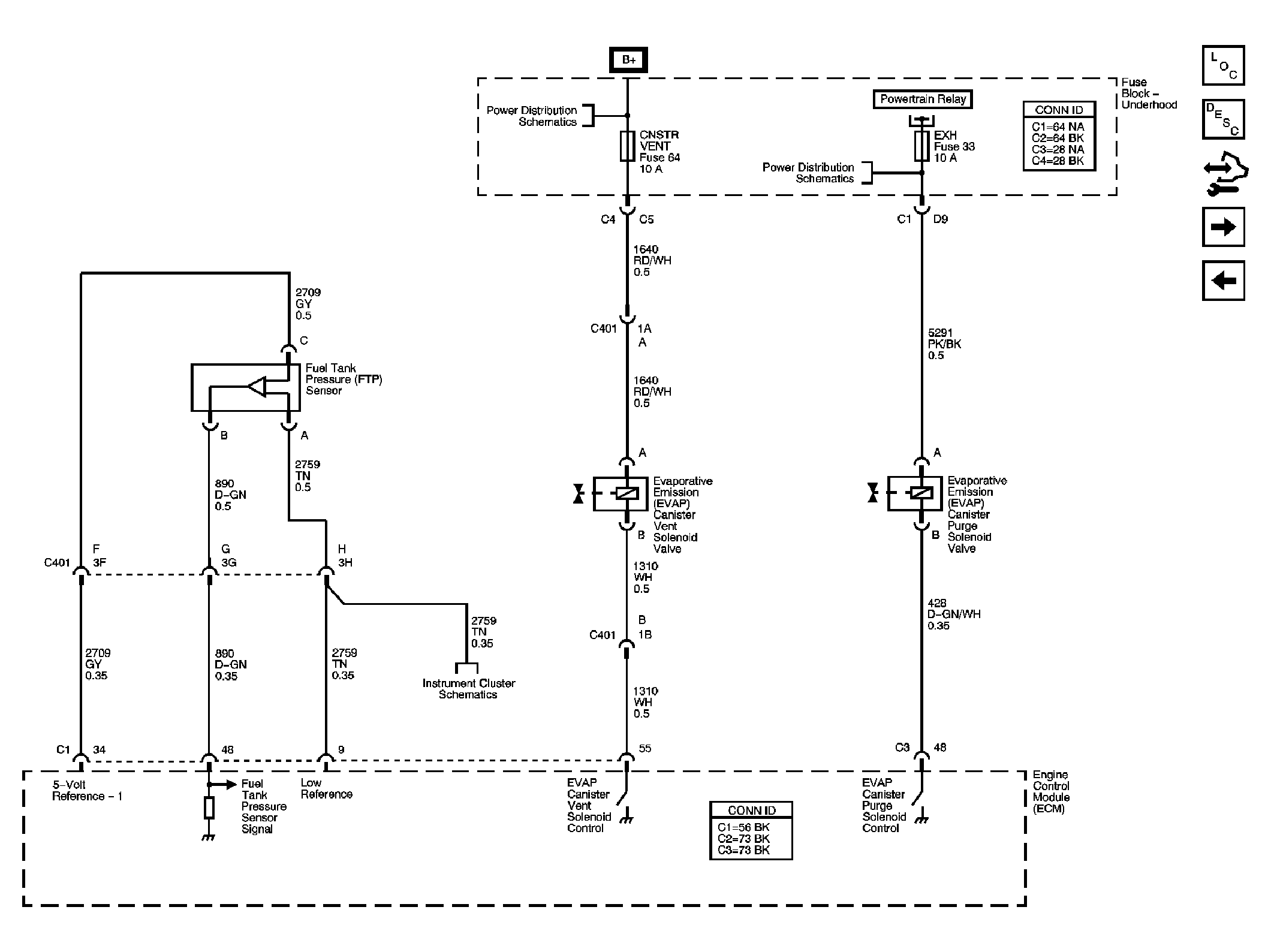

Fig 9: EVAP Controls
GM1769283Courtesy of GENERAL MOTORS CORP.

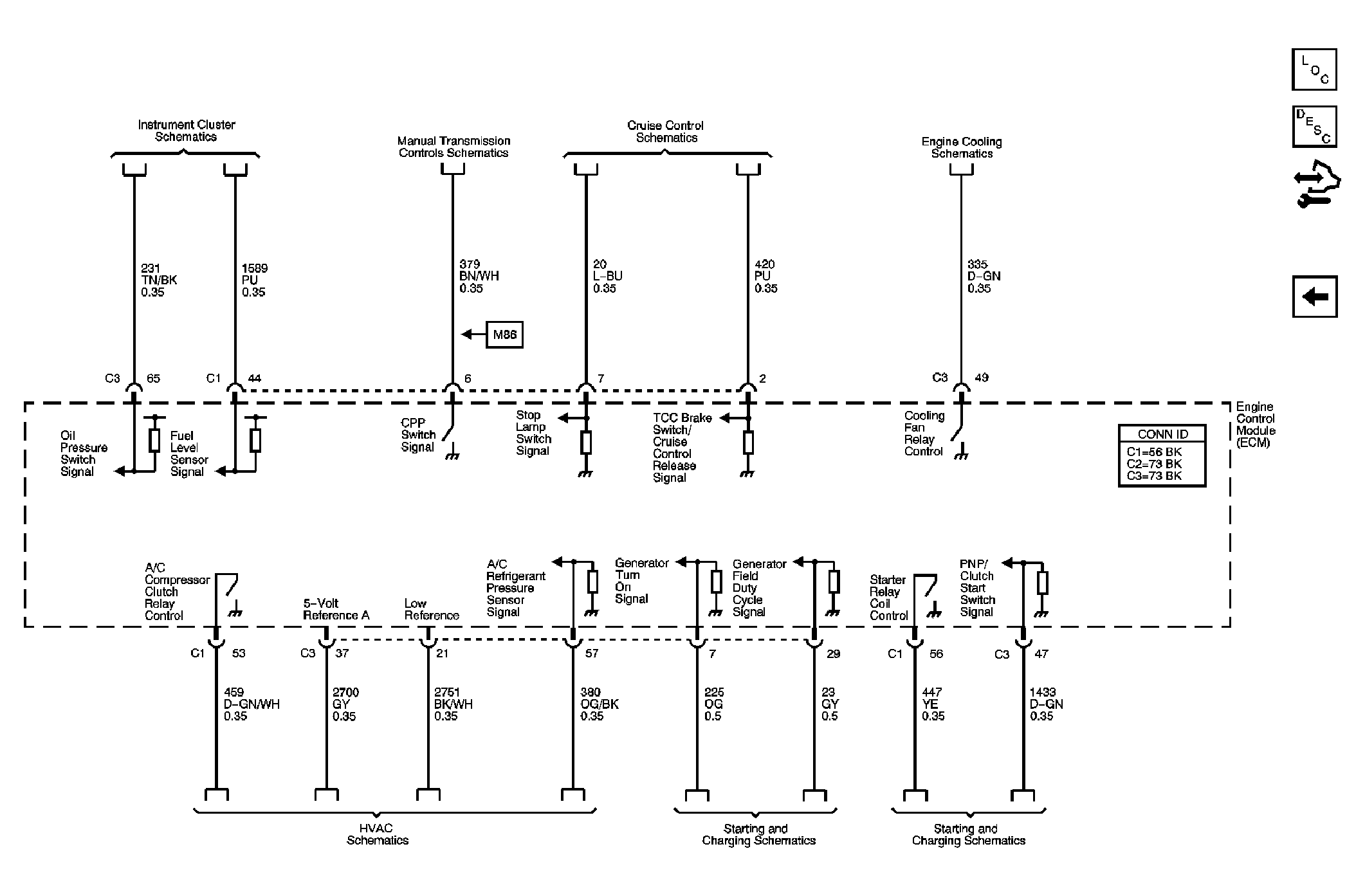

Fig 10: Controlled/Monitored Subsystem References
GM1769288Courtesy of GENERAL MOTORS CORP.
