Power Steering Schematics

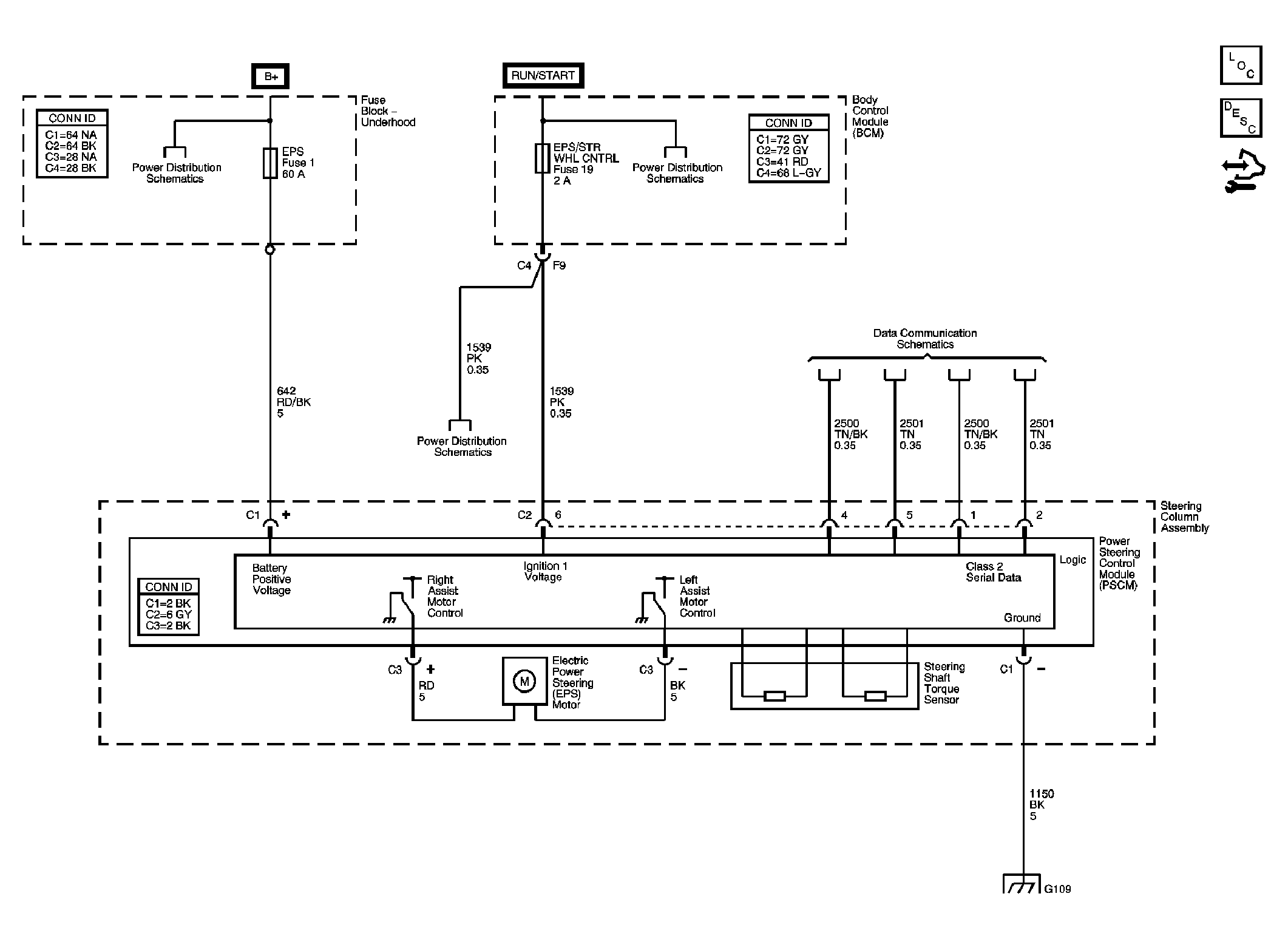

Fig 1: Power Steering Schematic

GM1769183

Courtesy of GENERAL MOTORS CORP.
