Cruise Control System Wiring Schematics: K34

WARNING: This page is about a different car, the 2011 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

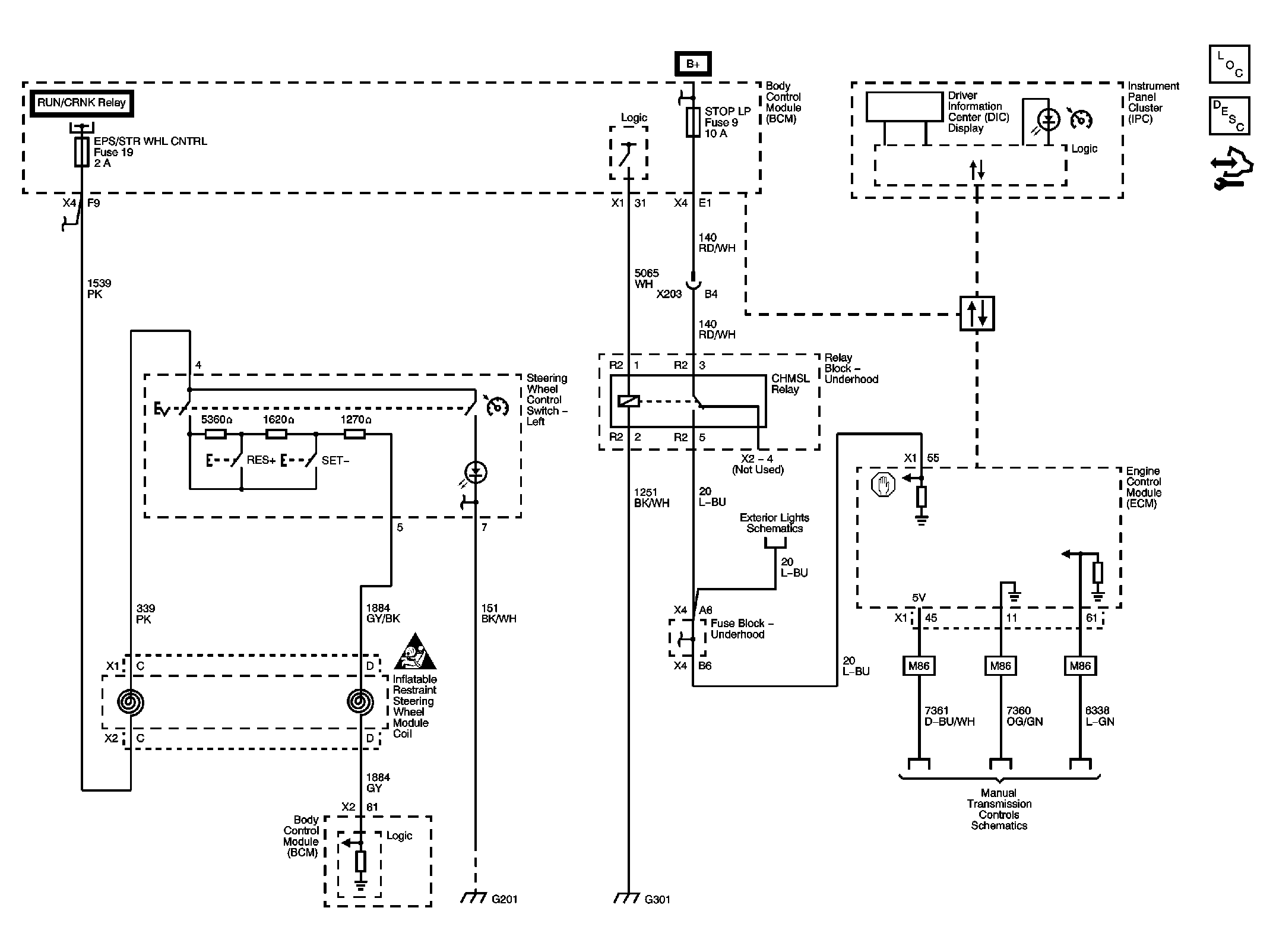

Fig 1: K34 Wiring Schematic
GM2376925Courtesy of GENERAL MOTORS COMPANY
