Installation Procedure

WARNING: This page is about a different car, the 2011 GMC Canyon and 2011 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

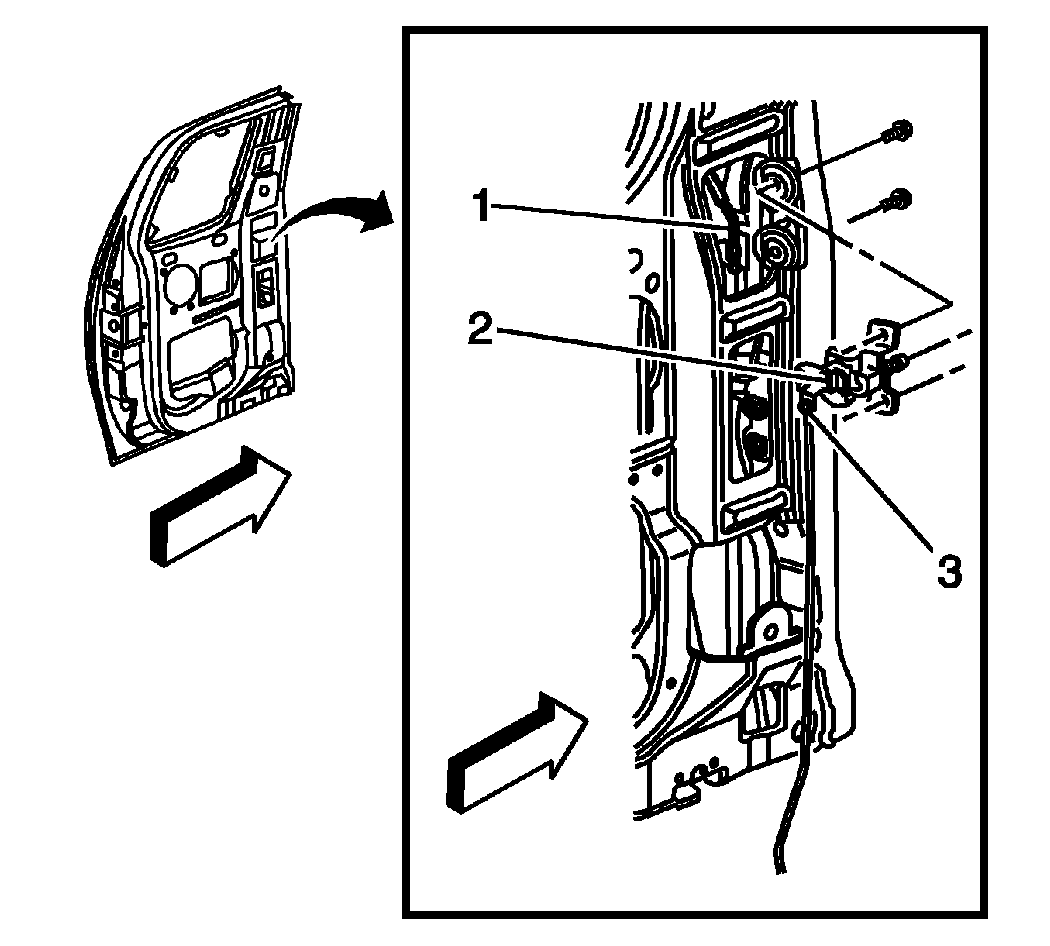

    Fig 1: View Of Latch Control Assembly
    GM1252376Courtesy of GENERAL MOTORS CORP.
  1. Install the latch control assembly to the rear side access door.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the bolts retaining the latch control assembly to the rear side access door.

    Tighten:  Tighten the latch control assembly bolts to 9 N.m (80 lb in).

  3. Connect the lower latch rod to the latch control assembly using the retaining clip (3).
  4. Connect the upper latch rod (1) to the control assembly using the retaining clip (2).
  5. Install the rear side access door latch control handle. Refer to Rear Side Access Door Inside Handle Replacement .
  6. Install the rear side access door trim panel. Refer to Rear Side Access Door Trim Panel Replacement .
  7. Close the rear side access door.
