Installation Procedure

WARNING: This page is about a different car, the 2011 GMC Canyon and 2011 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

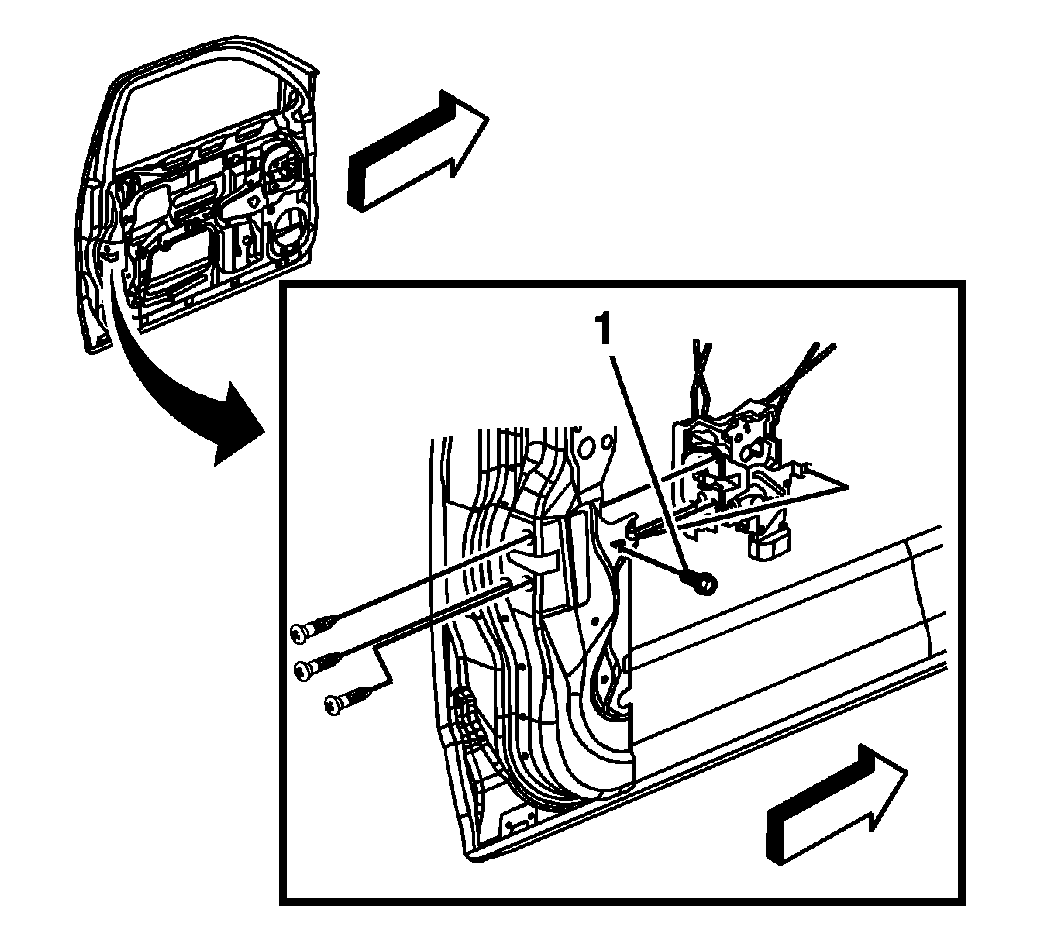

    Fig 1: View Of Door Lock Assembly
    GM1252408Courtesy of GENERAL MOTORS CORP.
  1. Install the door lock assembly to the door.
  2. Connect the electrical connector to the front door lock assembly, if equipped with AU3.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the screws retaining the door lock assembly to the door.

    Tighten:  Tighten the door lock screws to 7 N.m (62 lb in).

  4. Install the bolt (1) retaining the door lock assembly to the inner panel, if equipped with AU3.

    Tighten:  Tighten the door lock bolt (1) to 9 N.m (80 lb in).

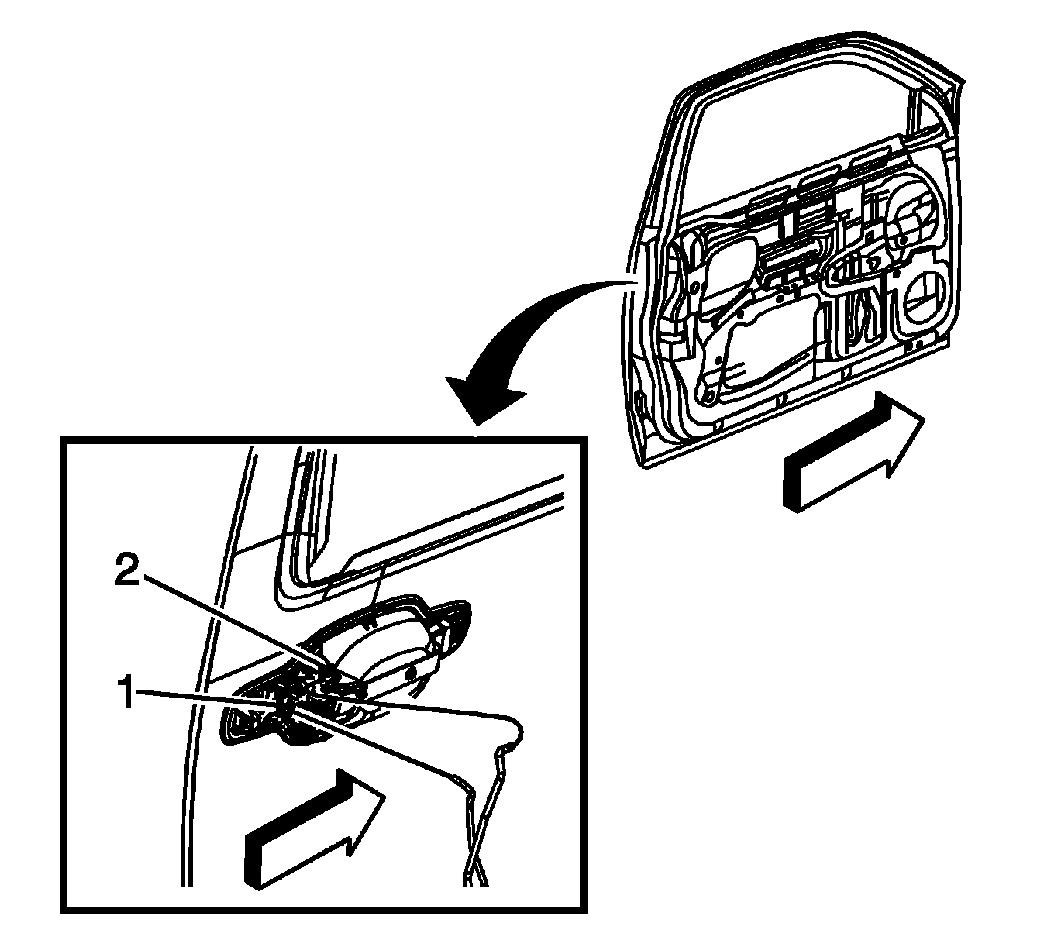

    5. Fig 2: Lock Cylinder Rod & Outside Door Handle Rod Retaining Clips
    GM1252411Courtesy of GENERAL MOTORS CORP.
  5. Connect the lock cylinder rod to the lock cylinder using the retaining clip (1).
  6. Connect the outside door handle rod to the door handle using the retaining clip (2).

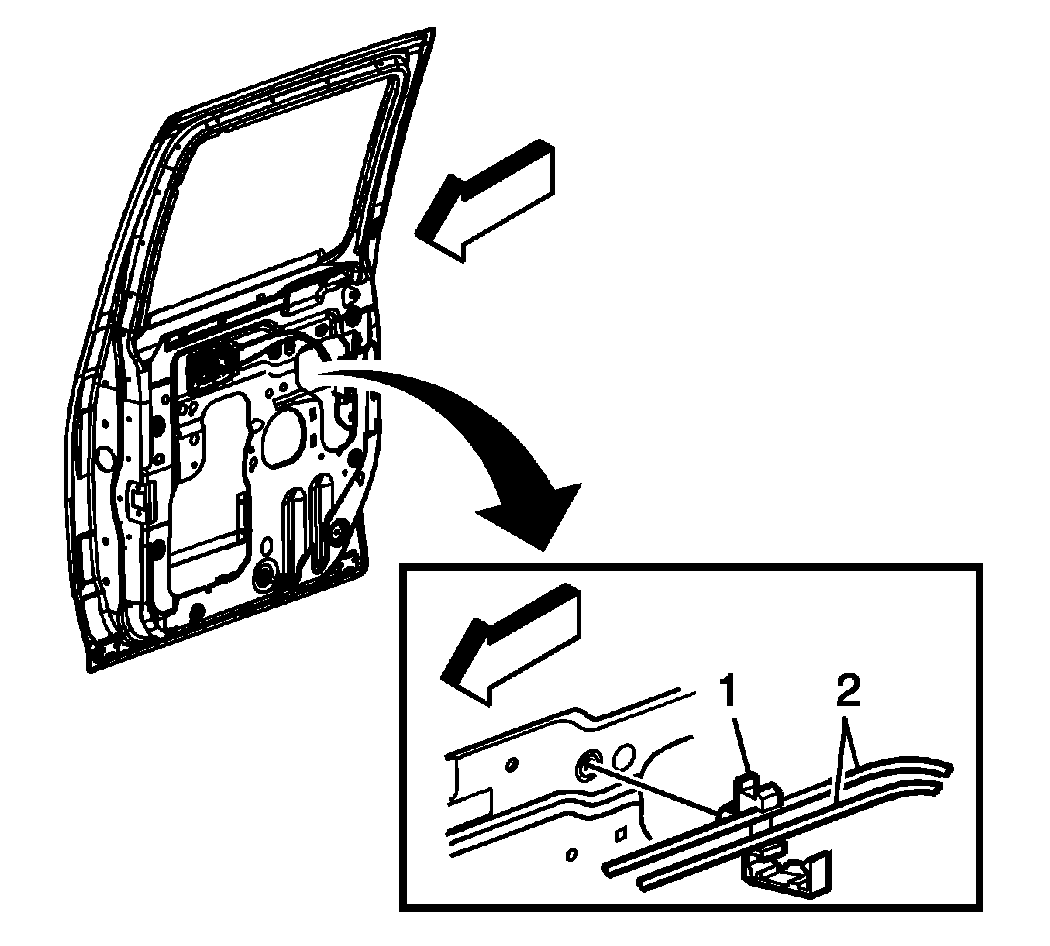

    7. Fig 3: View Of Door Lock Cable Retainer & Lock Cables
    GM1256431Courtesy of GENERAL MOTORS CORP.
  7. Install the lock cables (2) into the lock cable retainer (1) and connect the retainer.
  8. Install the front door window run channel. Refer to Front Side Door Window Channel Replacement .
  9. Install the front inside door handle. Refer to Front Side Door Inside Handle Replacement .
  10. Install the front door water deflector. Refer to Front Side Door Water Deflector Replacement .
  11. Install the front door trim panel. Refer to Front Side Door Trim Panel Replacement .
