Installation Procedure

WARNING: This page is about a different car, the 2011 GMC Canyon and 2011 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

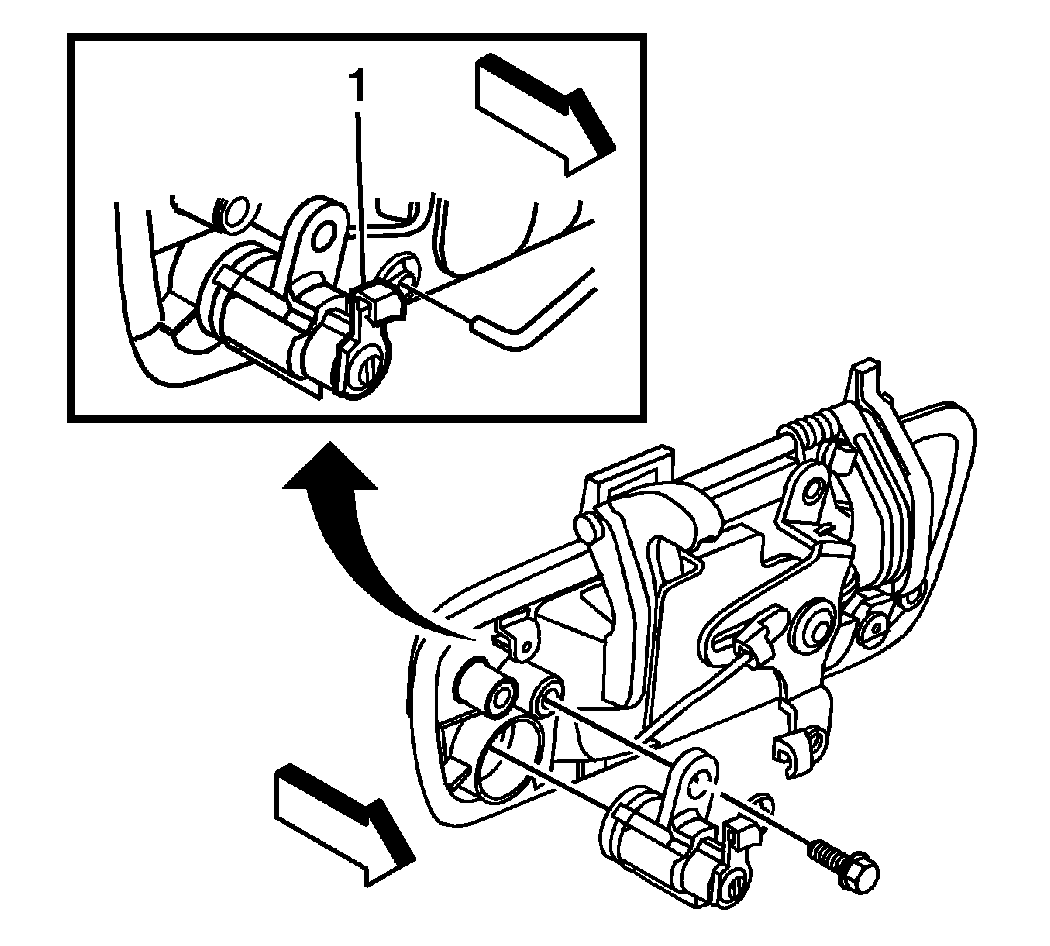

    Fig 1: View Of Endgate Lock Cylinder
    GM1245379Courtesy of GENERAL MOTORS CORP.
  1. Code the new lock cylinder. Refer to Key and Lock Cylinder Coding .
  2. Install the lock cylinder to the endgate handle.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the bolt retaining the lock cylinder to the endgate handle.

    Tighten:  Tighten the lock cylinder bolt to 9 N.m (80 lb in).

  4. Install the lock rod to the retaining clip (1).
  5. Connect the clip (1) retaining the lock rod to the lock cylinder.
  6. Install the endgate cover. Refer to Pickup Box Endgate Latch Cover Replacement .
