Installation Procedure

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

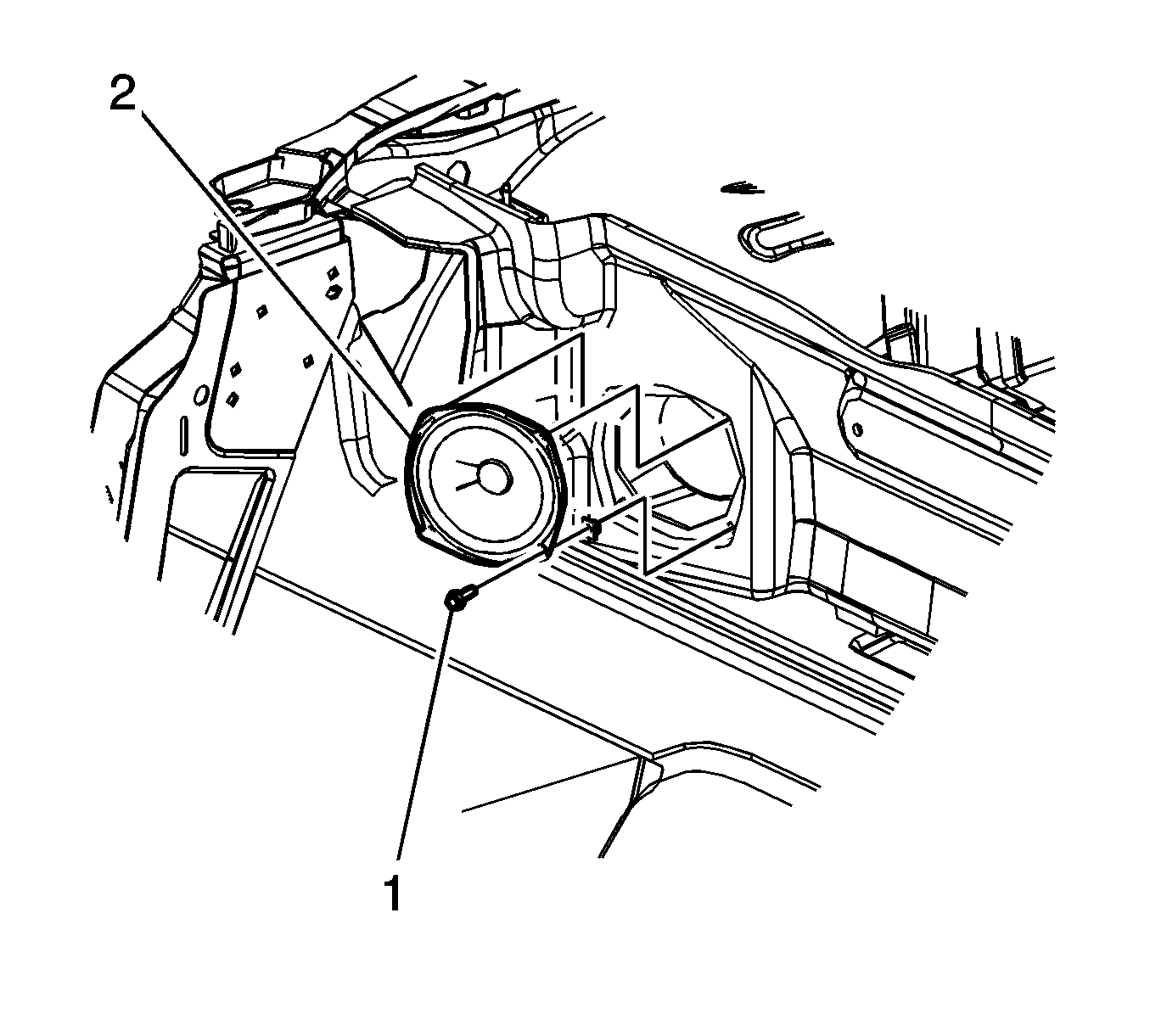

    Fig 1: View Of Speaker
    GM1504009Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector to the speaker.
  2. Position the speaker in the opening in the trim panel.
  3. Install the screws securing the speaker to the trim panel.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Tighten the screws.

    5. Tighten:  Tighten the screws to 2 N.m (18 lb in)

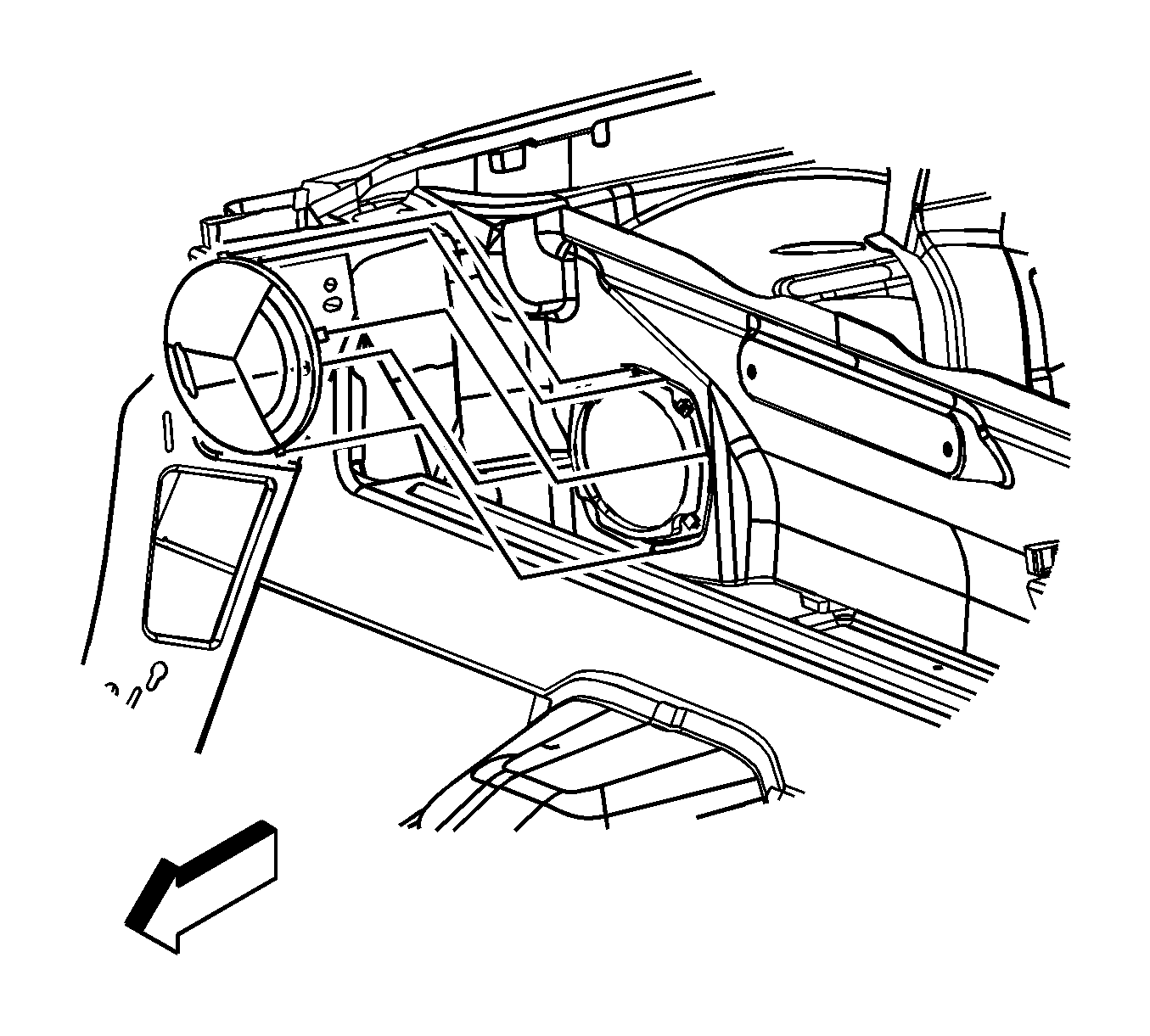

    Fig 2: Locating Speaker Cover
    GM1517924Courtesy of GENERAL MOTORS CORP.
  5. Position the tabs on the speaker grill to the slots in the trim panel.
  6. Push the speaker grill inward until fully seated against the trim panel.
  7. Return the tonneau cover and folding top to their original positions.
