Moveable Window Schematics

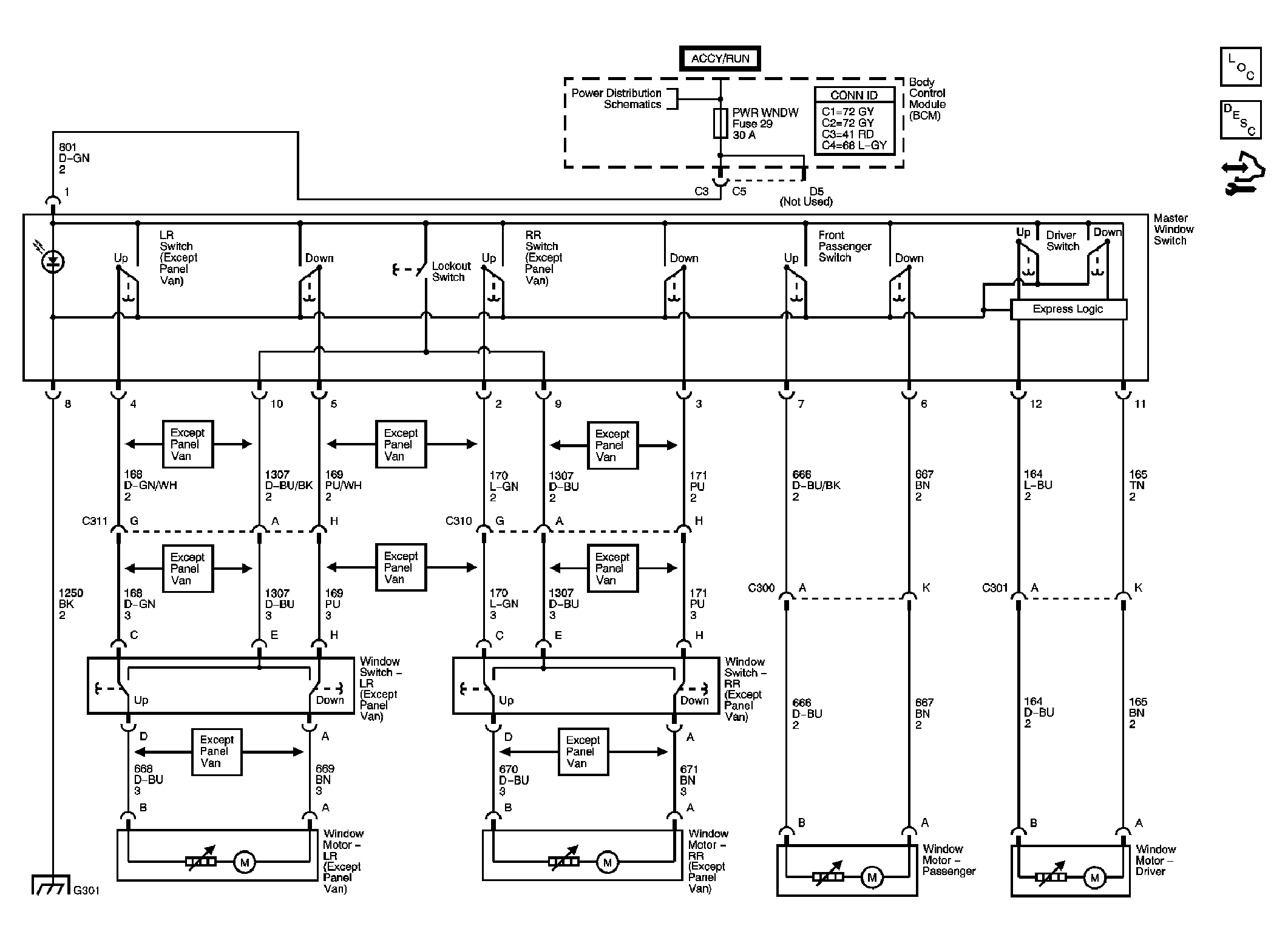

Fig 1: Moveable Window Schematic

GM1769370

Courtesy of GENERAL MOTORS CORP.
