Power Moding Schematics

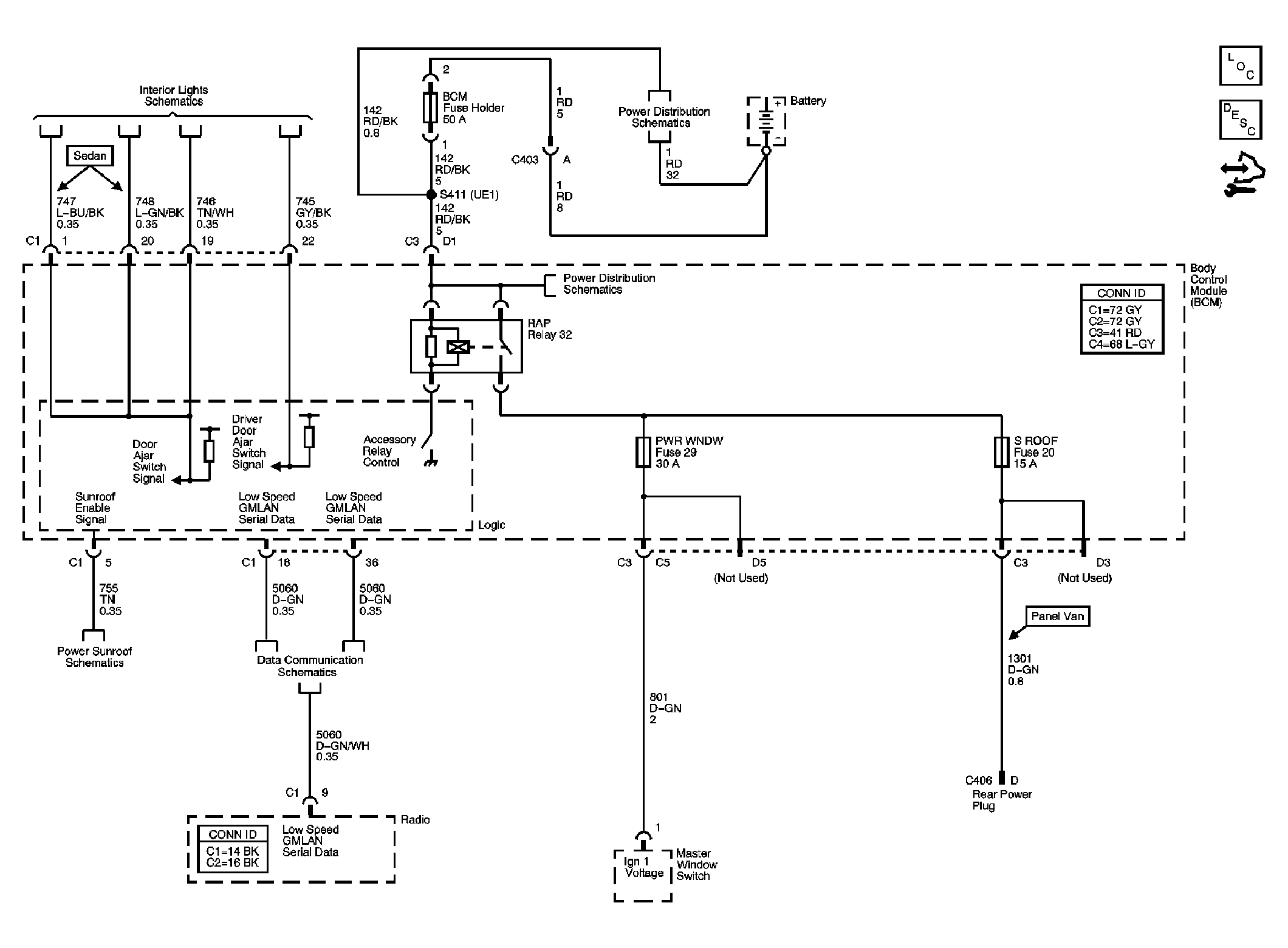

Fig 1: Retained Accessory Power (RAP)

GM1769817

Courtesy of GENERAL MOTORS CORP.
