Ground Distribution Schematics

Fig 1: G103, G105, G107, and G108
GM1769825Courtesy of GENERAL MOTORS CORP.

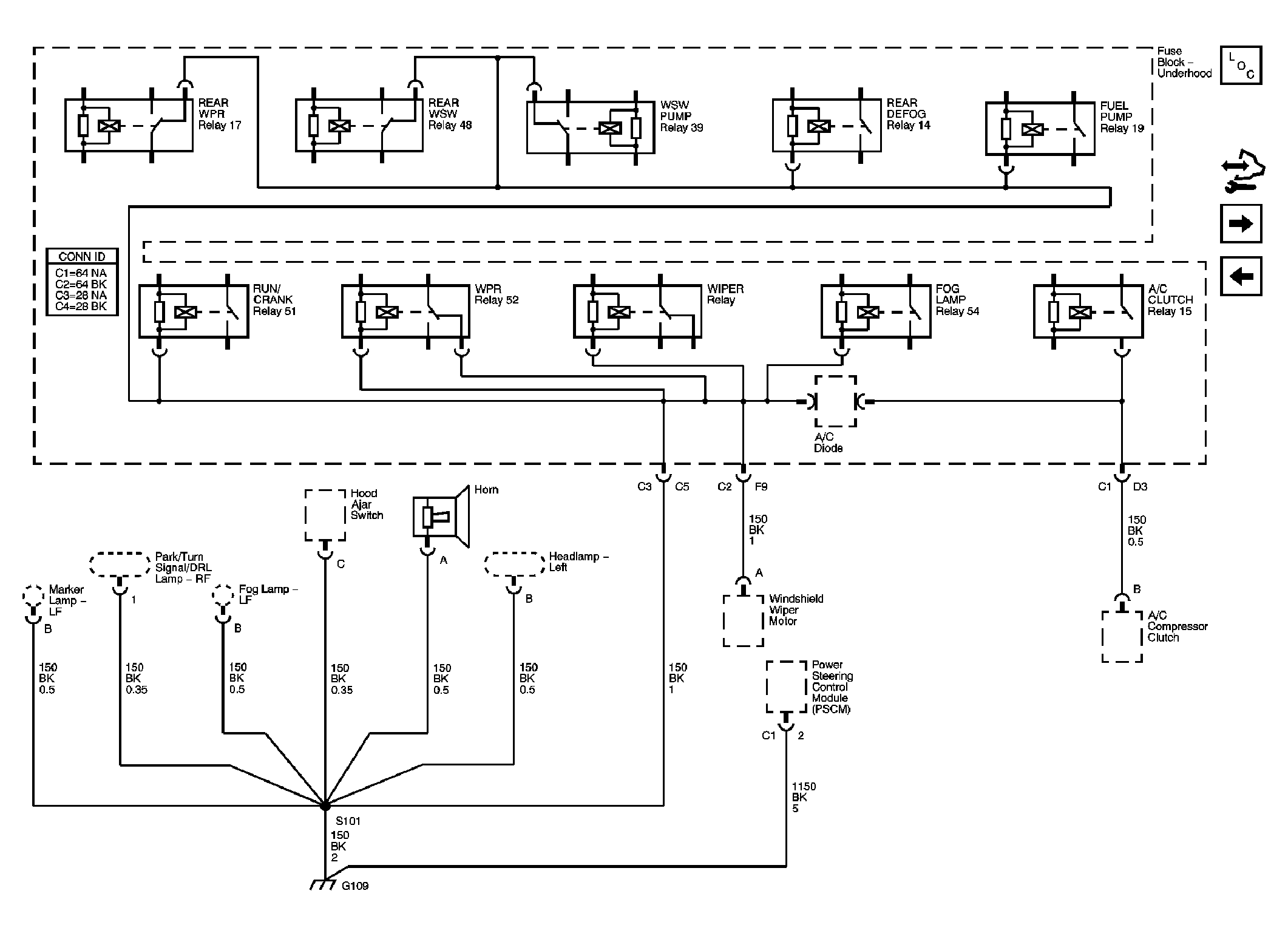

Fig 2: G109
GM1769826Courtesy of GENERAL MOTORS CORP.
Fig 3: G111
GM1769827Courtesy of GENERAL MOTORS CORP.

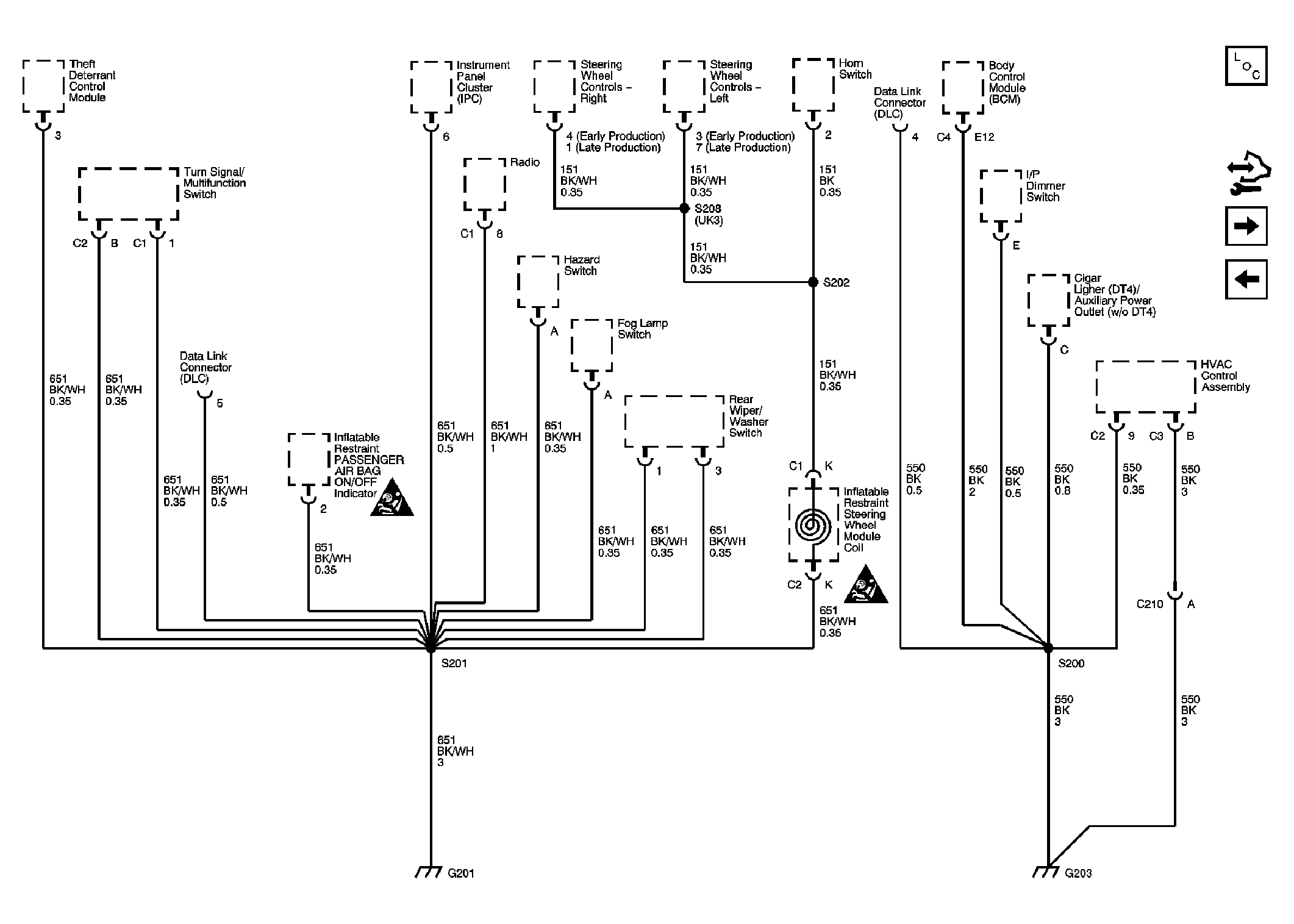

Fig 4: G201 and G203
GM1769828Courtesy of GENERAL MOTORS CORP.

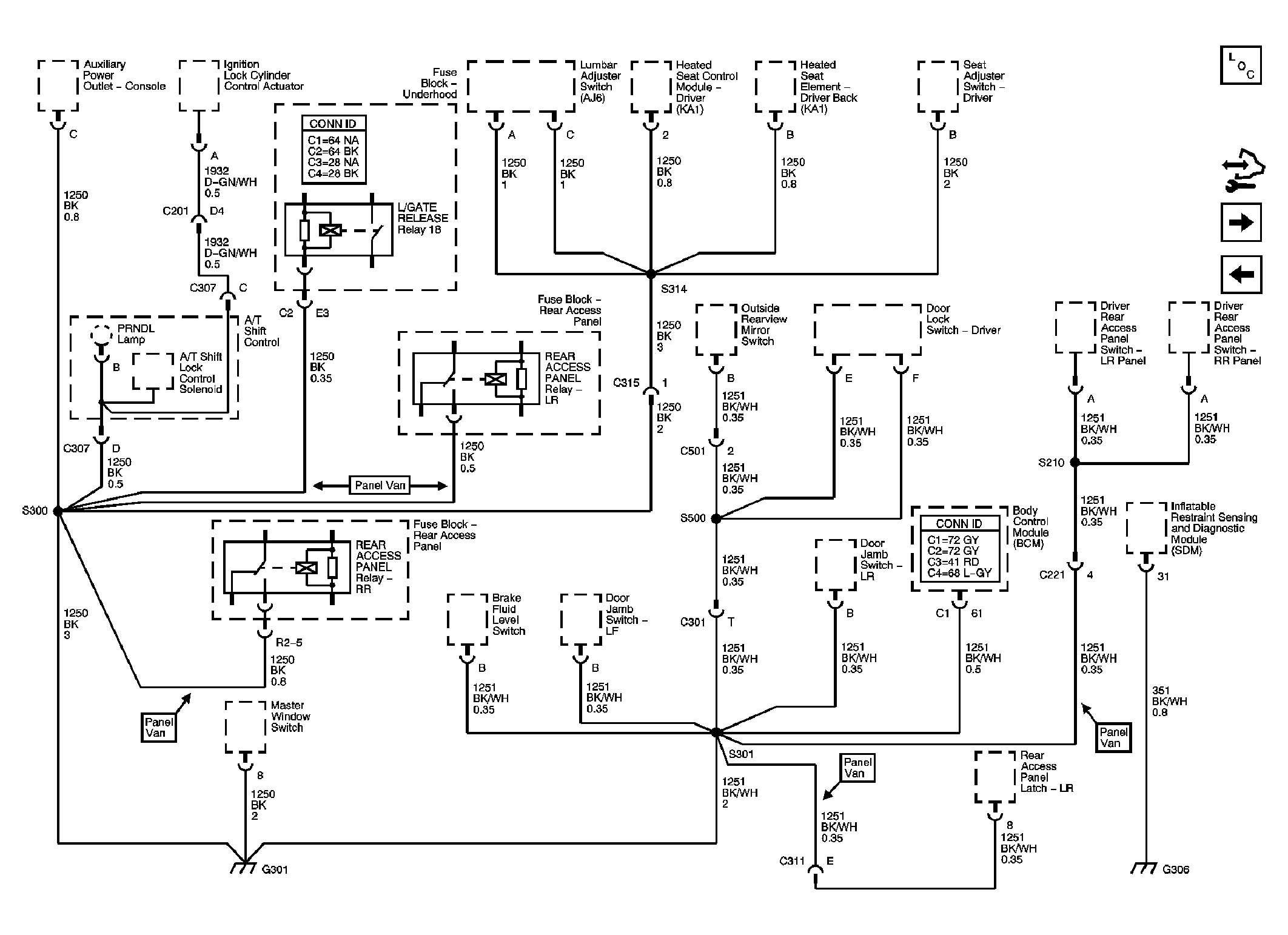

Fig 5: G301 and G306
GM1769830Courtesy of GENERAL MOTORS CORP.

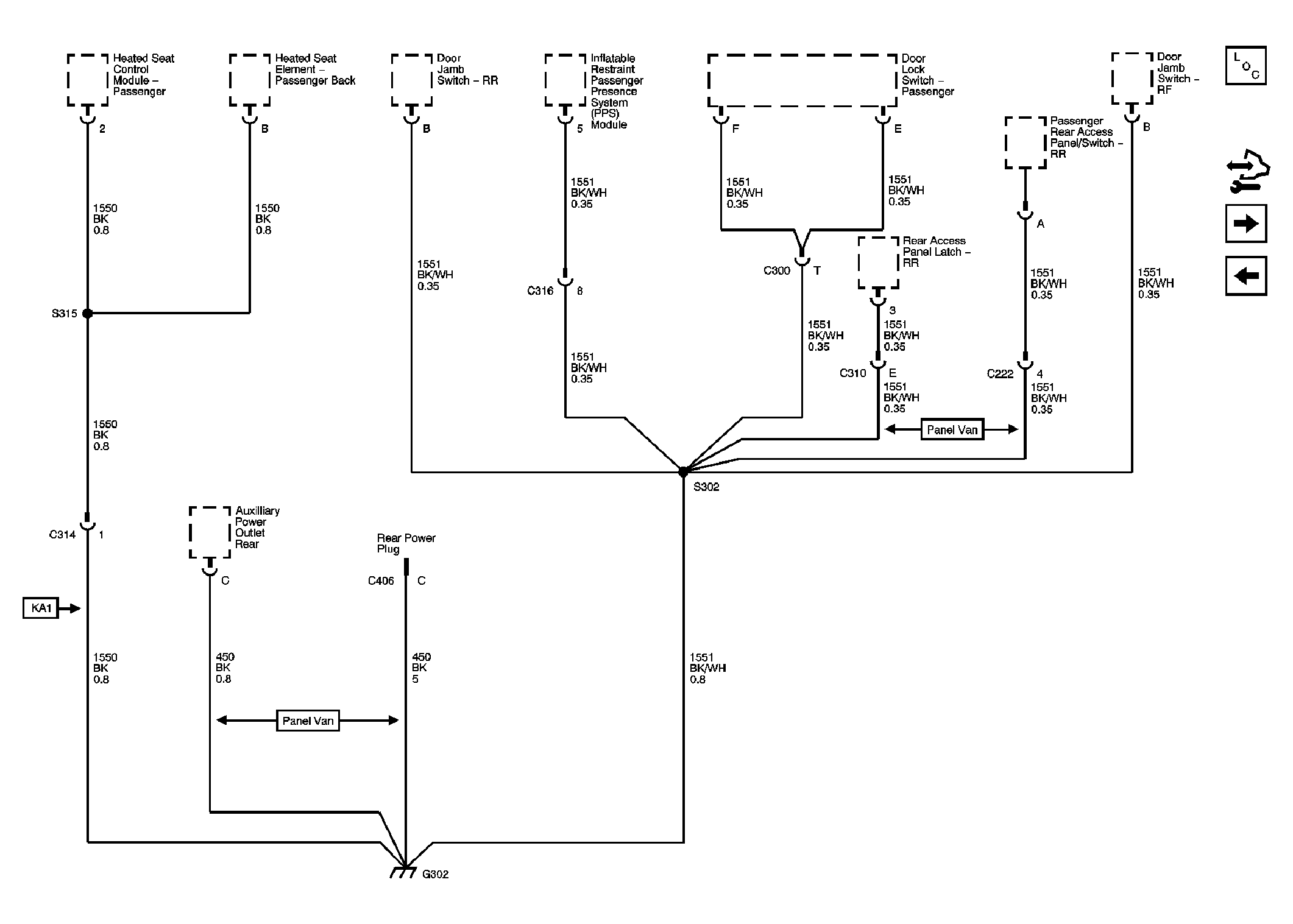

Fig 6: G302
GM1769831Courtesy of GENERAL MOTORS CORP.

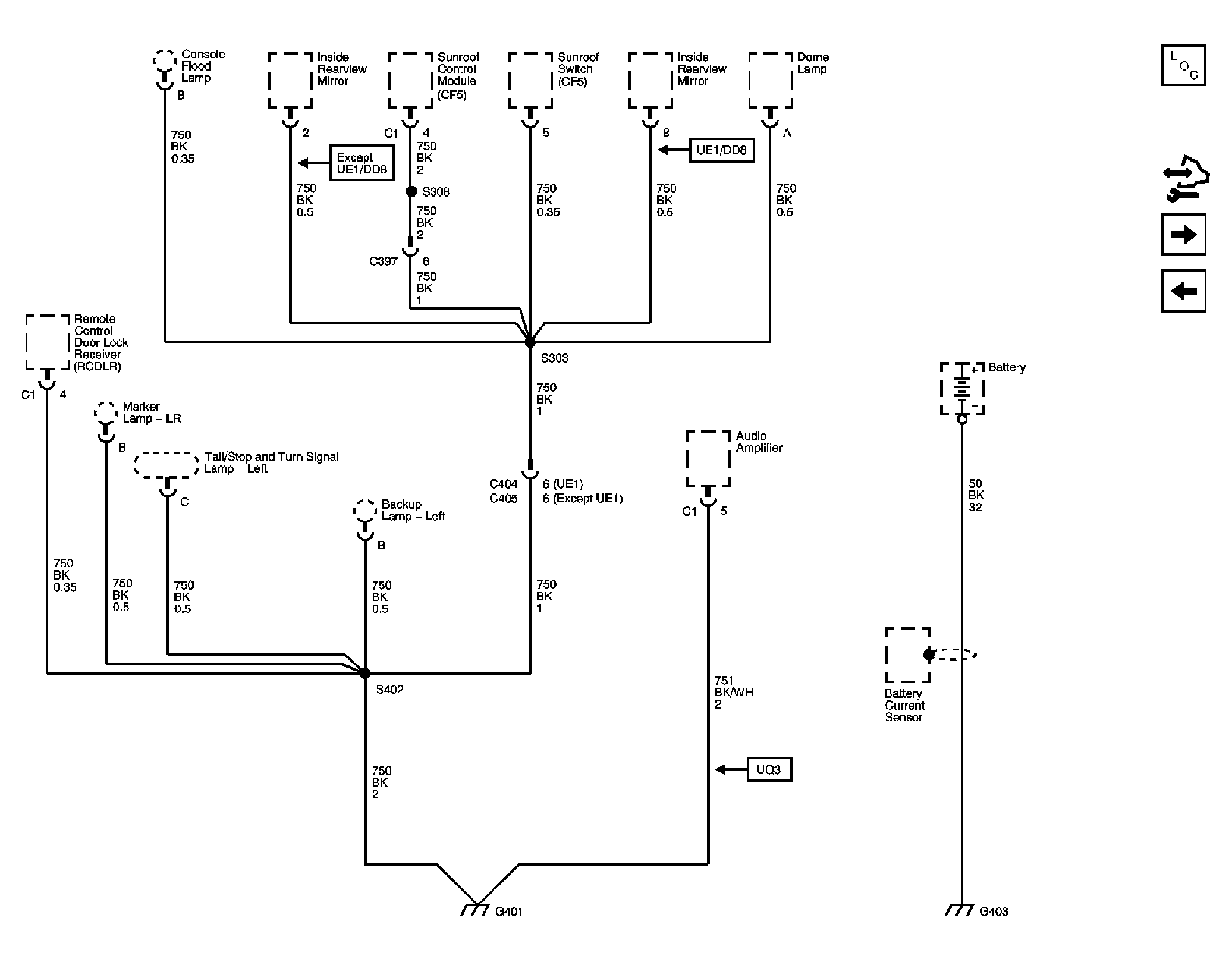

Fig 7: G401 and G403
GM1769832Courtesy of GENERAL MOTORS CORP.

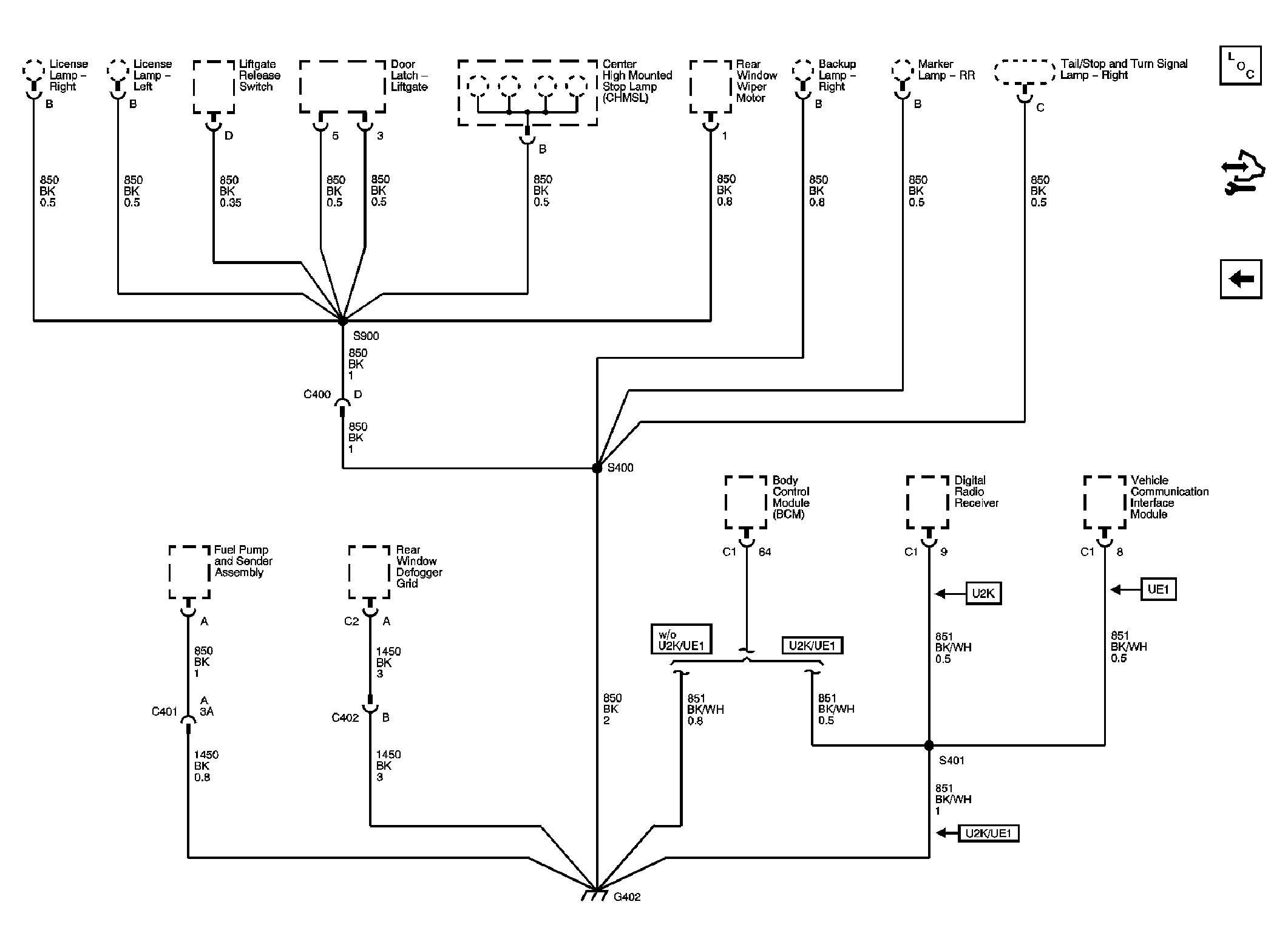

Fig 8: G402
GM1769833Courtesy of GENERAL MOTORS CORP.
